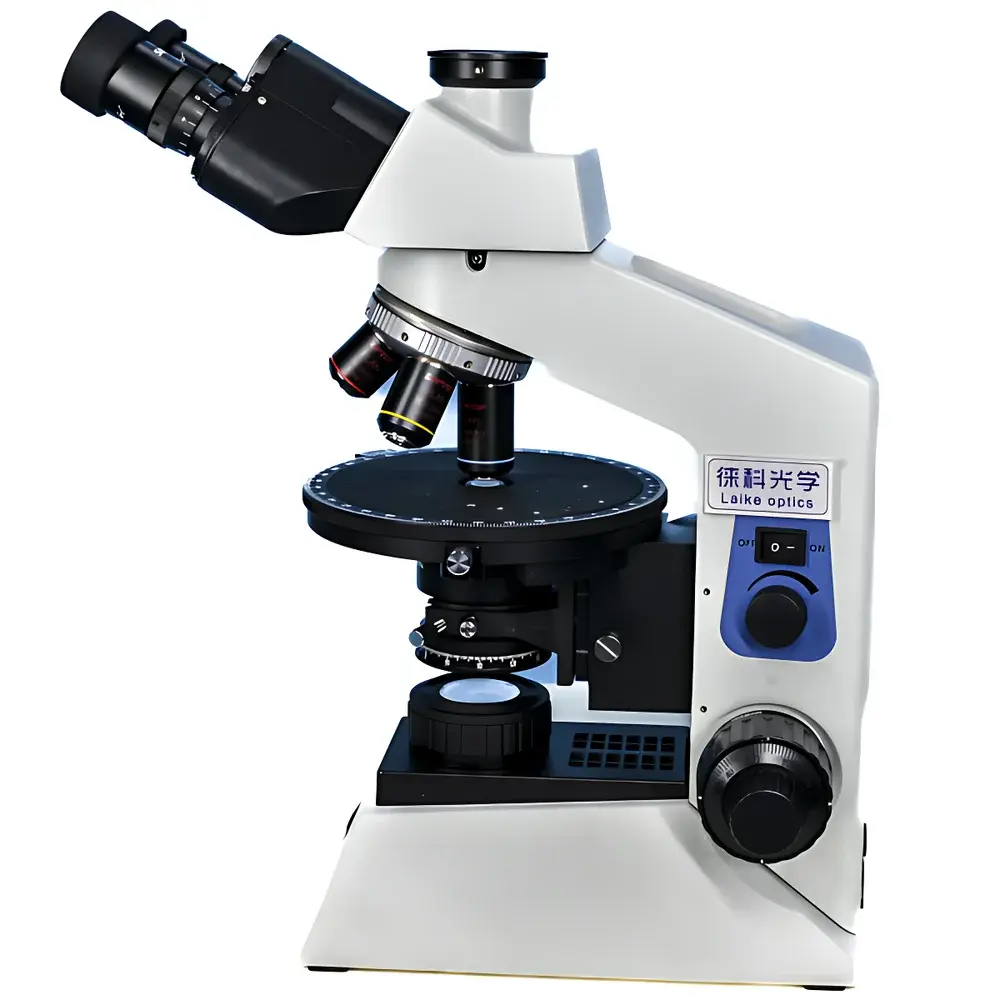

LEI-TECH LK-530P-S Professional Asbestos Identification Polarizing Microscope

Overview

The LEI-TECH LK-530P-S is a purpose-built polarizing microscope engineered for standardized asbestos fiber identification and mineralogical characterization in accordance with international regulatory methodologies—including ASTM D7200, ISO 22262-1, and EPA Method 600/R-93/116 (PLM). It operates on the fundamental principles of optical crystallography: birefringence, extinction angle, interference color, sign of elongation, retardation, and pleochroism. By combining high-fidelity polarization optics with precise mechanical control, the LK-530P-S enables reliable differentiation among the six regulated asbestos types—chrysotile (white asbestos), amosite (brown asbestos), crocidolite (blue asbestos), anthophyllite, tremolite, and actinolite—based on their diagnostic optical properties under crossed polars and compensator-enhanced observation.

Key Features

• Infinity-corrected optical path (UISC design) ensures consistent image fidelity across all magnifications and accessory configurations, minimizing chromatic and spherical aberrations inherent in finite-conjugate systems.
• High-stability LED illumination system (3 W, 5,000 h minimum lifetime) delivers stable color temperature (4,000–5,000 K neutral white), eliminating thermal drift and halogen replacement cycles common in legacy tungsten-halogen setups.
• Precision 360° rotating mechanical stage with engraved 1° scale, ±6′ angular resolution, and dual-axis (X/Y) translation; surface-treated with graphite coating for corrosion resistance and low-friction rotation; lockable at any orientation to maintain extinction alignment during systematic fiber analysis.
• Rotatable polarizer assembly with indexed 0°/90°/180°/270° detents and fine-tuning lock—critical for accurate extinction angle measurement per ISO 22262-1 Annex B.
• Bertrand lens with ergonomic lever-driven toggle mechanism for rapid switching between conoscopic and orthoscopic observation modes—essential for determining optic sign and 2V angle.
• Integrated compensator turret accommodating standard λ (551 nm), λ/4 (147.3 nm), and quartz wedge plates—enabling quantitative retardation assessment and unambiguous identification of fiber orientation and sign of elongation.
• Köhler illumination with NA 1.25 stress-free Abbe condenser, center-adjustable and rack-and-pinion height control—ensuring uniform, glare-free illumination across the full field of view.

Sample Compatibility & Compliance

The LK-530P-S is validated for use with standard asbestos air filter mounts (e.g., mixed cellulose ester, polycarbonate) and bulk building material thin sections (≤30 µm thickness). Its optical calibration supports compliance with OSHA ID-160, NIOSH 9002, and UK HSE MDHS 100/1 protocols. All optical components—including objectives, eyepieces, and compensators—are factory-aligned to meet ANSI Z80.10 and ISO 10934-1 tolerances for polarized light microscopy. The instrument’s mechanical stability and repeatable stage positioning support GLP-compliant documentation workflows when paired with certified digital imaging systems.

Software & Data Management

While the LK-530P-S is an analog-dominant platform optimized for hands-on mineralogical interpretation, it integrates seamlessly with third-party digital imaging systems via CTV video port (C-mount). When coupled with compliant image acquisition software (e.g., ImageJ with PLM plugins or commercial packages supporting ASTM E2318 metadata tagging), users can generate audit-ready reports including calibrated field-of-view coordinates, stage rotation angles, compensator settings, and annotated fiber morphology measurements. Optional digital modules support real-time extended focus imaging (EFI) and multi-image alignment (MIA) for comprehensive fiber mapping—particularly valuable in heterogeneous bulk samples where spatial context affects regulatory classification.

Applications

• Regulatory asbestos clearance testing in construction and demolition waste
• Forensic identification of asbestos-containing materials (ACMs) in building surveys
• Research-grade mineral phase analysis in geology and materials science laboratories
• Quality assurance in industrial hygiene laboratories performing NIOSH- or AIHA-accredited analyses
• Educational training in optical mineralogy and occupational health curricula
• Reference laboratory verification of TEM/SEM findings where fiber aspect ratio and crystallinity require orthogonal confirmation

FAQ

Does the LK-530P-S comply with ASTM D7200 for asbestos identification?

Yes—the optical configuration, stage precision, compensator specifications, and illumination uniformity meet all instrumental requirements outlined in ASTM D7200-22 Section 7.
Can the microscope be used for non-asbestos fiber analysis (e.g., fiberglass, aramid)?

Yes—its full polarization suite and high-resolution optics support comparative morphological and optical property analysis of synthetic and natural elongate particulate matter.
Is the 360° rotating stage calibrated for quantitative extinction angle measurement?

Yes—the engraved scale is traceably calibrated to ±6 arcminutes, and the locking mechanism maintains angular position within ±0.5° over repeated cycles.
What is the warranty coverage and service response time?

LEI-TECH provides a 24-month limited warranty covering optical and mechanical components, with 7×24 technical support and regional service centers across Asia, Europe, and North America.
Are refractive index immersion oils included with purchase?

Yes—each unit ships with a certified set of three immersion oils (n = 1.55, 1.62, and 1.69) and a complete reference set of NIST-traceable asbestos standard slides (chrysotile, amosite, crocidolite, anthophyllite, tremolite, actinolite).
