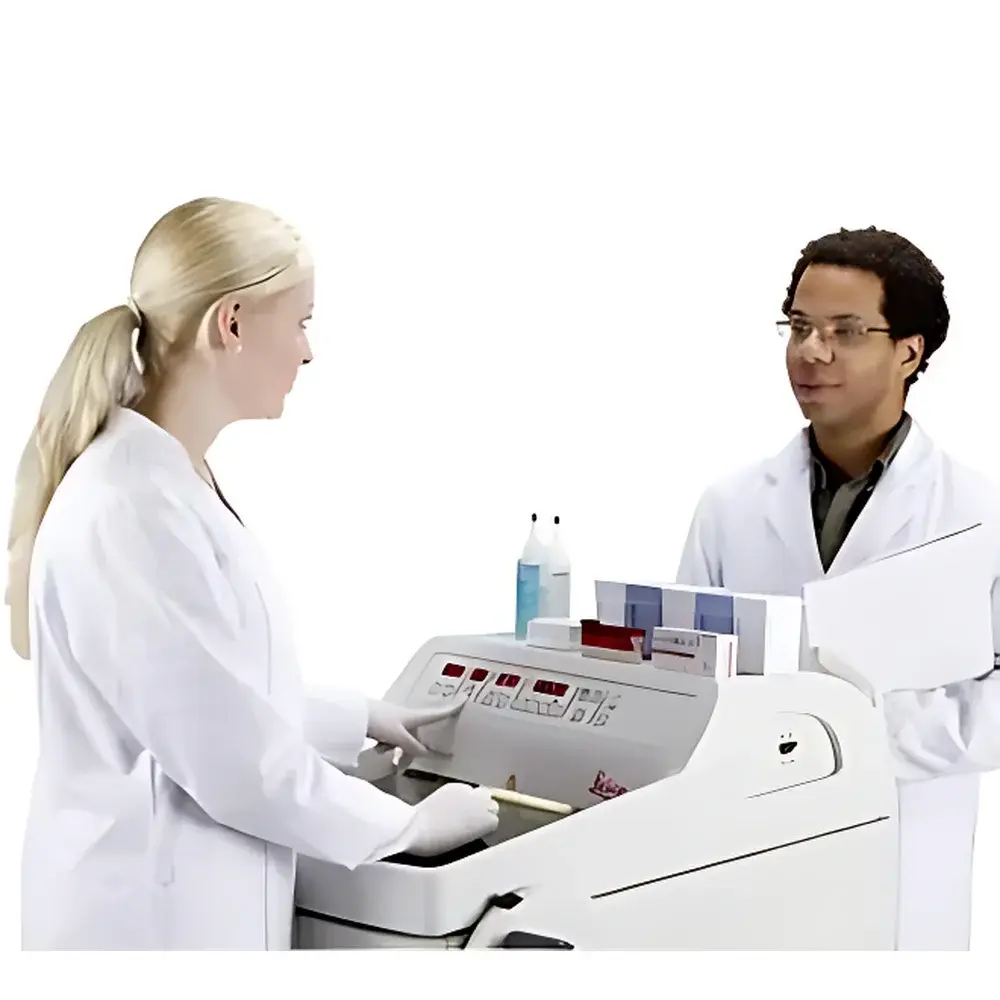

Leica CM1860UV Cryostat Microtome

Overview

The Leica CM1860UV is a CE-marked, motorized cryostat microtome engineered for high-precision frozen sectioning in diagnostic histopathology, research laboratories, and clinical pathology workflows. It operates on the principle of cryo-microtomy—rapidly freezing biological tissue specimens to maintain structural integrity and antigenicity, followed by precise mechanical sectioning at sub-zero temperatures. Designed and manufactured in Germany, the CM1860UV integrates thermoelectric cooling, stepper motor-driven advancement, and an optimized thermal management system to ensure stable chamber temperature control between –35 °C and –25 °C. Its fully encapsulated microtome mechanism minimizes exposure to cold air currents and condensation, thereby enhancing section reproducibility and reducing operator-induced variability. Unlike conventional open-chamber cryostats, the CM1860UV features a sealed optical path and laminar airflow design that supports consistent ribbon formation and reduced chatter artifacts—even for challenging tissues such as fatty, calcified, or decalcified samples.

Key Features

• UVC disinfection system (254 nm wavelength) integrated into the cryochamber ceiling and external surfaces, delivering automated, ozone-free decontamination cycles compliant with ISO 15883-1 for medical device reprocessing.
• AgProtect™ nanosilver antimicrobial coating applied to all high-touch external surfaces—including control panel, specimen stage, and door handles—to reduce surface bioburden per ISO 22196:2011 standards.
• CE-certified blade holder with integrated finger guard, one-touch blade ejector, and magnetic compatibility for Leica’s proprietary brush technique—ensuring safe, repeatable blade handling without direct contact.
• Ergonomic palm rest positioned adjacent to the handwheel, designed to reduce wrist flexion and muscular fatigue during extended sectioning sessions; validated per ISO 6385:2016 ergonomic principles.
• Fully encapsulated microtome base with sealed stepper motor drive and dust-resistant linear guides—eliminating need for routine lubrication and minimizing maintenance intervals.
• Intuitive icon-based control interface with direct-access function keys; no nested menus required—reducing training time and supporting rapid protocol execution in time-critical intraoperative settings.

Sample Compatibility & Compliance

The CM1860UV accommodates standard OCT-embedded tissue blocks (up to 30 × 30 × 20 mm), biopsy specimens, and small animal organ sections. It supports both manual and semi-automated sectioning modes, with adjustable trimming and sectioning speeds optimized for soft neural tissues, fibrous connective tissues, and heterogeneous tumor samples. All materials in contact with specimens—including the object plate, knife holder, and anti-roll plate—are autoclavable or compatible with hospital-grade disinfectants (e.g., 70% ethanol, 0.5% sodium hypochlorite). The instrument complies with IEC 61010-1:2010 (safety requirements for laboratory equipment), IEC 60601-1:2012 (medical electrical equipment), and EN 14155:2013 (cryostat-specific performance criteria). UVC cycle logs are timestamped and exportable via USB, supporting GLP/GMP documentation requirements under FDA 21 CFR Part 11 when paired with validated LIMS integration.

Software & Data Management

While the CM1860UV operates as a standalone hardware platform without embedded touchscreen OS, its UVC disinfection cycles and operational parameters (chamber temp, section thickness, cycle count) are logged internally with real-time timestamps. Logs can be exported in CSV format via USB port for integration into laboratory information systems (LIS) or quality management software (QMS). Optional Leica Biosystems’ LAS X Connect module enables remote monitoring of chamber status, maintenance alerts, and firmware update notifications—fully auditable for ISO 13485-certified labs. All firmware updates undergo full regression testing per IEC 62304:2015 Class B software lifecycle requirements.

Applications

• Intraoperative frozen section diagnosis requiring <5-minute turnaround times for margin assessment in breast, brain, and gastrointestinal oncology.
• Immunohistochemistry (IHC) and fluorescence in situ hybridization (FISH) sample preparation where epitope preservation is critical.
• Neuroscience research involving serial sectioning of rodent brain tissue for 3D reconstruction and spatial transcriptomics.
• Dermatopathology workflows demanding ultra-thin (3–5 µm), wrinkle-free sections from melanocytic lesions.
• Biobanking operations requiring standardized, traceable sectioning protocols across multiple operators and shifts.

FAQ

Does the CM1860UV require external exhaust ventilation for UVC operation?
No—the UVC lamps emit only germicidal 254 nm radiation and generate zero ozone; therefore, no dedicated ducting or fume hood integration is required.
Can the AgProtect™ coating be reapplied after extended use or cleaning?
The nanosilver layer is permanently bonded to stainless steel and polymer surfaces during manufacturing and does not degrade under routine alcohol- or quaternary ammonium-based disinfection protocols.
Is the stepper motor resolution programmable below 0.5 µm?
No—the minimum selectable section thickness is 0.5 µm, consistent with ISO 15189:2022 requirements for diagnostic histology precision.
What is the maximum recommended daily sectioning volume for sustained reliability?
Leica specifies up to 200 high-quality sections per day (at 4–5 µm thickness) under continuous operation, assuming adherence to scheduled cleaning and chamber defrost cycles.
Does the CM1860UV support third-party blade systems?
Only CE-certified Leica blades and holders are validated for use; non-OEM blades may compromise safety interlocks and section consistency, voiding regulatory compliance.
