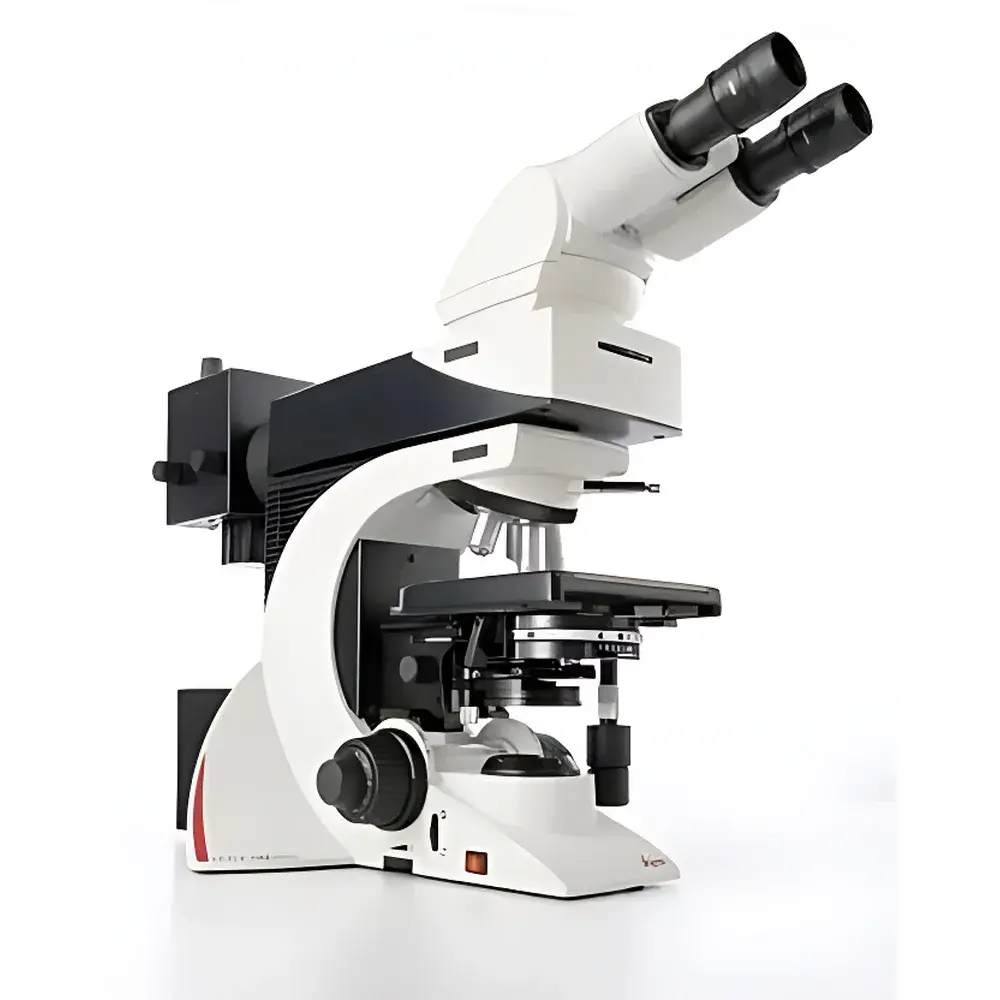

Leica DM2500 Upright Biological Microscope

Overview

The Leica DM2500 is a high-performance upright biological microscope engineered for demanding routine and research applications in pathology, cytology, hematology, and live-cell observation. Built upon Leica’s decades of optical engineering heritage and adapted for precision manufacturing in Shanghai under strict quality oversight, the DM2500 integrates advanced Köhler illumination, modular contrast optics, and human-centered ergonomics into a single robust platform. Its optical architecture supports simultaneous optimization across multiple contrast modalities—brightfield, darkfield, phase contrast, differential interference contrast (DIC), polarization, and fluorescence—without mechanical realignment or compromise in resolution or signal-to-noise ratio. The system employs a stable, vibration-damped base and thermally stabilized LED illumination delivering consistent 100 W halogen-equivalent luminance with minimal thermal drift and zero warm-up delay—critical for longitudinal imaging sessions and clinical throughput.

Key Features

• Ergonomic modularity: Fully adjustable binocular tube tilt (0°–35°), vertically relocatable focus knobs, and height-adjustable main frame enable personalized posture alignment—reducing cervical strain, shoulder fatigue, and repetitive motion injury during extended use.
• Symmetrical control layout: Coarse/fine focus knobs and XY mechanical stage levers are positioned for bilateral operation, minimizing spinal torsion and promoting neutral upper-limb biomechanics.
• Intelligent illumination management: Equipped with Leica’s SmartLight LED system featuring automatic intensity compensation during objective turret rotation—maintaining constant irradiance across magnifications and eliminating manual brightness recalibration and photostress-induced visual fatigue.
• Multi-modal contrast readiness: Standard integration of condenser aperture and field diaphragms, centerable swing-out phase rings, removable polarizers/analyzer, and DIC slider slots—all aligned to Leica’s precision optical axis without tool-assisted recentering.
• Fluorescence-grade optics: Accepts Leica’s full line of research-grade fluorescence filter cubes (e.g., GFP, RFP, DAPI, TRITC configurations) with zero-pixel-shift mounting technology ensuring spatial fidelity across repeated acquisitions and multi-channel overlay experiments.

Sample Compatibility & Compliance

The DM2500 accommodates standard glass slides (1″ × 3″), petri dishes (up to 100 mm diameter), and chambered coverglasses (e.g., Lab-Tek II). Its mechanical stage offers 76 × 52 mm travel range with sub-micron repeatability and optional motorized Z-drive for z-stack acquisition. All optical components comply with ISO 8578:2017 (microscope mechanical and optical performance standards) and meet IEC 61000-4-2/4-3 EMC requirements. For regulated environments, the system supports GLP/GMP documentation workflows when paired with Leica Application Suite (LAS X) v3.7+, enabling audit trails, user access control, and 21 CFR Part 11-compliant electronic signatures via optional software licensing.

Software & Data Management

While the DM2500 operates as a standalone optical instrument, it is fully compatible with Leica’s LAS X platform for digital image capture, annotation, measurement, and report generation. LAS X supports TIFF, JPEG2000, and proprietary LEI formats with embedded metadata (objective ID, magnification, exposure time, illumination mode). Integration with third-party analysis tools—including ImageJ/Fiji plugins, HALO® (Indica Labs), and Visiopharm®—is enabled via standardized DICOM-SR and OME-TIFF export protocols. Remote collaboration is facilitated through Leica’s DM Live streaming module, allowing real-time co-viewing and annotation across secure LAN/WAN networks.

Applications

The DM2500 serves as a primary diagnostic and research workhorse in clinical pathology labs performing histopathological evaluation of H&E-, PAS-, and trichrome-stained sections; in academic cytology units conducting Pap smear screening and fine-needle aspiration analysis; in hematology departments quantifying peripheral blood smears and bone marrow aspirates; and in translational research settings monitoring fluorescently labeled organelles, cytoskeletal dynamics, or calcium flux in adherent or suspension cultures. Its DIC and polarization capabilities further support collagen fiber orientation studies in connective tissue biopsies and birefringence-based crystal detection in gout or pseudogout diagnostics.

FAQ

Is the DM2500 manufactured in Germany?
No—the DM2500 is assembled and quality-certified at Leica’s ISO 13485–certified facility in Shanghai, China, under direct technical supervision from Wetzlar. Core optical components (objectives, prisms, filter cubes) are sourced from Germany.
Can the DM2500 be upgraded to motorized focus or automated stage?
Yes—retrofit kits for Z-motorization (DM2500 Z-Motor) and XY motorized stage (DM2500 Motorized Stage) are available and retain full compatibility with LAS X automation scripting.
Does the LED illumination support fluorescence longevity testing per ISO 10940?
Yes—the integrated 450 nm peak LED source delivers >20,000 hours L70 lifetime and complies with ISO 10940 Annex B for photostability assessment in quantitative fluorescence workflows.
Is the DM2500 compatible with third-party camera systems?
Yes—via C-mount (23.2 mm) or F-mount adapters, supporting industry-standard CMOS/CCD sensors up to 20 MP resolution with hardware-triggered exposure synchronization.
What multi-user configurations are supported?
The DM2500 serves as the core imaging engine for Leica’s DM1000–3000 series multi-head systems, accommodating up to five synchronized observation positions (e.g., DM2500-5H) with independent diopter and interpupillary adjustment per station.
