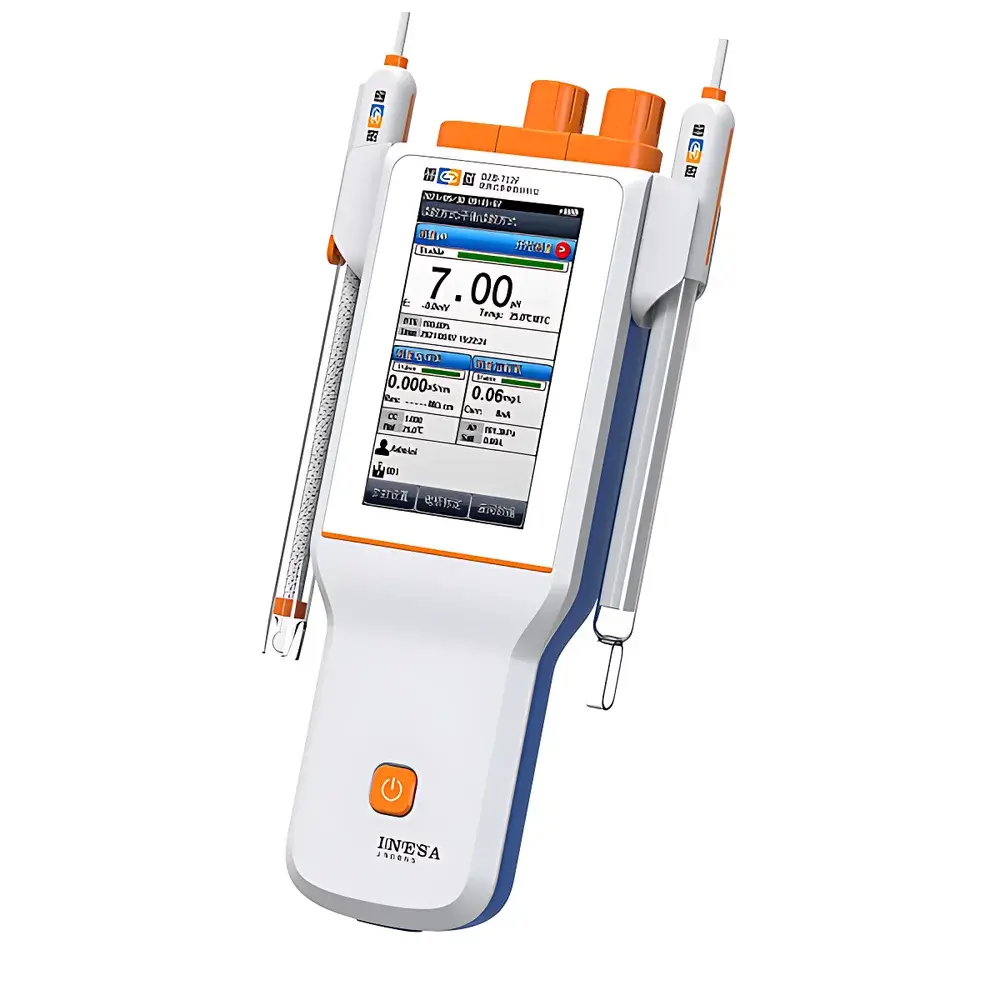

Leici DZB-712F Portable Multi-Parameter Water Quality Analyzer

Overview

The Leici DZB-712F Portable Multi-Parameter Water Quality Analyzer is an engineered field-deployable instrument designed for high-reliability in-situ measurement of critical water quality parameters—pH, electrical conductivity, and dissolved oxygen—across environmental monitoring, municipal water management, aquaculture, and industrial effluent assessment applications. Built upon a modular electrochemical sensing architecture, the analyzer integrates three independent measurement units into a single compact chassis: a high-stability pH/pX module based on Nernstian potential detection; a four-range conductivity module employing automatic frequency switching and cell constant compensation (0.01–1.0 cm⁻¹); and a temperature- and pressure-compensated polarographic DO sensor compliant with ISO 5814 and ASTM D888 standards. Its ruggedized housing meets IP65 ingress protection, enabling operation in humid, dusty, or splash-prone environments without performance degradation. The device operates on a calibrated thermistor-based temperature subsystem, supporting dual-unit display (°C/°F) and reference temperature selection (20 °C or 25 °C) for conductivity reporting—essential for regulatory comparability across regional water quality frameworks.

Key Features

• High-resolution color touchscreen interface with intuitive icon-driven navigation and multilingual support (English & Chinese)
• Triple-sensor integration: factory-calibrated triple-junction pH electrode, graphite-composite conductivity cell, and Clark-type polarographic DO probe
• Intelligent endpoint detection algorithms: auto-read, timed-read, interval-read, and manual-read modes with configurable stability thresholds
• Comprehensive auto-compensation: real-time temperature correction for all parameters; atmospheric pressure compensation for DO (kPa, mbar, Torr, atm selectable); manual salinity offset for estuarine or brackish water analysis
• Advanced electrode diagnostics: impedance monitoring, slope evaluation, and asymmetry potential reporting for predictive maintenance
• GLP-compliant data governance: time-stamped, user-ID-tagged storage of up to 1000 measurements per parameter; audit-ready export via USB or RS-232
• Firmware-upgradable architecture supporting future parameter expansion and calibration protocol updates without hardware modification

Sample Compatibility & Compliance

The DZB-712F is validated for direct immersion or flow-cell deployment in natural waters (rivers, lakes, groundwater), wastewater streams, cooling towers, aquaculture tanks, and potable distribution systems. It accommodates sample temperatures from −5.0 °C to 110.0 °C and salinities up to 8.00%, with built-in compensation models aligned with ISO 7888 (conductivity), ISO 5667-22 (field sampling), and USP (pharmaceutical water testing). All measurement electronics conform to IEC 61000-4 electromagnetic immunity standards. Data integrity meets GLP requirements through immutable timestamping, operator authentication prompts, and full audit trail retention—including calibration history, electrode ID, ambient conditions, and user-initiated actions. While not FDA 21 CFR Part 11 certified out-of-box, its structured data export format (CSV/Excel-compatible) supports integration into validated LIMS environments under site-specific validation protocols.

Software & Data Management

Data acquisition and reporting are managed via embedded firmware with no external dependencies. Measurement records include: parameter value, unit, temperature, pressure (DO), calibration status, electrode serial number, operator ID, and UTC timestamp. Stored datasets are browsable, deletable (with confirmation), and exportable via USB mass-storage mode to standard PCs or via RS-232 to serial printers (user-selectable report templates). Leici’s proprietary PC communication software (DZB-Link v3.x) enables batch download, trend visualization, statistical summary (mean, SD, min/max), and PDF report generation compliant with ISO/IEC 17025 documentation guidelines. All exported files retain native metadata—enabling traceability to original field conditions and instrument configuration.

Applications

• Regulatory field surveys for EPA Method 150.1 (pH), 120.1 (conductivity), and 360.2 (DO)
• Real-time process control in drinking water treatment plants—monitoring coagulation pH, post-filtration conductivity, and distribution system DO
• Aquaculture health management: tracking diurnal DO fluctuations, feed-induced pH shifts, and salinity gradients in recirculating systems
• Environmental impact assessments: baseline characterization of surface water bodies prior to construction or remediation activities
• Educational field labs: student-operated water quality profiling with built-in calibration verification and error diagnostics
• Industrial pretreatment compliance: verifying effluent pH neutrality and conductivity limits before discharge to municipal sewers

FAQ

Does the DZB-712F support multi-point calibration for all parameters?

Yes—pH/pX supports up to 5-point calibration using NIST, DIN, or GB buffers; conductivity allows 1–3 point calibration with auto-recognition of standard solutions; DO supports dual-point (zero-oxygen and air-saturation) calibration.
Can the instrument store calibration history alongside measurement data?

Yes—each calibration event is timestamped, logged with electrode ID and standard solution lot numbers, and retained independently within the device’s non-volatile memory.
Is the polarographic DO sensor replaceable in the field?

Yes—the DO probe uses a standardized BNC connector and membrane cap assembly; replacement membranes and electrolyte are available as consumables (Leici part #DO-MEM-01).
What is the recommended maintenance interval for the triple-pH electrode?

Leici recommends cleaning with deionized water after each use; soaking in 3 mol/L KCl solution for 30 minutes weekly; and full recalibration before each field deployment or every 24 hours of continuous use.
Does the device meet international shipping and import certification requirements?

The DZB-712F carries CE marking (EMC Directive 2014/30/EU, RoHS 2011/65/EU) and complies with UN 38.3 transport safety standards for lithium batteries, facilitating global customs clearance.
