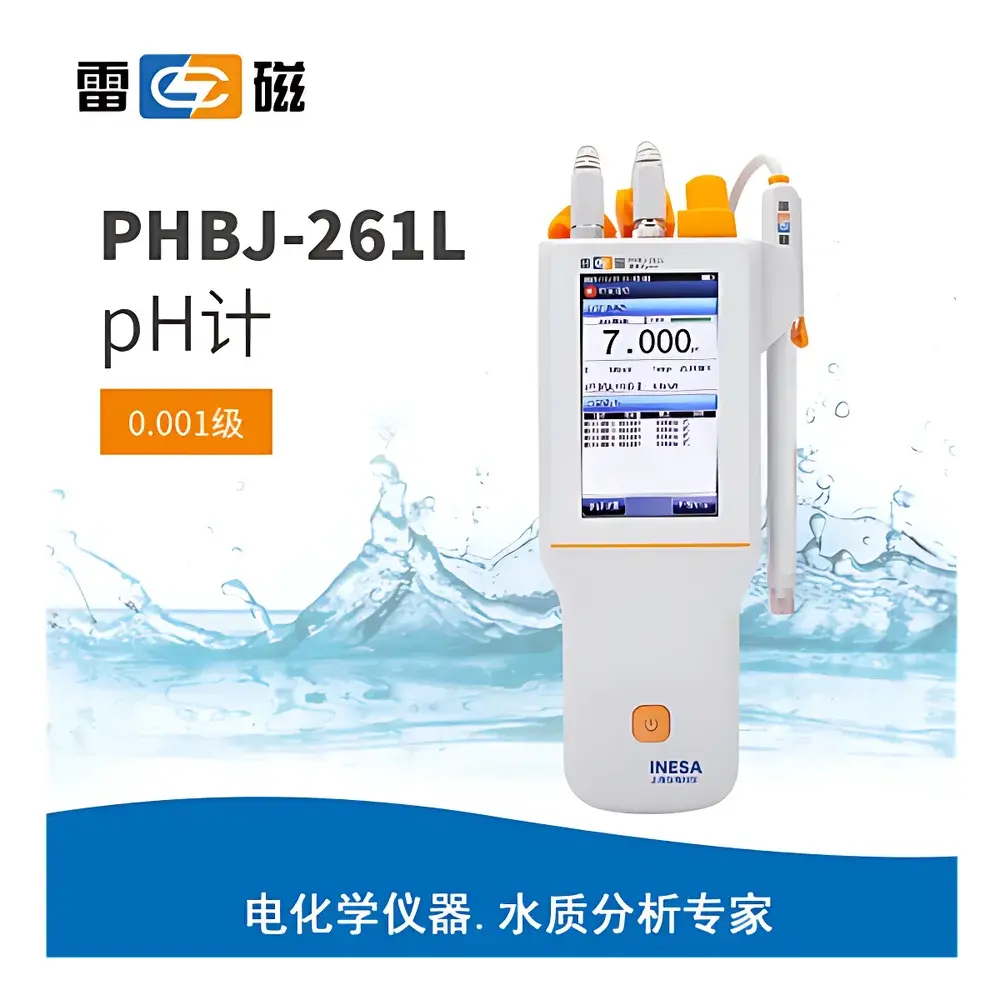

Leici PHBJ-261L Portable pH Meter

Overview

The Leici PHBJ-261L Portable pH Meter is an advanced, field-deployable electrochemical analyzer engineered for high-precision pH and mV measurements in diverse environmental, industrial, educational, and quality control settings. Built upon a robust potentiometric measurement principle—utilizing the Nernst equation to quantify hydrogen ion activity—the instrument delivers laboratory-grade accuracy in a rugged, handheld form factor. Its design emphasizes operational reliability under variable ambient conditions, including outdoor sampling, wastewater monitoring, food processing lines, and academic fieldwork. The meter integrates intelligent electrode diagnostics, real-time temperature compensation (via integrated or external Pt1000 sensor), and automatic buffer recognition across six internationally recognized calibration standards (NIST, DIN, GB, JIS, MERK, USA), ensuring traceable, repeatable results aligned with ISO/IEC 17025–recommended practices.

Key Features

• High-resolution 4.3-inch color TFT capacitive touchscreen with adjustable backlight and intuitive icon-based navigation
• Selectable resolution modes: pH (0.001 / 0.01 / 0.1), mV (0.01 / 0.1 / 1), and temperature (0.1 °C / 0.1 °F)
• Eight-point pH calibration capability with slope and offset validation; one-point ORP calibration with redox reference verification
• Smart endpoint detection algorithms supporting auto-read, timed-read, interval-read, and manual capture modes
• IP65-rated enclosure with silicone protective sleeve, wrist strap, and shock-absorbing portable carry case for field durability
• Comprehensive electrode management system—including probe health diagnostics, calibration history tracking, and expiration alerts for buffer solutions
• User-level access control with password-protected administrator and operator accounts, enabling role-based method and data permissions
• Firmware-upgradable architecture supporting future protocol expansion and regulatory alignment (e.g., enhanced 21 CFR Part 11 compliance modules)

Sample Compatibility & Compliance

The PHBJ-261L is optimized for aqueous and semi-aqueous samples across pH –2.000 to 20.000, including acidic leachates, alkaline cleaning agents, fermentation broths, and buffered reagent solutions. It accepts standard BNC-input pH electrodes—including the included tri-combination electrode with integrated temperature sensor—and supports optional ORP, ISE, and conductivity probes via adapter modules. All measurement records comply with Good Laboratory Practice (GLP) requirements: each entry embeds timestamp, operator ID, electrode serial number, calibration parameters, ambient temperature, and buffer identification. Audit trails are non-erasable and exportable in CSV or XML format, facilitating FDA 21 CFR Part 11–aligned validation when paired with controlled user authentication and electronic signature workflows.

Software & Data Management

Data handling is implemented through dual-channel architecture: onboard storage retains up to 1,000 complete measurement records—with full metadata—while wireless and wired interfaces enable seamless integration into broader analytical ecosystems. Bluetooth 5.0 enables direct transmission to tablets or PCs running Leici’s certified LabLink software; USB-C connectivity supports bulk export to Windows/macOS platforms and direct U-disk read/write operations. The instrument natively communicates with LIMS via standardized ASCII or HL7 protocols and accepts input from barcode scanners for sample ID auto-population. Statistical functions include mean, SD, RSD, min/max, and trend analysis—all accessible on-device or post-export. Firmware updates are delivered via encrypted .bin files verified through SHA-256 checksum validation.

Applications

• Environmental field testing: surface water, groundwater, soil extracts, and effluent monitoring per EPA Method 150.1 and ISO 10523
• Pharmaceutical QC: pH verification of injectables, buffers, and cleaning validation solutions in accordance with USP and EP 2.2.3
• Food & beverage production: batch consistency checks for dairy, brewing, juice, and meat processing lines
• Educational laboratories: undergraduate electrochemistry experiments requiring Nernstian response visualization and calibration theory demonstration
• Industrial process support: boiler feedwater, cooling tower chemistry, and plating bath control where portability and rapid turnaround are critical

FAQ

What calibration standards does the PHBJ-261L recognize automatically?
It identifies six pre-programmed buffer groups (GB, DIN, NIST, USA, MERK, JIS) by measured pH and temperature; users may also define custom buffer sets with assigned nominal values and tolerances.
Is the device suitable for use in humid or dusty outdoor environments?
Yes—the IP65 ingress protection rating certifies full dust resistance and protection against low-pressure water jets from any direction, validated per IEC 60529.
Can measurement data be exported in formats compatible with statistical analysis tools?
Yes—CSV exports include all metadata fields (operator, time, electrode ID, calibration status, temperature); XML output supports structured integration with JMP, Minitab, or Python pandas workflows.
Does the instrument support regulatory compliance for audited environments?
It provides GLP-compliant data integrity features including immutable timestamps, user-authenticated sessions, calibration lockout after expiry, and full audit trail export—serving as a foundational platform for 21 CFR Part 11 readiness when deployed with validated software and administrative controls.
How is battery life managed during extended field use?
The 3.7 V / 4000 mAh Li-ion battery delivers ≥120 hours of continuous operation in typical pH mode; low-battery warnings activate at 15% capacity, and charging is supported via USB-PD-compatible power banks or lab bench supplies without requiring proprietary chargers.
