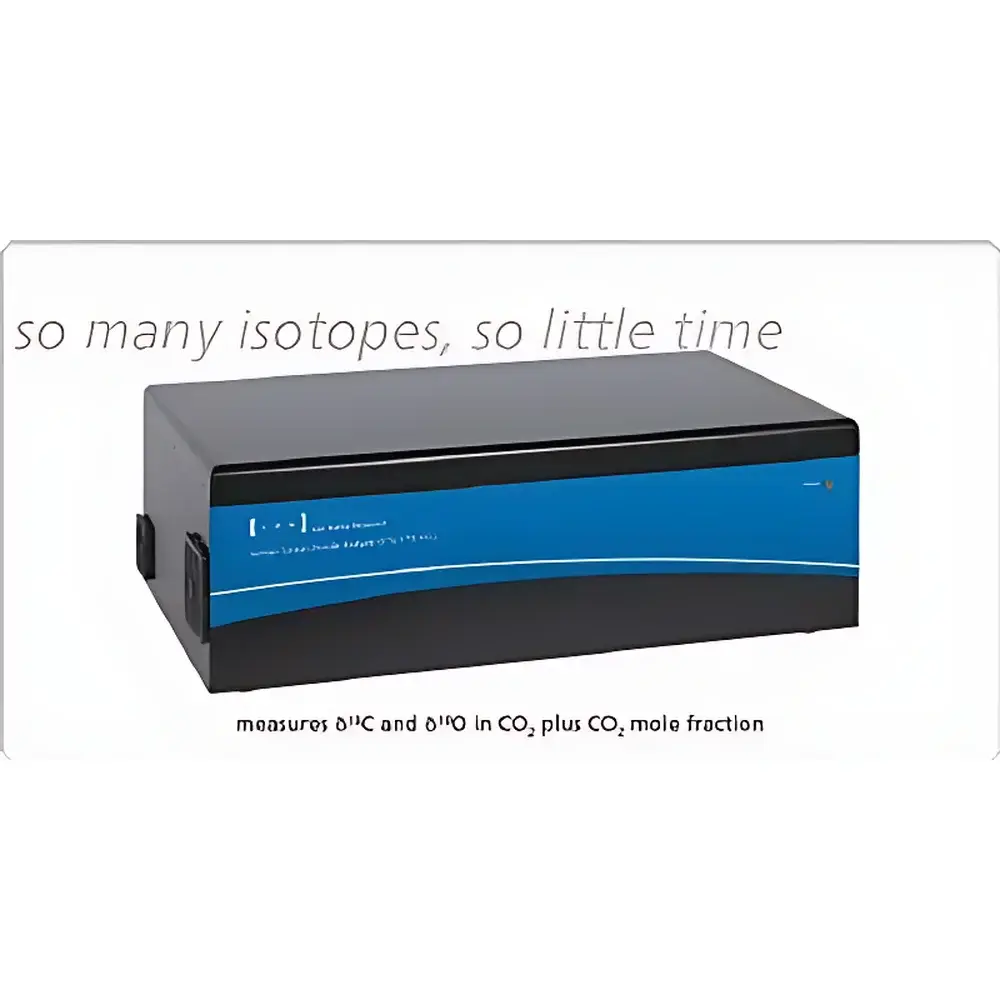

LGR CCIA-1597 EP Carbon Dioxide Isotope Analyzer

Overview

The LGR CCIA-1597 EP Carbon Dioxide Isotope Analyzer is a high-performance, field-deployable cavity ring-down spectroscopy (CRDS)-based instrument engineered for precise, real-time measurement of carbon and oxygen stable isotope ratios (δ¹³C and δ¹⁸O) in CO₂, alongside absolute CO₂ concentration. Unlike traditional isotope ratio mass spectrometers (IRMS), which require cryogenic trapping, gas chromatographic separation, and vacuum systems, the CCIA-1597 EP leverages proprietary off-axis integrated cavity output spectroscopy (OA-ICOS) to deliver laboratory-grade isotopic precision without complex sample preparation or infrastructure dependency. Designed specifically for high-concentration CO₂ matrices—ranging from 2% to 100% v/v—the analyzer meets rigorous analytical demands in geological carbonate analysis, soil respiration studies, volcanic gas monitoring, carbon capture verification, and industrial process gas characterization. Its robust optical architecture ensures stable performance under dynamic environmental conditions, enabling continuous in situ operation even during rapid CO₂ concentration transients.

Key Features

• Simultaneous, high-frequency measurement of δ¹³C, δ¹⁸O, and CO₂ concentration at 1 Hz sampling rate
• Full-scale linear response across 2–100% CO₂, with optional 0–100% configuration for extended low-end flexibility
• Field-hardened design: operational temperature range 0–45 °C; sample gas tolerance from −20 to +50 °C
• High short-term precision: ≤ 0.2‰ (1σ, 100 s) for δ¹³C and ≤ 0.6‰ (1σ, 100 s) for δ¹⁸O
• Low long-term drift: < 0.5‰ (1-hour average, STP, over 24 h) for δ¹³C
• Flexible sampling interface supporting both continuous flow-through and discrete manual injection modes
• Integrated thermal stabilization and pressure-controlled optical cavity for minimized sensitivity to ambient fluctuations

Sample Compatibility & Compliance

The CCIA-1597 EP accepts dry or moisture-conditioned CO₂-rich gas streams directly—no chemical conversion or pre-concentration required. It is compatible with standard 1/8″ or 1/4″ stainless-steel or PFA tubing interfaces and supports integration with custom inlet systems, driers (e.g., Nafion™ or Mg(ClO₄)₂), and flow controllers. The analyzer complies with ISO 17025 principles for testing laboratories and supports audit-ready data acquisition workflows aligned with GLP and GMP requirements. While not an IRMS, its isotopic accuracy is traceable to international reference materials (e.g., NBS-19, IAEA-603) via calibration using certified CO₂ standards. Instrument firmware and data logs maintain full timestamping, user authentication, and metadata tagging—enabling compliance with FDA 21 CFR Part 11 when deployed in regulated environments.

Software & Data Management

Controlled via LGR’s proprietary Analyzers Control Software (ACS), the CCIA-1597 EP provides real-time spectral visualization, automated baseline correction, multi-point calibration management, and configurable alarm thresholds. All measurements are time-stamped and exported in CSV or NetCDF format, with optional integration into LabArchives, Panorama, or custom LIMS platforms via TCP/IP or Modbus TCP protocols. Raw absorption spectra and derived isotope values are stored locally on internal flash memory (≥32 GB) and simultaneously streamed via Ethernet or USB to external storage. Remote diagnostics, firmware updates, and parameter reconfiguration are supported over secure SSH or HTTPS connections—critical for unattended field deployments.

Applications

• Carbonate mineral fingerprinting and provenance studies in geology and archaeometry
• In situ soil CO₂ flux and root-respiration partitioning in ecosystem ecology
• Volcanic degassing monitoring and magma degassing modeling
• Verification of CO₂ sequestration integrity and leakage detection in CCS projects
• Industrial fermentation and bioreactor process control
• Calibration and validation of IRMS systems using high-precision reference gas streams

FAQ

Does the CCIA-1597 EP require carrier gas or vacuum pumps?

No—it operates as a direct-absorption gas analyzer with no consumables, carrier gases, or vacuum infrastructure.
Can it measure δ¹³C and δ¹⁸O in water vapor or other gases?

No—this model is optimized exclusively for CO₂. Separate analyzers are available for H₂O, CH₄, or N₂O isotopes.
Is calibration traceable to international standards?

Yes—calibration uses NIST-traceable CO₂ reference gases, and δ-value outputs are normalized to VPDB and VSMOW scales per IUPAC recommendations.
What maintenance is required in field deployments?

Routine maintenance includes quarterly optical window inspection, annual laser wavelength verification, and periodic inlet filter replacement—no optical alignment or detector servicing needed.
How is data security ensured during remote operation?

All network communications use TLS 1.2+ encryption; local storage employs AES-256 encryption; user access is role-based with password policies and session timeout enforcement.
