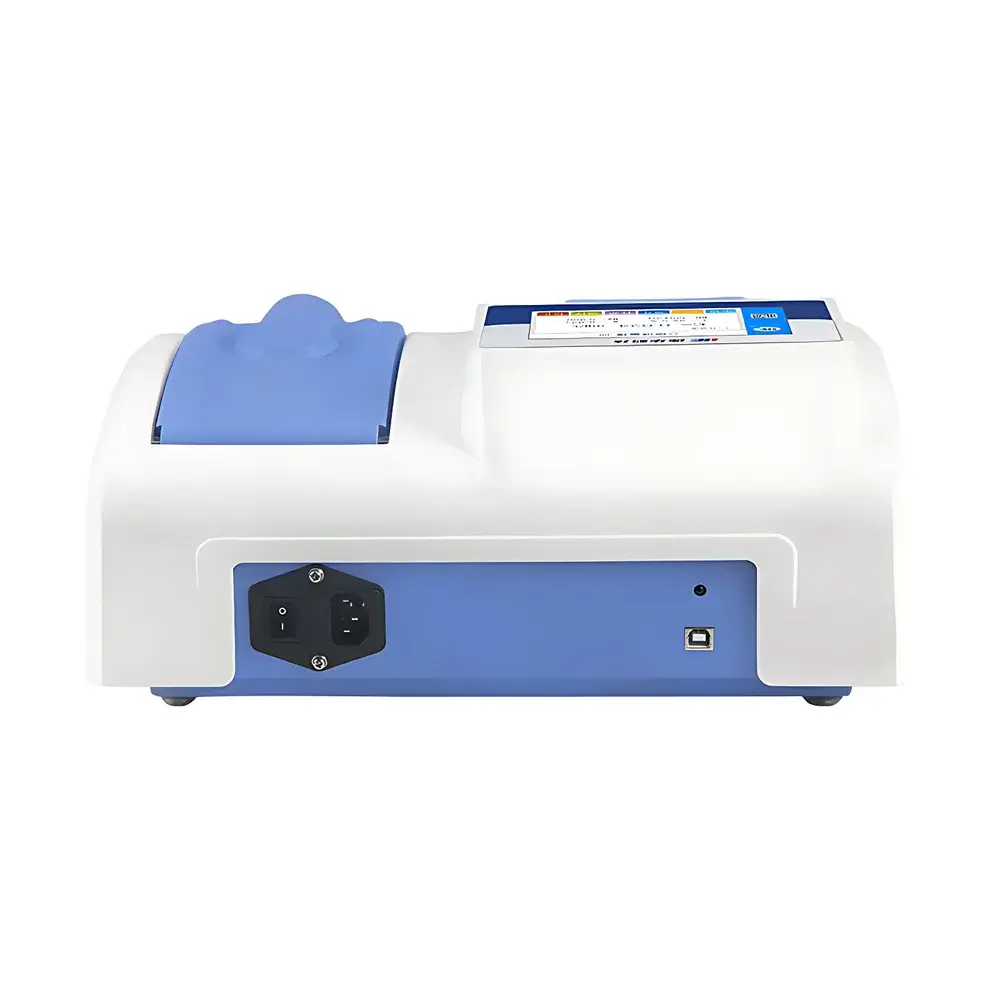

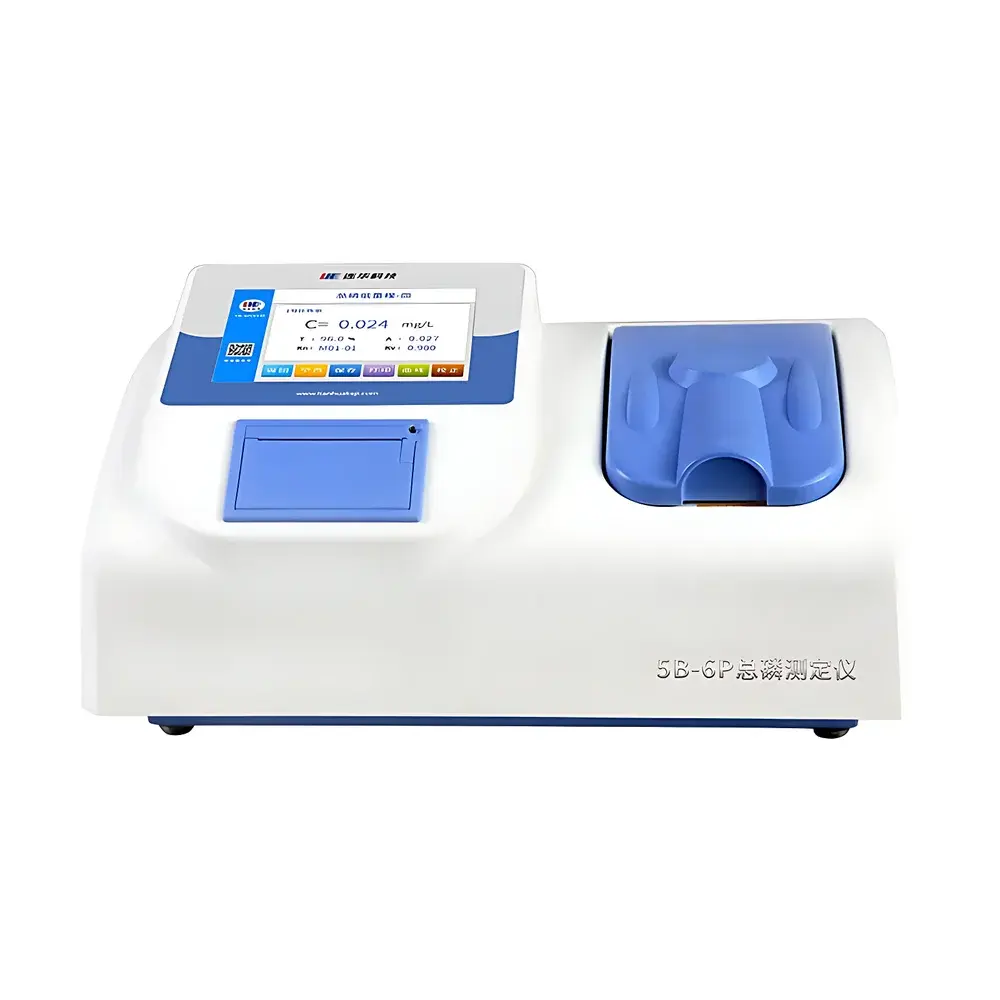

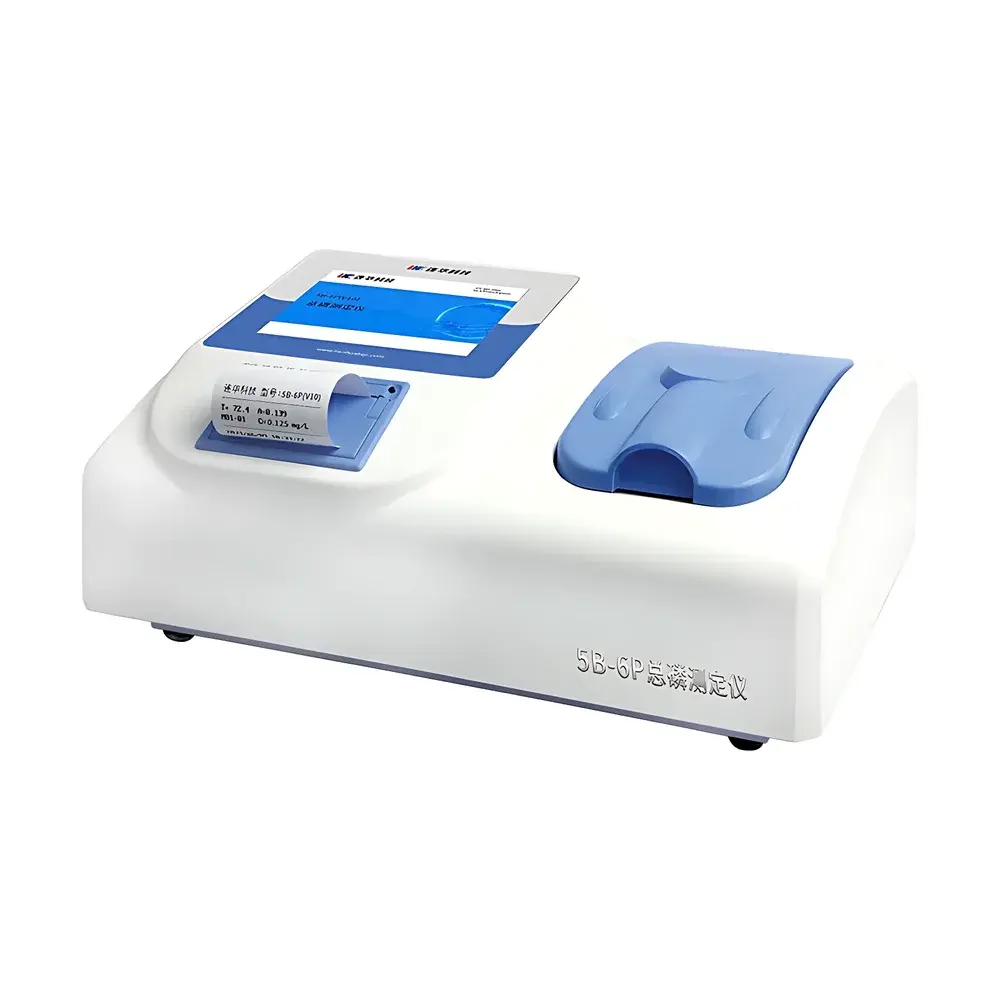

Lianhua Tech 5B-6P(V10) Total Phosphorus Analyzer

Overview

The Lianhua Tech 5B-6P(V10) Total Phosphorus Analyzer is a dedicated benchtop spectrophotometric instrument engineered for precise, routine quantification of total phosphorus (TP) in environmental water samples—including surface water, wastewater, effluent, and treated drinking water sources. It implements the standardized molybdenum blue spectrophotometric method (based on ISO 6878:2004 and HJ 484–2009), wherein orthophosphate—liberated from all phosphorus species via high-temperature acid digestion—is reacted with ammonium molybdate and ascorbic acid under controlled acidity to form a phosphomolybdenum blue complex. Absorbance is measured at 700 nm, and concentration is calculated via Beer–Lambert law using pre-stored or user-generated calibration curves. Designed exclusively for laboratory use, the 5B-6P(V10) eliminates manual photometer setup and external digestion equipment dependency by integrating optimized optical path design, temperature-stabilized cuvette/tube holders, and embedded digestion protocol guidance.

Key Features

• Dual-path optical system with zero-cross interference design, enabling simultaneous high-precision measurement across low-range (0–2 mg/L) and high-range (2–100 mg/L) TP concentrations without manual range switching.
• 5.6-inch capacitive color touchscreen with intuitive icon-driven navigation, multilingual UI support (English, Chinese), and real-time status feedback including digestion progress, blank correction status, and error diagnostics.
• Integrated calibration engine supporting automatic curve derivation from up to 10 standard points; stores multiple calibration sets with timestamp, operator ID, and reagent lot traceability metadata.
• User-configurable curve fitting algorithms—including linear, quadratic, and cubic regression—to accommodate nonlinearity observed in extended-range measurements or matrix-compromised samples.
• Rugged industrial-grade housing with custom injection-molded enclosure, IP20-rated front panel, and reinforced sample compartment shielding against ambient light leakage.
• Thermal printer module compliant with ISO/IEC 19752:2017 for hardcopy output of current result, full calibration report, and audit trail summary—including date/time, sample ID, operator code, and curve correlation coefficient (R²).

Sample Compatibility & Compliance

The 5B-6P(V10) accepts standard 10 mm square cuvettes (glass or quartz) and 16 mm round digestion tubes compatible with common EPA-compliant digestion vessels (e.g., Hach TNTplus vials). It supports pretreatment workflows aligned with EPA Method 365.4 and ISO 6878:2004, requiring external digestion units (e.g., block digesters or microwave systems) for total phosphorus liberation. All firmware and data handling routines comply with GLP documentation requirements: each stored record includes immutable timestamps, operator authentication tags, and checksum-verified raw absorbance values. The device meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and safety (EN 61010-1), and its data export protocols are compatible with LIMS integration via CSV/Excel-compatible USB mass storage mode.

Software & Data Management

Data integrity is maintained through hierarchical access control: administrator, analyst, and viewer roles enforce role-based permissions for calibration editing, result deletion, and report printing. All measurement events—including blank subtraction, standardization, and sample analysis—are logged in a tamper-evident internal database with cyclic overwrite protection. USB export generates time-stamped .csv files containing sample ID, measured absorbance, calculated concentration, curve ID, digestion temperature/duration (if entered manually), and QC flag status (e.g., “out-of-range”, “low signal-to-noise”). Infrared transmission uses IrDA 1.4 physical layer for secure point-to-point transfer to Windows-based PCs running optional Lianhua Data Manager v3.x software—supporting statistical process control (SPC) charts, trend analysis, and automated compliance reporting per ISO/IEC 17025 Clause 7.7.

Applications

• Regulatory monitoring of municipal wastewater treatment plant (WWTP) influent/effluent per national discharge standards (e.g., China’s GB 18918–2002 Class I-A limits).
• Research-grade TP profiling in eutrophication studies, where reproducible low-concentration detection (sub-0.1 mg/L after dilution) supports trophic state index modeling.
• Quality assurance testing of phosphate-based industrial effluents from fertilizer production, food processing, and metal finishing facilities.
• Educational laboratories performing AP Chemistry or environmental engineering curricula requiring hands-on digestion-spectrophotometry integration.
• Third-party environmental testing labs accredited to CNAS (China National Accreditation Service) or ILAC-MRA frameworks, where instrument traceability and audit readiness are mandatory.

FAQ

Does the 5B-6P(V10) include an integrated digestion unit?
No. It is a dedicated spectrophotometer and requires external digestion equipment (e.g., programmable block digester or microwave system) to convert organic and condensed phosphates into orthophosphate prior to analysis.
Can calibration curves be imported from external sources?
Yes—via USB, users may load .csv-formatted calibration tables containing concentration-absorbance pairs; the instrument validates format integrity and auto-registers the curve with version control.
Is the thermal printer compatible with continuous label stock?
No—it uses standard 57 mm wide thermal paper rolls with auto-cut functionality; label printing is not supported.
What reagent kits are validated for use with this model?
Lianhua-certified TP-Low (0–2 mg/L) and TP-High (2–100 mg/L) reagent kits (Cat. No. LH-TP01 and LH-TP02), each supplied with NIST-traceable potassium dihydrogen phosphate standards and acid digestion accelerants.
How is data security ensured during infrared transmission?
IrDA communication operates in line-of-sight mode only, with no persistent network connection; no encryption is applied, but session keys are ephemeral and data payloads are unidirectional (instrument → host) without remote command capability.
