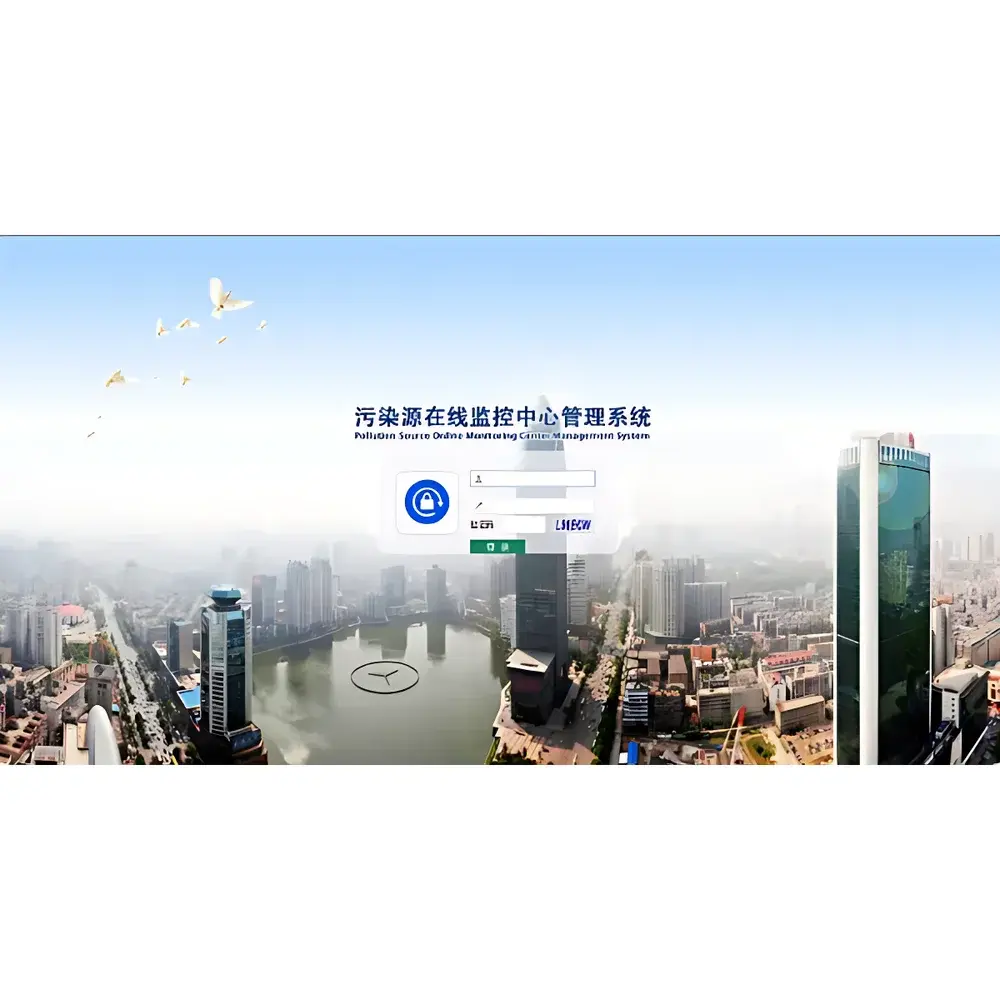

Lihero Pollution Source Online Monitoring Center Management System

Overview

The Lihero Pollution Source Online Monitoring Center Management System is a comprehensive, web-based environmental data integration and regulatory oversight platform engineered for provincial, municipal, and district-level ecological environment bureaus. It operates as a centralized command hub that ingests, validates, visualizes, and audits real-time emissions data from enterprise-level continuous emission monitoring systems (CEMS), wastewater effluent monitors, flow meters, electricity consumption meters, rainfall gauges, and multimedia surveillance feeds. Built upon a modular, service-oriented architecture, the system implements deterministic data acquisition protocols compliant with China’s Technical Specification for Online Monitoring System of Pollutant Sources (HJ 75–2017, HJ 76–2017), enabling traceable, time-synchronized ingestion of multi-parameter streams—including SO₂, NO_x, particulate matter (PM_2.5/PM₁₀), COD, NH₃-N, pH, temperature, and volumetric flow—while enforcing strict temporal alignment and metadata tagging per measurement point.

Key Features

• Multi-Source Data Fusion Engine: Aggregates structured and semi-structured telemetry from heterogeneous sources—including DCS/PLC interfaces, Modbus TCP/RTU gateways, OPC UA servers, and RESTful APIs—into a unified time-series database with millisecond-level timestamp precision and configurable sampling intervals (1–300 seconds).
• Three-Tier Quality Assurance Framework: Implements automated data validity checks (range validation, rate-of-change limits, zero/span drift detection), laboratory-grade reference standard calibration logging, and blind sample audit workflows aligned with ISO/IEC 17025 principles to ensure data integrity, accuracy, and completeness (“Zhen, Zhun, Quan”).
• Intelligent Early-Warning & Event Classification: Applies rule-based and machine learning–assisted anomaly detection (e.g., sudden load drop + concurrent power consumption decline = potential bypass operation) to trigger tiered alerts—Level 1 (notification), Level 2 (investigation assignment), Level 3 (regulatory escalation)—with configurable SLA timers and audit-trail preservation.
• Role-Based Service Orchestration: Delivers differentiated dashboards and workflow modules for environmental regulators (compliance tracking, inspection scheduling, penalty case management), discharging enterprises (self-monitoring reports, maintenance logs, exemption applications), and third-party operation & maintenance providers (ticket dispatching, spare part inventory, technician GPS tracking, SLA performance scoring).
• Dynamic Regulatory Compliance Mapping: Embeds updatable policy logic engines that map real-time operational status (e.g., furnace temperature, desulfurization slurry pH) against evolving discharge standards (e.g., GB 13223–2011, GB 18918–2002, local emission limits), automatically flagging non-conformance conditions prior to exceedance events.

Sample Compatibility & Compliance

The system supports seamless integration with certified CEMS vendors (e.g., Thermo Fisher, Horiba, Endress+Hauser, and domestic OEMs meeting HJ 75 certification), ultrasonic/open-channel flowmeters (ISO 4064, JJG 1030–2007), and smart electricity meters (DL/T 645–2007). All data handling complies with China’s Regulations on Environmental Monitoring Data Quality Management (MEP Order No. 39) and Administrative Measures for Online Monitoring of Key Pollutant Discharge Units (MEP Order No. 38). Audit logs maintain immutable records of data edits, user actions, and system configuration changes in accordance with GB/T 22239–2019 (Cybersecurity Level Protection 2.0) requirements.

Software & Data Management

Deployed on hardened Linux servers or validated cloud infrastructure (Alibaba Cloud Apsara Stack, Huawei Cloud Stack), the platform utilizes PostgreSQL with TimescaleDB extension for time-series storage and Elasticsearch for full-text search across log files, inspection reports, and multimedia annotations. Role-based access control (RBAC) enforces separation of duties; all user sessions are logged with IP, timestamp, and action details. Exported datasets include embedded digital signatures compliant with GB/T 35273–2020 (Personal Information Security Specification) and support PDF/A-2b archival format for long-term regulatory retention. Optional integration with national environmental data sharing platforms (e.g., China Environmental Monitoring General Station’s EIMS) is available via standardized XML/JSON exchange schemas.

Applications

• Real-time supervision of key pollution-emitting enterprises under China’s “Dual Control” (energy consumption & intensity) policy framework
• Supporting environmental impact assessment (EIA) follow-up monitoring and post-permit compliance verification
• Enabling cross-departmental coordination between environmental protection, emergency management, and urban water authorities during pollution incidents
• Feeding spatial-temporal analytics for regional emission inventory updates (e.g., Second National Pollution Source Census data fusion)
• Providing auditable evidence for administrative penalties, environmental public interest litigation, and green credit evaluation by financial institutions

FAQ

Does the system support integration with existing enterprise DCS or PLC systems?
Yes—via standardized industrial communication protocols including Modbus RTU/TCP, Profibus DP, OPC UA, and MQTT, with protocol translation gateways available for legacy proprietary interfaces.
How does the platform ensure data authenticity for legal enforcement purposes?
It enforces cryptographic signing of raw sensor frames at acquisition, maintains write-once audit trails for all data transformations, and generates timestamped, tamper-evident PDF reports compliant with China’s Electronic Signature Law and MEP evidentiary guidelines.
Is the system validated for use in GLP or ISO 17025-accredited laboratories?
While primarily deployed in regulatory administration contexts, its QA/QC modules—including calibration certificate management, uncertainty budgeting templates, and inter-laboratory comparison tracking—align with ISO/IEC 17025:2017 Clause 7.7 requirements for data integrity governance.
Can the platform be deployed on-premises or only in cloud environments?
Both deployment models are supported: fully air-gapped on-premises installation (including offline firmware update capability) or hybrid cloud architecture with edge-to-core data synchronization governed by local data sovereignty policies.
What training and technical support options are available?
Lihero provides role-specific instructor-led training (regulator, enterprise, O&M), bilingual documentation (Chinese/English), and SLA-backed remote support with 2-hour critical issue response and quarterly system health reviews.
