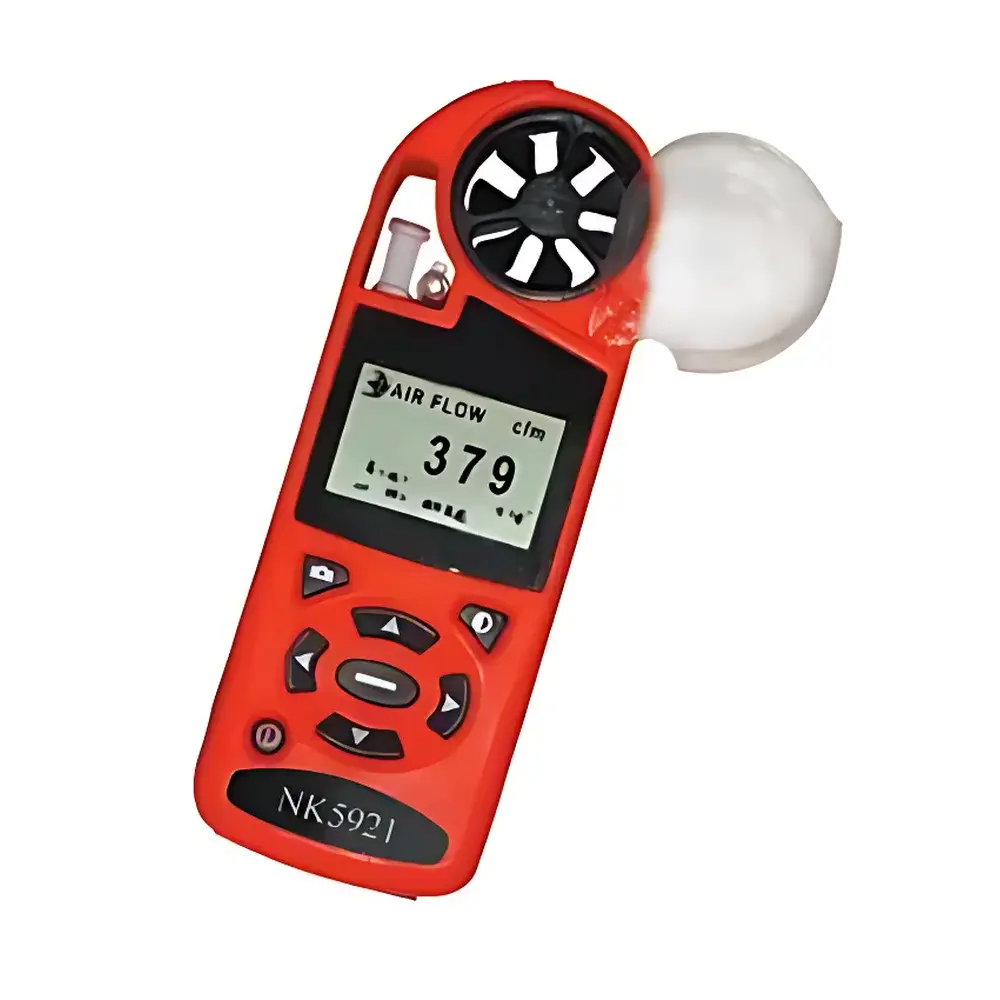

Lovibond NK5921 Waterproof Portable Anemometer & Weather Meter

Overview

The Lovibond NK5921 Waterproof Portable Anemometer & Weather Meter is a field-deployable, multi-parameter environmental measurement instrument engineered for high-reliability operation in demanding outdoor and emergency-response conditions. Based on proven cup-and-vane anemometry with a precision 1-inch diameter impeller featuring sapphire bearings and hardened axle geometry, the NK5921 delivers traceable air velocity measurements across five units (m/s, ft/min, km/h, mph, knots) with real-time Beaufort scale indexing. Integrated thermistor-based temperature sensing (–45 °C to +125 °C) and polymer capacitive relative humidity detection (0–100% RH, ±3.0% RH accuracy within 5–95% RH range) enable concurrent derivation of psychrometric indices—including wind chill (WCI), heat stress index (HSI), and dew point—calculated per NOAA 2001 WCI revision and NWS Heat Index tables. Its sealed, IP67-rated housing ensures operational integrity after full immersion (1 m for 30 min) and sustained mechanical shock resistance, making it suitable for incident command, industrial hygiene surveys, HVAC commissioning, and atmospheric boundary-layer characterization.

Key Features

• True waterproof construction compliant with IEC 60529 IP67 specification—dust-tight and submersible to 1 meter for 30 minutes.
• High-stability impeller assembly with sapphire jewel bearings; calibrated drift <1% after 100 hours at 7 m/s (16 mph); angular response deviation ≤±3% up to 15° incidence.
• Multi-unit wind speed output: 0.4–60.0 m/s (0.8–135.0 mph, 0.6–118.3 kt, 1.0–218.0 km/h, 59–11948 ft/min), with Beaufort scale (0–12 B) and volumetric flow (CFM, m³/h, L/s) calculation capability.
• Simultaneous ambient temperature (±1.0 °C from –29 °C to +70 °C) and relative humidity (±3.0% RH from 5–95% RH, non-condensing) measurement using patented thermal isolation and sealed sensor architecture (US Pat. Nos. 5939645, 6257074).
• Onboard psychrometric engine computing wind chill index (WCI), heat stress index (HSI), and dew point temperature in real time using NOAA/NWS reference algorithms.
• Graphical backlit LCD with user-selectable illumination (aviation green or high-contrast red), programmable language interface (EN/FR/DE/IT/ES), and real-time clock with automatic leap-year correction.
• Configurable data logging: 480-point internal memory, sampling intervals from 2 seconds to 12 hours, manual or auto-triggered capture, min/max/avg/delta display with breakpoint recall.

Sample Compatibility & Compliance

The NK5921 is designed for direct measurement of ambient air, water surface evaporation microenvironments, and snowpack ventilation conditions—enabled by its thermally isolated probe design and condensation-resistant humidity sensor. It complies with CE marking requirements under the EU Electromagnetic Compatibility (2014/30/EU) and Low Voltage (2014/35/EU) Directives. Calibration is traceable to NIST standards via optional factory-certified verification kits (e.g., humidity calibrator NI30824). While not explicitly certified to ISO/IEC 17025, its documented measurement uncertainty budget—validated across wind tunnel, climate chamber, and field intercomparison studies—supports use in GLP-aligned environmental monitoring programs. The device meets ASTM D5096 (Standard Test Method for Determining Wind Speed) and ISO 7726 (Ergonomics of the thermal environment — Instruments for measuring physical quantities) for portable air velocity instrumentation.

Software & Data Management

Data retrieval is performed via RS-232 serial interface using the optional NK PN-0830 PC interface module, compatible with Windows-based configuration and export utilities. Raw datasets—including timestamped wind vector components, temperature, RH, WCI, HSI, and dew point—are exportable in CSV format for integration into LIMS, statistical analysis platforms (e.g., R, Python pandas), or regulatory reporting workflows. Audit-trail functionality is limited to internal timestamping; for FDA 21 CFR Part 11 compliance, external validation of the interface software and procedural controls (e.g., user access logs, electronic signature protocols) must be implemented by the end-user organization. Firmware updates are distributed exclusively through Lovibond-authorized service centers.

Applications

• Emergency response meteorology: Rapid deployment during wildfire perimeter monitoring, hazardous material dispersion modeling, and post-disaster ventilation assessment.
• Occupational health & safety: OSHA-compliant airflow verification in confined spaces, fume hood performance testing, and thermal stress evaluation per ACGIH TLV® guidelines.
• Building science: HVAC system balancing, duct traverse verification, infiltration/exfiltration quantification, and natural ventilation efficacy studies.
• Environmental research: Boundary-layer flux characterization, microclimate mapping in agricultural zones, and coastal wind resource screening.
• Educational laboratories: Undergraduate atmospheric physics instruction, hands-on fluid dynamics demonstrations, and field methods training in environmental science curricula.

FAQ

What is the maximum recommended continuous wind speed for long-term impeller durability?
Continuous exposure above 27 m/s (60 mph) accelerates bearing wear and impeller deformation; sustained operation at this level is not advised. For routine field use, velocities ≤15 m/s (34 mph) ensure optimal service life.
Can the NK5921 measure wind direction?
No—the NK5921 is a uniaxial anemometer and does not incorporate vane or ultrasonic directional sensing. It reports scalar wind speed only.
Is calibration required before first use?
The instrument ships with factory calibration documentation. Field recalibration is recommended every 12–24 months—or after mechanical impact, immersion, or exposure to particulate-laden airstreams—using Lovibond-certified calibration services or traceable reference standards.
Does the device support wireless data transmission?
No native Bluetooth or Wi-Fi capability is integrated. Data transfer requires physical RS-232 connection via the NK PN-0830 interface kit.
How is volumetric flow calculated?
Users input duct geometry (circular or rectangular) and dimensions (in, ft, cm, or m); the device computes CFM, m³/h, or other volumetric units based on measured face velocity and cross-sectional area—per ASHRAE Guideline 12-2020 methodology.
