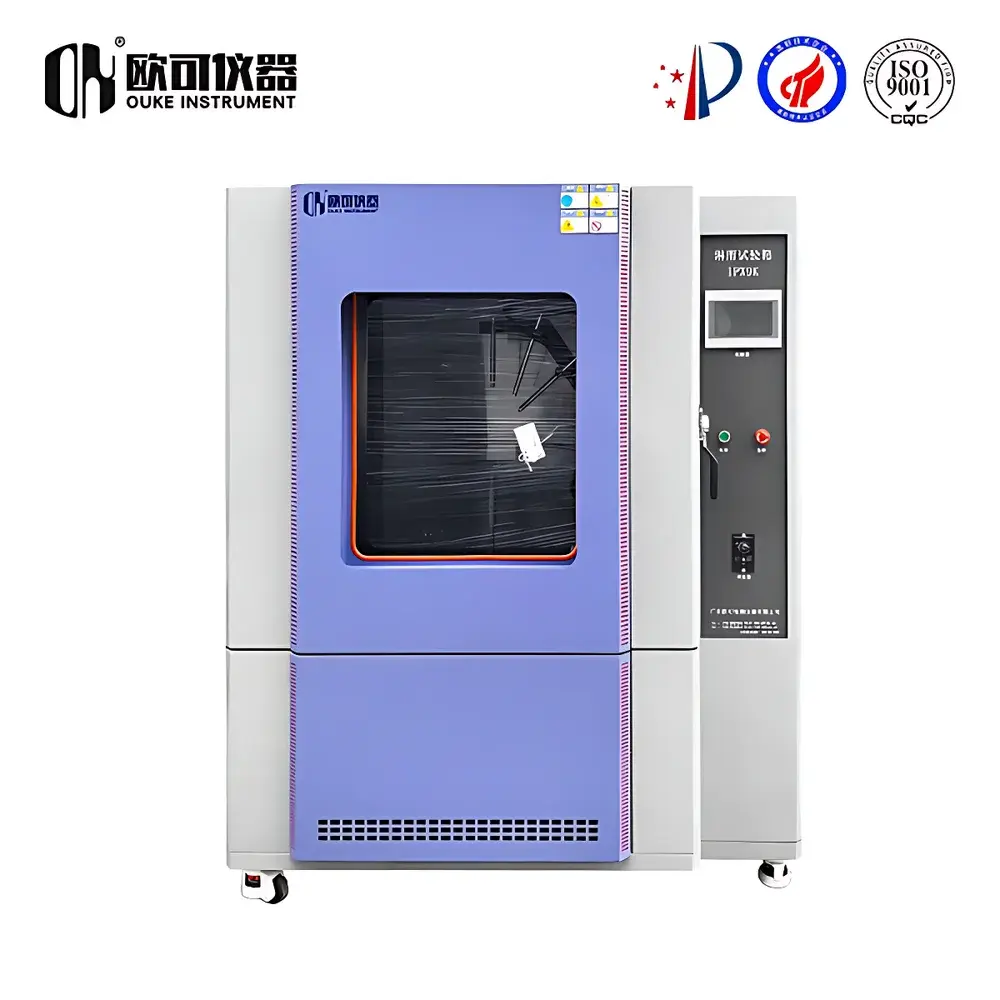

OK LS-816 Automotive Rain Resistance Test Chamber

Overview

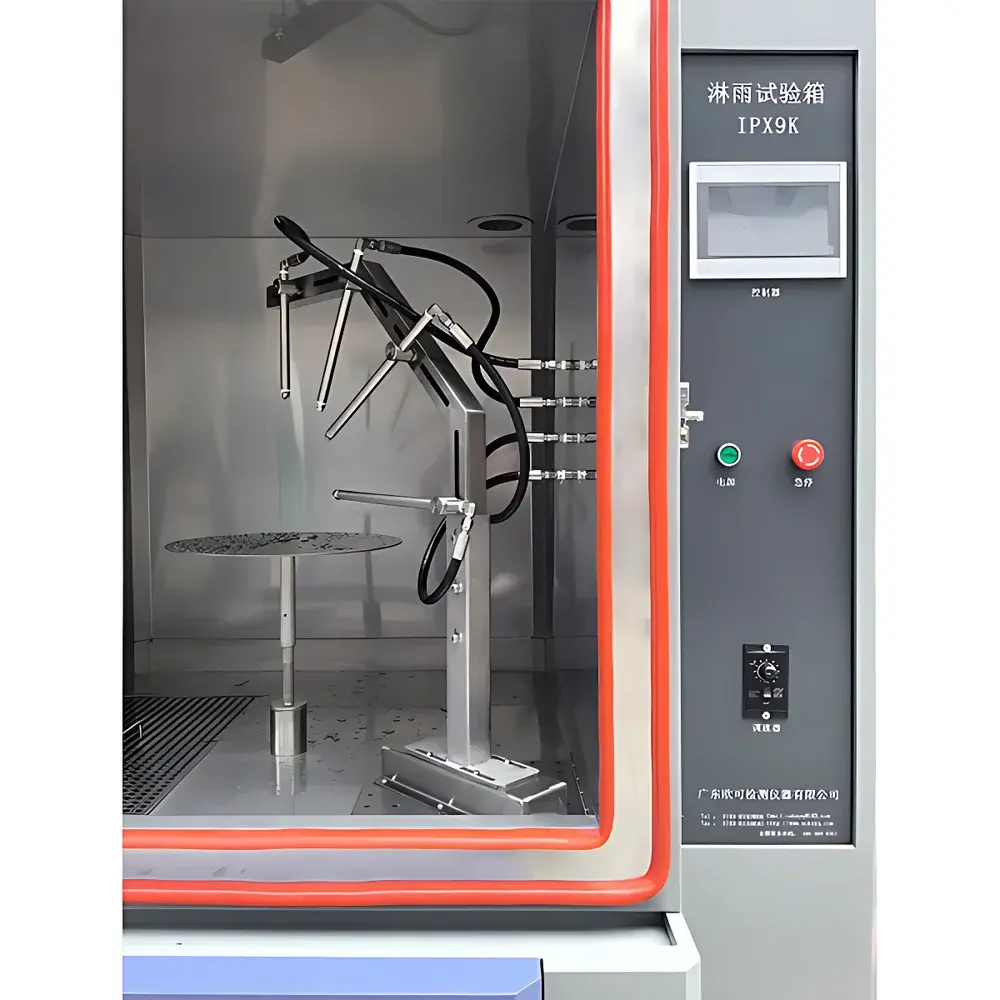

The OK LS-816 Automotive Rain Resistance Test Chamber is an engineered environmental test system designed to replicate controlled, repeatable rainfall conditions for evaluating the ingress protection (IP) performance of automotive components and assemblies—specifically against IPX3 through IPX6 requirements per IEC 60529 and GB 4208. Unlike generic rain simulators, this chamber integrates calibrated oscillating pipe, pressurized spray nozzle, and adjustable wind-assisted rain delivery within a single stainless-steel enclosure. Its architecture supports both static and dynamic exposure protocols: samples may be mounted on a programmable rotating turntable (1–5 rpm), subjected to angular water deflection via oscillating pipes (±60° or ±90°), or challenged with high-flow, high-impact jetting using standardized 6.3 mm (IPX5) and 12.5 mm (IPX6) nozzles at regulated pressure and flow rates. The system’s thermal control capability (RT+10°C to 55°C) enables combined thermal-rain testing—critical for validating seal integrity under thermal expansion stress, a common failure mode in vehicle lighting, sensors, and ECU housings.

Key Features

• Multi-mode rain simulation: Configurable operation as oscillating pipe (IPX3/IPX4), pressurized spray gun (IPX5/IPX6), or hybrid mode—fully compliant with IEC 60529 Annex B and ISO 20653 for road vehicles.
• Precision-controlled rainfall intensity: Adjustable 10–20 cm/h via calibrated flow meters and servo-regulated solenoid valves; verified traceability to NIST-traceable volumetric standards.
• Droplet size distribution management: Nozzle arrays engineered to generate droplets ranging from 0.5 mm (fine mist, IPX3 simulation) to 4.5 mm (coarse rain, IPX6 impact validation), with optional diffuser inserts for spectral tuning.
• Integrated wind-assisted rain module: Variable-speed axial fan (5–18 m/s) mounted upstream of the rain delivery zone to emulate crosswind-driven precipitation—essential for testing side-mounted cameras, mirrors, and ADAS sensor housings.

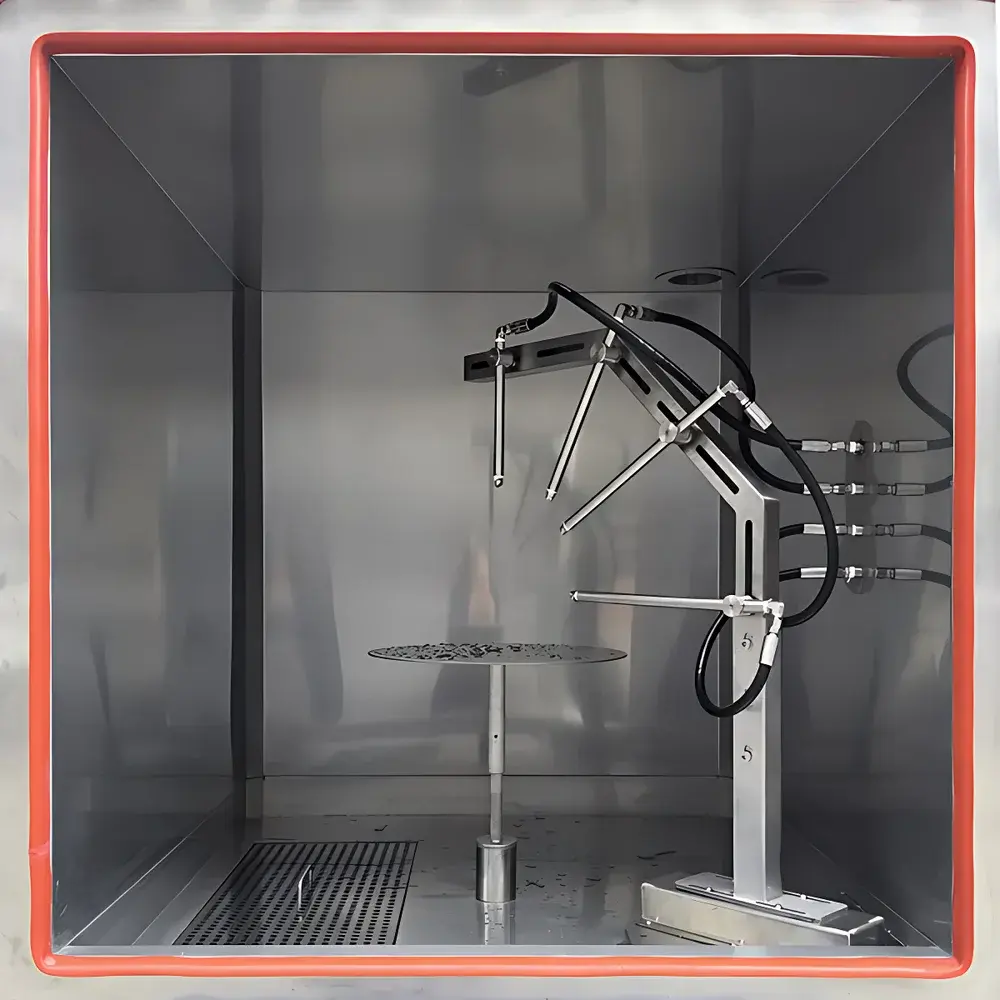

• Stainless-steel test chamber (SUS304 interior): Corrosion-resistant construction with reinforced viewing window, internal LED lighting, and IP67-rated electrical feedthroughs.
• PLC-based control system with 7-inch HMI touchscreen: Preloaded test programs for IPX3–IPX6, user-defined cycle sequencing (e.g., rain-on/stop intervals, multi-angle exposure), real-time data logging, and password-protected parameter locking for GLP/GMP environments.

Sample Compatibility & Compliance

The LS-816 accommodates automotive parts up to Ø600 mm diameter and 100 kg mass on its motorized turntable, supporting full-vehicle subsystems including headlamps, infotainment displays, battery enclosures, and radar modules. It meets the mechanical and procedural requirements of IEC 60529, GB 4208, ISO 20653:2013 (Road vehicles — Degrees of protection provided by enclosures against intrusion of water), and MIL-STD-810H Method 506.5 (Rain). Optional calibration certificates are available per ISO/IEC 17025 for flow rate, pressure, temperature, and wind velocity—supporting audit readiness for Tier 1 supplier qualification and OEM PPAP submissions. All plumbing components comply with FDA-grade material specifications (316L SS tubing, EPDM seals), and water filtration (0.45 µm absolute) ensures nozzle longevity and test repeatability across extended validation campaigns.

Software & Data Management

The embedded control firmware records time-stamped operational parameters—including actual flow rate (L/min), nozzle pressure (kPa), chamber temperature (°C), turntable RPM, and cumulative test duration—with 1-second resolution. Exportable CSV logs include pass/fail status flags aligned to IP code acceptance criteria (e.g., “no harmful water accumulation inside enclosure after 5 min IPX6 exposure”). Audit trail functionality complies with FDA 21 CFR Part 11 requirements: electronic signatures, user role-based access levels, and immutable event history. Optional Ethernet/Wi-Fi connectivity enables remote monitoring via secure web interface and integration into enterprise LIMS or MES platforms using Modbus TCP or OPC UA protocols.

Applications

This chamber serves as a primary verification tool for functional safety-critical systems in automotive development: validating waterproof integrity of ADAS camera housings under crosswind rain, assessing condensation resistance in LED headlamp assemblies during thermal cycling + rain, verifying gasket performance in EV battery junction boxes exposed to high-intensity jetting, and qualifying ingress protection of telematics control units installed in door panels or dashboards. It is also deployed in R&D labs for comparative analysis of sealant formulations, gasket compression set behavior, and housing material hydrophobicity under accelerated wet-dry cycling.

FAQ

Does the LS-816 support IPX7 or IPX9K testing?
No—the LS-816 is specifically engineered for IPX3 through IPX6 rain exposure. IPX7 (immersion) and IPX9K (high-pressure, high-temperature water jet) require separate hardware configurations not integrated into this model.
Can test parameters be validated for ISO/IEC 17025 accreditation?
Yes—OK Instruments provides optional third-party calibration services traceable to national metrology institutes, covering all critical measurement channels (flow, pressure, temperature, wind speed).
What water quality is required for long-term operation?
Deionized or softened water with conductivity ≤10 µS/cm is mandatory. Integrated 0.45 µm filtration prevents nozzle clogging and ensures compliance with IEC 60529 Annex B purity requirements.
Is the turntable rotation synchronized with oscillating pipe motion?
Yes—the PLC coordinates turntable RPM and pipe oscillation phase to ensure uniform angular coverage across all sample surfaces during IPX4 testing.
How is safety interlocked during high-pressure spray operation?
Hardware-enforced door switches cut power to the high-pressure pump immediately upon chamber opening; additional safeguards include leak detection sensors, dry-run protection for pumps, and overpressure relief valves rated to 1.5× maximum operating pressure.
