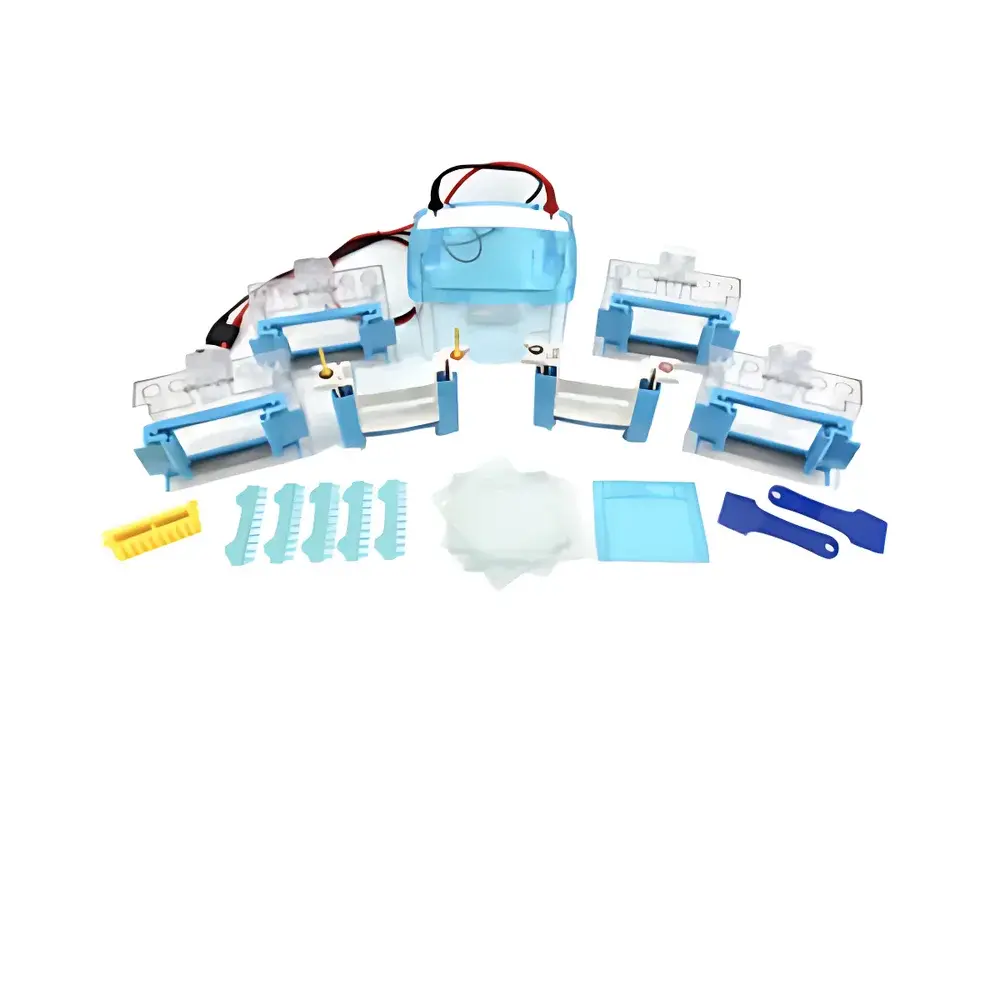

LY DYCZ-MINI 4 Four-Plate Vertical Electrophoresis Apparatus

Overview

The LY DYCZ-MINI 4 Four-Plate Vertical Electrophoresis Apparatus is a compact, modular vertical electrophoresis system engineered for high-resolution separation of proteins and nucleic acids under denaturing (SDS-PAGE) and native or isoelectric focusing (IEF) conditions. Its four-plate architecture employs two pairs of precision-ground glass plates—inner plates for gel casting and support, outer plates forming the lateral walls of the electrophoresis chamber—to ensure uniform electric field distribution, minimal buffer leakage, and consistent thermal dissipation across multiple gels. Unlike conventional two-plate systems, this configuration enables simultaneous processing of up to four independent gels while maintaining mechanical stability during polymerization and electrophoresis. The unit operates at a maximum constant voltage of 200 V, supporting rapid SDS-PAGE runs (completed in approximately 45 minutes under standardized 200 V conditions), and is compatible with both hand-poured and commercially available precast polyacrylamide gels.

Key Features

• Four-plate vertical assembly with dual inner/outer glass plate configuration for enhanced gel alignment, reduced buffer leakage, and improved run-to-run reproducibility.
• High-purity platinum wire electrodes ensuring low-resistance current transfer, minimal electrolysis byproducts, and extended electrode service life.
• Integrated edge-sealing spacers permanently bonded to long glass plates—eliminating manual spacer placement and improving inter-plate parallelism to ±0.02 mm tolerance.
• Ergonomic cam-lock gel casting frame enabling precise, tool-free alignment of glass plates on any flat surface without slippage or torque-induced warping.
• Proprietary non-inhibitory plastic combs featuring internal ridge structures that promote uniform acrylamide polymerization and eliminate “smiling” or uneven band migration at gel edges.
• Reinforced 1.0 mm thick long glass plates (standard) with optional 0.75 mm and 1.5 mm variants—optimized for resolution (thin gels) or sample loading capacity (thick gels).
• Integrated sample loading guide system with tactile lane markers and visual alignment notches—reducing pipetting errors, skipped lanes, or overloading artifacts.

Sample Compatibility & Compliance

The DYCZ-MINI 4 supports a broad range of biomolecular applications including SDS-PAGE, native PAGE, two-dimensional electrophoresis (2-DE) first-dimension IEF strips, and Western blotting workflows. It accommodates standard hand-cast gels (8.3 × 7.3 cm) and industry-standard precast mini-gels (8.6 × 6.8 cm), ensuring compatibility with common reagents, staining protocols (Coomassie, silver, fluorescent dyes), and downstream transfer modules. While not certified to ISO/IEC 17025 or FDA 21 CFR Part 11 out-of-the-box, its design adheres to fundamental electrophoretic principles defined in ASTM D5239 (for gel matrix uniformity assessment) and ISO 13052 (for analytical electrophoresis instrumentation performance verification). Laboratories operating under GLP or GMP frameworks may incorporate documented calibration logs, maintenance records, and user training protocols to satisfy audit requirements for instrument qualification.

Software & Data Management

The DYCZ-MINI 4 is a standalone benchtop electrophoresis apparatus with no embedded microprocessor or digital interface. Operation is fully manual—voltage and run duration are controlled externally via compatible power supplies (e.g., LY DYY-6C or third-party DC sources compliant with 0–200 V / 0–500 mA output). Consequently, data acquisition, image capture, and band quantification require integration with external imaging systems (e.g., UV transilluminators or chemiluminescence documentation stations) and analysis software such as ImageLab (Bio-Rad), AlphaView SA (ProteinSimple), or open-source tools like Fiji/ImageJ. Users are advised to maintain electronic run logs—including gel composition, buffer lot numbers, voltage/time profiles, and ambient lab temperature—to support traceability and method validation per ISO/IEC 17025 Clause 7.7.

Applications

• High-throughput protein molecular weight estimation and purity assessment in QC/QA labs.
• Preparative SDS-PAGE for excision and mass spectrometry sample preparation.
• First-dimension immobilized pH gradient (IPG) strip electrophoresis in 2-DE workflows.
• Verification of recombinant protein expression and cleavage efficiency in bioprocess development.
• Nucleic acid fragment analysis (e.g., restriction digests, PCR products) using native or denaturing conditions.
• Teaching laboratory implementation—robust mechanical design and intuitive assembly reduce student learning curves and equipment failure rates.

FAQ

Is the DYCZ-MINI 4 compatible with commercial precast gels from major suppliers?

Yes—it accepts standard mini-format precast gels measuring 8.6 × 6.8 cm, including those from Bio-Rad, Thermo Fisher Scientific, and Lonza.
What power supply specifications are required for optimal operation?

A DC power supply capable of delivering 0–200 V at up to 500 mA is recommended; constant voltage mode is strongly advised for SDS-PAGE reproducibility.
Can the system be used for isoelectric focusing (IEF)?

Yes—the four-plate architecture and stable thermal profile support IEF runs using IPG strips; however, dedicated IEF power supplies with current-limiting and gradual voltage ramping are required.
Are replacement parts (glass plates, combs, spacers) available separately?

Yes—LY provides OEM-certified consumables and accessories, including 0.75 mm and 1.5 mm thickness glass sets, 15-well combs, and spare platinum electrodes.
Does the unit include cooling functionality?

No active cooling is integrated; the system relies on ambient air convection. For extended high-voltage runs (>90 min), users should operate in climate-controlled environments (20–25 °C) or employ external cooling plates.
