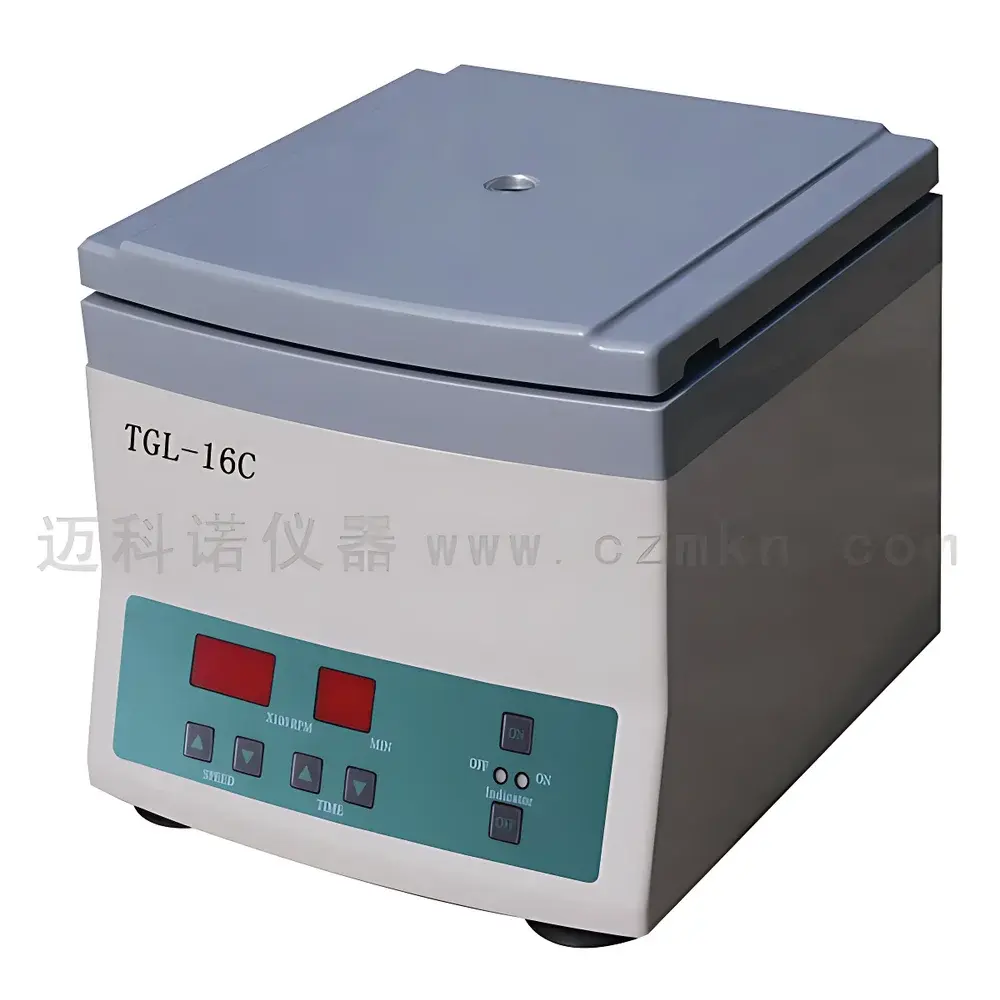

Macono TGL-16C Intelligent High-Speed Centrifuge

Overview

The Macono TGL-16C Intelligent High-Speed Centrifuge is a compact, microprocessor-controlled laboratory centrifuge engineered for precision separation of biological and chemical samples via rotational sedimentation force. It operates on the principle of differential sedimentation—where particles of varying density, size, and shape migrate radially outward under controlled angular velocity—enabling reproducible isolation of cellular components, precipitates, and macromolecular complexes. Designed for routine benchtop use in clinical diagnostics, molecular biology, and analytical chemistry workflows, the TGL-16C delivers stable, low-vibration performance at speeds up to 16,000 rpm, generating a maximum relative centrifugal force (RCF) of 17,000 × g. Its brushless DC motor ensures extended service life, minimal heat generation, and consistent torque delivery across the full speed range. The integrated intelligent balancing system continuously monitors rotor load asymmetry and automatically adjusts acceleration profiles to suppress resonance and prevent operational instability—even with partially loaded rotors.

Key Features

• Touchscreen human-machine interface (HMI) with real-time digital speed and time display, supporting intuitive parameter entry and status feedback.
• Microprocessor-based closed-loop speed control with ±50 rpm accuracy and automatic deceleration ramping to preserve sample integrity.
• High-strength anodized aluminum rotor assembly, corrosion-resistant and certified for repeated autoclaving (up to 121°C, 20 min), ensuring long-term dimensional stability and tube retention safety.
• Low-noise acoustic enclosure (<60 dB[A] at 1 m distance) compliant with ISO 3744 for laboratory ambient noise management.
• Thermal management system limiting internal temperature rise to <12°C above ambient during continuous 30-minute operation at maximum speed.
• Automatic rotor recognition logic prevents unauthorized or incompatible rotor usage, enhancing operational safety per IEC 61010-2-020 requirements.

Sample Compatibility & Compliance

The TGL-16C accommodates standard microcentrifuge tubes (0.5 mL, 1.5 mL) and conical polypropylene tubes (5 mL), supporting common applications including serum/plasma separation, nucleic acid pellet recovery, protein precipitation, and immunoprecipitation wash steps. Rotor geometry is optimized for uniform radial force distribution, minimizing shear-induced denaturation of labile biomolecules. The instrument complies with CE marking directives (2014/30/EU EMC and 2014/35/EU LVD), conforms to ISO 13485:2016 principles for medical device-related laboratory equipment, and meets essential safety criteria outlined in GB/T 28210–2011 (Chinese national standard for centrifuges). While not FDA 510(k)-cleared as a medical device, its performance parameters align with CLSI EP17-A2 guidelines for centrifuge verification in clinical laboratories.

Software & Data Management

The TGL-16C operates as a standalone instrument without external PC dependency; however, all run parameters—including speed, time, RCF, and start/stop timestamps—are stored in non-volatile memory for the last 100 cycles. Audit-trail functionality records operator ID (via optional RFID badge integration), date/time stamps, and error codes (e.g., imbalance detection, overtemperature alert), supporting GLP-compliant recordkeeping. Data export is available via USB port in CSV format for integration into LIMS or electronic lab notebooks (ELN). Firmware updates are performed locally using encrypted firmware packages validated against SHA-256 checksums, satisfying basic cybersecurity expectations defined in ISO/IEC 27001 Annex A.8.2.3 for embedded system integrity.

Applications

• Clinical diagnostics: Rapid separation of whole blood into serum or plasma layers for immunoassays, ELISA, and coagulation testing.
• Molecular biology: Pellet recovery of plasmid DNA, genomic DNA, and RNA following phenol-chloroform extraction or column-based purification.
• Proteomics: Clarification of cell lysates prior to SDS-PAGE, Western blotting, or mass spectrometry sample preparation.
• Pharmaceutical QC: Removal of insoluble excipients or particulates from formulation suspensions during stability studies.
• Environmental analysis: Concentration of suspended solids or microbial cells from water samples for subsequent enumeration or PCR-based detection.

FAQ

What is the maximum RCF achievable with the TGL-16C, and how is it calculated?

The maximum relative centrifugal force is 17,000 × g, derived from the formula RCF = 1.118 × r × (N/1000)², where r is the rotor radius in millimeters (120 mm nominal) and N is rotational speed in rpm (16,000).

Is the TGL-16C suitable for use with infectious or biohazardous samples?

Yes—when operated with sealed tube adapters and within a certified biosafety cabinet (BSC Class II), provided the rotor chamber remains intact and undamaged. Routine decontamination with 70% ethanol or 0.5% sodium hypochlorite is recommended between runs.

Does the instrument support programmable multi-step protocols?

No—the TGL-16C executes single-step timed runs only. For gradient or sequential protocols, manual intervention between cycles is required.

What maintenance intervals are recommended for optimal performance?

Visual inspection of rotor threads and bucket latches every 500 runs; full rotor calibration and bearing lubrication every 2,000 operating hours or annually, whichever occurs first.

Can third-party rotors be used with this model?

No—only Macono-certified TGL-16C-compatible rotors are supported. Use of unapproved rotors voids warranty and violates IEC 61010-2-020 mechanical safety provisions.
