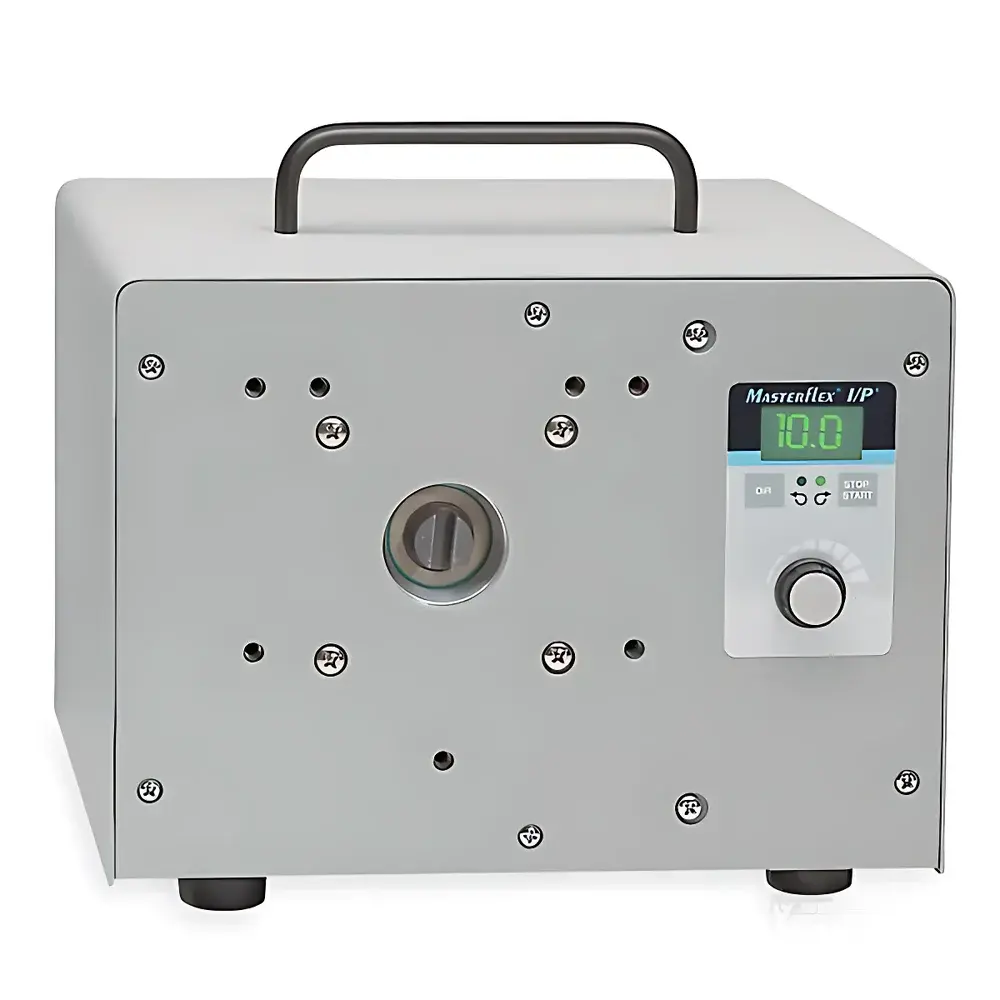

Masterflex I/P Brushless Process Peristaltic Pump Model 77410-10

Overview

The Masterflex® I/P Brushless Process Peristaltic Pump Model 77410-10 is an industrial-grade, continuous-duty peristaltic pump driver engineered for precision fluid transfer in demanding laboratory, pilot-scale, and light process environments. Operating on the principle of positive displacement via roller compression of elastomeric tubing, this pump eliminates fluid contact with mechanical components—ensuring contamination-free, low-shear delivery of sensitive or aggressive media. Its brushless DC motor delivers consistent torque across the full speed range (33–650 rpm), enabling stable flow rates from 0.2 to 19 L/min depending on tubing selection and system backpressure. Designed for long-term reliability without commutator wear, the 1/3-hp (0.25 kW) motor reduces maintenance intervals and operational downtime—critical in GLP-compliant quality control labs or continuous feed applications in bioprocessing and chemical synthesis.

Key Features

• Brushless DC motor with 1/3-hp output—eliminates brush replacement, improves thermal stability, and extends service life beyond 10,000 hours under nominal load conditions.
• IP55-rated epoxy-coated steel enclosure—provides robust protection against dust ingress and water splashing; chemically resistant surface withstands routine exposure to solvents, acids, and caustics encountered in analytical sample preparation and reagent dispensing.
• Compact footprint (35.6 × 25.4 × 22.9 cm) with integrated carrying handle—facilitates benchtop integration and mobility between workstations without compromising structural rigidity.
• Dual-pump-head capability—supports simultaneous operation of two independently mounted pump heads (e.g., Masterflex I/P series), enabling parallel flow paths or redundant pumping configurations for critical processes.
• Precision speed control via three-turn potentiometer—offers fine-grained adjustment with ±0.25% repeatability relative to full-scale speed; digital LCD displays real-time rotational output as a percentage (5–100%) with ±1% accuracy.
• Sealed membrane keypad—enables reliable start/stop and direction reversal in humid or particulate-laden environments; no exposed mechanical switches to degrade over time.
• Universal input voltage (90–260 VAC, 50/60 Hz)—ensures compatibility with standard laboratory power infrastructure globally, with automatic current adaptation (4.5 A @ 115 VAC / 2.6 A @ 230 VAC).

Sample Compatibility & Compliance

The Model 77410-10 is compatible with all Masterflex I/P-series pump heads and a broad range of FDA-compliant, USP Class VI-certified tubing materials—including silicone, Viton®, Tygon® B-44-3, and Pharmed® BPT—enabling safe handling of aqueous buffers, organic solvents, cell culture media, and mild corrosives. Its design adheres to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) standards for industrial equipment. While not certified for hazardous locations, its IP55 rating meets common requirements for use in ISO Class 7 cleanrooms (when paired with appropriate tubing and filtration) and supports audit readiness for ISO 9001:2015 and ISO/IEC 17025:2017 quality management systems. The absence of internal valves or seals simplifies cleaning validation protocols required under cGMP Annex 11 and FDA 21 CFR Part 11 when integrated into automated workflows.

Software & Data Management

This standalone analog-driven unit does not include embedded firmware or network connectivity; however, its analog-compatible architecture allows seamless integration into supervisory control systems via optional accessories (e.g., 77300-32 remote I/O cable kit for Model 77411-00). For Model 77410-10, speed setpoints are manually adjusted and logged externally. When deployed in regulated environments, users may pair it with third-party data acquisition hardware (e.g., National Instruments DAQ modules) to record speed %, runtime, and status signals—supporting electronic batch records compliant with ALCOA+ principles. The fixed-speed resolution and high repeatability facilitate calibration traceability using NIST-traceable tachometers or flow meters per ASTM D3595 (standard test method for peristaltic pump performance verification).

Applications

• Continuous feeding of mobile phases in preparative HPLC and SFC systems.
• Accurate dosing of catalysts or initiators in polymerization reaction setups.
• Recirculation of heat-transfer fluids in jacketed reactor temperature control loops.
• Low-shear transfer of shear-sensitive biologics (e.g., viral vectors, exosomes) during purification steps.
• Automated sampling in environmental monitoring stations where corrosion resistance and outdoor durability are essential.
• Media preparation and sterile filtration priming in upstream biomanufacturing suites.

FAQ

Is the Model 77410-10 suitable for sterile or aseptic applications?

Yes—when used with gamma-sterilizable tubing (e.g., Pharmed BPT) and validated pump head assemblies, it supports aseptic fluid transfer in ISO 5 laminar flow hoods and isolators.
Can I calibrate flow rate directly on this unit?

No—flow calibration requires external measurement (e.g., gravimetric or volumetric timing) and is tubing-, pressure-, and viscosity-dependent; Masterflex provides flow charts for common tubing sizes and speeds in its technical documentation.
What is the expected lifetime of the motor under continuous operation?

Rated for >10,000 hours at 75% of maximum speed and ambient temperatures ≤40°C, per manufacturer’s accelerated life testing under IEEE 117 standards.
Does it support analog speed control inputs?

Not natively—the 77410-10 is local-control only; for 4–20 mA or 0–10 V analog interface, upgrade to Model 77411-00 with optional 77300-32 cable kit.
How do I ensure compliance with FDA 21 CFR Part 11 when using this pump in a regulated process?

Pair with validated electronic loggers that capture timestamped speed % and runtime; maintain calibration records for associated flow meters and tubing lot traceability per SOP-INST-023.
