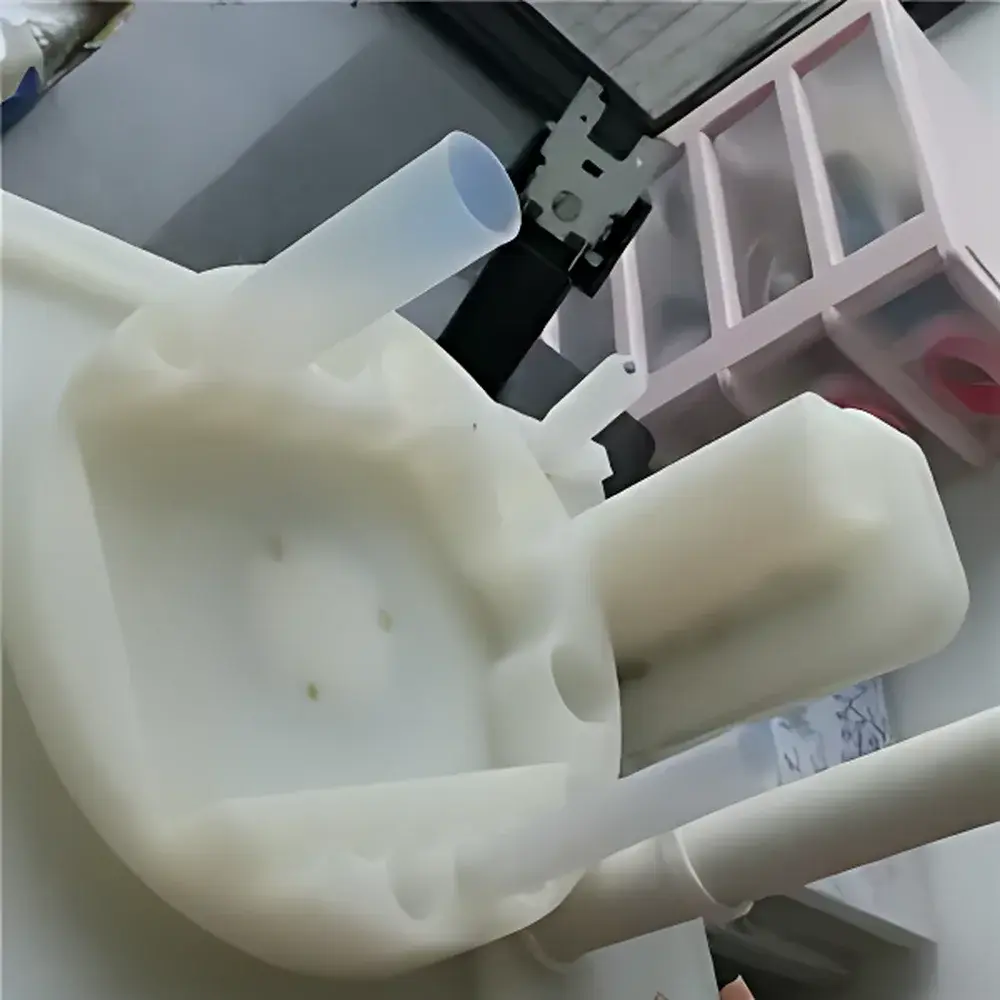

MC Experimental PFA Auto-Sampler Vial Adapter for Teledyne CETAC ASX-112FR-NEPTUNE Plus ICP-MS

Overview

The MC Experimental PFA Auto-Sampler Vial Adapter (Model NJ-ZH) is a precision-engineered consumable component designed exclusively for integration with the Teledyne CETAC ASX-112FR-NEPTUNE Plus autosampler system—widely deployed in high-sensitivity multi-collector inductively coupled plasma mass spectrometry (MC-ICP-MS) laboratories. Unlike generic polypropylene or borosilicate glass alternatives, this adapter utilizes ultra-pure perfluoroalkoxy alkane (PFA), a fluoropolymer certified to meet stringent trace-metal analysis requirements. Its primary function is to serve as a chemically inert, low-background interface between standard sample vials and the CETAC ASX-112FR’s robotic arm and peristaltic pump assembly, ensuring consistent aspiration geometry, minimal memory effects, and full compatibility with the NEPTUNE Plus’ high-resolution sample introduction protocol. The adapter maintains dimensional fidelity to CETAC’s original mechanical specifications—enabling seamless drop-in replacement without recalibration or firmware modification.

Key Features

• Material Integrity: Constructed from virgin, low-extractable PFA resin (ASTM D4327 compliant), exhibiting negligible leaching of Na⁺, K⁺, Ca²⁺, Fe, Al, and rare earth elements—even after prolonged exposure to 7 M HNO₃, 1 M HF, or aqua regia at elevated temperatures.
• Mechanical Precision: CNC-machined to ±10 µm tolerance on critical fit dimensions—including outer diameter (OD), base flatness, and collar height—to ensure repeatable positioning within the ASX-112FR carousel and reliable engagement with the syringe needle seal.
• Vial Integration Flexibility: Supports both 10 mL and 35 mL conical-bottom PFA vials; optional custom volume configurations (e.g., 5 mL, 15 mL, 50 mL) are available under OEM agreement with documented dimensional validation reports.
• Thermal & Chemical Stability: Rated for continuous use from –200 °C to +260 °C; fully resistant to hydrolysis, UV degradation, and oxidative stress—critical for long-term storage of isotopically labeled standards and geological digests.
• Traceability & Documentation: Each production lot undergoes ICP-MS blank screening (using Thermo Scientific Neptune Plus) and receives a Certificate of Analysis (CoA) listing elemental background levels (sub-pg/mL detection limits for >60 elements), batch number, and sterilization status (gamma-irradiated upon request).

Sample Compatibility & Compliance

This adapter is validated for use with aqueous, organic, and mixed-phase samples across environmental, geochemical, nuclear safeguards, and clinical metallomics workflows. It meets the material qualification criteria specified in ISO/IEC 17025:2017 Clause 5.5.2 for reference material handling systems and aligns with USP requirements for pharmaceutical-grade fluoropolymer contact surfaces. When used in conjunction with CETAC-certified tubing and nebulizers, the complete sample introduction train satisfies GLP audit requirements for method validation documentation, including carryover testing (<0.05% for U-238 after Pb-208 rinse) and long-term stability assessments (RSD <1.2% over 72-hr continuous operation).

Software & Data Management

While the NJ-ZH adapter itself contains no embedded electronics or firmware, its physical consistency directly supports robust data integrity in CETAC’s Neptune Control Suite and Thermo Fisher Qtegra ISDS software environments. Consistent vial seating minimizes aspiration pressure variance—reducing signal drift during time-resolved analysis—and enables reliable application of internal standard correction algorithms (e.g., Tl-205/Tl-203 or Ir-193/Ir-191). For labs operating under FDA 21 CFR Part 11 compliance mandates, the adapter’s CoA and lot-specific test records integrate into electronic lab notebook (ELN) systems via LIMS-compatible PDF metadata tagging.

Applications

• High-precision isotope ratio measurement of Sr, Nd, Hf, Pb, and Os in silicate rocks, seawater, and biological tissues.
• Ultra-trace quantification of actinides (U, Pu, Am) in nuclear fuel cycle monitoring and environmental forensics.
• Reference material certification programs requiring sub-femtogram-level procedural blanks (e.g., NIST SRM 981, IRMM-3702).
• Method development for hydride-forming elements (As, Sb, Bi) using CETAC’s hydrogen generation accessories.
• Long-duration marine porewater profiling where vial wall adsorption must be excluded from diffusion modeling.

FAQ

Is this adapter compatible with older CETAC ASX-500 or ASX-700 series autosamplers?
No—NJ-ZH is dimensionally optimized for the ASX-112FR-NEPTUNE Plus platform only. Mechanical interference may occur with prior-generation CETAC models due to differences in carousel spacing and needle insertion depth.
Can these adapters be autoclaved?
Yes—PFA tolerates standard 121 °C, 15 psi steam sterilization cycles; however, repeated autoclaving (>10 cycles) may affect surface hydrophobicity and is not recommended for ultra-low-blank applications.
Do you provide pre-assembled vial kits with caps and septa?
Yes—custom kits including PFA vials, magnetic crimp caps, and 2 mm-thick silicone/PTFE septa are available with full extractables testing data upon request.
What is the shelf life under ambient storage conditions?
Unopened, gamma-irradiated units retain specification compliance for 36 months when stored in sealed, low-dust environments protected from direct UV exposure.
