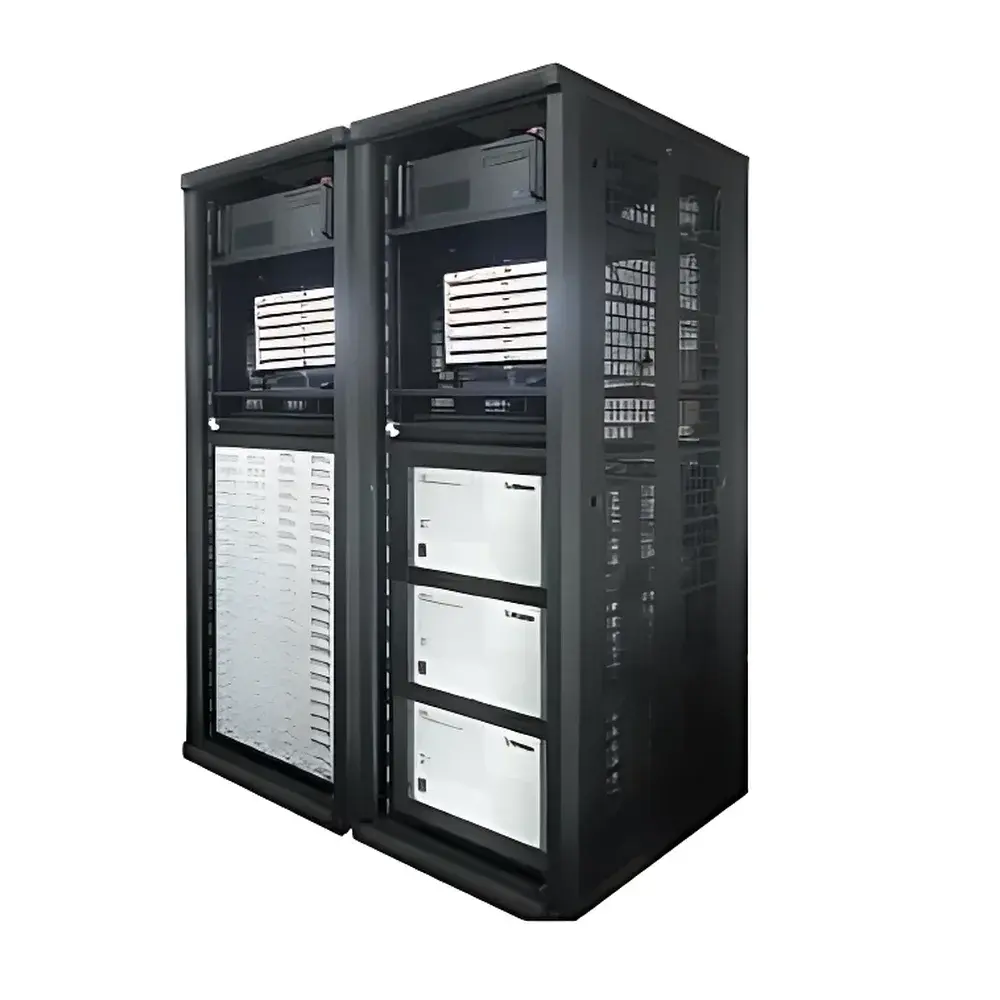

McScience M6000 PLUS OLED Lifetime Testing System
| Brand | McScience |
|---|---|
| Origin | South Korea |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | M6000 |
| Pricing | Upon Request |
Overview
The McScience M6000 PLUS OLED Lifetime Testing System is an engineered platform for quantitative, multi-channel operational lifetime assessment of organic light-emitting diode (OLED) materials and devices under controlled electrical, thermal, and environmental stress conditions. Based on constant-current or constant-voltage driving protocols, the system monitors real-time luminance (L), current (I), and voltage (V) parameters to derive key degradation metrics—including LT50 (time to 50% initial luminance), LTV (luminance vs. time), and IVL (current–voltage–luminance) correlations. Its architecture supports both isothermal aging and accelerated stress testing via integrated temperature- and humidity-controlled environmental chambers (operable from −40 °C to +120 °C, 10–95% RH non-condensing), enabling compliance with industry-standard reliability protocols such as IEC 62715-4-2 and JEDEC JESD22-A108 for solid-state lighting and display components.
Key Features
- Multi-channel independent drive and monitoring: Up to 64 channels with programmable current ranges (1 nA–100 mA) and voltage compliance (0–100 V), supporting parallel evaluation of pixel arrays, small-molecule and polymer OLEDs, tandem structures, and encapsulated panels.
- High-precision photometric integration: Equipped with NIST-traceable silicon photodiodes calibrated per CIE 1931 color-matching functions; spectral response optimized for visible emission (380–780 nm) with <±2% linearity across dynamic range.
- Environmental acceleration capability: Integrated dual-zone chamber enables simultaneous thermal cycling (−40 °C ↔ +120 °C at ±0.5 °C stability) and humidity ramping (10–95% RH at ±2% RH accuracy), facilitating Arrhenius-based lifetime extrapolation and failure mode analysis.
- Sequence-driven test automation: Supports custom waveform generation—including pulse-width modulation (PWM), staircase sweeps, and duty-cycle modulated stress profiles—for evaluating transient degradation mechanisms in flexible and micro-OLED architectures.
- Robust hardware synchronization: Sub-millisecond timestamp alignment between electrical stimulus, optical readout, and environmental sensor feedback ensures phase-coherent data capture for kinetic modeling of emissive layer oxidation, cathode delamination, and interfacial trap formation.
Sample Compatibility & Compliance
The M6000 PLUS accommodates substrates up to 300 mm × 300 mm, including bare TFT backplanes, encapsulated rigid/flexible OLED modules, RGB stripe and white+CF subpixels, and solution-processed film stacks on glass, PET, or PI carriers. All measurement routines adhere to ISO/IEC 17025 traceability requirements for calibration documentation, and software audit trails satisfy FDA 21 CFR Part 11 and EU Annex 11 expectations for electronic records and signatures. Test reports are exportable in ASTM E2919-compliant format for cross-laboratory comparison and regulatory submission.
Software & Data Management
Control and analysis are executed via McScience’s Lifetest Suite v4.x—a Windows-based application featuring role-based user access, automated report generation (PDF/CSV/XLSX), and built-in statistical modules for Weibull distribution fitting, activation energy calculation (Ea), and confidence interval estimation (95% CI). Raw datasets retain full metadata (timestamp, ambient T/RH, drive history, sensor calibration IDs) and support GLP/GMP-compliant audit trails with immutable log entries. Integration with LabVIEW and Python APIs allows for custom algorithm deployment—e.g., machine learning–assisted defect clustering or spectral shift tracking using external spectroradiometers.
Applications
- Material qualification: Screening host–dopant combinations, electron/hole transport layers, and interfacial modifiers for long-term operational stability.
- Process development: Evaluating thin-film encapsulation efficacy (e.g., ALD Al₂O₃, hybrid barrier stacks) under combined thermal-humidity stress.
- Display R&D: Validating pixel-level uniformity, burn-in resistance, and grayscale retention in AMOLED microdisplays and AR/VR emitters.
- Reliability benchmarking: Generating FIT (failures-in-time) rates and MTTF (mean time to failure) models aligned with JEDEC JEP122G and AEC-Q200 for automotive-grade OLED lighting.
- Standards participation: Supporting inter-laboratory round-robin studies coordinated by ISO TC110/SC4 and the OLED Industry Consortium (OIDA).
FAQ
Does the M6000 PLUS support real-time EL imaging during lifetime testing?
Yes—when coupled with optional high-dynamic-range CMOS cameras and synchronized trigger modules, the system enables spatially resolved electroluminescence (EL) mapping at frame rates up to 30 Hz.
Can it perform bias-temperature instability (BTI) measurements on OLED-TFT backplanes?
While not a dedicated semiconductor parameter analyzer, its precision current sourcing and sub-pA resolution allow correlated VGS/IDS monitoring during extended gate-bias stress, suitable for preliminary BTI screening.
Is third-party calibration available for photometric sensors?
Yes—McScience partners with accredited metrology labs (e.g., PTB Germany, NIST USA, KRISS Korea) for annual recalibration with full uncertainty budgets and ISO/IEC 17025 certificates.
How is data integrity ensured during long-duration tests (e.g., >6 months)?
The system employs redundant local SSD logging, automatic network backup to NAS/SAN infrastructure, and SHA-256 checksum verification on all exported datasets to prevent silent corruption.
Does it comply with ICH Q5C guidelines for biopharmaceutical stability? No—ICH Q5C applies to protein therapeutics, not electronic materials. However, its environmental control fidelity meets ICH Q1A(R2) temperature/humidity classification standards for accelerated stability testing analogies.
