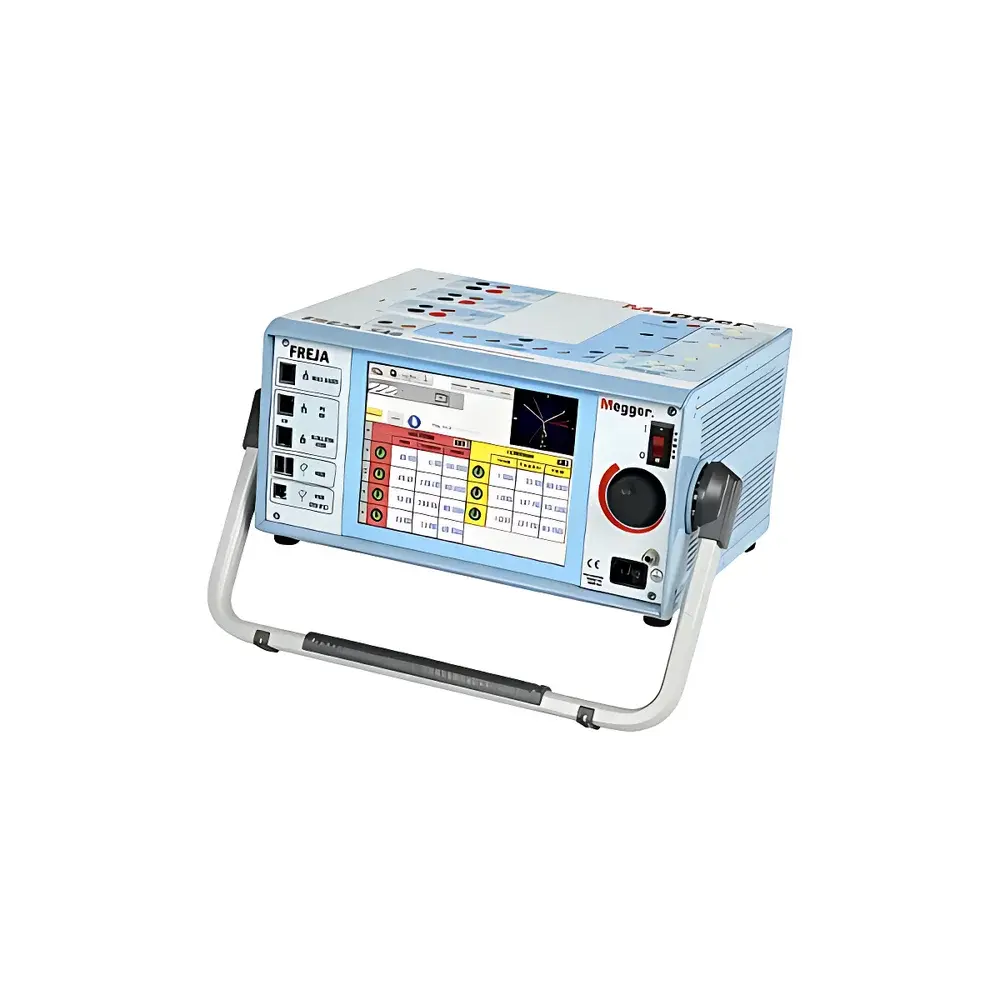

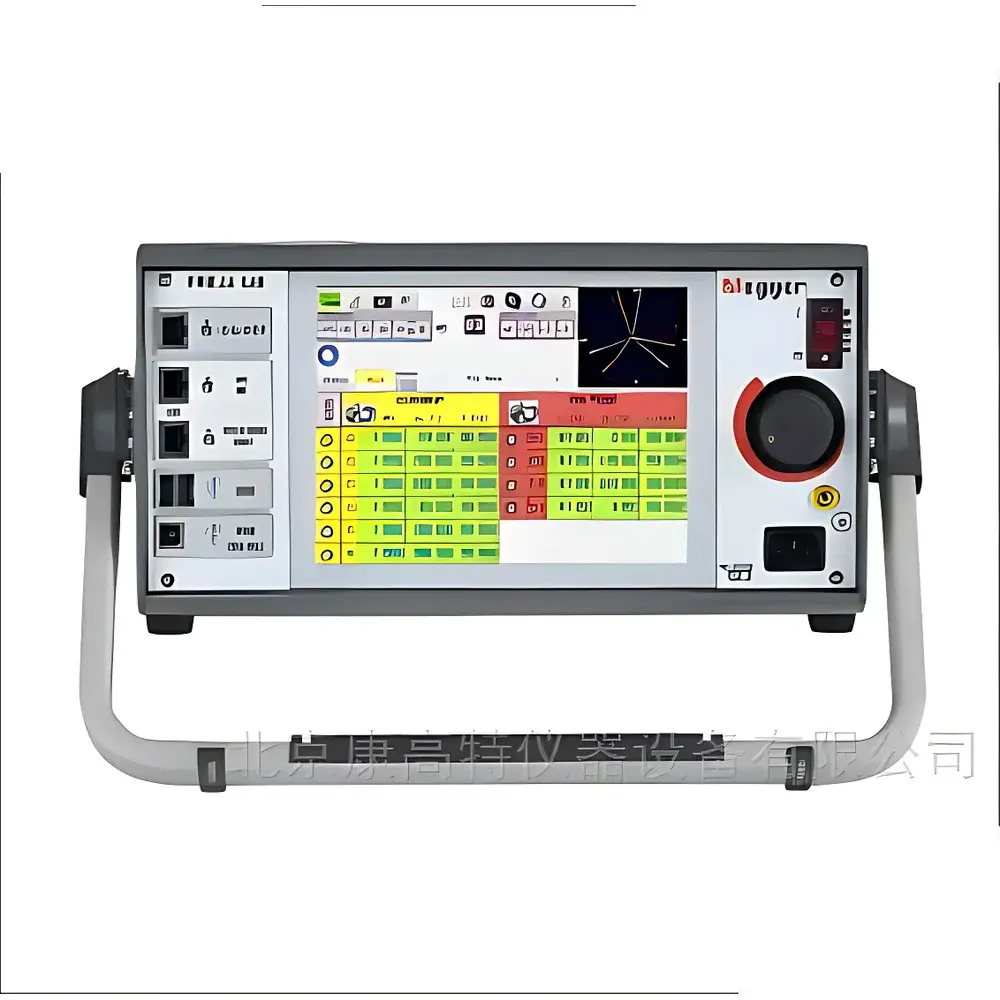

Megger FREJA 546 Relay Test System

Overview

The Megger FREJA 546 Relay Test System is a high-fidelity, portable secondary protection testing platform engineered for precision commissioning, maintenance, and functional verification of electromechanical, solid-state, and microprocessor-based protective relays in utility substations, industrial power systems, and renewable energy integration sites. It operates on the principle of programmable, synchronized multi-channel analog signal generation—delivering calibrated, phase-coherent voltage and current waveforms with sub-millisecond timing resolution. Unlike legacy relay testers reliant on external PCs or rigid test scripts, the FREJA 546 integrates real-time waveform synthesis, embedded fault modeling, and adaptive test sequencing within a self-contained hardware architecture. Its design prioritizes field robustness, compliance-ready traceability, and operational autonomy—enabling full relay characterization—including time-current curves (TCC), impedance characteristics, harmonic restraint logic, and IEC 61850-based end-to-end validation—without requiring continuous PC connectivity.

Key Features

• Self-contained operation via intuitive 7-inch full-color TFT touchscreen interface running FREJA Local—the second-generation embedded OS with graphical menu navigation, vector diagram visualization, and real-time magnitude/phase monitoring.
• High-power analog outputs: Three independent AC current channels (60 A rms, 300 V rms compliance; 900 VA total when paralleled), and four AC voltage channels (0–300 V rms, 150 VA; fourth channel configurable as U_ref reference or battery emulator).
• Flexible channel reconfiguration: Voltage channels can be converted into additional current sources—enabling up to six simultaneous current outputs for three-phase differential relay testing without lead reconnection.
• Advanced dynamic testing capabilities: Pulse ramp, binary-search pulse ramp, smooth/step ramp, and state sequence testing with up to 15 programmable steps—including prefault/fault/re-close/lockout scenarios and binary input/output simulation (e.g., breaker contacts 52a/52b).
• Integrated fault calculator supporting seven operational modes: overcurrent, voltage, frequency, impedance (MHO/Half-MHO/QUAD), symmetrical components, power swing, and fault location—with auto-generated test points based on user-defined reach, torque angle, and compensation factors.
• Native IEC 61850 support: GOOSE message injection and SV sampling value playback with timestamp synchronization via IRIG-B or GPS—enabling deterministic end-to-end latency measurement across digital substation architectures.
• Comprehensive time-curve library: Preloaded ANSI C37.112, IEC 60255-151, BS 142, and IEEE C37.112 algorithms plus >20 manufacturer-specific libraries (ABB, Siemens, GE, SEL, NARI, etc.) with automatic pass/fail evaluation against theoretical trip times.

Sample Compatibility & Compliance

The FREJA 546 is validated for testing all major classes of protective relays—including overcurrent (instantaneous, definite-time, inverse-time), distance (impedance, MHO, quadrilateral), directional, differential (transformer, busbar, line), voltage/frequency, and arc-flash relays. Its output fidelity meets the requirements of EN 61000-4-30 Class S for power quality instrumentation and supports GLP/GMP-aligned workflows through audit-trail-capable data logging. The system conforms to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) per EN 61326:2006, and safety compliance is certified to EN/IEC 61010-1:2001 (2nd ed.). For regulatory environments governed by FDA 21 CFR Part 11, FREJA Remote and FREJA Win provide electronic signature support, role-based access control, and immutable test record export (CSV, PDF, COMTRADE). All firmware and software updates are digitally signed and version-controlled to ensure integrity during field upgrades.

Software & Data Management

FREJA Local serves as the embedded runtime environment—storing test configurations, results, and reports in non-volatile memory with USB-A port support for secure data export to encrypted flash drives. Each unit ships with FREJA Remote, a Windows 10-compatible PC application that enables fully automated test execution, remote monitoring, and centralized database integration. FREJA Win remains available as an optional legacy-compatible suite for users maintaining established test protocols. All software modules generate timestamped, metadata-rich reports compliant with ISO/IEC 17025 documentation standards—including vector diagrams, oscillographic traces, TCC overlays, and color-coded pass/fail indicators (green/red). Test data exports retain full traceability: operator ID, device under test (DUT) parameters, environmental conditions (temperature, humidity), calibration certificate references, and instrument serial numbers.

Applications

The FREJA 546 is deployed globally for primary and secondary system commissioning in transmission & distribution substations, combined-cycle power plants, wind/solar farm interconnections, rail traction networks, and marine propulsion systems. Typical use cases include: verification of zone-1/zone-2/zone-3 distance relay reach and operating boundaries under load-intrusion conditions; harmonic restraint validation for transformer differential relays using user-defined 2nd/3rd/5th/7th harmonic content; dynamic coordination studies between upstream/downstream overcurrent devices; IEC 61850 GOOSE trip chain validation from merging unit to bay controller; and periodic maintenance testing per IEEE C37.23 and IEC 62443 cybersecurity guidelines. Its lightweight chassis (13.2 kg), ruggedized enclosure (IP2X-rated), and 30-minute thermal stabilization profile enable reliable operation at altitudes up to 2000 m without derating.

FAQ

Does the FREJA 546 support IEC 61850 GOOSE and Sampled Values testing?
Yes—hardware-accelerated GOOSE publishing/subscribing and SV playback are included as standard features, with GPS or IRIG-B time synchronization for end-to-end latency measurement.
Can I perform differential relay testing without rewiring leads?
Yes—the FREJA 546 allows conversion of voltage channels into current sources, delivering up to six synchronized current outputs for three-phase differential schemes including harmonic-restraint logic.
Is FREJA Win still supported alongside FREJA Local and FREJA Remote?
Yes—FREJA Win is offered as an optional licensed software module for users requiring backward compatibility with legacy test procedures and file formats.
What accuracy specifications apply under continuous operation?
Voltage and current amplitude accuracy is ±0.05% reading + 0.02% range (typical) after 30-minute warm-up at 25°C ambient, verified per ISO/IEC 17025-accredited calibration procedures.
How does the system handle high-impedance ground fault relay testing?
By series-connecting two current channels, the FREJA 546 achieves 100 Vrms compliance voltage—enabling accurate testing of high-Z ground fault relays per IEEE C37.90.2 requirements.
