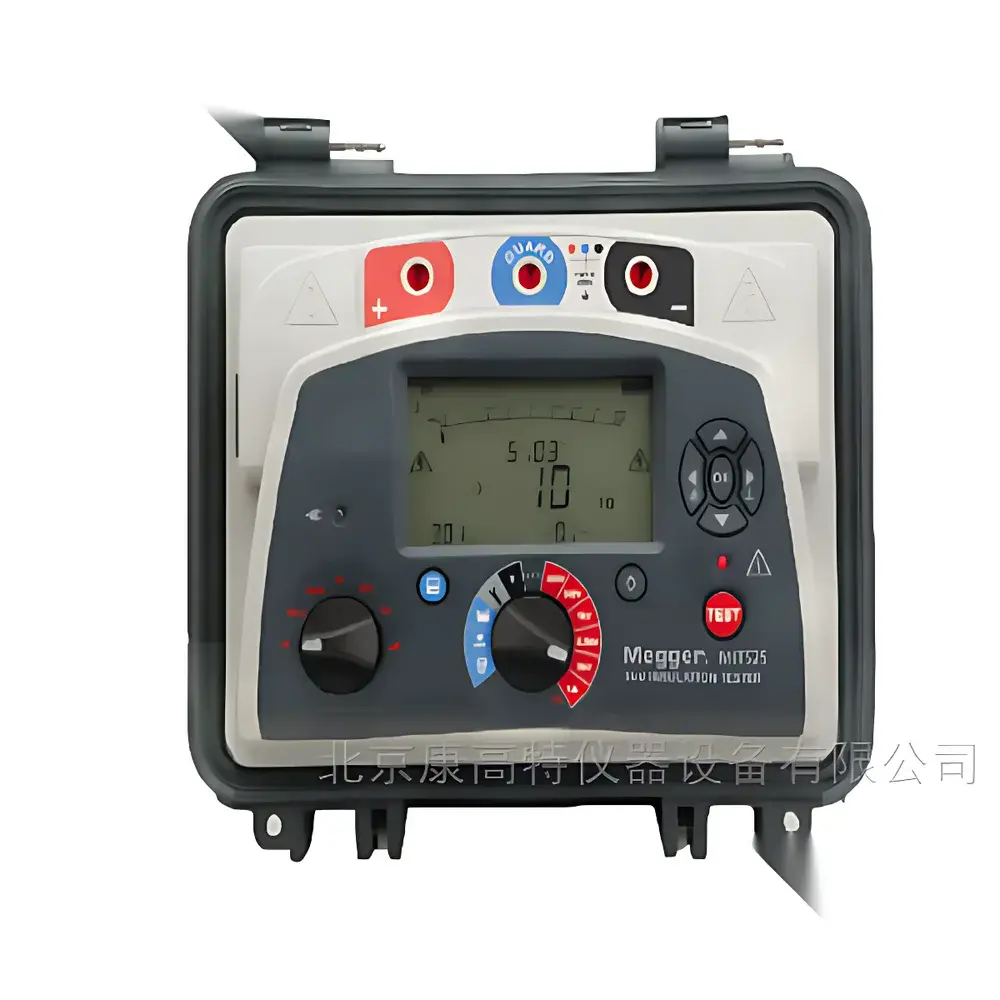

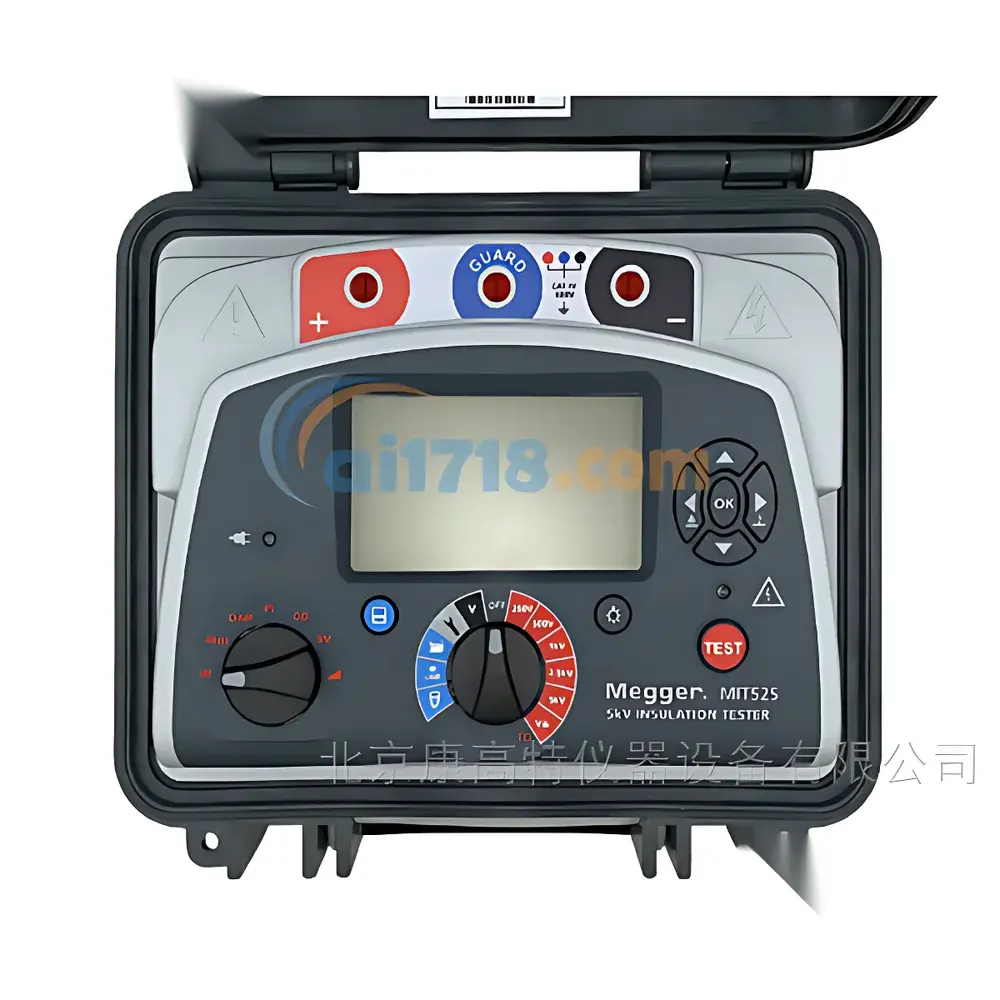

Megger MIT525 Insulation Resistance Tester

Overview

The Megger MIT525 Insulation Resistance Tester is a high-voltage, portable diagnostic instrument engineered for precision insulation integrity assessment across industrial, utility, and renewable energy infrastructure. Based on the proven principle of DC voltage application and leakage current measurement, the MIT525 delivers stable, repeatable resistance values in accordance with IEEE 43 (rotating machinery), ASTM D257 (solid dielectric materials), and IEC 60204-1 (safety of machinery). Its 5 kV test capability enables comprehensive evaluation of medium- and high-voltage assets—including power cables, transformer windings, motor/generator stators, switchgear busbars, and photovoltaic string isolation—under field conditions where environmental noise, humidity, and altitude variability challenge conventional testers. Designed for CAT IV 600 V environments, the MIT525 meets stringent safety requirements for use on primary distribution systems without requiring additional protective barriers or procedural derating.

Key Features

• Five factory-preset test voltages (50 V, 100 V, 250 V, 500 V, 1 kV, 2.5 kV, 5 kV) plus fully adjustable user-defined voltage ramping from 50 V to 5 kV in 10 V increments
• Advanced diagnostic modes: Polarization Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Step Voltage (SV), and programmable Ramp testing with real-time voltage/current curve plotting

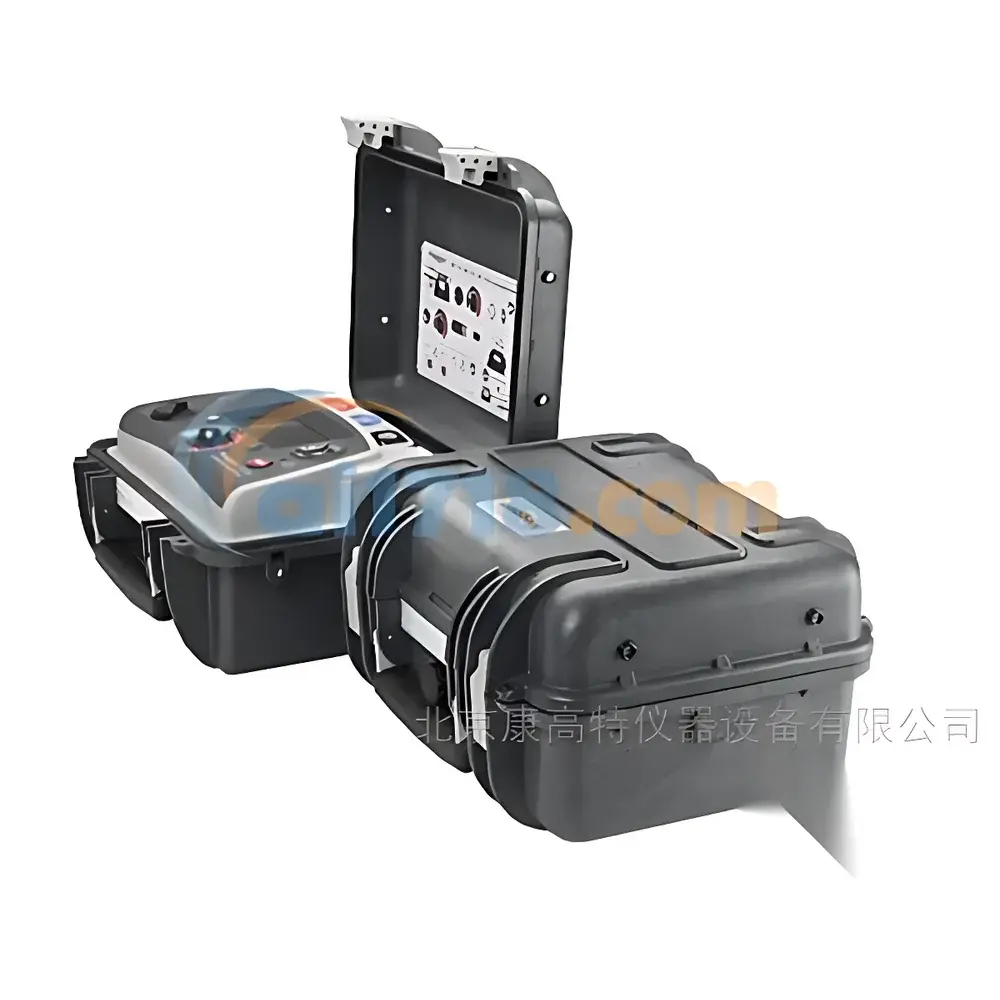

• Dual-layer molded housing rated IP65 when latched—fully dust-tight and protected against low-pressure water jets—enabling reliable operation in outdoor substations, wind turbine nacelles, and solar farm combiner boxes
• Isolated USB-B interface compliant with IEC 62443-3-3 for secure, non-ground-referenced data transfer; supports encrypted timestamped export to Megger PowerDB Lite for audit-ready reporting
• Integrated true-RMS voltmeter (30–660 V AC/DC) and frequency meter (15–400 Hz) for pre-test induced voltage verification and grounding validation prior to insulation energization
• Active noise filtering capable of rejecting up to 3 mA of capacitive or electromagnetic interference—critical for testing near operating switchgear or variable-frequency drives
• Field-replaceable lithium-ion battery delivering six hours of continuous 5 kV testing; supports hot-swap operation via AC mains adapter during extended campaigns

Sample Compatibility & Compliance

The MIT525 is validated for use on solid-dielectric insulated conductors (XLPE, EPR, PVC), oil-immersed and dry-type transformers, rotating machine windings (stator/rotor), HV bus ducts, and PV module isolation barriers. Its test algorithm conforms to the timing and calculation protocols defined in IEEE 43-2013 (PI ≥ 2.0 indicates acceptable winding insulation) and IEC 60502-2 (cable acceptance criteria). All terminals are rated CAT IV 600 V per IEC 61010-1:2010 and double-insulated per IEC 61010-2-033. Test leads comply with IEC 61010-31:2008 for Category IV applications, featuring silicone-jacketed conductors with reinforced strain relief and finger-safe shrouded connectors. The instrument supports GLP/GMP-aligned workflows through automatic time/date stamping, operator ID tagging (via optional firmware), and immutable data logs traceable to ISO/IEC 17025 calibration records.

Software & Data Management

Data acquisition and reporting are managed through Megger PowerDB Lite—a Windows-based asset management platform compliant with FDA 21 CFR Part 11 for electronic records and signatures. The MIT525’s isolated USB-B port eliminates ground-loop risks during PC connection and ensures signal integrity during bulk download of time-stamped resistance trends, PI/DAR decay curves, and Ramp test graphs. PowerDB Lite enables comparative analysis across multiple test events, automated pass/fail flagging per IEEE 43 thresholds, and PDF report generation with embedded calibration certificates and technician annotations. All stored data retains cryptographic hash verification to satisfy internal audit and third-party certification requirements (e.g., ISO 55001, EN 50160).

Applications

The MIT525 serves as a primary tool in predictive maintenance programs for electrical utilities, rail infrastructure operators, and industrial OEMs. It performs commissioning tests on new HV cable installations per ICEA T-46-524, routine trending on generator rotor circuits under load, and post-fault diagnostics on wind turbine pitch motor insulation after lightning exposure. Its lightweight form factor (3.2 kg) and ruggedized enclosure support repeated deployment in confined spaces such as control panel cabinets, offshore platform junction boxes, and underground substation vaults. Field technicians utilize the Step Voltage mode to detect moisture ingress in aged cable jackets, while Ramp testing identifies early-stage partial discharge activity in transformer bushings prior to breakdown.

FAQ

Does the MIT525 support data export in CSV or XML format for integration with CMMS platforms?
Yes—PowerDB Lite exports test logs in ISO-standard CSV and XML formats compatible with SAP PM, IBM Maximo, and Fiix CMMS systems.
Can the MIT525 perform insulation resistance testing above 5 kV?
No—the maximum applied test voltage is 5 kV DC, as certified under its CAT IV 600 V safety rating and IEC 61010-2-033 compliance.
Is external calibration required annually, and does Megger provide accredited certificates?
Yes—annual calibration is recommended per ISO/IEC 17025; Megger offers UKAS-accredited calibration services with full uncertainty budgets and traceability to NIST.
How does the MIT525 handle temperature compensation during long-duration PI tests?
The instrument does not auto-compensate for ambient temperature; users must record ambient conditions manually and apply correction factors per IEEE 43 Annex B or IEC 60204-1 Clause 11.3.
Are test leads included with the standard configuration, and do they meet Category IV requirements?

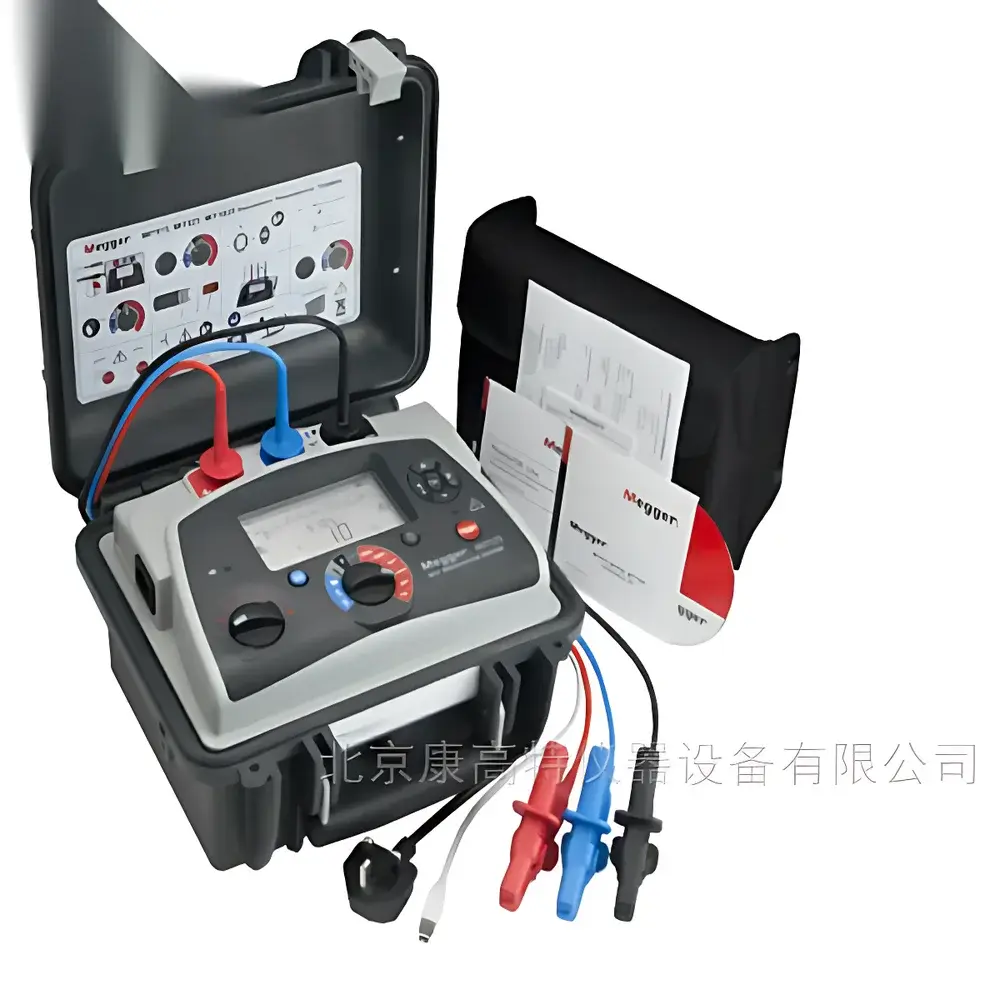

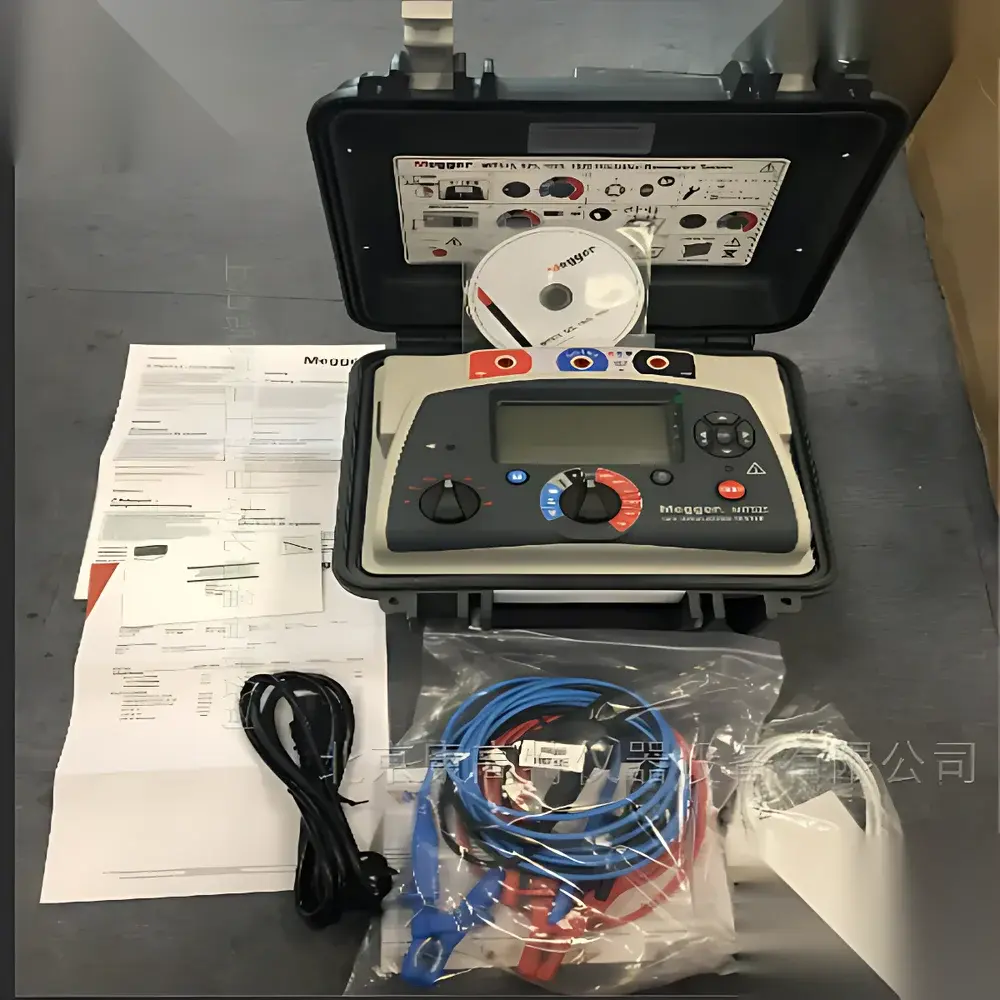

Yes—the standard kit includes three 3 m silicone-insulated, Category IV-rated test leads with alligator clips and probe tips, fully compliant with IEC 61010-31:2008.
