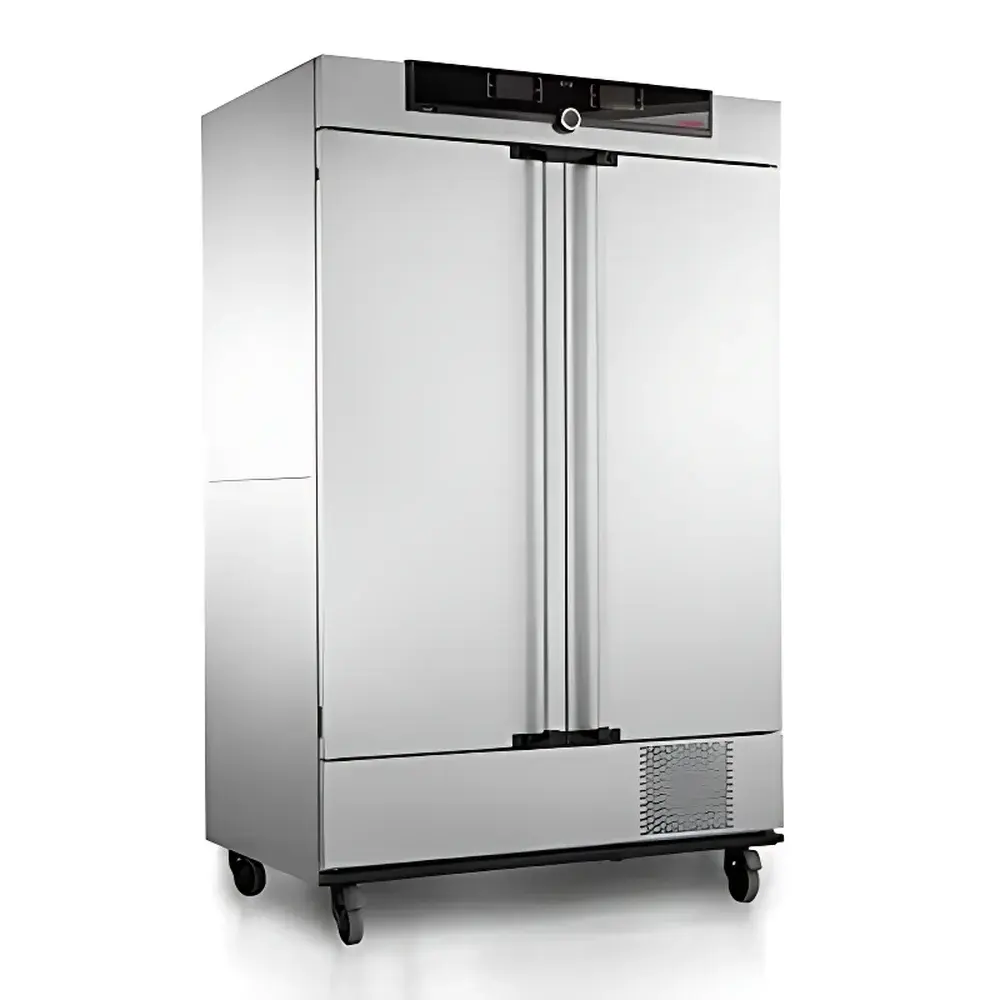

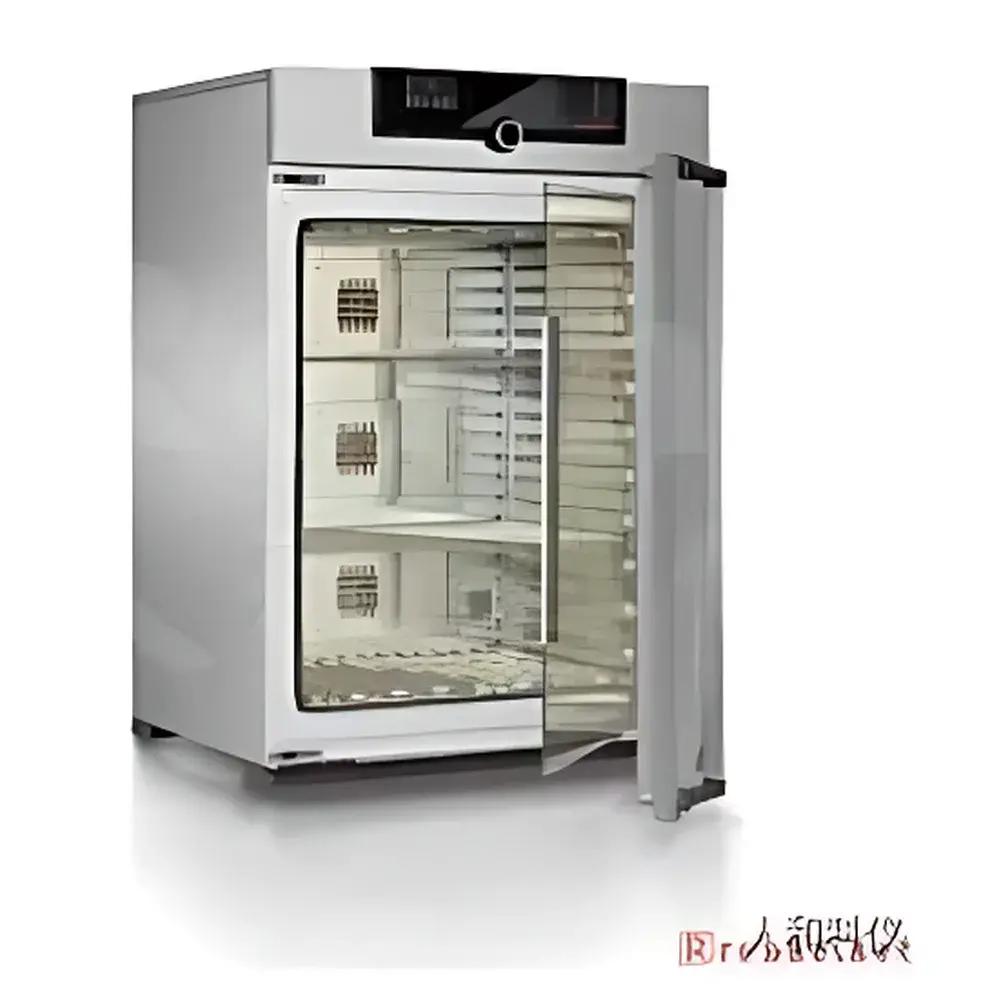

MEMMERT HPP750 Stability Testing Chamber

Overview

The MEMMERT HPP750 Stability Testing Chamber is an upright, Peltier-based environmental test system engineered for long-term, high-precision stability studies in compliance with ICH Q1A(R3) guidelines. Unlike conventional compressor-driven chambers, the HPP750 employs solid-state thermoelectric (Peltier) technology for both heating and cooling—enabling bidirectional thermal control without refrigerants, oil-lubricated compressors, or external condensate drainage. This architecture eliminates ozone-depleting substances, reduces mechanical vibration, and ensures silent operation (<45 dB(A) at 1 m), critical for laboratory environments where acoustic noise and thermal micro-disturbances must be minimized. The chamber’s internal volume of 749 L accommodates multiple ICH-compliant storage configurations, while its seamless, electropolished AISI 304 stainless steel (1.4301) inner chamber resists corrosion, facilitates cleaning validation, and supports repeated sterilization cycles—essential for GMP-regulated pharmaceutical stability programs.

Key Features

• Peltier-based dual-mode climate control: Enables precise, solvent-free, and maintenance-free temperature regulation across 0–70 °C with ±0.5 °C uniformity and 0.1 K setpoint resolution.
• Dynamic humidity management: Independent humidification and dehumidification modules maintain 10–90 %RH within ±2 %RH deviation—even under challenging ambient conditions (e.g., >35 °C / 85 %RH).
• ICH Q1A-compliant design: Validated thermal and hygrometric performance across all defined storage conditions (e.g., 25 °C/60 %RH, 30 °C/65 %RH, 40 °C/75 %RH); supports IQ/OQ/PQ documentation packages per ISO 14644-1, ASTM E2500, and FDA 21 CFR Part 11 requirements.
• GLP/GMP-ready construction: Fully sealed inner chamber prevents cross-contamination; electropolished stainless steel surfaces meet USP analytical instrument qualification criteria for surface finish and cleanability.
• Energy-efficient architecture: Consumes up to 90% less energy than equivalent compressor-based systems during steady-state operation; no refrigerant handling, disposal, or regulatory reporting required.
• Modular shelving system: Accommodates 2 standard shelves (included); expandable to 14 shelves for high-density sample loading—each shelf rated for 25 kg load capacity and designed for unobstructed airflow distribution.

Sample Compatibility & Compliance

The HPP750 is validated for use with pharmaceutical dosage forms (tablets, capsules, injectables, creams), biologics intermediates, reference standards, and packaging components undergoing real-time and accelerated stability testing. Its stainless steel interior complies with ISO 8573-1 (compressed air purity) and EU GMP Annex 15 (qualification of utilities). All electronic controls are RoHS-compliant and CE-marked per EN 61000-6-3 (EMC) and EN 61000-6-2 (immunity). Data integrity features include audit-trail-enabled event logging, user-access levels (admin/operator), and password-protected parameter locking—fully aligned with ALCOA+ principles and FDA 21 CFR Part 11 Subpart C for electronic records and signatures.

Software & Data Management

The integrated P-type PID controller provides real-time monitoring of temperature and humidity via calibrated Pt100 sensors (traceable to NIST or DAkkS standards). Optional MEMMERT Software Suite (v5.x) enables remote supervision via Ethernet/Wi-Fi, automated report generation (PDF/CSV), trend analysis, alarm escalation (email/SMS), and full 21 CFR Part 11 compliance—including electronic signatures, change history, and immutable data archiving. Raw sensor data is recorded at user-defined intervals (1 sec–60 min), with built-in redundancy via internal SD card and external NAS backup. All calibration certificates, deviation logs, and maintenance records are stored within the same secure database framework used for regulatory submissions.

Applications

• ICH Q1A(R3)-mandated real-time and accelerated stability studies for new drug applications (NDAs) and marketing authorization applications (MAAs)
• Long-term storage condition verification (e.g., 25 °C/60 %RH for 36 months)
• Accelerated stress testing (e.g., 40 °C/75 %RH for 6 months)
• Intermediate condition assessment (e.g., 30 °C/65 %RH)
• Reference standard and working standard storage under controlled climatic conditions
• Stability-indicating method development support (e.g., forced degradation under defined humidity exposure)
• Package compatibility testing (e.g., moisture vapor transmission rate impact on blister foil integrity)

FAQ

Does the HPP750 support illumination for photostability testing?
No—the HPP750 is a dedicated temperature/humidity chamber and does not integrate UV/visible light sources. For ICH Q1B photostability studies, MEMMERT recommends pairing the HPP750 with a separate, validated photo-stability chamber (e.g., ICH-compliant xenon-arc or cool-white fluorescent systems).
Can the HPP750 be qualified under GMP/GLP environments?
Yes—full IQ/OQ/PQ protocols, traceable calibration certificates, and 21 CFR Part 11-compliant software options are available. Installation includes site-specific risk assessment, mapping studies (per ISO 14644-3), and documented evidence of performance under worst-case loading conditions.
What maintenance is required for the Peltier modules?
None—solid-state Peltier elements have no moving parts, consumables, or scheduled replacement intervals. Routine maintenance is limited to periodic cleaning of air intake filters and verification of sensor calibration every 6–12 months.
Is remote monitoring and alarm notification supported?
Yes—via optional Ethernet/Wi-Fi connectivity and MEMMERT Software Suite, users can configure custom alarm thresholds, receive real-time notifications (email/SMS), and access live chamber status from any authorized workstation or mobile device.
How is humidity accuracy maintained across extreme ambient conditions?
Through independent steam-humidification and desiccant-based dehumidification modules, each with closed-loop feedback control. This decouples chamber humidity control from ambient fluctuations—ensuring ±2 %RH accuracy even when room conditions exceed 35 °C or fall below 20 %RH.
