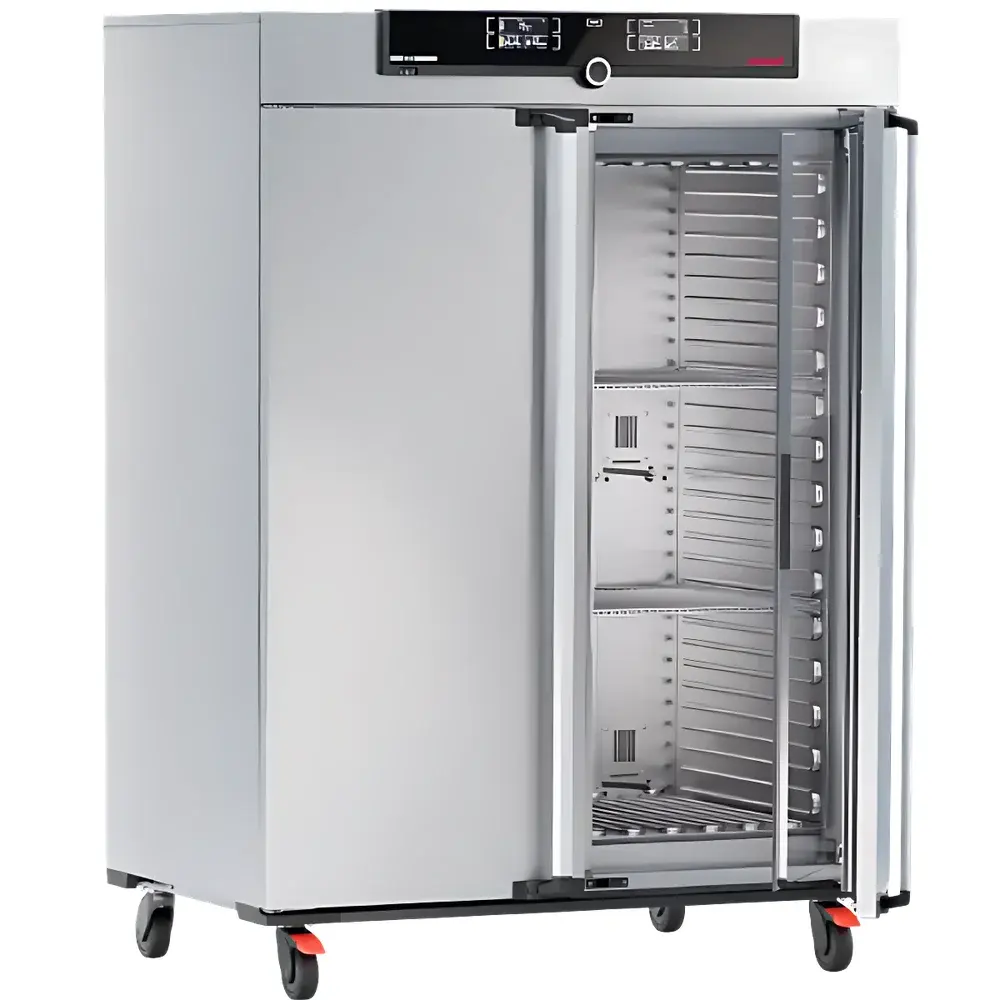

Memmert HPP750eco Environmental Stability Chamber for Pharmaceutical Testing

Overview

The Memmert HPP750eco Environmental Stability Chamber is a purpose-engineered system designed to meet the stringent requirements of long-term, real-time, and accelerated stability testing in pharmaceutical development and quality assurance. It operates on solid-state thermoelectric (Peltier) technology—eliminating traditional refrigerants, compressors, and associated mechanical wear—thereby delivering exceptional temperature and humidity stability with minimal acoustic noise (<35 dB(A)) and near-zero vibration. This architecture ensures undisturbed sample integrity during ICH Q1A(R2)-compliant storage and testing protocols. The chamber maintains precise control across a temperature range of 0 °C to +70 °C and a dynamic relative humidity range of 10–90 % RH, with independent heating and cooling pathways enabling simultaneous, bidirectional regulation. Its energy efficiency—up to 90 % lower power consumption versus compressor-based systems under typical stability conditions (+20 °C to +30 °C)—directly supports sustainability targets and reduces operational carbon footprint without compromising metrological performance.

Key Features

• Solid-state Peltier-based climate control: No refrigerants, no oil, no scheduled maintenance; compliant with F-Gas Regulation (EU) No. 517/2014
• High-precision microprocessor controller with intuitive touchscreen interface and real-time graphical display of setpoints, actual values, and deviation trends
• Three-point adjustable calibration function directly accessible via front panel—supports IQ/OQ/PQ validation per GMP Annex 15 and ASTM E2582
• Optimized thermal mass distribution and laminar airflow design ensuring uniformity ≤ ±0.3 °C (at +25 °C) and ≤ ±1.5 % RH (at 60 % RH) across working volume
• Integrated data logging with internal memory (≥100,000 records) and optional Ethernet/USB export; audit trail enabled per FDA 21 CFR Part 11 requirements
• Modular LED illumination system (optional): Tunable CCT (2700 K warm white / 6500 K cool white / mixed spectrum) with 1 % intensity resolution; flicker-free, low-heat output suitable for photostability assessment per ICH Q5C

Sample Compatibility & Compliance

The HPP750eco accommodates standard ISO 17025-accredited stability storage configurations—including stacked trays, shelving units, and nested packaging—without airflow obstruction. Its chamber volume (750 L net) supports large-scale batch monitoring while maintaining compliance with ICH Q1A(R2), Q5C, and WHO TRS 992 Annex 5 for climatic zone IVb (hot/humid). All materials in contact with the chamber interior (including insulation, gaskets, and sensor housings) are non-outgassing, non-corrosive, and certified per USP . The system is prequalified for use in GLP- and GMP-regulated environments, with full traceability documentation (including factory calibration certificates, material declarations, and electrical safety reports per EN 61010-1).

Software & Data Management

Memmert’s optional *chamberControl* software enables remote monitoring, multi-chamber synchronization, and automated report generation (PDF/CSV) aligned with ALCOA+ data integrity principles. Raw sensor data—including temperature, humidity, Peltier current/voltage, and door-open events—is timestamped with millisecond resolution and stored with immutable audit trails. Role-based user access control (administrator/operator/auditor) supports segregation of duties, while electronic signatures comply with 21 CFR Part 11 Subpart B. Data backups can be scheduled to network drives or cloud repositories with TLS 1.2 encryption. All firmware updates are digitally signed and version-logged.

Applications

• ICH-compliant long-term, intermediate, and accelerated stability studies (e.g., 25 °C/60 % RH, 30 °C/65 % RH, 40 °C/75 % RH)
• Real-time shelf-life determination of APIs, finished dosage forms, and biologics
• Photostability testing when equipped with calibrated LED illumination modules
• Reference standard storage under defined climatic conditions per Ph. Eur. 2.2.47
• Environmental stress screening during formulation development and packaging validation
• Regulatory submission support for FDA, EMA, PMDA, and Health Canada dossiers

FAQ

Does the HPP750eco require refrigerant handling certification for installation or service?
No. The Peltier-based system contains no fluorinated greenhouse gases and requires no F-Gas-certified technicians.
Can the chamber maintain 0 °C at 10 % RH simultaneously?
Yes—the independent humidity generation and condensation-free dehumidification system allows full cross-range operation within specification limits.
Is third-party IQ/OQ protocol support available?
Yes. Memmert provides validated test templates, blank protocol forms, and on-site qualification assistance through authorized partners accredited to ISO/IEC 17025.
What is the expected lifetime of the Peltier modules?
Rated for ≥50,000 hours of continuous operation under nominal load; no degradation in control accuracy observed over 10-year field deployments.
How does the system ensure traceability during regulatory audits?
All calibration events, parameter changes, alarm logs, and user actions are recorded with digital signatures, timestamps, and IP addresses—fully retrievable and exportable for inspection.
