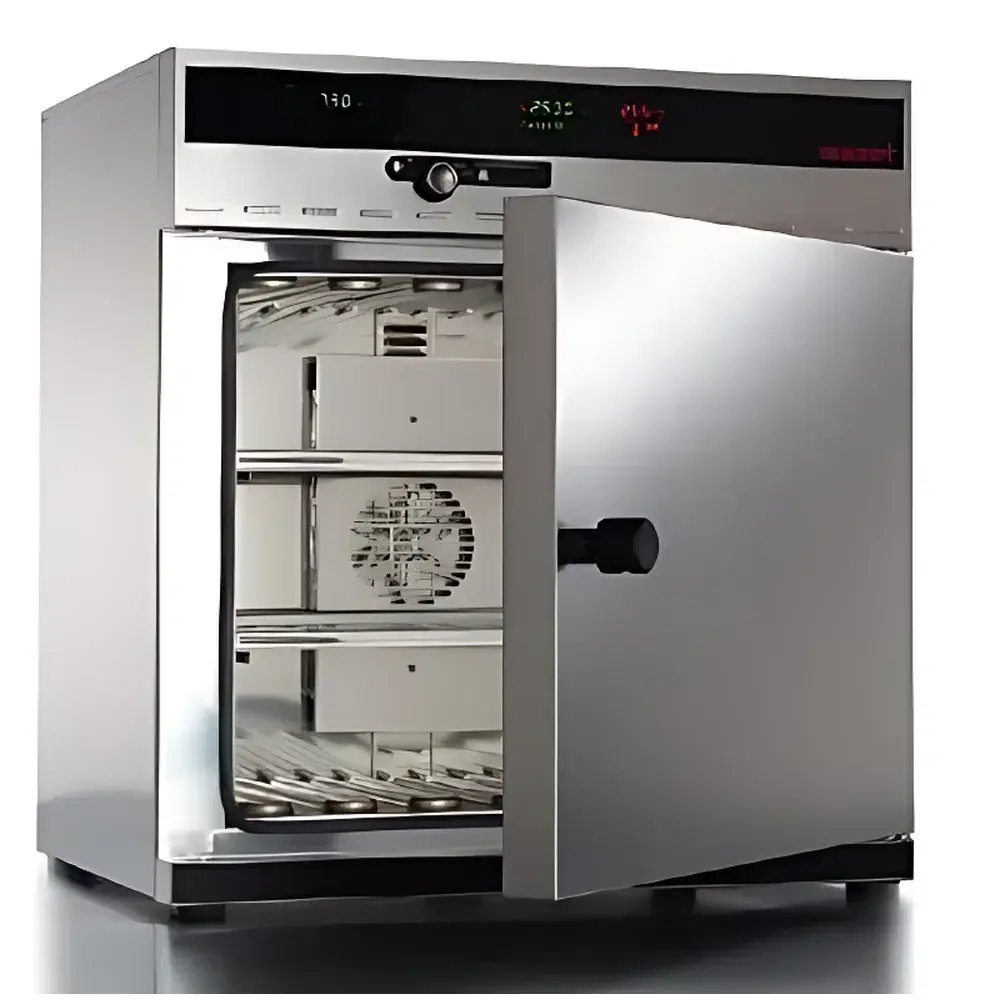

Memmert UFE550 Forced-Convection Drying Oven

Overview

The Memmert UFE550 is a high-precision, forced-convection drying oven engineered for demanding laboratory and industrial applications requiring strict thermal uniformity, long-term stability, and regulatory-compliant operation. Built upon Memmert’s decades of German engineering excellence in thermal instrumentation, the UFE550 employs a robust convection architecture with adjustable fan speed and manually or motorized air damper control to ensure reproducible heat distribution across its 153 L stainless-steel chamber (480 × 640 × 500 mm internal dimensions). Its operating temperature range spans from ambient +5 °C (minimum 30 °C) up to 220 °C standard — extendable to 300 °C upon configuration — making it suitable for routine drying, heat treatment, aging tests, and pre-conditioning of materials per ASTM D5427, ISO 291, and IEC 60068-2-2. The oven integrates dual A-class 4-wire Pt100 sensors with automatic fault redundancy, enabling uninterrupted monitoring even during sensor drift or failure. Temperature control is executed via a microprocessor-based fuzzy logic PID system with three-point auto-calibration, ensuring traceable accuracy and minimizing operator dependency.

Key Features

• Chamber constructed entirely from 1.4301 (AISI 304) stainless steel — corrosion-resistant, non-porous, fully recyclable, and compliant with FDA and GLP surface hygiene requirements
• Forced-air circulation with continuously adjustable fan speed (0–100% in 10% increments) and manual or servo-motor-controlled fresh-air damper for precise atmosphere management
• E-Class energy efficiency rating (EU Regulation No. 2019/2023), validated at 220 °C with 2.2 kW nominal heating power
• Triple independent overtemperature protection: mechanical safety limiter (TB Class 1), electronic controller cutoff (TWW Class 3.1), and microprocessor-based Pt100 monitor (TWB Class 2)
• Integrated 1024 kB circular memory buffer recording all setpoints, actual values, timestamps, alarms, and error logs at 1-minute intervals — supporting ≥6 months of continuous data retention
• RS232 interface and bundled Celsius 2007 software (Windows-compatible) for remote programming, real-time monitoring, audit-trail generation, and 21 CFR Part 11–compliant electronic signatures (when configured with user authentication and event logging)
• Configurable weekly programming with up to 40 ramp/soak segments; optional STERI card for automated sterilization cycles (e.g., 160 °C / 4 h)

Sample Compatibility & Compliance

The UFE550 accommodates a broad spectrum of sample types — including polymers, pharmaceutical excipients, ceramics, metal coatings, and biological substrates — without cross-contamination risk due to its seamless, weld-free chamber design. Its DIN 12880–certified temperature homogeneity (≤ ±2.2 °C at 150 °C, ≤ ±0.6 °C at 37 °C) meets ISO 17025 calibration validation criteria for accredited laboratories. All electrical and thermal safety components comply with EN 61010-1:2019 and CE marking directives. Optional factory-issued calibration certificates (traceable to PTB/NIST standards) are available for IQ/OQ/PQ documentation packages required under GMP (ICH Q5C), USP , and EU Annex 15 guidelines.

Software & Data Management

Celsius 2007 serves as the primary interface for configuration, real-time supervision, and compliance-driven data export. It supports unlimited ramp/soak profiles, multi-parameter logging (temperature, fan speed, damper position), and CSV/PDF report generation with embedded metadata (operator ID, instrument serial number, timestamp, calibration status). The software enforces role-based access control, change history tracking, and electronic signature capture — fulfilling ALCOA+ principles for data integrity. Raw log files are stored in non-volatile memory and can be retrieved via RS232 or exported using an optional USB-to-serial adapter. Internal diagnostics include self-test routines at startup and continuous sensor health monitoring with predictive alerting.

Applications

• Moisture content determination per AOAC 950.46 and ASTM D2216
• Accelerated aging studies for packaging materials (ISO 11607-1) and medical devices (ISO 11137)
• Thermal pre-treatment of test specimens prior to tensile, impact, or hardness testing (ASTM D638, ISO 527)
• Drying of filter papers, crucibles, and volumetric glassware in analytical chemistry workflows
• Stability testing of active pharmaceutical ingredients (APIs) under ICH Q1A(R2) conditions
• Pre-heating and conditioning of substrates for coating adhesion assays (ASTM D3359)

FAQ

What is the temperature uniformity specification at 150 °C?
The UFE550 achieves ≤ ±2.2 °C uniformity across the working volume at 150 °C, measured per DIN 12880 using nine calibrated Pt100 probes.
Does the oven support 21 CFR Part 11 compliance?
Yes — when deployed with Celsius 2007 v3.0+, configured user roles, audit trail activation, and electronic signatures, the system satisfies predicate rule requirements for electronic records and signatures.
Can the UFE550 be validated for GMP environments?
Absolutely — Memmert provides IQ/OQ documentation templates, factory calibration reports, and on-site qualification support through certified partners.
Is the chamber door made of stainless steel or glass?
The standard configuration includes a solid 250 °C-rated stainless-steel door; tempered glass doors are available as an option for visual process monitoring.
What is the maximum ramp rate achievable?
Ramp rates are programmable from 0.1 °C/min to 10 °C/min, limited only by load mass and thermal inertia — no fixed hardware ceiling applies.
