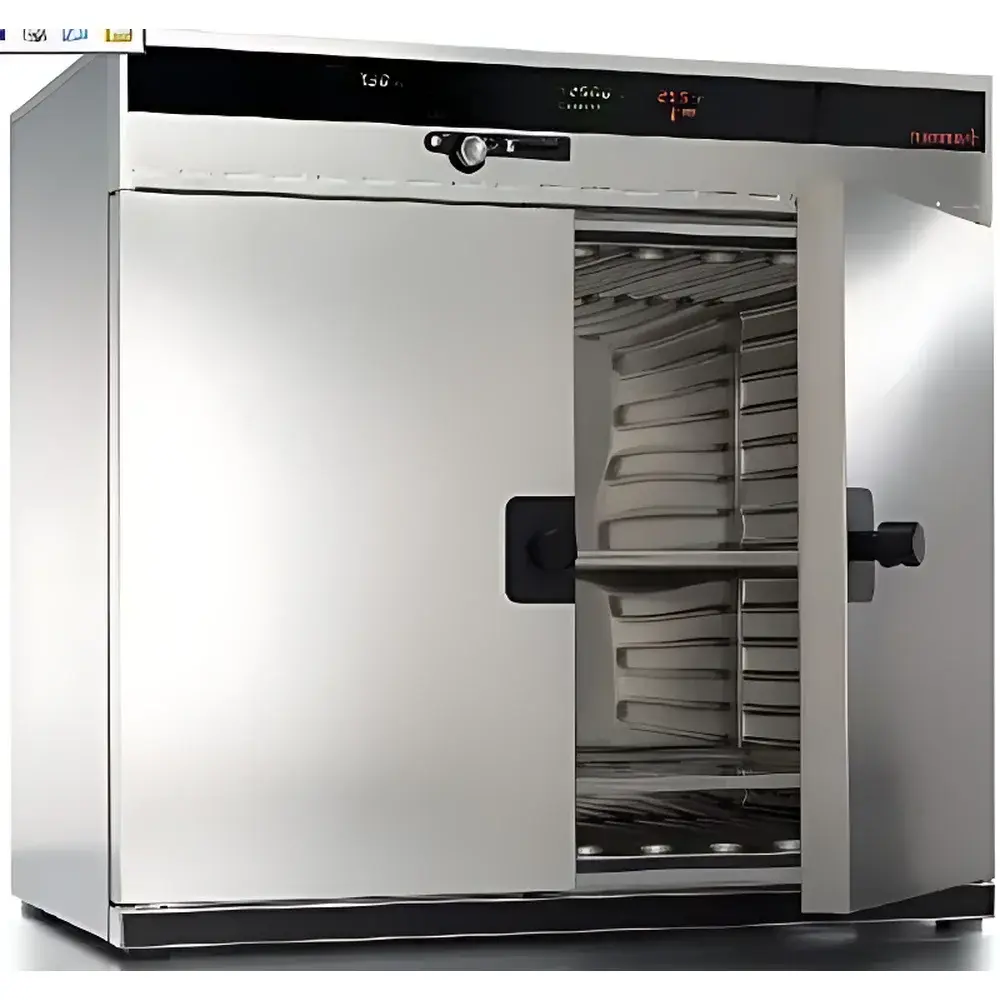

Memmert UNE 600 Natural Convection Drying Oven

Overview

The Memmert UNE 600 is a precision-engineered natural convection drying oven designed for reliable, repeatable thermal processing in research laboratories, quality control environments, and industrial R&D settings. Operating on the principle of gravity-driven air circulation—without forced airflow—the UNE 600 ensures gentle, uniform heat distribution ideal for moisture removal, pre-weighing sample conditioning, polymer curing, powder drying, and long-term stability testing where mechanical agitation or turbulent airflow could compromise sample integrity. Its all-stainless-steel construction (AISI 304 / EN 1.4301), fully welded chamber without spot welding, and triple-layer thermal insulation meet stringent requirements for corrosion resistance, dimensional stability, and long-term calibration retention. Certified to DIN 12880 for temperature homogeneity and equipped with dual A-class Pt100 sensors (4-wire configuration), the UNE 600 delivers traceable thermal performance across its operating range of +20 °C to +250 °C (optional +300 °C), with standard compliance to TB Class 1, TWW Class 3.1, and TWB Class 2 overtemperature protection standards.

Key Features

• Chamber volume: 256 L, constructed entirely from deep-drawn, electropolished stainless steel (EN 1.4301 / AISI 304), ensuring full recyclability and resistance to chemical exposure and cleaning agents
• Natural convection design eliminates fan-induced turbulence—critical for fragile samples, powders, or coated substrates
• E-Class controller featuring fuzzy-logic PID regulation, three-point automatic temperature self-calibration, and real-time diagnostics
• Dual independent 4-wire Pt100 temperature sensors (A-class accuracy) with redundant fault detection and uninterrupted operation capability
• Integrated data logger with 1024 kB circular memory—records setpoint, actual temperature, error events, timestamps, and operational status at 1-minute intervals for ≥6 months
• RS232 interface and bundled Celsius 2007 software (Windows-compatible) enabling remote programming, unlimited ramp-soak profiles, audit trail export, and GLP-compliant reporting
• Triple-stage overtemperature protection: mechanical safety limiter (TB), electronic cut-off (±10 °C above setpoint), and microprocessor-based monitoring with diagnostic Pt100 validation
• Manual adjustable fresh-air damper for controlled atmosphere exchange; optional servo-controlled damper available for advanced process optimization
• Full compliance with EN 61000-6-2 (EMC immunity) and EN 61000-6-4 (EMC emission) standards; CE-marked per EU Machinery Directive 2006/42/EC

Sample Compatibility & Compliance

The UNE 600 accommodates diverse sample formats—including Petri dishes, crucibles, glassware, metal trays, and polymer molds—via seven adjustable stainless-steel sliding shelves (max. 30 kg per shelf, 80 kg total chamber load). Its natural convection architecture minimizes convective shear forces, making it suitable for ASTM D1654 (corrosion testing), ISO 5725 (precision testing), and USP (sterile product drying validation). The chamber’s temperature uniformity (≤ ±2.2 °C at 150 °C per DIN 12880) and stability (≤ ±0.25 °C deviation over time) support ISO/IEC 17025-accredited calibration workflows. Optional STERI chip cards enable validated sterilization cycles (e.g., 160 °C for 4 h), while firmware supports 21 CFR Part 11–compliant electronic signatures when paired with Celsius 2007 v4.0+ and appropriate IT infrastructure.

Software & Data Management

Celsius 2007 provides full lifecycle control—from profile creation (unlimited ramps, soaks, cooling phases, damper/fan modulation) to real-time monitoring, alarm logging, and PDF report generation. All logged data include ISO 17025–traceable metadata: operator ID, instrument serial number, sensor IDs, calibration dates, and digital signatures. The system supports automated CSV export for LIMS integration and features built-in validation tools for IQ/OQ documentation. Internal memory maintains tamper-evident records with timestamped error codes (e.g., “E04: Sensor A failure”), and the RS232 port allows direct connection to networked printers or PLCs via optional USB-RS232 adapters. Firmware updates are delivered via secure Memmert update portal, maintaining version-controlled compliance history.

Applications

• Moisture content determination (ASTM D2231, ISO 712)
• Thermal aging of polymers and composites (ISO 188, ASTM D573)
• Pre-conditioning of filters, membranes, and particulate standards prior to gravimetric analysis
• Drying of biological specimens, pharmaceutical excipients, and ceramic precursors
• Stability testing of reference materials under defined temperature-humidity conditions (ICH Q1A)
• Residue ashing preparation (AOAC 923.03) and solvent evaporation in environmental labs
• Calibration lab support for thermocouple and RTD verification fixtures

FAQ

What is the maximum operating temperature of the UNE 600?
The standard configuration supports up to +250 °C; an optional high-temperature variant extends the range to +300 °C upon factory configuration.
Does the UNE 600 comply with FDA 21 CFR Part 11 requirements?
Yes—when used with Celsius 2007 v4.0 or later, configured with user authentication, electronic signatures, and audit-trail-enabled logging, it meets Part 11 technical controls for closed systems.
Can I validate temperature uniformity per ISO/IEC 17025?
Absolutely—the included single-point calibration certificate (center-point at 160 °C) serves as baseline evidence; full mapping per ISO/IEC 17025 Annex B requires external probe validation, supported by the dual Pt100 inputs and RS232 data export.
Is the chamber interior truly weld-free?
Yes—Memmert employs continuous TIG welding for all internal seams, eliminating spot welds that create crevices prone to contamination and corrosion.
What power supply options are available?
Standard delivery is 230 V ±10%, 50/60 Hz, 16 A; custom configurations for 115 V, 400 V, or 3-phase input are available upon order specification.
