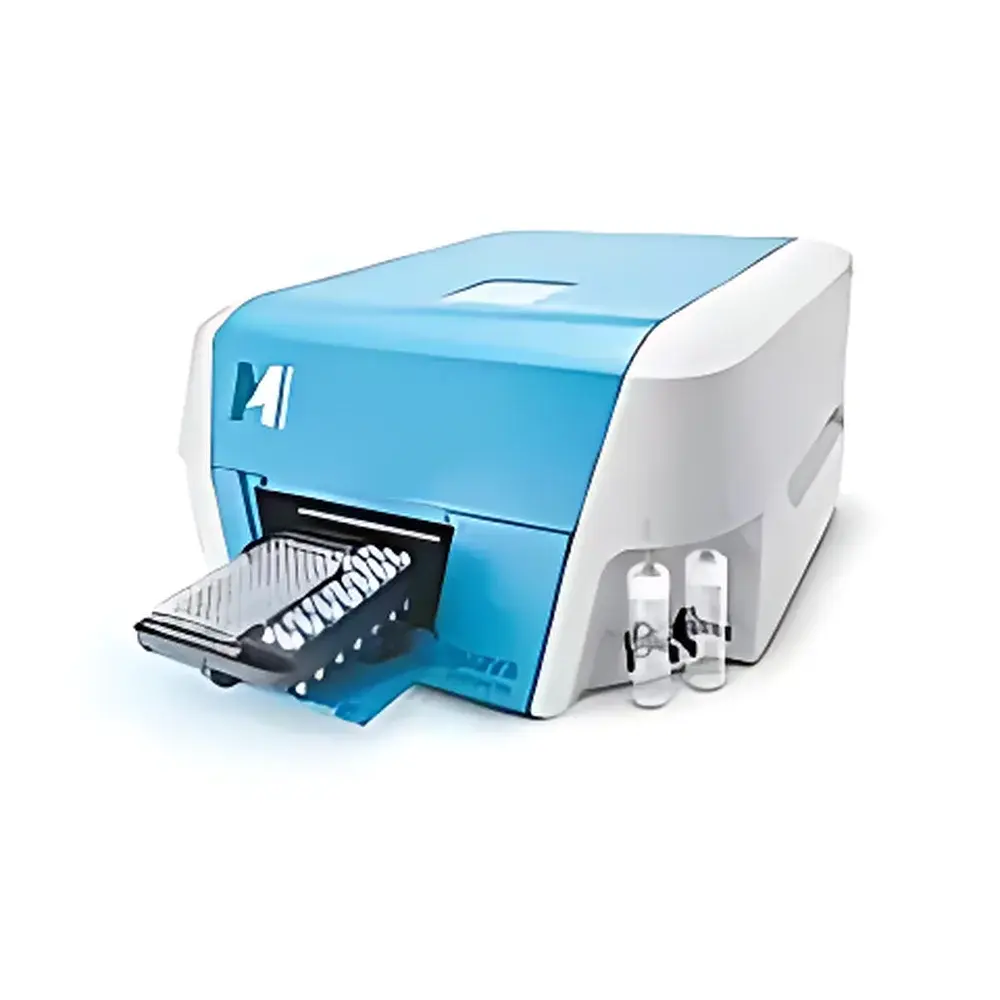

Merck guava easyCyte 6HT-2L Microcapillary Flow Cytometer

Overview

The Merck guava easyCyte 6HT-2L is a benchtop microcapillary-based flow cytometer engineered for high-content, low-volume cell analysis in academic, clinical, and pharmaceutical research laboratories. Unlike conventional hydrodynamic focusing systems, this instrument employs proprietary microfluidic capillary technology to achieve stable, laminar sample introduction without sheath fluid—minimizing sample waste, reducing carryover, and eliminating the need for daily alignment or complex fluidics maintenance. The system integrates a dual-laser excitation platform: a 488 nm blue laser optimized for common fluorophores (e.g., FITC, PE, CFSE), and a 638 nm red laser enabling expanded spectral resolution for tandem dyes (e.g., APC, APC-Cy7) and deep-red emitters. With eight-parameter detection capability—comprising two light scatter channels (FSC and SSC) and six fluorescence channels—the instrument supports multiparametric immunophenotyping, intracellular signaling assays, cytokine profiling, and functional viability screening at single-cell resolution.

Key Features

• Dual-laser optical architecture (488 nm blue + 638 nm red) for broad fluorophore compatibility and reduced spectral overlap
• Microcapillary sample introduction with no sheath fluid—enabling <50 µL sample consumption per well and sub-nL dead volume
• Integrated 96-well plate autosampler with temperature-controlled deck (4–30 °C) for unattended acquisition of up to 96 samples
• Six fluorescence detection channels using high-transmission, narrow-band interference filters: Green (525/30 nm), Yellow (583/26 nm), Red1 (690/50 nm), Red2 (661/19 nm), plus two configurable scatter detectors
• Real-time data acquisition at up to 10,000 events/sec with onboard event triggering and pulse-processing logic
• On-instrument calibration using standardized fluorescent beads (e.g., InSpeck Microspheres) traceable to NIST standards

Sample Compatibility & Compliance

The guava easyCyte 6HT-2L accepts standard 96-well microplates (flat-bottom or V-bottom), 1.2 mL and 1.5 mL conical tubes, and compatible low-binding assay plates. It is validated for use with whole blood (with optional lysing reagents), PBMCs, primary adherent and suspension cells, yeast, and bacterial cultures. The system complies with ISO 13485:2016 for medical device quality management systems and supports audit-ready workflows aligned with GLP and GMP environments. Data integrity features—including user-level access control, electronic signatures, and full audit trails—meet FDA 21 CFR Part 11 requirements when deployed with validated guava InCyte software configurations.

Software & Data Management

guava InCyte software (v4.4 or later) provides a unified interface for instrument control, real-time visualization, and advanced analysis. Its drag-and-drop gating engine supports hierarchical population definition across all parameters, while automated compensation algorithms leverage single-stain controls to compute spillover matrices without manual adjustment. The software includes built-in modules for heatmap generation, kinetic time-series overlay, dose–response curve fitting (IC₅₀/EC₅₀), and statistical comparison across sample groups (ANOVA, t-test, clustering). Raw FCS 3.0/3.1 files are exportable for third-party analysis (e.g., FlowJo, R/Bioconductor), and batch processing pipelines support LIMS integration via secure REST API endpoints.

Applications

• Leukocyte immunophenotyping (e.g., CD4+/CD8+ T-cell ratios, B-cell maturation markers)
• Intracellular phospho-protein signaling (p-ERK, p-STAT5) with fixation/permeabilization protocols
• Apoptosis and cell cycle analysis using Annexin V/PI or DAPI staining
• Cytokine secretion profiling via intracellular cytokine staining (ICS) or secreted protein capture assays
• High-throughput compound screening for cytotoxicity, receptor internalization, or calcium flux
• Multiplexed functional assays monitoring ≥6 parallel biological pathways in a single run (e.g., NF-κB activation + ROS production + mitochondrial membrane potential)

FAQ

Does the guava easyCyte 6HT-2L require daily fluidic calibration or alignment?

No—microcapillary optics eliminate hydrodynamic focusing, removing the need for daily alignment, sheath fluid optimization, or nozzle cleaning.
Can I perform absolute cell counting without reference beads?

Yes—the system incorporates volumetric sampling via precision syringe-driven aspiration, enabling direct absolute count calculation from acquired event rate and known sample volume.
Is the instrument compatible with regulatory submissions (e.g., IND, BLA)?

When operated with validated InCyte software and documented SOPs, the platform supports data integrity requirements for preclinical and clinical assay development under FDA and EMA guidelines.
What file formats does the software export?

FCS 3.0/3.1, CSV, PDF reports, PNG/SVG plots, and structured JSON metadata for LIMS ingestion.
How is carryover managed between wells?

The system performs automated post-well aspiration and microcapillary flush cycles with detergent-free buffer, achieving <0.1% carryover as verified by bead-spiking validation studies.
