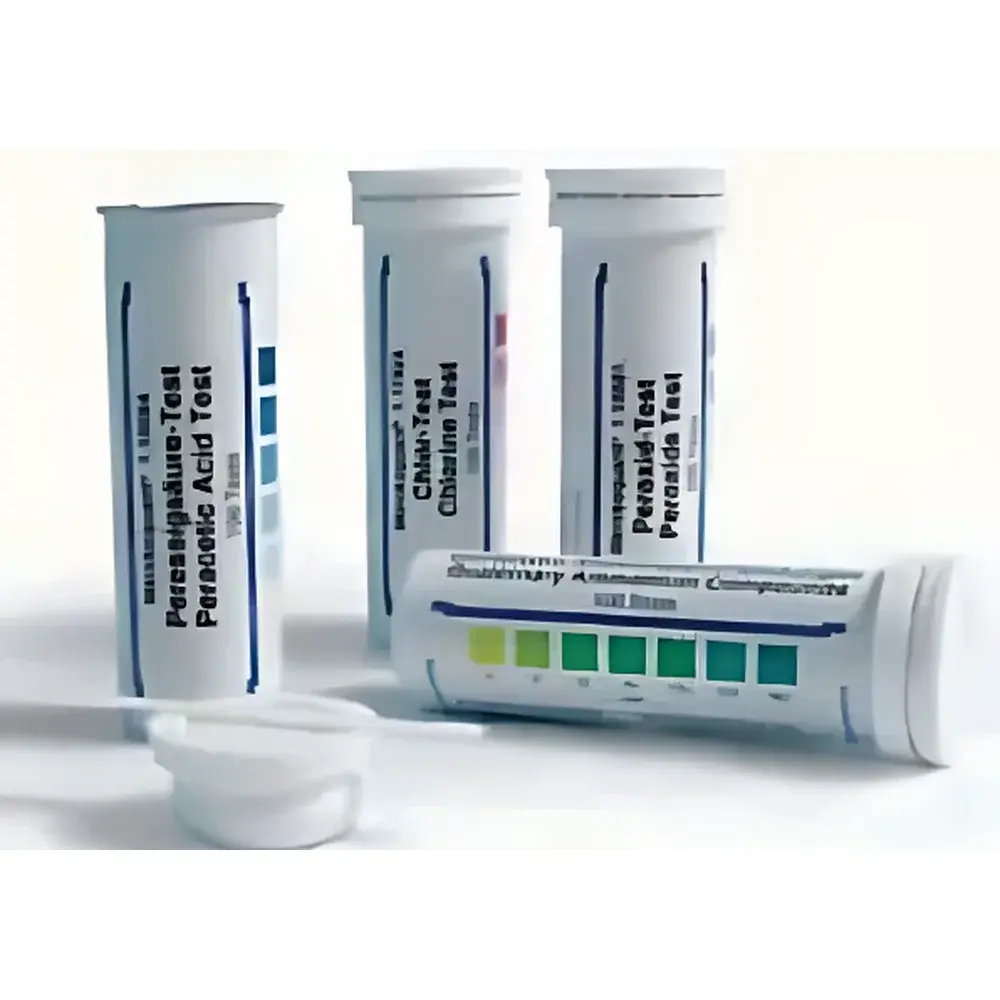

Merck Millipore Multi-Parameter Water Quality Test Strips

Overview

The Merck Millipore Multi-Parameter Water Quality Test Strips are a field-deployable, colorimetric analytical system engineered for rapid, semi-quantitative assessment of critical water quality parameters in diverse aqueous matrices. Leveraging over a century of Merck’s expertise in analytical reagent chemistry, these test strips employ immobilized, stabilized chromogenic reagents on cellulose-based substrates—each strip configured with discrete reaction pads optimized for specific analytes via well-established wet-chemistry principles (e.g., diazotization for nitrite, complexometric chelation for hardness ions, oxidation-reduction for peroxides, and indicator-based pH transitions). The system operates on visual color comparison against calibrated reference scales under standardized lighting conditions (D65 illuminant), delivering results within 60 seconds for most parameters. It is not intended for regulatory compliance reporting per se but serves as a robust pre-screening, process monitoring, and troubleshooting tool aligned with ASTM D1129 (Standard Terminology Relating to Water) and ISO 9001–based laboratory workflows.

Key Features

• Simultaneous multi-analyte detection on single-strip formats (e.g., Total Hardness/Free Chlorine/pH tri-parameter strips)
• Over 30 distinct analyte-specific configurations, each validated for defined concentration ranges and matrix tolerance
• Pre-calibrated, factory-sealed packaging ensuring reagent stability and shelf life up to 24 months at 2–8 °C (unopened)
• No external instrumentation required—minimal training needed; operation follows standardized SOPs compatible with GLP documentation practices
• High specificity achieved through selective reagent formulations minimizing interferences from common co-ions (e.g., chloride masking in nitrate assays, surfactant-tolerant peroxide detection)
• Consistent pad geometry and capillary wicking ensure reproducible sample uptake volume (±5% CV across batches)

Sample Compatibility & Compliance

These test strips are validated for use in potable water, industrial process water, wastewater effluents, cooling tower systems, swimming pool recirculation lines, groundwater monitoring wells, and electroplating bath solutions. Performance has been verified across pH 4.5–9.5 and turbidity ≤ 5 NTU. While not certified to EPA Method 300.0 or ISO 10523 for definitive reporting, they support method verification, outlier identification, and trend analysis in accordance with ISO/IEC 17025 Clause 7.2.2 (Method Validation) and USP Analytical Instrument Qualification frameworks. Each lot undergoes release testing per Merck’s internal QC protocol (QCP-MWTS-001), including accuracy (±15% of nominal value), precision (RSD ≤ 10%), and limit-of-detection confirmation.

Software & Data Management

The test strips themselves are hardware-free and do not require proprietary software. However, Merck provides optional digital support tools: the free Merck Water Analysis App (iOS/Android) enables image capture under controlled lighting, automated color matching via CIELAB ΔE* calculation, and export of timestamped, geotagged results to CSV or PDF for audit trails. When integrated into LIMS environments, data can be ingested via API or manual upload—supporting 21 CFR Part 11-compliant electronic records when paired with institutional electronic signature policies. Calibration verification logs and strip lot traceability (via printed QR codes on vial labels) facilitate full chain-of-custody documentation.

Applications

• Routine surveillance of municipal drinking water distribution points for residual chlorine, pH drift, and hardness scaling potential
• Real-time monitoring of industrial boiler feedwater and condensate return streams for iron, copper, and phosphate levels
• Pre-treatment verification in membrane filtration plants assessing free chlorine breakthrough and total oxidant load
• Swimming pool and spa maintenance—simultaneous tracking of pH, free chlorine, and cyanuric acid (via dedicated strip)
• Environmental site assessments where rapid arsenic, nitrate, or sulfate screening informs sampling strategy prioritization
• Electroplating line control—monitoring of nickel, chromium(VI), and cyanide concentrations to maintain bath stoichiometry and waste stream compliance

FAQ

What is the shelf life of unopened test strip vials?
Unopened vials retain full performance for 24 months when stored refrigerated at 2–8 °C in original packaging. Do not freeze.
Can these strips be used in seawater or high-salinity brines?
No—elevated chloride (>5,000 mg/L) and ionic strength interfere with multiple assays (e.g., nitrite, iron, copper); validation is limited to freshwater and low-conductivity industrial waters (<2,500 µS/cm).
How are results documented for regulatory audits?
Visual interpretation requires trained personnel and documented lighting conditions (e.g., ISO/CIE standard illuminant D65). For audit readiness, pair with the Merck Water Analysis App to generate timestamped, immutable result files with operator ID and location metadata.
Are there interference studies available for specific matrices?
Yes—Merck publishes application notes (e.g., AN-WQ-023 “Interference Assessment in Wastewater Effluents”) detailing cross-reactivity profiles for >15 common interferents (e.g., humic acids, sulfide, residual hydrogen peroxide) per analyte.
Do these strips meet ISO 9001 or ISO 14001 requirements?
The manufacturing process complies with ISO 9001:2015; usage supports ISO 14001:2015 environmental monitoring objectives—but final compliance determination rests with the user’s accredited QA/QC procedure validation.
