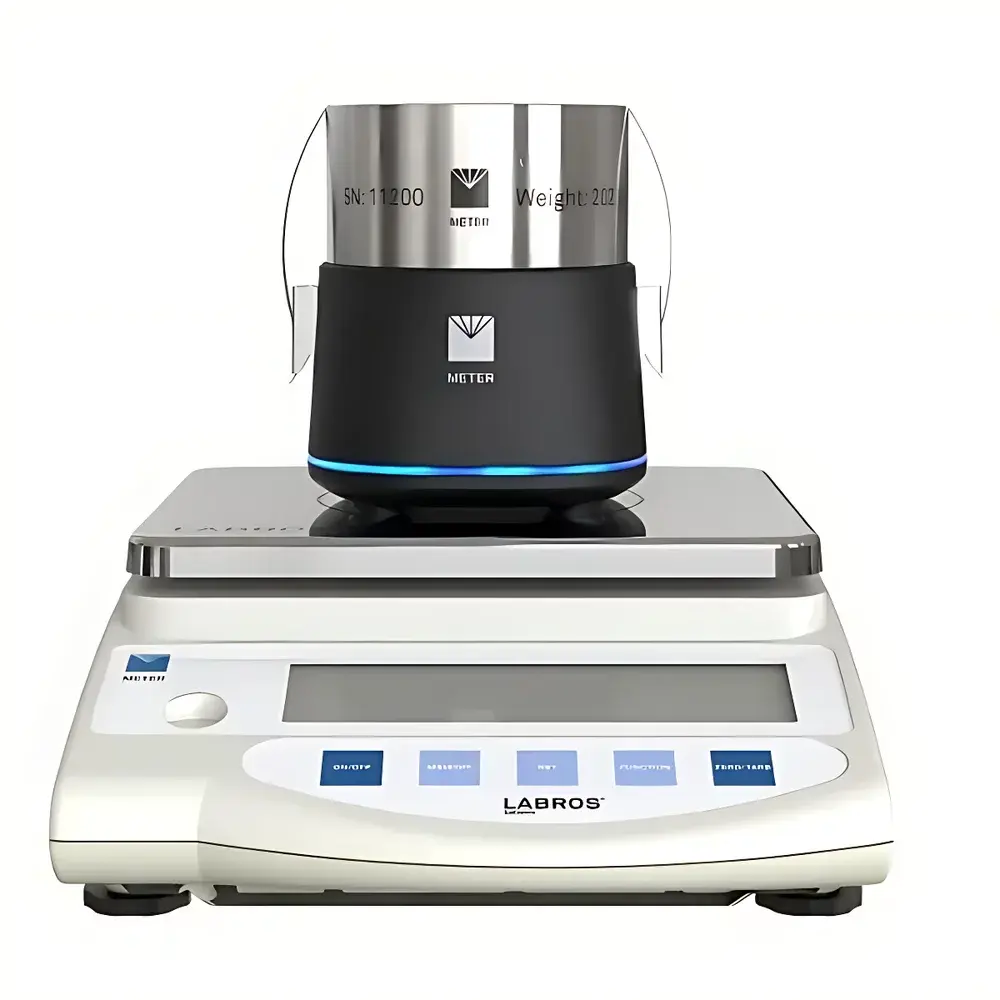

METER HYPROP 3 Laboratory Soil Water Retention and Unsaturated Hydraulic Conductivity Analyzer

Overview

The METER HYPROP 3 is a laboratory-grade, gravimetric-tensiometric instrument engineered for the precise, automated determination of soil water retention curves (SWRC) and unsaturated hydraulic conductivity functions across the wet-to-moist range (0 to –100 kPa, extendable to –400 kPa under cavitation-delayed conditions). Unlike conventional pressure plate or centrifuge-based methods—which require manual intervention, extended equilibration periods (weeks to months), and sparse data point acquisition—the HYPROP 3 employs dual embedded tensiometers coupled with high-resolution mass monitoring to generate >100 continuous, time-synchronized data points within days. Its measurement principle relies on real-time tracking of soil matric potential (via ceramic-cup tensiometry) and gravimetric water content (via precision balance), enabling direct calculation of θ(ψ) without empirical interpolation. When paired with the WP4C dew point water potential analyzer, HYPROP 3 completes the full SWRC from saturation to oven-dry conditions (–400 kPa to –300 MPa), fulfilling ASTM D6836 and ISO 11274 requirements for comprehensive hydraulic characterization.

Key Features

• Automated, unattended operation over multi-day campaigns—no manual sampling or timing interventions required
• Dual tensiometer architecture with sintered Al₂O₃ ceramic cups (5 mm diameter), calibrated to ±0.1 kPa accuracy in the 0 to –100 kPa range
• Inverted tensiometer placement eliminates evaporative artifacts and minimizes stem moisture loss during cavitation onset
• Simultaneous acquisition of water retention and unsaturated hydraulic conductivity (K(ψ)) from transient drainage kinetics in 250 cm³ undisturbed soil cores
• Scalable multi-balance configuration supporting up to 20 concurrent samples via USB hub topology (HYPROP-VARIOS-CONNECTOR optional)
• Integrated temperature compensation (±0.4 K accuracy) and high-resolution pressure sensing (0.001 kPa resolution)
• Robust mechanical design: POM/glass-fiber sensor housing, IP65-rated connectors, and pH 3–10 chemical resistance for long-term lab stability
• Direct computation of plant-available water (PAW) content between field capacity (–33 kPa) and permanent wilting point (–1500 kPa, when combined with WP4C)

Sample Compatibility & Compliance

The HYPROP 3 accommodates standard 250 cm³ (100 mm × 50 mm) or optional 100 cm³ soil rings containing intact or repacked mineral, organic, or mixed-texture soils—including clays, silts, sands, and volcanic ash. Sample preparation follows ISO 11274 protocols for core handling and saturation. Data output conforms to FAO-UNESCO soil hydraulic database formatting and supports GLP-compliant audit trails when used with SoilView-Analysis software under validated Windows 10 environments. The system meets essential requirements for USDA-NRCS hydrologic modeling inputs and satisfies traceability criteria under ISO/IEC 17025 for accredited soil physics laboratories.

Software & Data Management

SoilView-Analysis is the native, FDA 21 CFR Part 11–ready software platform that synchronizes, visualizes, and models HYPROP 3 datasets. It auto-imports time-series ψ(t) and m(t) files, computes volumetric water content (θ) using dry mass and bulk density inputs, and generates θ(ψ) and K(ψ) curves using the Millington-Quirk or Mualem-van Genuchten parameterization options. When linked to WP4C measurements, SoilView performs seamless data fusion across the full water potential spectrum. All raw sensor logs, calibration metadata, and user annotations are stored in encrypted SQLite databases with immutable timestamps and operator login attribution—enabling full GxP audit readiness.

Applications

• Parameterization of vadose zone flow models (e.g., HYDRUS-1D, STANMOD) for irrigation scheduling and contaminant transport simulation
• Validation of pedotransfer functions (PTFs) in digital soil mapping initiatives
• Quality control of engineered soils in landfill liner and green roof substrate certification
• Research on root-zone water dynamics in drought-resilient crop breeding programs
• Calibration of cosmic-ray neutron probes and satellite-based soil moisture retrieval algorithms
• Regulatory submission support for EPA Region 10 and EU Soil Thematic Strategy reporting frameworks

FAQ

What sample volume does HYPROP 3 require?
Standard configuration uses 250 cm³ (100 mm × 50 mm) soil rings; a 100 cm³ option is available for limited sample availability.
Can HYPROP 3 measure saturated hydraulic conductivity (K_s)?
No—K_s requires saturated conditions outside its operational range; pairing with KSAT instrumentation enables full hydraulic conductivity curve derivation.
Is zero-point calibration mandatory before each run?
Yes—tensiometer zero calibration at atmospheric pressure is required prior to installation to ensure ±0.1 kPa accuracy across the 0 to –100 kPa range.
Does HYPROP 3 comply with ISO/IEC 17025 documentation requirements?
When operated with validated SoilView-Analysis workflows, electronic records meet ISO/IEC 17025 clause 7.5.2 for result traceability and data integrity.
What balance specifications are required for optimal performance?
LABROS balance (2200 g capacity, 0.01 g readability, IP54 enclosure) is recommended; other balances must provide ≥0.01 g repeatability and USB HID compatibility.
