Metrohm 912 Conductivity Meter

Overview

The Metrohm 912 Conductivity Meter is a dual-channel, portable electrochemical analyzer engineered for high-reliability measurement of electrical conductivity and pH across diverse operational environments—from field sampling and process monitoring to routine laboratory analysis. Built upon Metrohm’s legacy of precision electrochemistry, the 912 employs four-electrode conductivity cell technology (when paired with compatible electrodes) to minimize polarization effects and ensure stable readings in samples ranging from ultrapure water to high-salinity industrial effluents. Its modular architecture supports seamless transition between handheld deployment and benchtop operation via interchangeable accessories, while its ruggedized housing meets IP67 ingress protection standards—guaranteeing dust-tight integrity and temporary submersion resistance (up to 1 m for 30 min). The instrument operates on rechargeable battery power or AC adapter, enabling uninterrupted use during extended field campaigns or continuous process checks without dependency on fixed infrastructure.

Key Features

• Dual-parameter capability: Simultaneous real-time acquisition of conductivity and pH, with independent calibration and temperature compensation for each channel.
• GLP-compliant data integrity: Automatic timestamping, operator ID logging, electrode status monitoring (including sensor aging alerts and calibration history), and audit-trail-enabled storage.
• Intuitive multilingual interface: High-contrast color LCD display supporting English, German, French, Spanish, Chinese, and other major languages; configurable screen layout showing primary and secondary parameters side-by-side.
• Flexible configuration ecosystem: Three standardized configurations—Portable Base Unit (2.912.0010), Field Kit (2.912.0110, includes rugged carrying case, protective cap, calibration solutions, and field-ready electrodes), and Lab Station Version (2.912.0210, includes adjustable measurement stand, USB interface, and desktop power supply).
• Robust connectivity framework: Native integration with Metrohm’s tiBase software for centralized data aggregation, trend analysis, and report generation; direct export to LIMS, CSV, or Excel-compatible formats; optional Bluetooth or USB-C tethering for live data streaming.

Sample Compatibility & Compliance

The 912 Conductivity Meter is designed for aqueous and mildly aggressive electrolyte solutions encountered in environmental monitoring (e.g., surface water, wastewater, groundwater), pharmaceutical water systems (PW, WFI per USP ), food & beverage QC, and chemical manufacturing. It complies with international regulatory expectations for analytical instrumentation used in GxP environments: full traceability aligns with FDA 21 CFR Part 11 requirements when used with tiBase’s electronic signature module; data export protocols support ISO/IEC 17025 documentation workflows; and hardware design conforms to IEC 61010-1 safety standards for laboratory electrical equipment. Note: Electrode selection determines actual measurement range and accuracy—users must specify appropriate cell constants (e.g., K = 0.01 cm⁻¹ for ultrapure water, K = 10 cm⁻¹ for concentrated brines) and temperature compensation algorithms (linear vs. non-linear) based on application needs.

Software & Data Management

Data management is fully integrated into Metrohm’s tiBase platform—a validated, Windows-based application supporting method templates, automated report generation (PDF/HTML), and secure database archiving. Each measurement record contains raw sensor signals, compensated values, calibration metadata (date, standard used, deviation), environmental conditions (ambient temperature, atmospheric pressure if logged externally), and user-defined annotations. All entries are write-protected post-acquisition unless authorized via role-based access control. For enterprise-level deployment, the 912 supports direct LIMS interfacing through ASTM E1384-compliant HL7 or ODBC drivers, enabling automatic ingestion into quality management systems without manual re-entry. Audit trails are immutable and time-stamped to UTC, satisfying internal QA audits and external inspections under ISO 9001, ISO 13485, or EU GMP Annex 11.

Applications

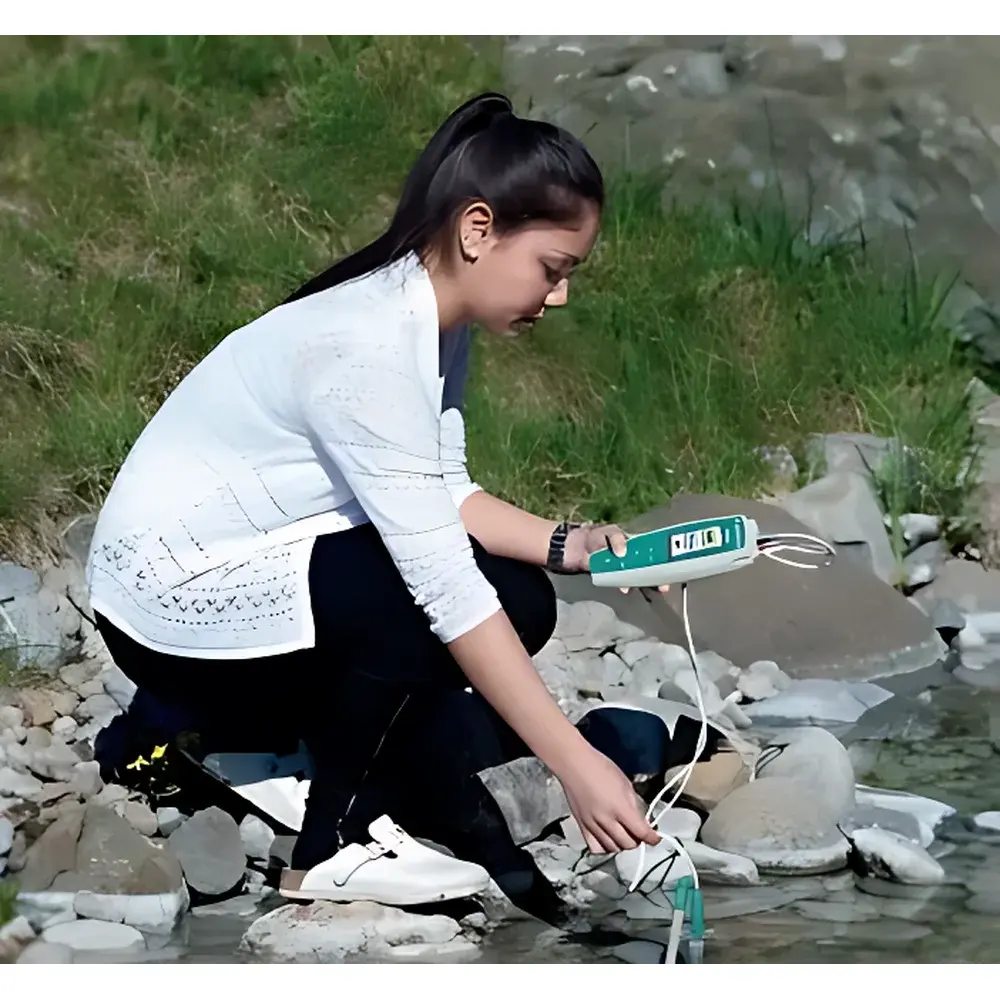

• Environmental field surveys: Rapid assessment of stream conductivity as an indicator of ionic contamination or agricultural runoff.
• Pharmaceutical water system validation: Monitoring conductivity of purified water (PW) and water for injection (WFI) per USP Chapter , including temperature correction to 25 °C.
• Food processing line control: In-line verification of rinse water salinity or cleaning solution concentration during CIP cycles.
• Educational laboratories: Teaching fundamental principles of ionic mobility, Kohlrausch’s law, and temperature dependence of electrolytic conduction.
• Industrial cooling tower management: Tracking cycle concentration ratios and detecting chloride ingress in closed-loop systems.

FAQ

Does the 912 Conductivity Meter include a conductivity electrode?
No—the instrument is supplied without electrodes. Electrodes must be selected separately based on required cell constant, material compatibility (e.g., stainless steel, platinum, or graphite), and application-specific demands.
Can the 912 operate in continuous monitoring mode?
Yes—when connected to AC power and configured with a suitable flow-through or immersion electrode, it supports timed interval measurements and analog output (0–20 mA or 4–20 mA) for integration into SCADA or DCS systems.
Is tiBase software included with the instrument?
tiBase is provided free of charge with all Metrohm 912 units and receives regular updates via Metrohm’s Customer Portal; no subscription fee is required for core functionality.
What calibration standards are supported?
The 912 accepts both single-point and multi-point calibration using certified KCl solutions (e.g., 84 µS/cm, 1413 µS/cm, 12.88 mS/cm) and allows custom standard definition for proprietary reference materials.
How is temperature compensation handled?
Automatic temperature compensation (ATC) uses either built-in NTC thermistor probes or external Pt100 sensors; users may select linear (α = 2.0 %/°C default) or non-linear (ISO 7888) algorithms depending on sample matrix.
