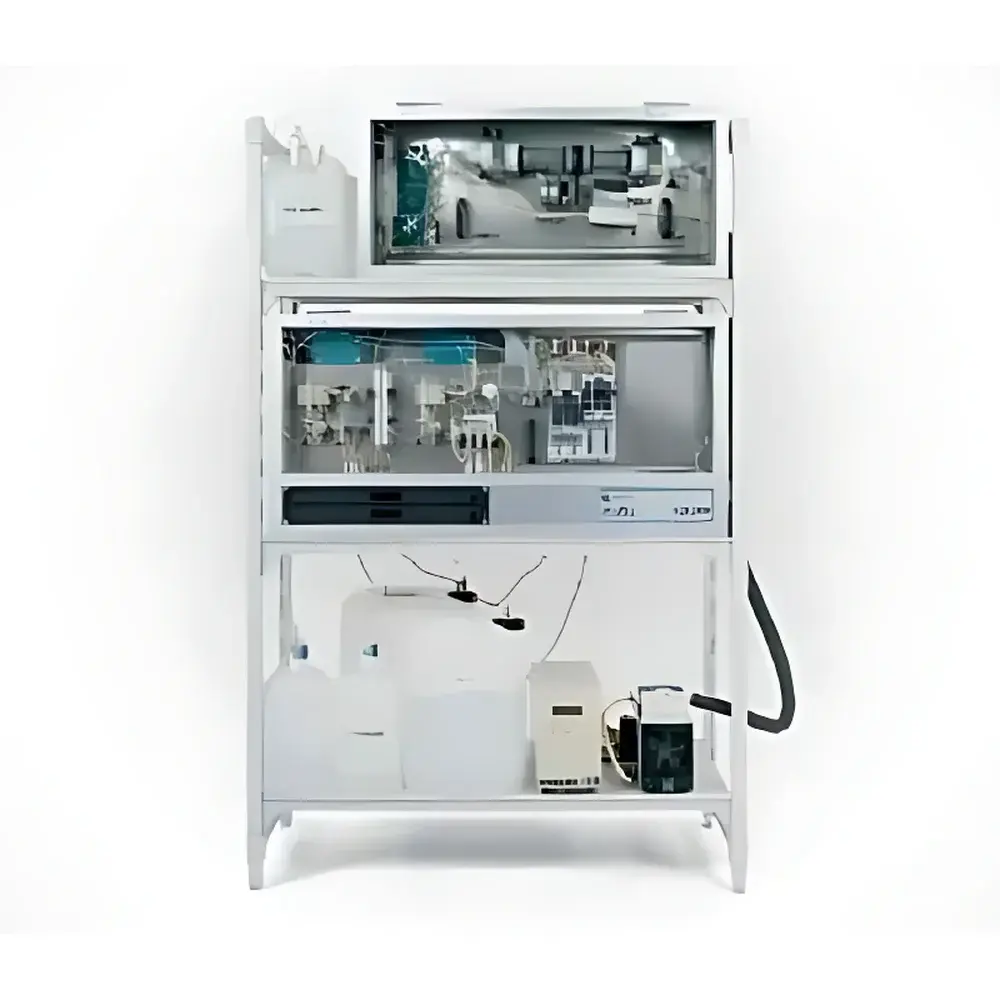

Metrohm MARGA 2S Online Gas and Aerosol Composition Monitor

Overview

The Metrohm MARGA 2S Online Gas and Aerosol Composition Monitor is an advanced, fully automated environmental monitoring system engineered for continuous, speciated measurement of inorganic ionic compounds in both ambient aerosols and reactive trace gases. Unlike conventional filter-based or optical methods, the MARGA 2S employs a validated wet-chemical sampling principle: ambient air is drawn at 1 m³/h through a size-selective cyclone (PM₂.₅ or PM₁₀ cut-point), followed by parallel, quantitative absorption of soluble gases (e.g., HNO₃, HCl, NH₃, SO₂, organic acids) in a rotating water-based absorber (WRD), while aerosol particles are captured independently via steam-jet aerosol condensation (SJAC). The resulting aqueous extracts—collected synchronously from both streams—are automatically de-gassed, spiked with internal standards (e.g., Li⁺, IO₃⁻), and injected into dual high-sensitivity ion chromatography (IC) modules: one for cations (Na⁺, K⁺, NH₄⁺, Ca²⁺, Mg²⁺), the other for anions (Cl⁻, NO₃⁻, SO₄²⁻, HCOO⁻, CH₃COO⁻). This hyphenated approach enables speciated mass closure, thermodynamic equilibrium modeling (e.g., ISORROPIA), and source apportionment input—critical for regulatory compliance, health impact studies, and atmospheric chemistry research.

Key Features

• Fully integrated, EPA Environmental Technology Verification (ETV)-certified platform—the only online instrument globally qualified for simultaneous gas + aerosol inorganic ion monitoring under real-world ambient conditions.
• High-efficiency dual-path sampling: >99.7% collection efficiency for target species across temperature and humidity gradients (10–35 °C, 20–90% RH).
• Hourly temporal resolution with full speciation: Delivers quantified concentrations (µg/m³) for ≥14 inorganic ions per cycle without manual intervention.
• Unattended operation up to 168 hours: Integrated reagent reservoirs, waste management, leak detection, and self-diagnostic routines minimize field maintenance.
• Modular hardware architecture: Field-replaceable WRD/SJAC units, dual IC pumps with gradient elution capability, and Peltier-cooled autosampler ensure long-term stability and reproducibility.
• Multi-level cybersecurity: Role-based user authentication (admin/operator/viewer), audit-trail logging compliant with GLP/GMP principles, and TLS 1.2 encrypted remote access.

Sample Compatibility & Compliance

The MARGA 2S is designed for direct deployment in urban, rural, coastal, and industrial ambient air monitoring networks. It complies with core requirements of ISO 12141 (ambient air—sampling of particulate matter), ASTM D6307 (standard test method for determination of sulfate in ambient air), and EU Directive 2008/50/EC Annex IX (reference methods for PM and gaseous pollutants). Its EPA ETV verification report (2013, RTI International) confirms performance against stringent criteria for precision (RSD <8% for major ions), accuracy (±15% bias vs. reference methods), and robustness across diverse meteorological regimes. All data outputs adhere to EN 17205:2020 metadata standards and support traceability under ISO/IEC 17025-accredited laboratories.

Software & Data Management

The MARGA Control Suite v5.x provides centralized configuration, real-time visualization, and automated QA/QC workflows. Key capabilities include: dynamic calibration scheduling using multi-point standard curves; automatic drift correction via internal standard recovery tracking; configurable alarm thresholds for instrument health and data validity; export of time-stamped, CSV/NetCDF-formatted datasets compatible with air quality modeling tools (e.g., CMAQ, CAMx). Audit logs record every user action, method change, and hardware event—fully satisfying FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed in regulated environments.

Applications

• Long-term trend analysis of secondary inorganic aerosol (SIA) formation—especially NH₄NO₃ and (NH₄)₂SO₄—under varying precursor ratios and photochemical conditions.
• Source contribution analysis via ion ratio diagnostics (e.g., NO₃⁻/SO₄²⁻, Cl⁻/Na⁺, Ca²⁺/Mg²⁺) and coupling with receptor models (e.g., PMF, CMB).
• Validation of chemical transport model (CTM) predictions and satellite-derived aerosol products (e.g., MODIS AOD, TROPOMI NO₂).
• Regulatory monitoring networks requiring speciated PM data for attainment demonstrations under US NAAQS or EU Air Quality Standards.
• Health cohort studies linking specific ion exposures (e.g., fine-mode SO₄²⁻, NH₄⁺) to respiratory outcomes using high-temporal-resolution exposure metrics.

FAQ

What regulatory certifications does the MARGA 2S hold?
The MARGA 2S is the only online aerosol/gas monitor verified under the U.S. EPA’s Environmental Technology Verification (ETV) Program for inorganic ion speciation (Report #ETV-13-01, RTI International, 2013). It also meets ISO 12141, ASTM D6307, and EN 17205:2020 requirements.
Can the system operate autonomously during power outages or network disruptions?
Yes—it includes UPS-integrated power management and local data buffering (72 h minimum) with automatic resynchronization upon network recovery.
Is method validation support available for regulatory submissions?
Metrohm provides comprehensive validation documentation packages—including system suitability tests, LOD/LOQ determination protocols, and interlaboratory comparison reports—aligned with ISO/IEC 17025 and EPA guidance.
How is data integrity ensured over extended deployments?
All raw chromatograms, calibration files, and system logs are cryptographically hashed and timestamped; audit trails are immutable and exportable for third-party review.
Does the MARGA 2S support integration with existing air quality data platforms?
Yes—via standardized APIs (REST/JSON), FTP/SFTP push, or MQTT protocol; pre-built connectors exist for AQMesh, Clean Air Toolbox, and national reporting systems (e.g., China’s CNEMC platform, EU’s AirBase).
