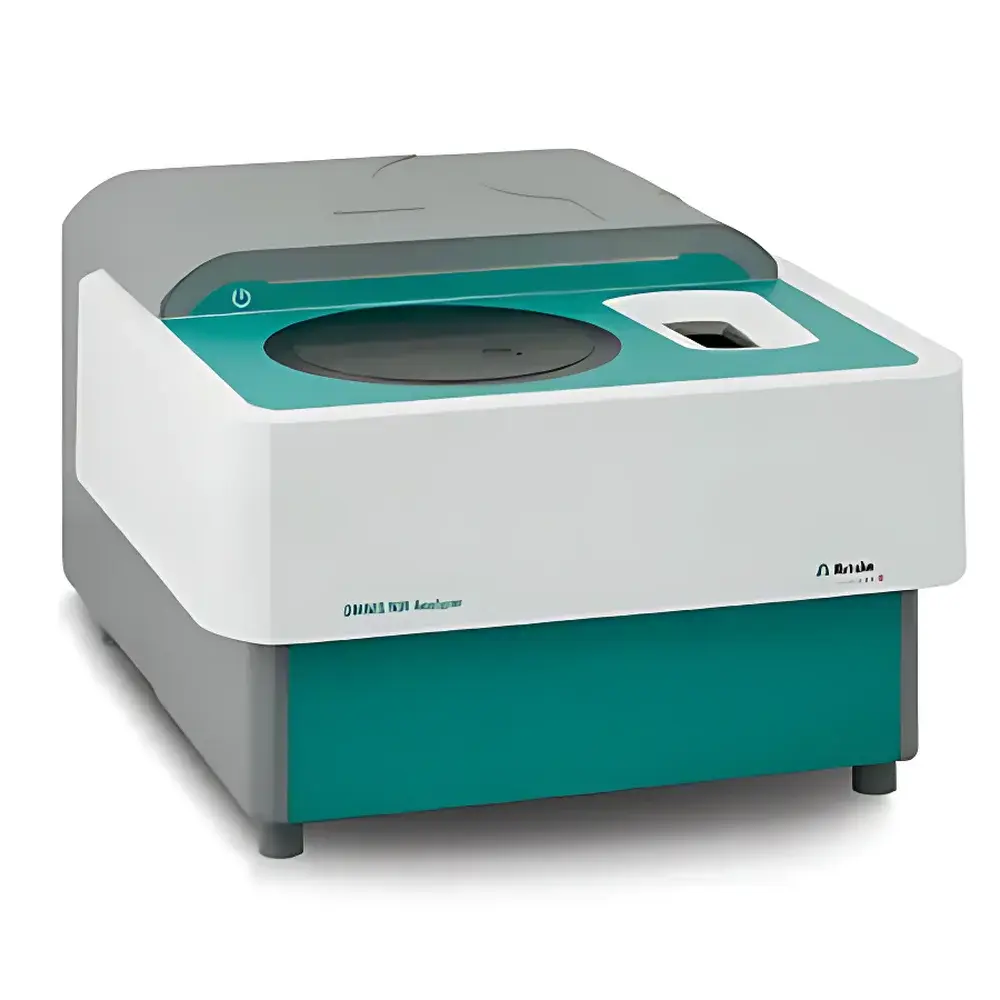

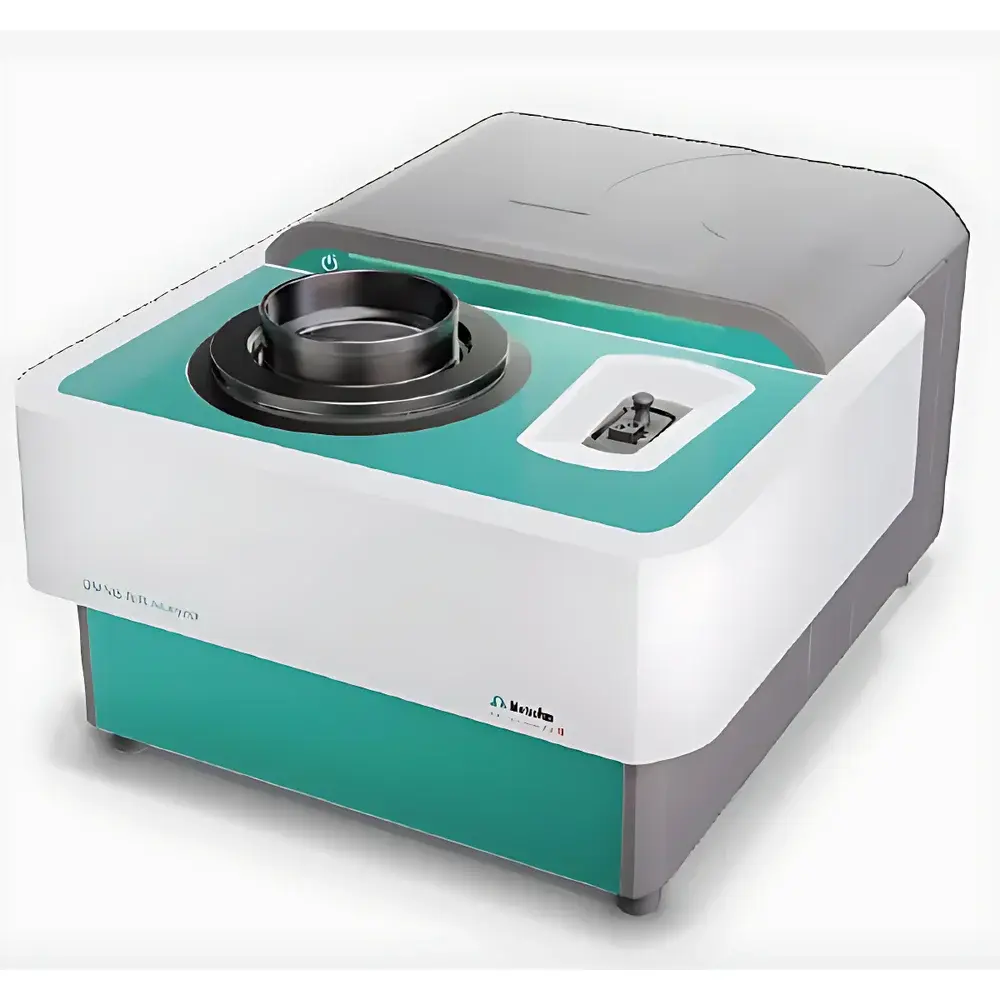

Metrohm OMNIS NIR Next-Generation Near-Infrared Spectrometer

Overview

The Metrohm OMNIS NIR Next-Generation Near-Infrared Spectrometer is a benchtop, fixed-grating array-based spectrometer engineered for high-throughput, reproducible quantitative and qualitative analysis across diverse sample matrices—including liquids, solids, powders, pastes, and semi-solids. Operating on the principle of non-scanning dispersive spectroscopy, the instrument employs a thermally stabilized silicon photodiode array detector coupled with a high-efficiency holographic grating to deliver rapid, stable spectral acquisition without moving optical components. This architecture eliminates mechanical wear, enhances long-term photometric stability, and supports robust operation in regulated laboratory environments. Designed and manufactured in Herisau, Switzerland, the OMNIS NIR complies with stringent international quality standards and is validated for use in GxP-compliant workflows, including pharmaceutical QC, food authenticity testing, polymer characterization, and agricultural product grading.

Key Features

• Non-scanning fixed-grating optical design with 1000–2250 nm spectral coverage and 0.5 nm data sampling interval—enabling high-resolution spectral fingerprinting without wavelength calibration drift.
• Ultra-fast acquisition at up to 300 full-spectrum scans per second, facilitating real-time process monitoring and high-volume batch analysis.
• IP54-rated enclosure with minimized moving parts—ensuring operational reliability, low maintenance requirements, and compatibility with shared lab spaces or production-floor proximity.
• Integrated sample identification via barcode/RFID readers and programmable thermal control modules (±0.1 °C stability) for temperature-sensitive measurements.

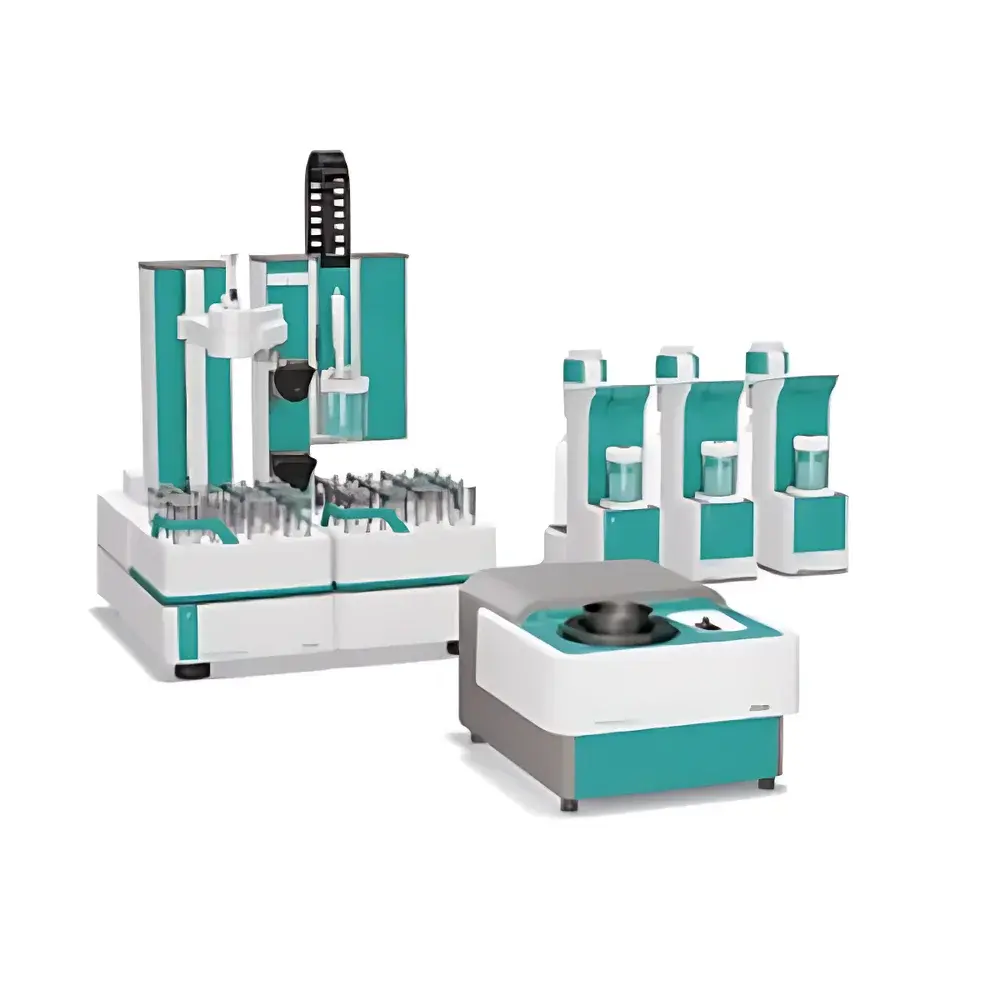

• Predefined measurement sequences support unattended operation for >500 samples per run when paired with OMNIS robotic sample handlers (S/M series or dedicated NIR handler).
• Fully compliant with FDA 21 CFR Part 11, EU Annex 11, USP , and ASTM E1655–23 for spectral data integrity, electronic signatures, audit trails, and role-based access control.

Sample Compatibility & Compliance

The OMNIS NIR accommodates heterogeneous sample forms through interchangeable optical interfaces: fiber-optic probes for in-line or immersion measurements; integrating spheres for diffuse reflectance of powders and tablets; flow cells for liquid stream analysis; and custom cuvette holders for transmission of clear solutions or suspensions. All accessories are traceably calibrated against NIST-traceable SRM standards. The system meets ISO/IEC 17025:2017 requirements for analytical instrument qualification and supports full IQ/OQ/PQ documentation packages. Pre-validated chemometric models—developed from >10,000 real-world reference spectra across food, pharma, and petrochemical domains—are available for immediate deployment under GLP/GMP conditions.

Software & Data Management

The OMNIS Platform serves as a unified software environment for all Metrohm OMNIS instruments (NIR, titrators, and automation systems), providing centralized method development, instrument control, and data governance. Its chemometrics engine—OMNIS Model Developer (OMD)—supports automated PLS, PCR, SVM, and PCA model generation with cross-validation, residual analysis, and outlier detection. Users retain full transparency: all preprocessing steps (SNV, MSC, derivatives), variable selection criteria, and regression coefficients are editable and exportable. The platform offers client/server architecture, LIMS integration via ASTM E1467-compliant APIs, and optional 21 CFR Part 11-compliant configuration with electronic signature workflows, immutable audit trails, and secure user authentication.

Applications

• Pharmaceutical: Raw material ID, blend uniformity assessment, tablet moisture content, and polymorph screening per USP and ICH Q5A guidelines.
• Food & Agriculture: Protein/fat/moisture quantification in grains, dairy, and meat; adulteration detection in olive oil, honey, and spices.
• Chemicals & Polymers: Monomer conversion monitoring, additive concentration profiling, and degradation index tracking in polyolefins and elastomers.
• Academic Research: Method transfer studies, multivariate calibration training, and hyperspectral data fusion with Raman or MIR platforms.

FAQ

Does the OMNIS NIR require routine wavelength calibration?
No—its fixed-grating array architecture eliminates mechanical scanning mechanisms, rendering wavelength calibration unnecessary during routine operation. A single factory calibration is traceable to NIST SRM 2035.
Can existing NIR models developed on other platforms be imported into OMNIS?
Yes—OMNIS supports import of PLS models in .csv, .mat, and ASTM E1655-compliant .nir formats, with automatic preprocessing alignment and spectral resampling.
Is remote monitoring and troubleshooting supported?
Yes—the OMNIS Platform includes secure TLS-encrypted remote desktop access, diagnostic logging, and predictive maintenance alerts based on lamp intensity decay and detector noise metrics.
What validation documentation is provided for regulated environments?
Metrohm supplies full URS, FRS, DQ/IQ/OQ/PQ protocols, test scripts, and summary reports aligned with ASTM E2500–22 and EU GMP Annex 15 requirements.
How is data backup and retention managed?
The system supports scheduled encrypted backups to network drives or cloud storage (AWS S3, Azure Blob), with configurable retention policies and hash-verified integrity checks per ISO/IEC 27001.
