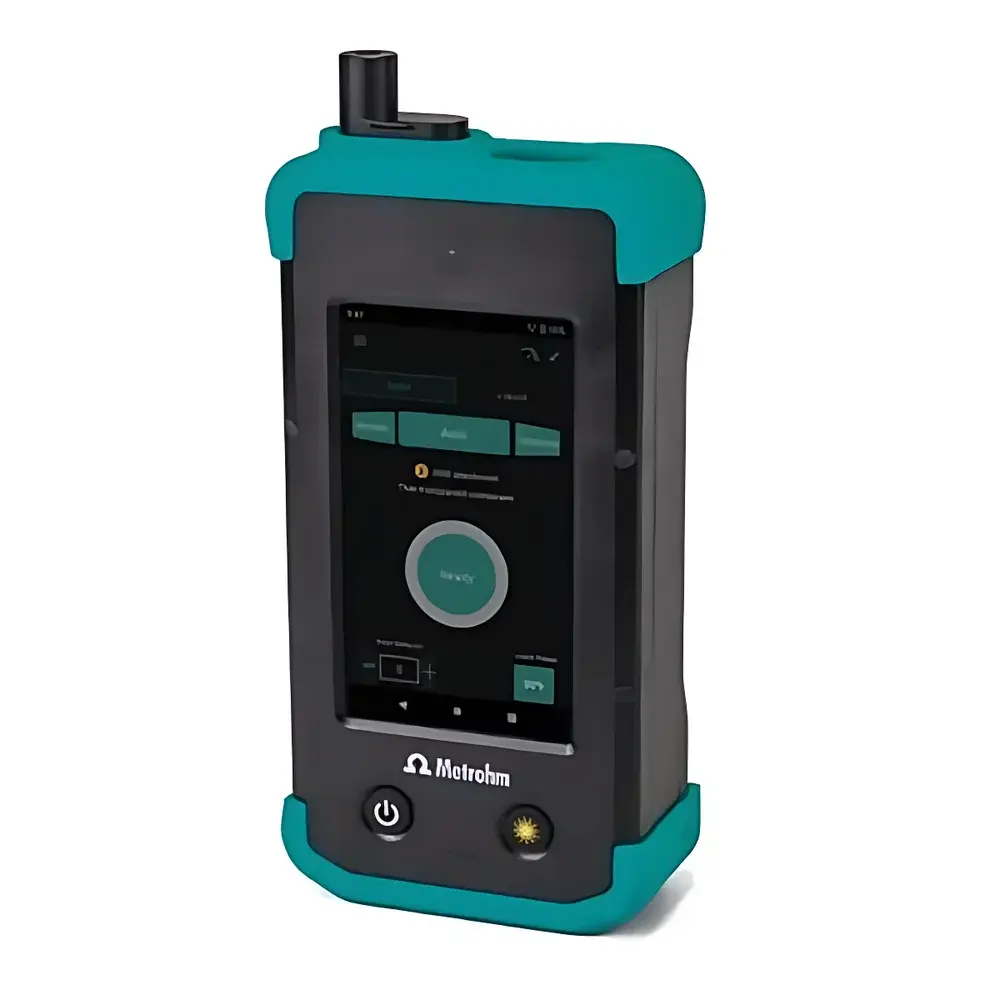

Metrohm TacticID-1064 Handheld Raman Spectrometer for Hazardous Chemicals and Narcotic Substances Identification

Overview

The Metrohm TacticID-1064 is a purpose-built handheld Raman spectrometer engineered for rapid, non-invasive identification of hazardous chemicals, narcotics, explosives, and chemical warfare agents in operational field environments. Operating on the principle of near-infrared (1064 nm) Raman scattering, it mitigates fluorescence interference commonly encountered with visible-laser systems—making it uniquely suited for colored, dark, or highly fluorescent samples such as street drugs, dyed solvents, or oxidized precursors. Its 1064 nm excitation wavelength enables reliable detection through common primary packaging—including amber glass vials, plastic bottles, sealed envelopes, laminated pouches, and high-density polyethylene containers—without sample preparation or physical contact. This capability supports forensic integrity, chain-of-custody compliance, and operator safety by eliminating the need to open or manipulate unknown substances.

Key Features

• 1064 nm diode laser excitation optimized for low-fluorescence, high-fidelity Raman signal acquisition across challenging matrices
• Non-destructive, through-barrier analysis: validated performance for identification through >95% of commercially relevant container materials (e.g., PET, HDPE, LDPE, glass, metallized film)
• Integrated spectral deconvolution algorithm that simultaneously resolves and subtracts container spectral contributions—enabling unambiguous identification of both contents and packaging in <8 seconds
• Ergonomic, MIL-STD-810G compliant housing with IP65-rated ingress protection; drop-tested to 1.2 m onto concrete
• Capacitive multi-touch display (7-inch, glove-compatible) with color-coded result visualization (red/yellow/green threat classification per substance category)
• Hot-swappable dual-battery system supporting >6 hours continuous operation under typical field duty cycles
• Onboard spectral library containing >15,000 reference spectra—including UN-listed hazardous materials, DEA Schedule I–V controlled substances, ICAO-restricted precursors, and NATO-standard chemical warfare agent simulants

Sample Compatibility & Compliance

The TacticID-1064 maintains compatibility with solid powders, crystalline solids, gels, liquids, and semi-solids—regardless of opacity or pigmentation. Its optical architecture accommodates variable focus distances (5–30 mm working distance) and integrates adaptive auto-alignment to compensate for minor surface irregularities or tilt during handheld use. The instrument complies with IEC 61326-1 (EMC for laboratory and field equipment), IEC 61010-1 (safety requirements for electrical equipment), and meets FDA guidance for field-deployable analytical instruments used in regulatory decision-making. All spectral acquisitions include embedded metadata (GPS coordinates, timestamp, operator ID, environmental temperature/humidity) to support GLP/GMP audit trails and ISO/IEC 17025 documentation requirements.

Software & Data Management

Powered by Metrohm’s proprietary ChemLogic™ software suite, the TacticID-1064 supports real-time spectral matching against configurable libraries, customizable alert thresholds, and hierarchical confidence scoring (Match Quality Index, MQI ≥ 95% required for positive identification). Data export conforms to ASTM E1783-22 (Standard Practice for Data Exchange in Field-Deployable Analytical Instruments) and includes .csv, .spc, and .jdx formats. Secure wireless synchronization (Wi-Fi 5, Bluetooth 5.0) enables encrypted upload to central forensic databases or cloud-based command centers. Audit logs record all user actions—including library updates, calibration events, and result overrides—with time-stamped digital signatures compliant with 21 CFR Part 11 electronic record requirements.

Applications

• First responder triage: Immediate differentiation between illicit narcotics (e.g., fentanyl analogues, synthetic cannabinoids), pharmaceutical counterfeits, and benign household substances
• Hazardous materials response: Identification of toxic industrial chemicals (TICs), chlorine donors, peroxide-based explosives, and nitroaromatic compounds without exposure risk
• Customs and border protection: High-throughput screening of postal parcels, air cargo, and maritime containers for concealed threats
• Military CBRN defense: Tactical verification of suspected chemical agents or degradation products in contested environments
• Forensic laboratory pre-screening: Evidence preservation via non-contact analysis prior to confirmatory GC-MS or FTIR testing

FAQ

Does the TacticID-1064 require sample preparation or direct contact with the material?

No—identification is performed non-invasively through transparent or translucent packaging. No swabbing, scraping, or opening is necessary.
Can it distinguish between structurally similar compounds (e.g., fentanyl vs. acetylfentanyl)?

Yes—the 9 cm⁻¹ spectral resolution and chemometric algorithms resolve key vibrational mode differences in the fingerprint region (600–1800 cm⁻¹), enabling confident discrimination of positional isomers and analogues.
Is spectral library customization supported for agency-specific threat profiles?

Yes—Metrohm provides validated library expansion services including custom reference acquisition, peak validation, and version-controlled deployment across fleet devices.
How is instrument calibration maintained in field conditions?

Automatic daily self-calibration using an internal silicon reference standard ensures wavenumber accuracy within ±1 cm⁻¹ across ambient temperatures from –10 °C to +50 °C.
What cybersecurity protocols protect data transmission?

All wireless communications employ AES-256 encryption; device firmware signing and secure boot prevent unauthorized code execution or library tampering.
