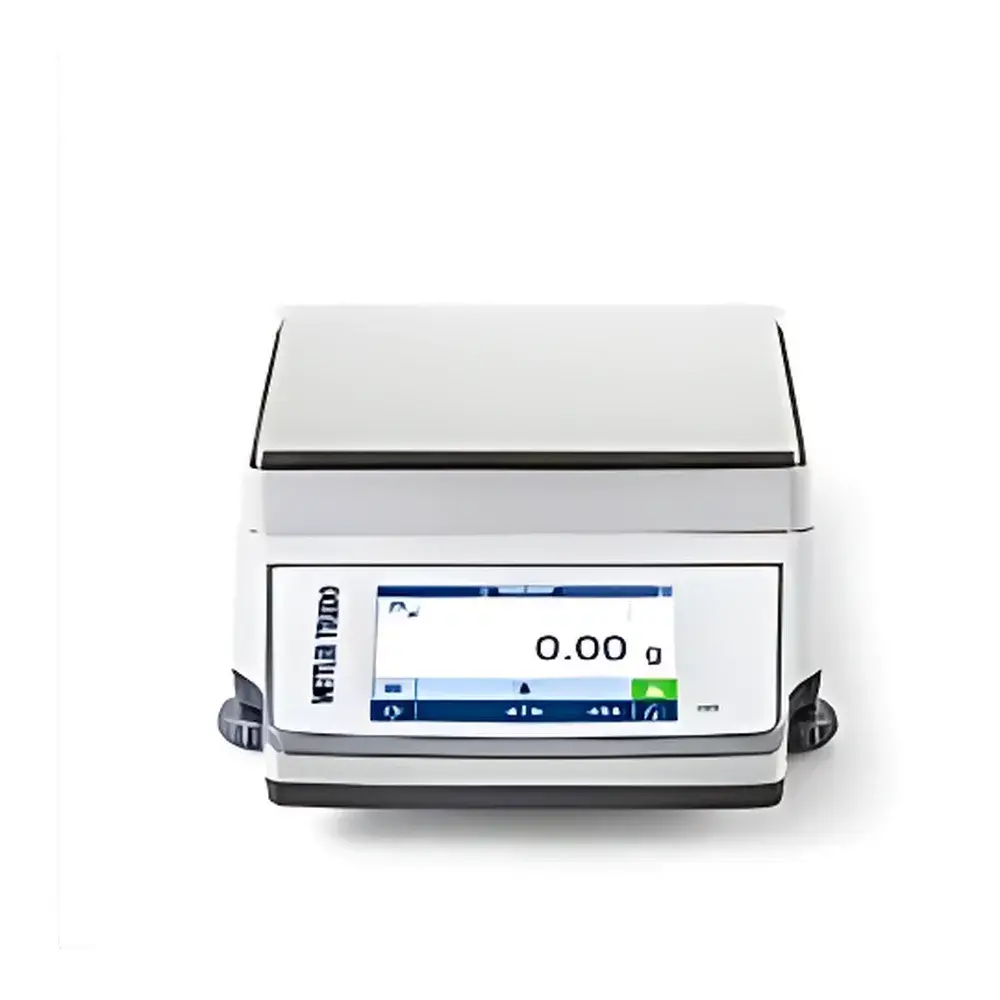

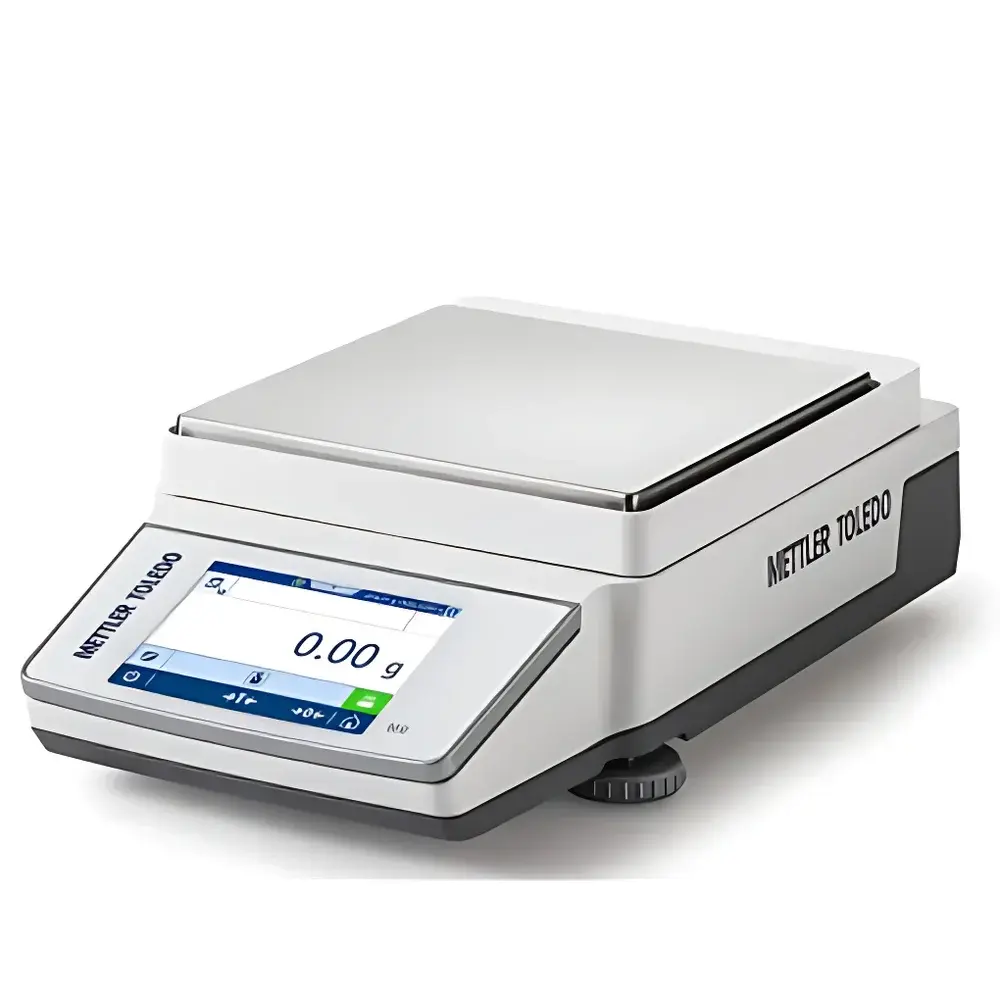

METTLER TOLEDO MR6001 Precision Balance

Overview

The METTLER TOLEDO MR6001 Precision Balance is an industrial-grade analytical weighing instrument engineered for high reproducibility, long-term stability, and operational resilience in demanding laboratory and production environments. Utilizing electromagnetic force compensation (EMFC) technology, the MR6001 delivers precise mass determination across a wide dynamic range while maintaining traceable accuracy under variable ambient conditions—including temperature fluctuations, air currents, and mechanical vibration. Its robust mechanical architecture—featuring a monolithic metal housing, reinforced load cell mount, and sealed internal electronics—is specifically validated for continuous operation in non-temperature-controlled labs, quality control floors, and manufacturing cleanrooms where particulate ingress and incidental liquid exposure are routine concerns.

Key Features

• IP43-rated enclosure providing protection against solid objects ≥1 mm (e.g., dust accumulation) and water splashes from any direction up to 60° from vertical—ensuring integrity of the weighing cell and printed circuit boards during routine cleaning or accidental spills.
• Integrated overload protection system that mechanically decouples the weighing pan from the sensor upon impact or excessive load, preventing permanent deformation of the electromagnetic transducer and extending service life.
• Automatic internal calibration (AutoCal™) with temperature-triggered recalibration—initiated when ambient drift exceeds ±1.5 °C—to maintain metrological consistency without manual intervention.
• Guided leveling system with integrated bubble level and motorized foot adjustment, enabling rapid setup and verification of horizontal alignment—a critical prerequisite for measurement accuracy per ISO 9001 and ASTM E899.
• Configurable power management profile allowing scheduled sleep mode activation after user-defined idle periods, reducing standby power consumption by up to 70% versus conventional balances.
• Dual-mode display interface supporting both metric and imperial units, with real-time tare tracking, net/gross switching, and customizable weight thresholds for pass/fail decision logic.

Sample Compatibility & Compliance

The MR6001 accommodates a broad spectrum of sample types—from powders and granules to packaged components and small assemblies—via its removable stainless-steel weighing pan (diameter: 120 mm) and optional draft shield compatibility. It meets essential regulatory expectations for data integrity in regulated industries: full audit trail capability (user ID, timestamp, action type, before/after values), electronic signature support aligned with FDA 21 CFR Part 11 Annex 11 requirements, and hardware-level password protection for configuration changes. The balance’s firmware is validated per IQ/OQ protocols and supports periodic performance verification using certified test weights traceable to NIST and BIPM standards.

Software & Data Management

Data export and system integration are enabled through native MT-SICS (METTLER TOLEDO Standard Interface Command Set) compliance—supporting ASCII-based serial communication over RS232, USB virtual COM port, or TCP/IP Ethernet. This allows seamless bidirectional data exchange with programmable logic controllers (PLCs), manufacturing execution systems (MES), and laboratory information management systems (LIMS). Embedded user management enables creation of up to 10 role-specific profiles (e.g., “Operator”, “Supervisor”, “Calibration Technician”), each with granular permissions over functions such as calibration, unit change, print settings, and report generation—minimizing procedural deviations and supporting ALCOA+ data governance principles.

Applications

The MR6001 serves as a primary weighing platform in pharmaceutical QC laboratories for raw material receipt testing (USP ), formulation batch release (ICH Q5C), and stability study sample preparation. In chemical manufacturing, it supports catalyst dosing, reagent dispensing, and yield reconciliation workflows requiring ±0.1 mg repeatability. Food safety labs deploy it for allergen residue verification (AOAC 2012.01), nutritional labeling compliance (FDA 21 CFR 101), and HACCP-mandated ingredient verification. Its ruggedized design also makes it suitable for field-deployed environmental testing labs performing soil/sediment analysis per EPA Method 5035A.

FAQ

Is the MR6001 compatible with Good Manufacturing Practice (GMP) documentation requirements?
Yes—the balance generates time-stamped, user-attributed records for all critical operations and supports electronic signatures and audit trails compliant with Annex 11 and 21 CFR Part 11.
Can the MR6001 be integrated into a Siemens S7 PLC environment?
Yes—via MT-SICS over RS232 or Ethernet, using standard Modbus TCP or ASCII command mapping provided in the integration manual.
Does the IP43 rating allow use in wet-process areas?
IP43 provides splash resistance but does not permit submersion or high-pressure washdown; for such environments, consider the XPE or XS series with IP54/IP65 ratings.
How frequently does automatic calibration occur?
AutoCal triggers automatically after power-on, following significant temperature shifts (>±1.5 °C), or at user-scheduled intervals (e.g., every 2, 4, or 8 hours).
Is external calibration required after installation?
Initial external calibration using Class M1 or M2 test weights is mandatory for ISO/IEC 17025 accreditation; subsequent verification frequency depends on usage intensity and risk assessment per ISO 10012.
