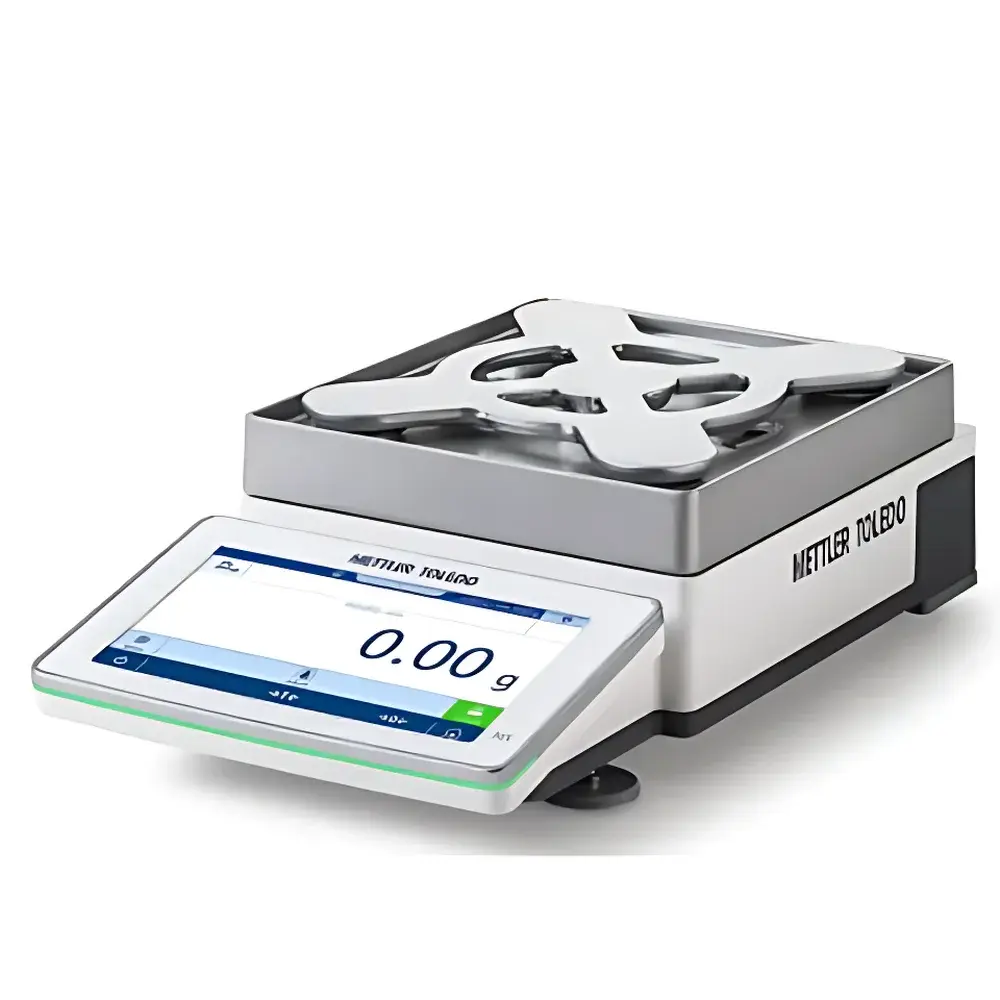

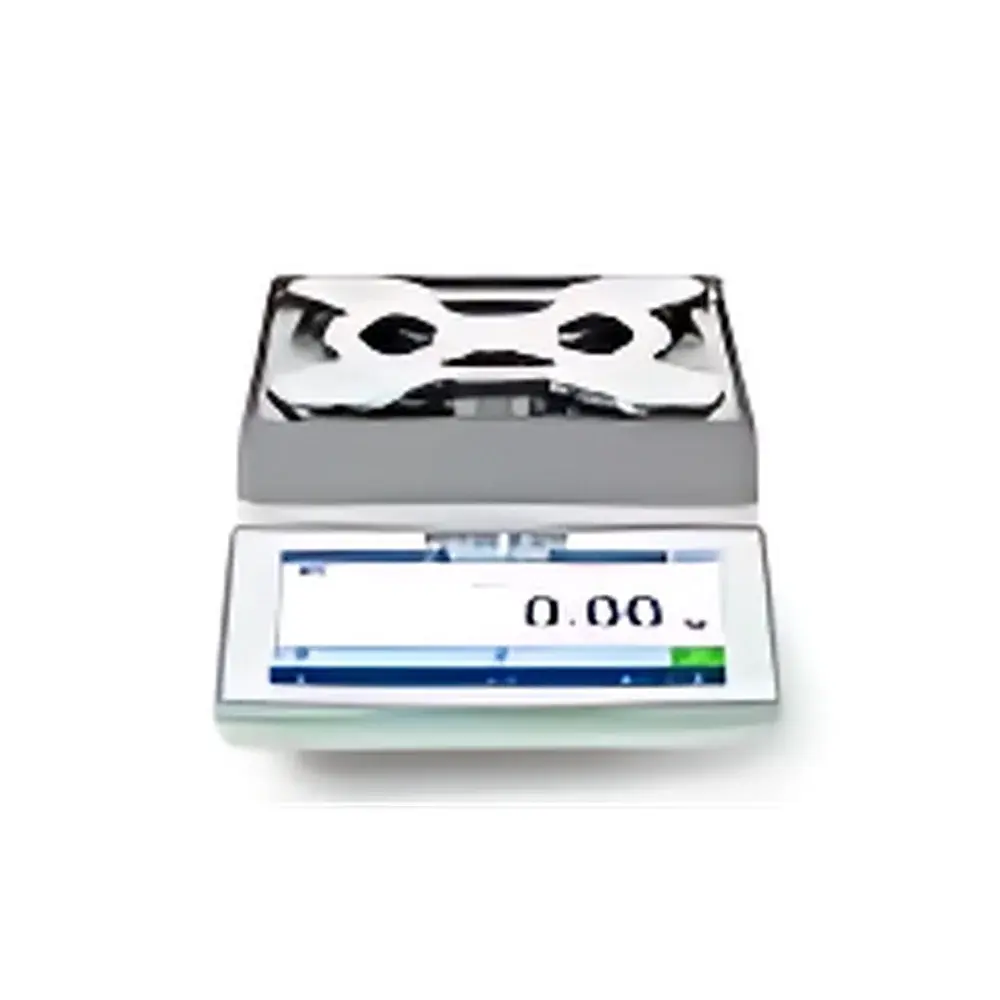

METTLER TOLEDO MX12002 Precision Balance
| Brand | METTLER TOLEDO |
|---|---|
| Origin | Shanghai, China |
| Model | MX12002 Precision Balance |
| Maximum Capacity | 32 kg |
| Readability | 1 mg |
| Protection Class | IP54 |
| Compliance | GxP-ready, FDA 21 CFR Part 11 compatible (with optional software), GLP/GMP audit trail support |
Overview
The METTLER TOLEDO MX12002 Precision Balance is an industrial-grade analytical and precision weighing instrument engineered for laboratories and quality control environments requiring high repeatability, traceable accuracy, and regulatory compliance. Built upon METTLER TOLEDO’s proprietary monolithic electromagnetic force compensation (EMFC) sensor architecture, the MX12002 delivers stable, drift-resistant measurements across dynamic ambient conditions—including minor vibrations, air currents, and temperature fluctuations common in production labs and QC suites. With a maximum capacity of 32 kg and readability down to 1 mg, it bridges the functional gap between analytical balances and higher-capacity top-loading models—making it ideal for formulation, sample preparation, raw material verification, and intermediate process weighing where sub-milligram resolution is critical but full analytical enclosure is unnecessary.
Key Features
- SmartPan™ Draft Shield-Free Stabilization: A patented weighing pan design with integrated damping geometry that accelerates settling time by up to 40% compared to conventional platforms—enabling reliable readings within seconds even on non-isolated lab benches or near HVAC vents.
- AutoCal™ Internal Calibration & Adjustment: Fully motorized internal calibration system with temperature-triggered recalibration (±1.5 °C deviation) and scheduled self-checks—ensuring continuous metrological integrity without manual intervention.
- StatusLight™ Visual Feedback System: A three-color LED ring surrounding the display provides at-a-glance confirmation of operational status: green (ready), yellow (warning—e.g., draft detected or calibration due), red (error or overload).
- IP54-Rated Enclosure: Dust-protected housing with splash-resistant front panel and sealed keypad—suitable for humid or particulate-prone environments such as pharmaceutical manufacturing floors or chemical synthesis labs.
- Configurable Power Management: Programmable auto-standby mode reduces standby power consumption to <0.5 W; wake-on-weigh activation ensures zero latency when resuming operation.
Sample Compatibility & Compliance
The MX12002 accommodates a wide range of sample forms—from powders and granules to packaged components and small assemblies—via its 220 mm × 220 mm stainless-steel weighing pan. Its robust mechanical design supports repeated loading/unloading cycles without hysteresis or creep-induced drift. For regulated environments, the balance meets essential requirements for GxP workflows: user-level access control (up to 10 configurable roles), electronic signature support (when paired with LabX® software), and tamper-evident audit trails compliant with FDA 21 CFR Part 11 Annex 11 and EU GMP Annex 11. All weight data includes embedded metadata: timestamp, operator ID, balance ID, environmental conditions (optional external sensor integration), and calibration history—enabling full traceability from measurement to report.
Software & Data Management
Native connectivity includes RS232, USB Device/Host, and Ethernet interfaces—supporting direct export to LIMS, ERP, or MES systems via ASCII, XML, or CSV protocols. When integrated with METTLER TOLEDO LabX® software, the MX12002 enables method-driven workflows with pre-defined SOPs, automated calculations (e.g., % recovery, net/gross/tare logic), and real-time data validation against user-specified tolerances. LabX also enforces electronic record retention policies, generates PDF reports with digital signatures, and archives raw data in encrypted, non-modifiable format—fulfilling ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).
Applications
- Pharmaceutical: Active pharmaceutical ingredient (API) dispensing, excipient blending verification, stability study sample weighing, and USP <41> repeatability testing.
- Chemical Manufacturing: Catalyst dosing, batch reconciliation, and raw material release per ASTM E29 and ISO/IEC 17025 guidelines.
- Food & Beverage: Nutritional labeling compliance (FDA 21 CFR 101), recipe scaling, and HACCP-critical weigh points.
- Academic & Contract Research: Multi-user shared instrumentation with role-based permissions and automated data capture for publication-grade reproducibility.
FAQ
What is the recommended calibration frequency for the MX12002 in a GMP environment?
Calibration intervals must be risk-assessed per ISO/IEC 17025:2017 Clause 6.5.2; however, METTLER TOLEDO recommends daily performance verification using certified test weights and quarterly full calibration—automatically logged and reportable via LabX.
Can the MX12002 be connected to a networked laboratory information system (LIS)?
Yes—via Ethernet or RS232, with configurable data output formats (including HL7-compatible messages) and TLS 1.2 encryption support for secure transmission.
Does the MX12002 support multi-language user interfaces?
Yes—12 languages are available including English, German, French, Spanish, Chinese, Japanese, and Korean—configurable per user profile.
Is SmartPan™ compatible with third-party draft shields or custom fixtures?
SmartPan™ is optimized for open-bench use; adding external enclosures may interfere with its aerodynamic stabilization algorithm and is not validated by METTLER TOLEDO.
How does the MX12002 handle electrostatic interference during low-mass weighing?
The balance incorporates active electrostatic compensation circuitry and grounded stainless-steel construction—reducing static-induced error by >90% compared to standard EMFC platforms, as verified per IEC 61326-1.
