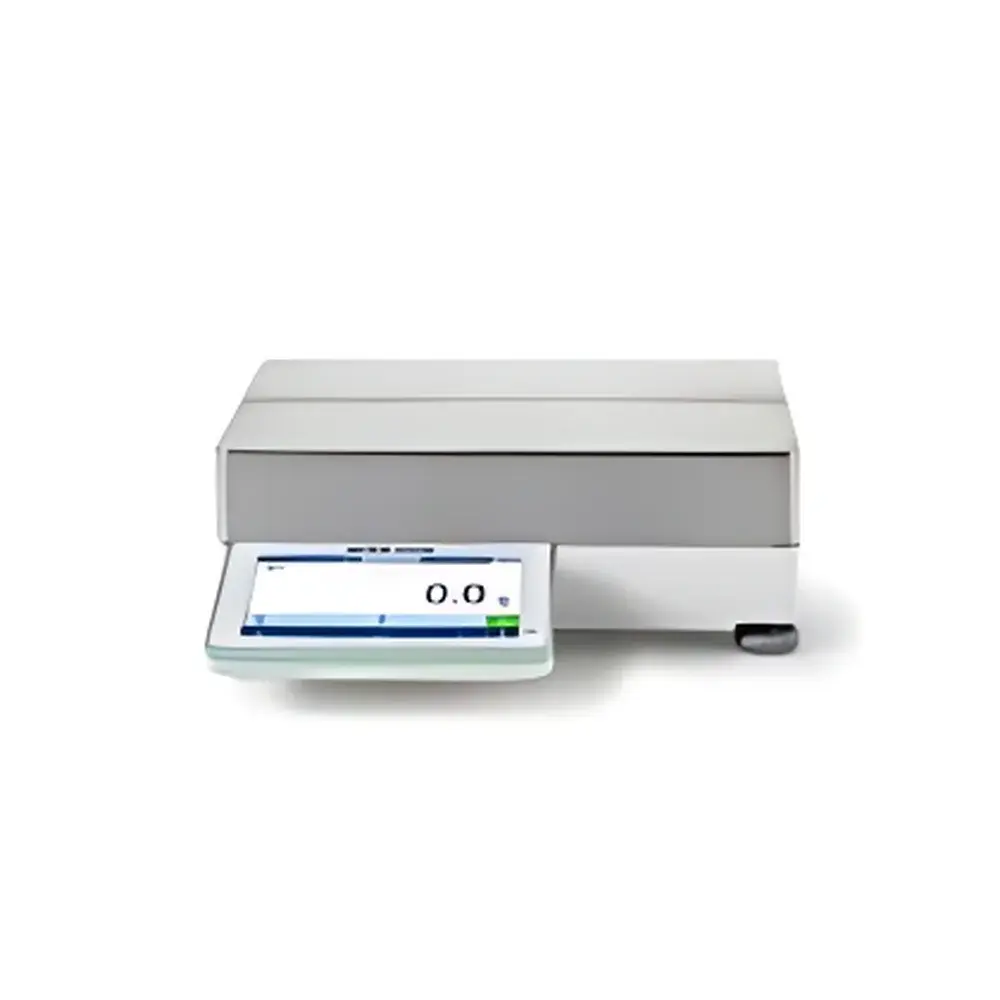

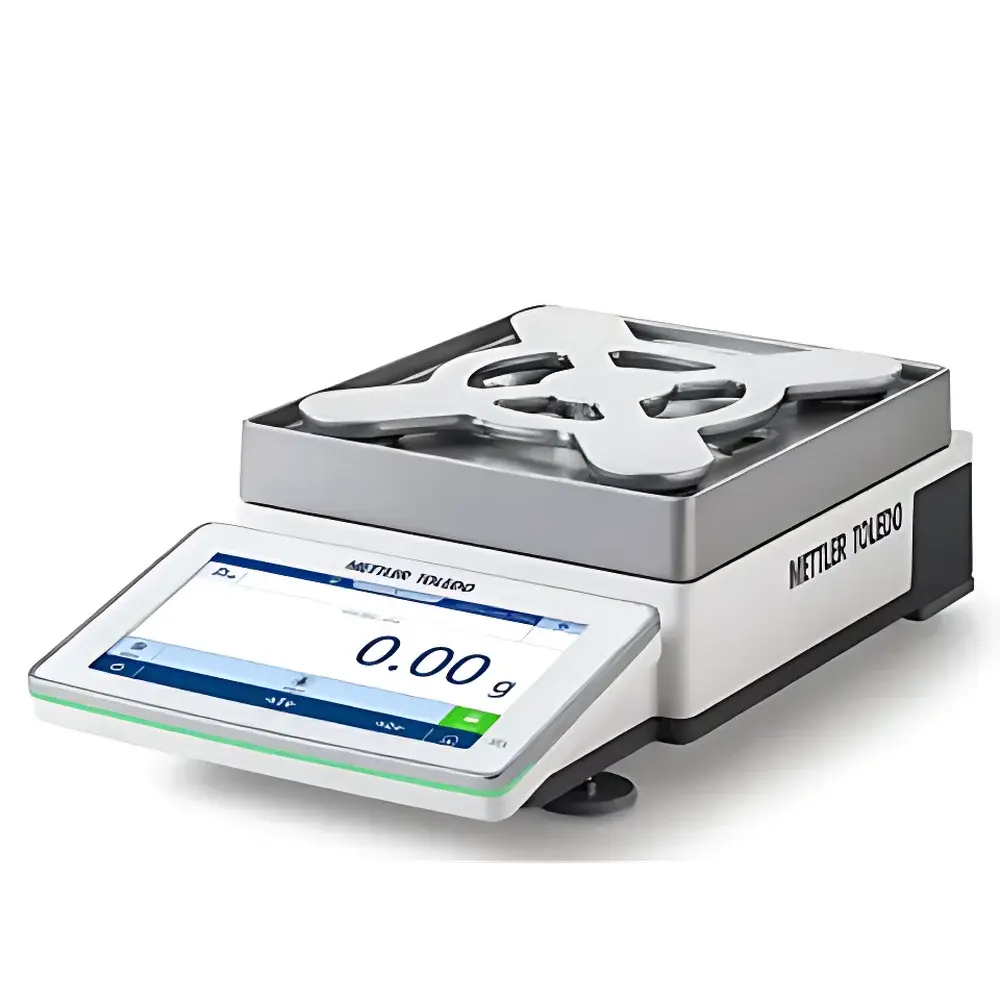

METTLER TOLEDO MX32001L Precision Balance

Overview

The METTLER TOLEDO MX32001L Precision Balance is an industrial-grade analytical and precision weighing instrument engineered for laboratories and quality control environments requiring high repeatability, long-term stability, and regulatory compliance. Built upon METTLER TOLEDO’s proprietary monolithic electromagnetic force compensation (EMFC) sensor architecture, the MX32001L delivers metrologically traceable mass measurements with 1 mg readability across its full 32 kg capacity range. Its core design adheres to fundamental principles of static gravimetric measurement under controlled environmental conditions—minimizing drift through temperature-compensated sensor electronics and active internal mass stabilization algorithms. The balance operates within defined environmental tolerances (temperature: 10–30 °C; humidity: ≤80 % RH non-condensing), and its performance conforms to OIML R76-1 and ASTM E898–22 standards for non-automatic weighing instruments. Unlike general-purpose scales, the MX32001L integrates metrological integrity into operational workflow—supporting GLP, GMP, and ISO 17025-aligned processes from first power-on to final data export.

Key Features

• Monolithic EMFC sensor with integrated temperature and linearity compensation ensures ≤0.001 % repeatability over time and load range.
• SmartPan™ weighing pan system actively dampens low-frequency vibrations (e.g., floor tremors, HVAC airflow), reducing settling time by up to 40 % compared to conventional pans—critical in shared lab spaces or production-floor installations.
• StatusLight™ visual feedback system uses color-coded LED indicators (green = ready, yellow = warning, red = error) for immediate at-a-glance status confirmation without screen interaction.
• Configurable internal daily verification protocol allows users to define pass/fail criteria based on process tolerance limits; automated alerts trigger when scheduled checks are overdue or fail.
• IP54-rated enclosure protects against dust ingress and water splashes—enabling reliable operation in QC labs, packaging lines, or warehouse staging areas where environmental control is limited.
• Energy-aware power management supports programmable auto-sleep, wake-on-weigh, and scheduled shutdown—reducing standby power consumption by >65 % versus legacy models.

Sample Compatibility & Compliance

The MX32001L accommodates a wide range of sample forms—including powders, granules, liquids in containers, solid components, and pre-weighed vials—via standard 200 mm × 200 mm stainless-steel weighing pan (optional ceramic or anti-static variants available). Its robust mechanical design supports off-center loading up to 30 % of max capacity without significant accuracy degradation. From a regulatory standpoint, the balance meets essential requirements for GxP environments: user-level access control (with password-protected administrator and operator roles), audit-trail-enabled event logging (power cycles, calibration, verification, weight recording), and secure data export via encrypted USB or TLS-secured Ethernet. When paired with METTLER TOLEDO LabX® software, it satisfies FDA 21 CFR Part 11 requirements—including electronic signatures, role-based permissions, and immutable audit trails for all critical actions.

Software & Data Management

Native firmware supports direct data transmission to printers (via ESC/P or PCL protocols), LIMS, ELN, or ERP systems using ASCII, CSV, or XML formats over RS232, USB virtual COM, or TCP/IP. Optional LabX® connectivity enables centralized instrument monitoring, remote calibration scheduling, real-time weight streaming, and automated report generation compliant with ISO/IEC 17025 documentation requirements. All weight records include timestamp, user ID, balance ID, environmental metadata (if external sensors connected), and verification status—ensuring full traceability for internal audits or regulatory inspections. Data integrity is enforced through write-once storage logic and cryptographic hash validation of exported files.

Applications

• Raw material receipt inspection and batch release testing in pharmaceutical manufacturing (per USP & EP general chapters).
• Formulation dosing and blend uniformity analysis in solid-dose development labs.
• Reference standard preparation and working standard assignment under ISO 17034 accreditation.
• In-process quality control during food packaging—net weight verification, checkweighing, and label compliance reporting.
• Calibration laboratory use as a reference standard for verifying lower-class balances (Class II or III per OIML).
• Environmental testing labs performing soil/sediment moisture content determination (ASTM D2216) or filter residue quantification (EPA Method 160.1).

FAQ

What is the recommended calibration frequency for the MX32001L in a GMP environment?
Calibration interval must be risk-assessed per your SOP; however, METTLER TOLEDO recommends initial calibration upon installation, followed by periodic verification using certified weights at least daily (automated via internal test) and full calibration every 3–6 months—or after relocation, major maintenance, or environmental excursions.
Does the MX32001L support multi-language user interfaces?
Yes—the device firmware supports 12 languages including English, German, French, Spanish, Chinese, Japanese, and Korean, configurable per user profile.
Can the balance be integrated into a networked LabX system without additional hardware?
Yes—Ethernet connectivity is built-in; no add-on modules required. LabX client-server deployment enables centralized management of multiple MX32001L units across distributed sites.
Is the SmartPan™ compatible with third-party anti-vibration tables?
SmartPan™ is optimized for standalone use; mounting the balance on external vibration isolation tables may interfere with its dynamic compensation algorithm and is not validated by METTLER TOLEDO.
How is traceability maintained for internal verification weights?
Internal verification relies on factory-calibrated reference masses traceable to NIST or BIPM standards; certificate of calibration is supplied with each unit and archived digitally in LabX if enabled.
