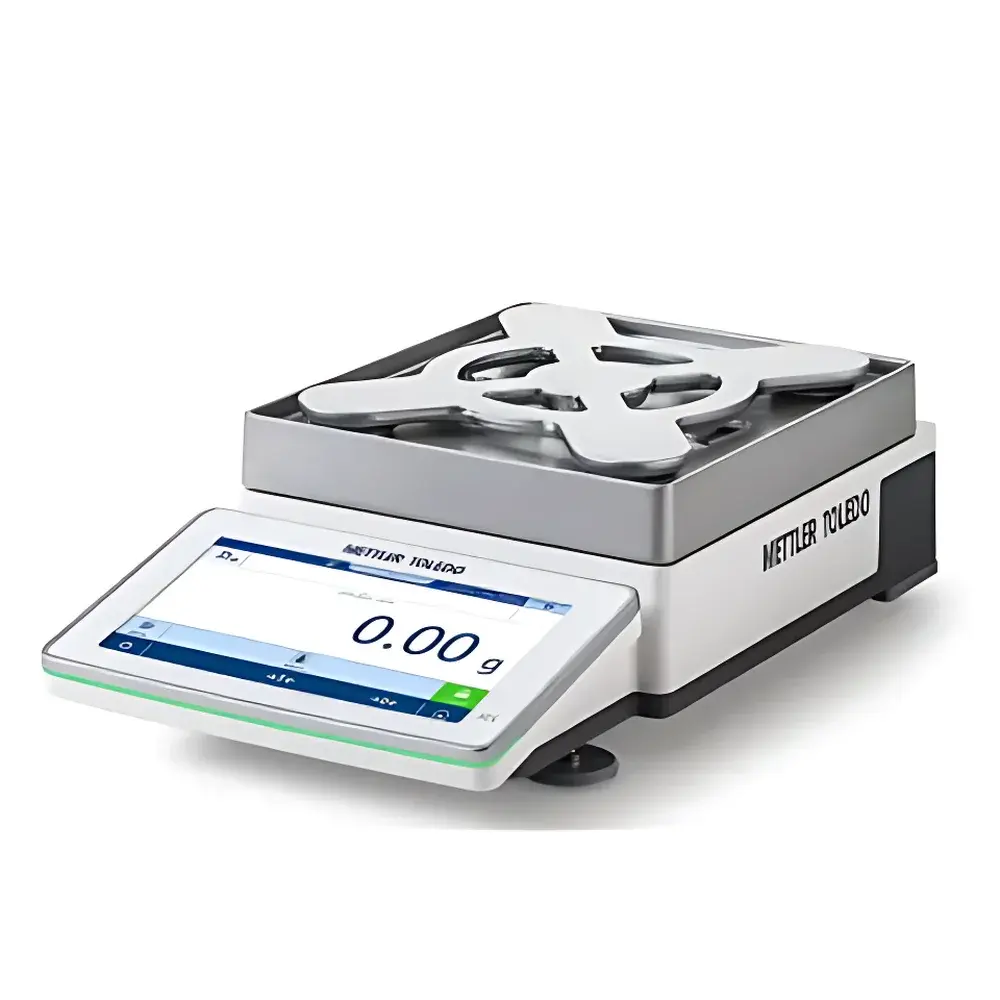

METTLER TOLEDO MX603 Precision Balance

Overview

The METTLER TOLEDO MX603 Precision Balance is an industrial-grade analytical and semi-micro balance engineered for laboratories and production environments requiring high repeatability, regulatory traceability, and robust performance under variable ambient conditions. Utilizing electromagnetic force compensation (EMFC) technology, the MX603 delivers stable, drift-resistant measurements across its full 32 kg capacity range with 1 mg readability—optimized for applications demanding both macro-scale mass determination and fine-grained resolution. Its core architecture integrates a temperature-compensated monolithic load cell, active damping via SmartPan™ technology to suppress mechanical vibrations, and real-time environmental monitoring (temperature, air currents, barometric pressure) to dynamically adjust stabilization algorithms. Designed for continuous operation in QC labs, formulation suites, and regulated manufacturing settings, the MX603 meets foundational metrological requirements defined in ISO/IEC 17025, ASTM E899, and USP , while providing the hardware foundation for full GxP compliance when deployed with METTLER TOLEDO’s LabX™ or Excellence software suite.

Key Features

• SmartPan™ weighing pan system—mechanically decoupled from the base to minimize transmission of floor vibrations and acoustic disturbances, enabling stable readings in non-ideal lab environments (e.g., near HVAC units or shared workbenches).
• StatusLight™ visual feedback system—three-color LED ring indicating operational state (green = ready, yellow = warning, red = error), eliminating ambiguity during high-throughput workflows.
• Integrated daily verification protocol—user-configurable automatic internal tests (e.g., linearity, repeatability, eccentricity) scheduled per internal SOPs; alerts trigger upon expiration to enforce measurement integrity between external calibrations.
• EcoMode energy management—adaptive sleep/wake cycling reduces standby power consumption by up to 70%, supporting sustainability targets without compromising readiness or warm-up stability.
• IP54-rated enclosure—dust-protected and splash-resistant housing constructed from reinforced polymer and stainless steel components, ensuring long-term reliability in humid, dusty, or chemically exposed environments.
• Modular connectivity—standard RS232 and USB Device ports; optional Ethernet and Bluetooth modules enable seamless integration into LIMS, MES, or ERP systems with bi-directional data exchange and remote configuration capabilities.

Sample Compatibility & Compliance

The MX603 accommodates diverse sample forms—including powders, granules, liquids in tared containers, and solid components—via its large 220 mm × 220 mm weighing pan and 320 mm clearance beneath the draft shield (when installed). Optional draft shields (M-SHIELD series) provide ISO 17025-compliant protection against air turbulence during low-mass measurements. From a regulatory standpoint, the balance supports ALCOA+ data integrity principles: all user actions (login/logout, tare, print, export) are time-stamped and logged with operator ID; audit trails are immutable and exportable in CSV or PDF format. When paired with LabX software, the system satisfies FDA 21 CFR Part 11 requirements—including electronic signatures, role-based access control, and automated backup—and facilitates GLP/GMP audit readiness through structured metadata capture (e.g., environment logs, calibration history, test reports).

Software & Data Management

Data generated by the MX603 is natively compatible with METTLER TOLEDO’s LabX™ software platform, which provides centralized instrument control, customizable SOP-driven workflows, and automated report generation compliant with ISO 14130 and EURACHEM guidelines. Raw weight values, process metadata (operator, timestamp, location, environmental parameters), and statistical summaries (mean, SD, CV%) are stored in encrypted SQLite or SQL Server databases. Export options include direct printing to certified thermal printers (e.g., Zebra ZD420), secure SFTP transfer to enterprise servers, and API-based ingestion into third-party analytics platforms. All data transfers adhere to TLS 1.2+ encryption standards, and local storage complies with GDPR and HIPAA retention policies when configured appropriately.

Applications

• Pharmaceutical quality control—active pharmaceutical ingredient (API) dispensing, excipient blending verification, and finished-dose uniformity testing per USP .
• Chemical R&D—catalyst loading, stoichiometric reagent preparation, and gravimetric standard solution preparation for ICP-MS or HPLC calibration.
• Food & beverage QA—net content verification, raw material receipt inspection, and nutritional labeling compliance (FDA 21 CFR 101.9).
• Materials science—density determination of composites, powder flow characterization via tapped density protocols (ASTM D4781), and coating weight analysis on substrates.
• Academic research labs—teaching metrology fundamentals, inter-laboratory comparison studies, and method validation per ICH Q2(R2).

FAQ

What is the recommended recalibration interval for the MX603 in a GLP environment?
Calibration frequency must be determined through risk-based assessment per ISO/IEC 17025 Clause 6.5.2; typical intervals range from daily internal checks to quarterly external calibration, documented in your laboratory’s metrological procedure.
Does the MX603 support direct connection to a networked printer without a PC?
Yes—via RS232 or USB Host mode, the balance can drive label printers (e.g., Brady BMP21) or receipt printers using built-in print templates configurable via the front panel.
Can multiple users be assigned distinct permission levels directly on the device?
User roles (Operator, Supervisor, Administrator) are managed locally on the MX603; password complexity, session timeout, and action logging are enforced at the firmware level without requiring external software.
Is SmartPan™ compatible with all optional draft shields?
SmartPan™ functionality remains fully active with M-SHIELD™ and M-SHIELD™ Pro draft shields; vibration damping performance is validated per ISO 14412 Annex B under shielded conditions.
How does the MX603 handle temperature-induced drift during extended weighing sessions?
The EMFC sensor incorporates real-time thermal compensation using dual-sensor thermometry; internal algorithms adjust gain coefficients every 2 seconds based on measured temperature gradients across the load cell assembly.
