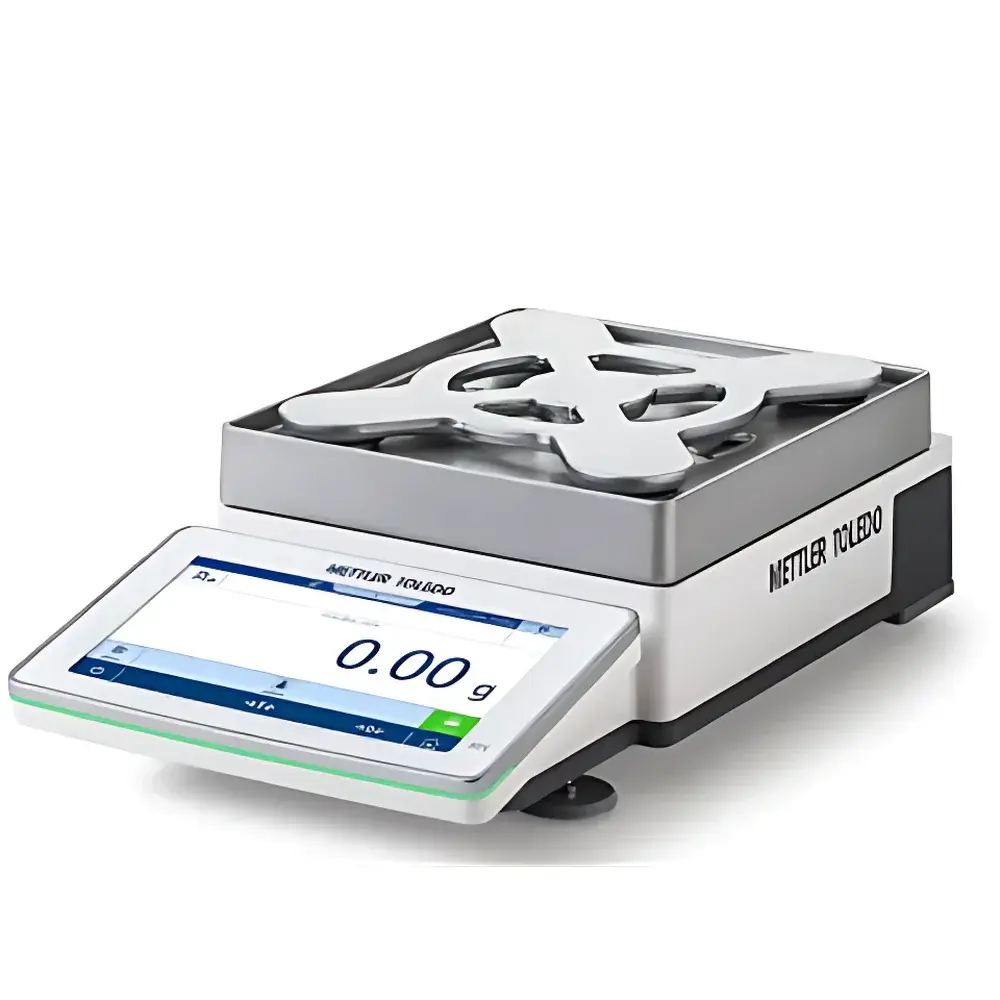

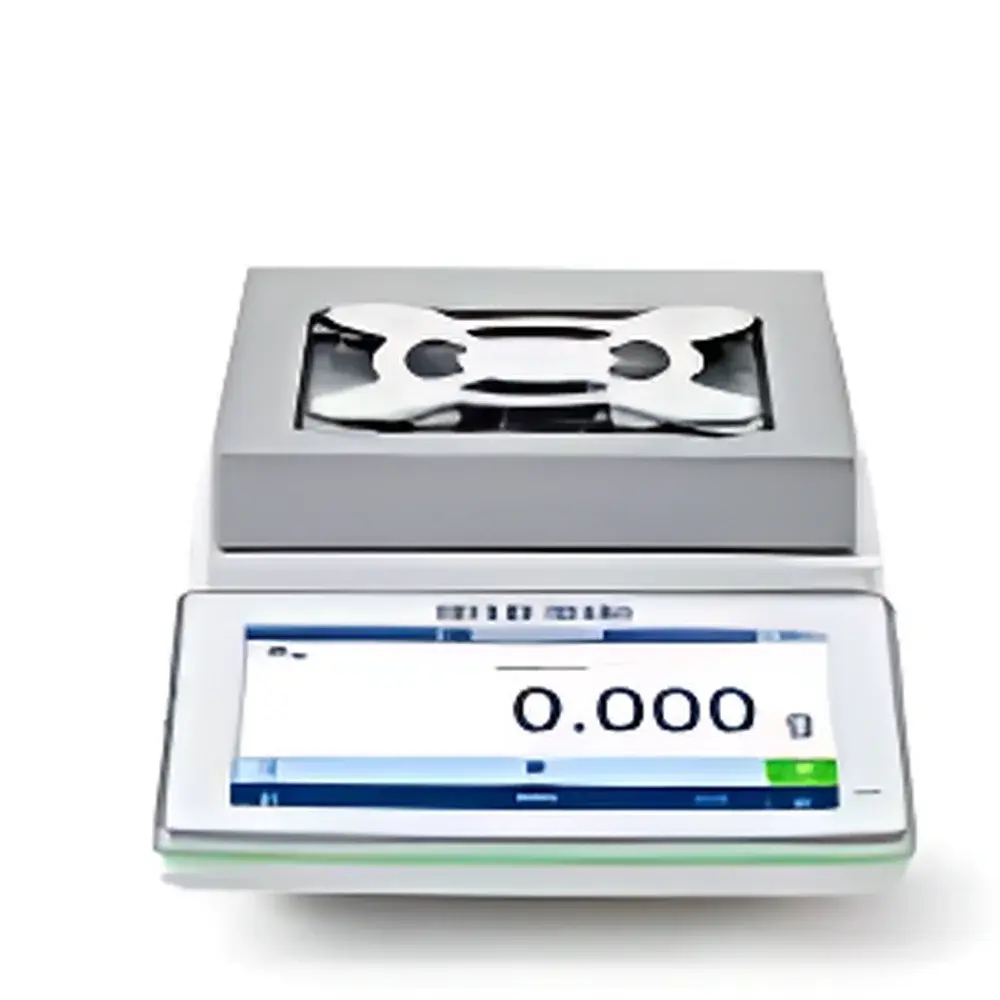

METTLER TOLEDO MX603N Precision Balance

Overview

The METTLER TOLEDO MX603N Precision Balance is an industrial-grade analytical and semi-micro weighing instrument engineered for laboratories and production environments requiring high repeatability, regulatory compliance, and long-term operational stability. Based on electromagnetic force compensation (EMFC) technology, the MX603N delivers precise mass determination across a 32 kg maximum capacity with 1 mg readability—optimized for applications ranging from formulation batching and quality control inspections to raw material verification and sample preparation in regulated manufacturing. Its robust mechanical architecture integrates a monolithic load cell design, temperature-compensated electronics, and active drift correction algorithms to ensure consistent performance under variable ambient conditions. Designed and assembled in Shanghai, the MX603N meets global metrological standards including OIML R76 and ISO/IEC 17025 traceability requirements when operated within defined environmental limits (temperature: 10–30 °C, humidity: ≤80 % RH non-condensing).

Key Features

• SmartPan™ weighing pan technology—dynamically dampens air currents and floor vibrations, reducing stabilization time by up to 40% compared to conventional platforms.
• StatusLight™ visual status indicator—provides immediate at-a-glance feedback on balance readiness, calibration status, and error conditions via color-coded LED illumination.
• Intelligent routine testing scheduler—automatically triggers internal performance checks (e.g., repeatability, eccentricity, linearity) based on user-defined intervals or process-specific tolerances; logs all test results with timestamps and operator IDs.
• Configurable power management system—enables programmable sleep/wake cycles and auto-shutdown to reduce standby energy consumption without compromising startup readiness.
• IP54-rated enclosure—protects internal electronics against dust ingress and water splashes, supporting reliable operation in non-sterile but demanding production-floor or warehouse environments.
• Ergonomic 5.7-inch full-color touchscreen interface—supports multi-language operation, customizable home screens, and intuitive navigation for both novice and expert users.

Sample Compatibility & Compliance

The MX603N accommodates a broad range of sample types—including powders, granules, liquids in containers, packaged goods, and irregularly shaped components—via its large 220 × 220 mm stainless steel weighing pan. Optional draft shields (sold separately) extend usability to low-mass applications sensitive to airflow. From a regulatory standpoint, the balance supports full GxP compliance workflows: user access levels (administrator, operator, reviewer) are enforced via password protection and role-based permissions; all critical events—including zeroing, taring, calibration, and test execution—are automatically timestamped and logged with immutable audit trails. When paired with METTLER TOLEDO LabX® software, the MX603N satisfies FDA 21 CFR Part 11 requirements for electronic records and signatures, including electronic signature capture, audit trail review, and secure data export in CSV, PDF, or XML formats.

Software & Data Management

Native connectivity options include RS232, USB device/host, and Ethernet (with optional Wi-Fi or Bluetooth modules), enabling seamless integration into LIMS, MES, or ERP systems. The balance supports direct printing to ESC/POS-compatible thermal or dot-matrix printers, as well as real-time data streaming to PCs via METTLER TOLEDO’s free EasyDirect™ PC software. For enterprise-scale deployment, LabX® provides centralized instrument management, automated report generation, statistical process control (SPC) charting, and deviation alerting—all hosted on-premise or via validated cloud infrastructure. All data transfers comply with TLS 1.2 encryption standards, and local storage retains ≥10,000 weighing records with full metadata (operator, date/time, method ID, environmental readings if external sensors are connected).

Applications

• Pharmaceutical QC labs: content uniformity testing, excipient dispensing, and reference standard weighing per USP and EP 2.1.6.
• Food & beverage production: batch ingredient dosing, net weight verification, and HACCP-critical control point monitoring.
• Chemical manufacturing: catalyst loading, reagent preparation, and stability-indicating assay support.
• Academic research facilities: teaching labs requiring durable, GxP-aware instrumentation for undergraduate and graduate coursework.
• Contract manufacturing organizations (CMOs): auditable weighing documentation for client-facing batch records and regulatory submissions.

FAQ

What is the recommended calibration frequency for the MX603N in a GMP environment?
Calibration interval must be risk-assessed per ICH Q9 principles; typical practice involves daily performance verification using certified weights, with full external calibration conducted weekly or per batch cycle—automated reminders are configurable via the built-in scheduler.
Can the MX603N be integrated with SAP or Oracle EBS?
Yes—via Ethernet-connected LabX® middleware or custom API integration using METTLER TOLEDO’s open communication protocols (MT-SICS, ASCII, or JSON over TCP/IP).
Does the MX603N support dynamic weighing or animal weighing modes?
No—it is optimized for static mass measurement only; dynamic or motion-tolerant functions require dedicated models such as the ME-T or XS series.
Is the internal memory data exportable without LabX?
Yes—using EasyDirect™ PC software or direct USB flash drive export in .csv format; however, audit trail integrity and electronic signature enforcement require LabX® licensing.
What environmental conditions invalidate the IP54 rating?
IP54 protection applies only to solid particle ingress and vertically directed water splashes; immersion, high-pressure cleaning, or exposure to corrosive vapors voids the rating and may damage internal components.
