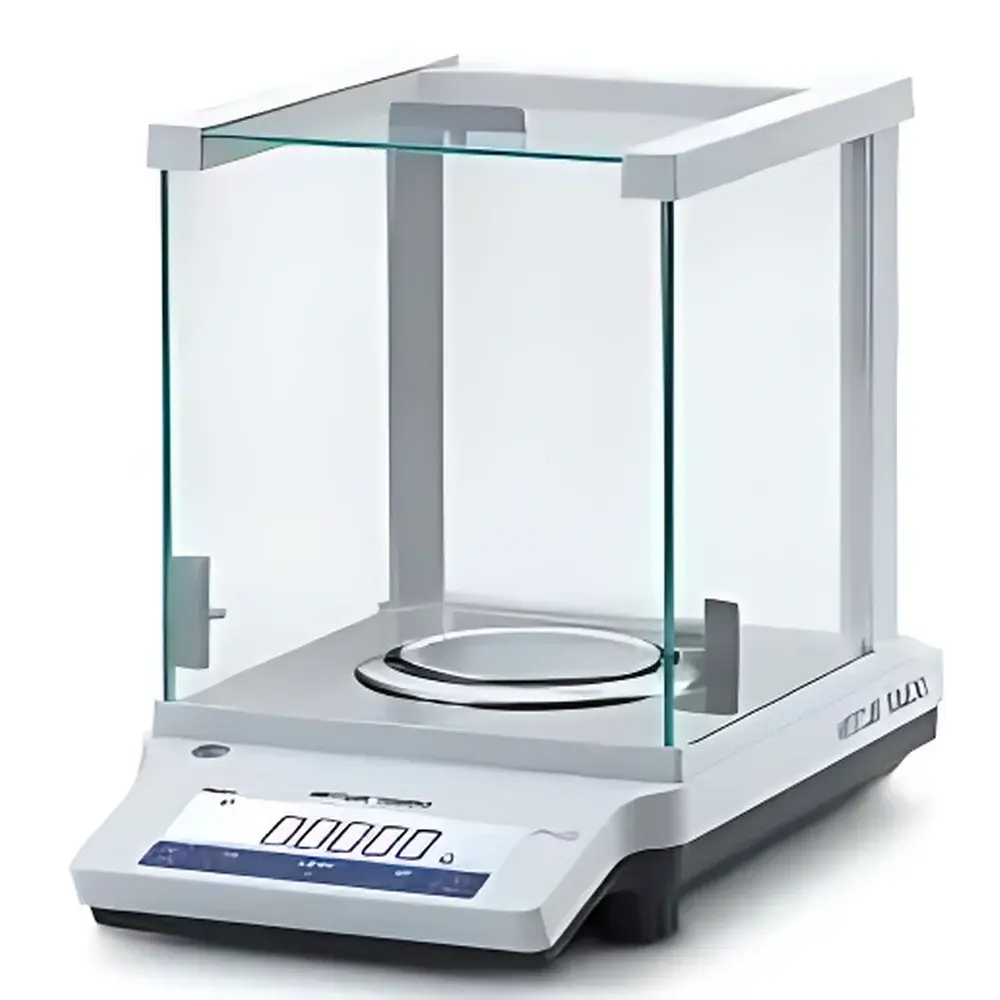

METTLER TOLEDO ME Series Precision Electronic Balances

Overview

The METTLER TOLEDO ME Series Precision Electronic Balances are entry-level analytical and precision balances engineered for reliability, traceability, and operational efficiency in regulated laboratory environments. Based on electromagnetic force compensation (EMFC) measurement principle, these balances deliver high-resolution mass determination with exceptional stability and minimal drift over time. Designed and manufactured in Switzerland, the ME Series features a robust metal frame and reinforced housing that provides mechanical overload protection up to 150% of maximum capacity — a critical safeguard against accidental overloading during routine QC, formulation, or teaching lab workflows. All models meet fundamental metrological requirements defined in OIML R76 and EU Directive 2014/31/EU for non-automatic weighing instruments. The balance architecture supports full compliance with ISO/IEC 17025 accreditation criteria, particularly regarding documented calibration, uncertainty evaluation, and environmental monitoring integration.

Key Features

• Electromagnetic force compensation (EMFC) sensor technology ensures high reproducibility and long-term stability without mechanical wear.
• Auto-internal calibration (IC) function with temperature-triggered recalibration maintains accuracy across ambient fluctuations (±1 °C trigger threshold).
• Large backlit LCD display with ultra-high-contrast digits (up to 20 mm height) enables clear readability under low-light or gloved-hand conditions.
• Five tactile, membrane-style function keys provide intuitive navigation — no touchscreen required — minimizing contamination risk and ensuring durability in humid or dusty labs.
• Rounded edges and smooth, seamless surfaces facilitate rapid cleaning and decontamination per ISO 14644 cleanroom protocols.
• Low-power design reduces energy consumption by up to 50% compared to previous-generation NewClassic platforms, supporting sustainability objectives without compromising performance.
• Fast stabilization times (typically ≤1.5 s for models with 0.1 mg readability) accelerate throughput in high-volume sample preparation workflows.

Sample Compatibility & Compliance

The ME Series accommodates diverse sample types — from powders and granules to small vials, crucibles, and filter papers — across capacities ranging from 52 g to 4200 g. Pan dimensions (90 mm diameter up to 180 × 180 mm) support standard labware including weighing boats, desiccators, and magnetic stir bars. All units ship with factory-installed firmware compliant with Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) documentation standards. Built-in time/date stamping, user ID logging, and audit-trail-capable data export (via RS232 or optional USB interface) satisfy FDA 21 CFR Part 11 requirements when paired with METTLER TOLEDO LabX Lite software. Calibration records include full metadata: date/time, operator ID, standard mass used, deviation values, and pass/fail status — fully traceable to national metrology institutes (e.g., NIST, PTB).

Software & Data Management

While standalone operation requires no PC, the ME Series is compatible with METTLER TOLEDO’s LabX Lite — a free, lightweight data management tool enabling automated report generation, electronic signature capture, and structured export to CSV, PDF, or LIMS-compatible formats. All balance events — weighing, calibration, adjustment, and error logs — are timestamped and stored internally (up to 1,000 entries). Optional Ethernet or Wi-Fi modules (via third-party adapters) allow centralized monitoring via LabX network edition. Raw data output conforms to ASTM E1782 (Standard Guide for Mass Determination) and supports uncertainty calculation per GUM (JCGM 100:2008) when combined with certified reference weights and environmental logs.

Applications

• Quality control testing in pharmaceutical, food, and chemical manufacturing (e.g., raw material verification, batch release checks).
• Academic teaching laboratories requiring robust, intuitive instruments for introductory analytical chemistry courses.
• Environmental testing labs performing soil moisture analysis, filter weighing, or particulate matter quantification (PM₁₀/PM_2.5).
• Research settings involving formulation development, catalyst dosing, or reagent preparation where repeatability ≤0.001% RSD is required.
• Regulated calibration labs performing intermediate checks between accredited external calibrations.

FAQ

Does the ME Series support ISO/IEC 17025-compliant calibration documentation?
Yes — all models generate GLP-compliant calibration reports with traceable metadata, including environmental conditions, reference standard IDs, and uncertainty budgets when used with certified weights.
Can I connect the ME balance to a LIMS or ERP system?
Direct integration is supported via RS232 serial output; ASCII-formatted data can be parsed by most LIMS platforms. For advanced automation, LabX Lite provides configurable export templates and scheduled data transfers.
Is internal calibration fully automatic or user-initiated?
Both modes are available: temperature-triggered auto-calibration (default) and manual initiation via front-panel key sequence.
What is the typical warm-up time before first use?
Recommended stabilization period is 30 minutes at constant ambient temperature (20 ±2 °C); however, the balance achieves functional readiness within 5 minutes for non-critical tasks.
Are replacement parts and service support available globally?
Yes — METTLER TOLEDO maintains an international service network with certified technicians and genuine spare parts (e.g., draft shields, pan assemblies, leveling feet) available through authorized distributors.
