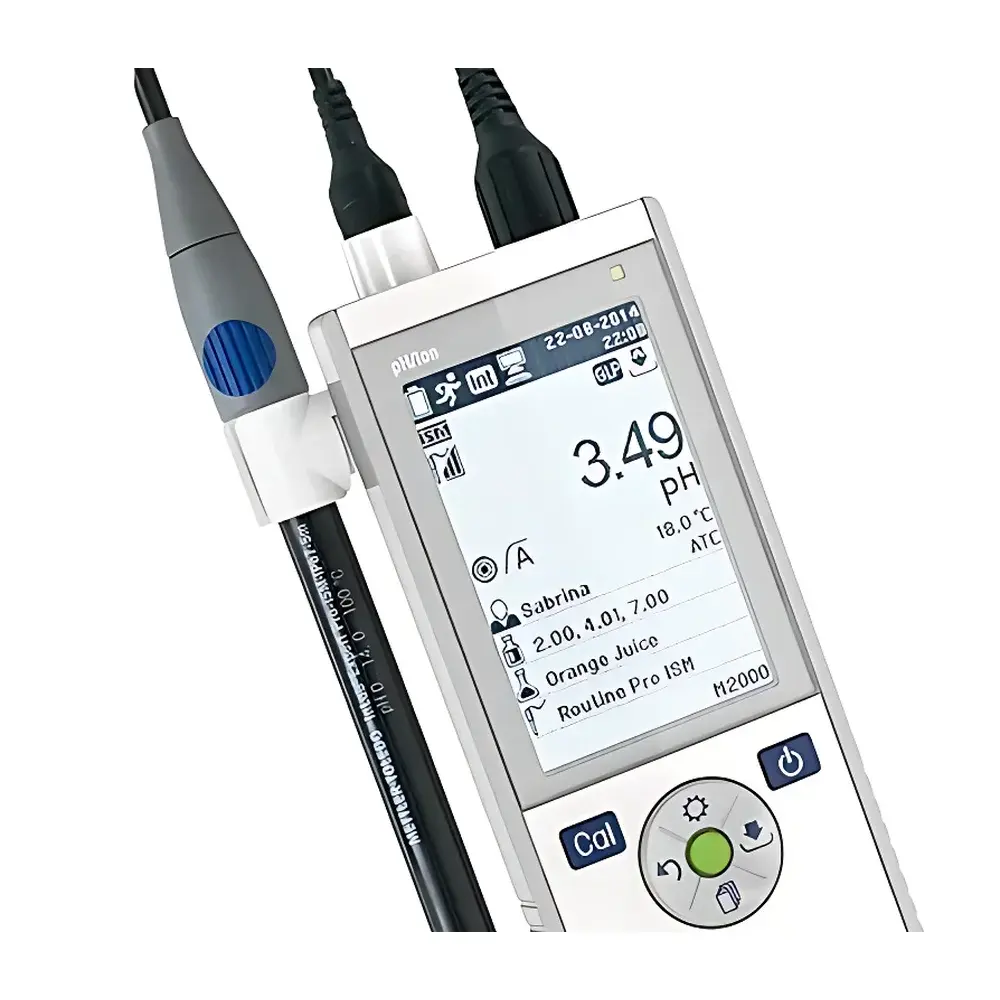

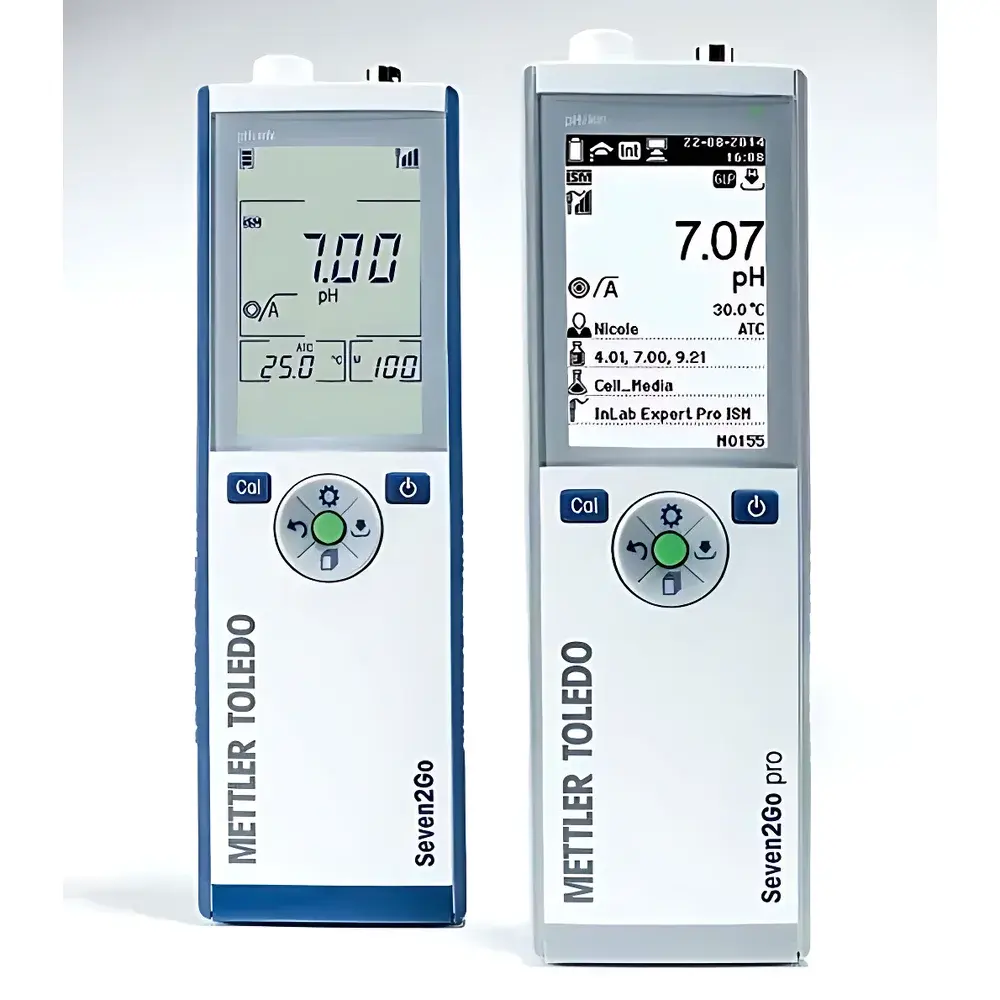

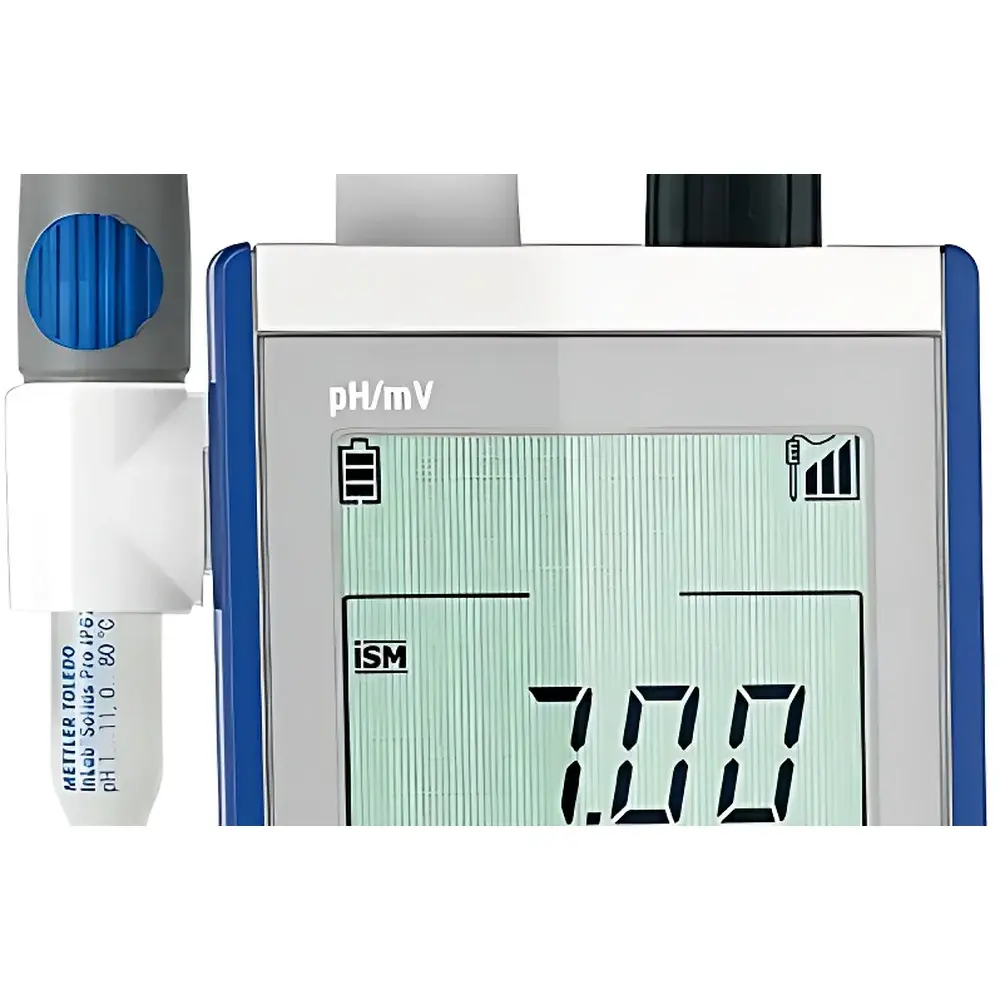

METTLER TOLEDO Seven2Go Pro S8 Portable pH/mV/Ion Meter

Overview

The METTLER TOLEDO Seven2Go Pro S8 is a professional-grade portable pH/mV/ion meter engineered for high-reliability electrochemical measurements across diverse operational environments — from controlled laboratory settings and quality control stations to outdoor field sampling and industrial process monitoring. Based on potentiometric measurement principles, the instrument determines hydrogen ion activity via a glass pH electrode coupled with a reference system, delivering traceable, thermally compensated readings in accordance with ISO 3696, ASTM E70, and USP . Its compact, ergonomic housing integrates precision analog signal conditioning, digital temperature compensation (via integrated or external Pt1000 sensor), and real-time electrode diagnostics — all designed to ensure metrological integrity under variable ambient conditions.

Key Features

• IP67-rated enclosure: Fully dust-tight and submersible up to 1 m for 30 minutes; validated for drop resistance per MIL-STD-810G (1.2 m onto concrete), enabling robust deployment in harsh field or production-floor environments.
• ISM (Intelligent Sensor Management): Automatic recognition of InLab ISM™ electrodes upon connection; stores electrode ID, serial number, calibration history, and lifetime tracking data directly on the sensor chip — eliminating manual entry errors and supporting GLP-compliant audit trails.
• T-Pad tactile navigation interface: Optimized key layout with pressure-sensitive capacitive touchpad enables intuitive, single-hand operation — critical for glove-compatible use and rapid parameter switching during multi-sample workflows.

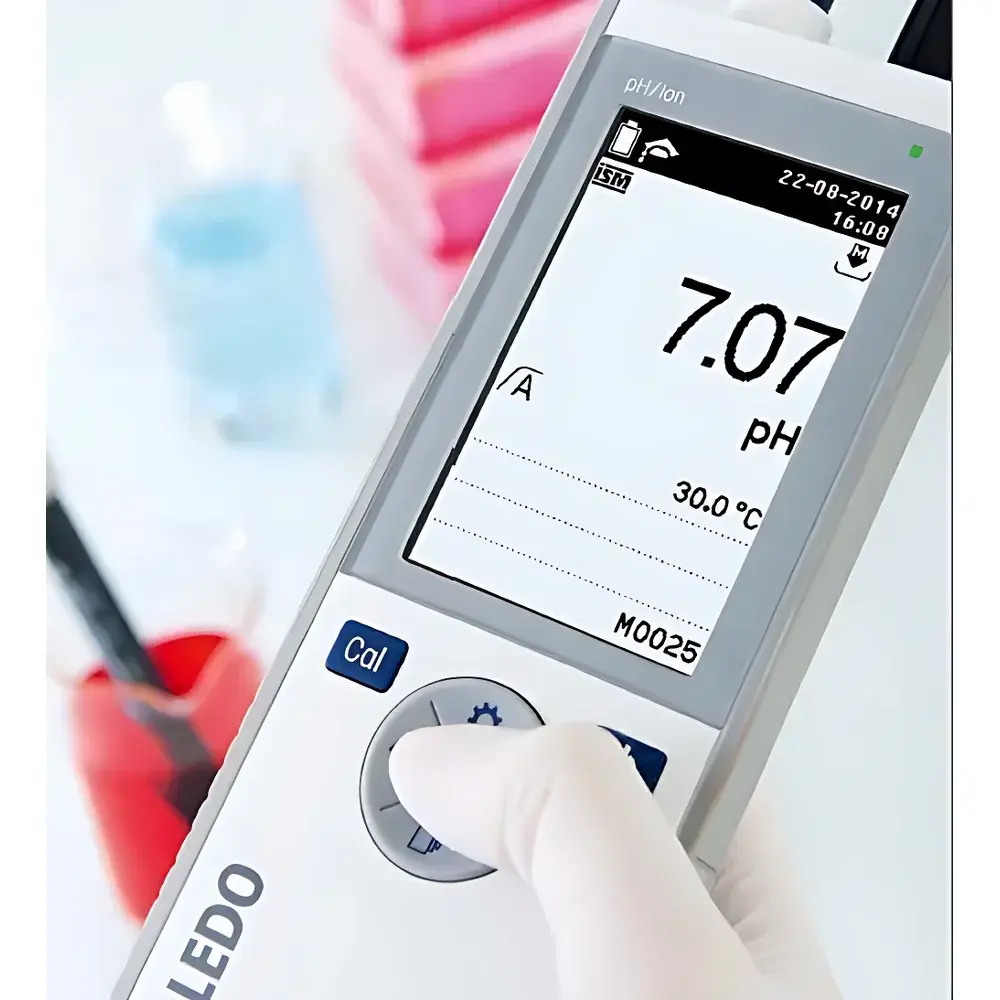

• Sunlight-enhanced display: High-contrast monochrome LCD with adaptive brightness control maintains legibility under direct solar irradiance (>100,000 lux), reducing operator eye strain during extended outdoor use.
• StatusLight visual feedback system: Three-color LED ring (green/yellow/red) provides at-a-glance confirmation of measurement readiness, calibration status, and electrode health — aligning with human factors engineering best practices for error prevention.
• IP67-certified USB interface: Enables secure, weather-resistant data export without requiring protective caps or adapters; compatible with standard Windows/macOS platforms and METTLER TOLEDO LabX® Lite software for structured reporting.

Sample Compatibility & Compliance

The Seven2Go Pro S8 supports aqueous and low-ionic-strength samples typical of environmental water testing (e.g., surface water, wastewater effluent), pharmaceutical buffer verification, food & beverage quality checks, and academic research protocols. It complies with international regulatory frameworks including FDA 21 CFR Part 11 (when used with LabX Lite and appropriate access controls), ISO/IEC 17025 documentation requirements, and EU Directive 2014/30/EU (EMC). All factory calibrations are traceable to NIST SRMs, and the instrument meets IEC 61000-4 electromagnetic immunity standards for industrial environments.

Software & Data Management

Data logging is performed internally with timestamped storage of up to 500 measurement records, including pH, mV, temperature, electrode slope, offset, and calibration points. Export is supported via USB mass-storage mode or direct integration with METTLER TOLEDO LabX Lite — a free PC application that facilitates CSV/Excel export, customizable report templates, electronic signature capture, and basic statistical analysis (mean, SD, RSD). Audit trail functionality records user actions, calibration events, and configuration changes in chronological order, satisfying GLP/GMP documentation expectations.

Applications

• Environmental monitoring: Field-based pH profiling of rivers, lakes, and groundwater per EPA Method 150.1 and ISO 10523.
• Pharmaceutical QC: Verification of buffer solutions and cleaning validation rinse water in accordance with USP and Annex 15.
• Food & beverage: Routine acidity checks in dairy, brewing, and juice processing lines.
• Academic teaching labs: Student-friendly interface with multilingual prompts reduces training overhead while maintaining analytical rigor.
• Industrial hygiene: On-site assessment of rinse water pH in semiconductor wet benches and electroplating facilities.

FAQ

Does the Seven2Go Pro S8 support automatic temperature compensation (ATC)?

Yes — it accepts input from integrated or external Pt1000 temperature sensors and applies Nernstian correction in real time across the full operating range (0–100 °C).
Can the instrument store multiple calibration curves?

It retains up to five user-defined calibration sets, each with up to three-point calibration (including custom buffer values), accessible via password-protected configuration.
Is the device compliant with FDA 21 CFR Part 11 for electronic records?

When paired with LabX Lite and configured with role-based user accounts, electronic signatures, and audit trail activation, it meets foundational Part 11 requirements for non-critical GxP data.
What types of electrodes are compatible besides ISM models?

Standard BNC-connectable pH, ORP, and ion-selective electrodes (e.g., Na⁺, F⁻, NH₄⁺) may be used, though ISM functionality and auto-recognition are exclusive to InLab ISM™ series.
How long does the battery last on a full charge?

With typical usage (10 measurements/hour), the rechargeable Li-ion battery provides ≥1,000 hours of standby time or ≥200 hours of continuous operation.
