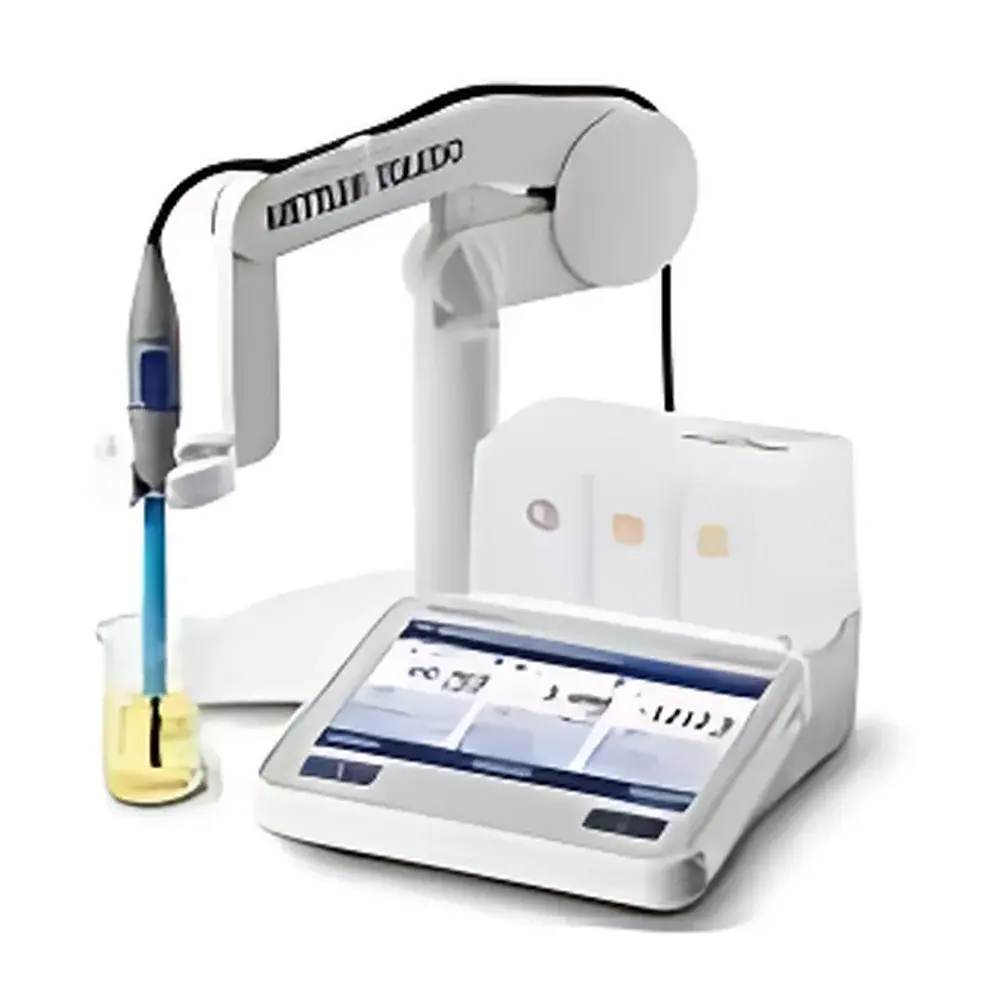

METTLER TOLEDO SevenExcellence pH and Multi-Parameter Benchtop Meter

Overview

The METTLER TOLEDO SevenExcellence™ is a modular, high-precision benchtop meter engineered for rigorous electrochemical analysis in regulated laboratory environments. Built upon a dual-channel or triple-channel architecture, it supports simultaneous, independent measurements across multiple electrochemical parameters—including pH, redox potential (mV), ion activity (via ISE), conductivity, resistivity, total dissolved solids (TDS), salinity, and dissolved oxygen (DO) using either polarographic (S600) or optical (S900) sensor technologies. Its core measurement principle relies on high-stability analog-to-digital conversion with temperature-compensated electrode signal processing, ensuring traceable accuracy per ISO/IEC 17025 and ASTM E70, D1125, and D512 standards. Designed and manufactured in Switzerland, the instrument integrates metrological integrity with modular flexibility—enabling labs to configure a single platform for QC release testing, R&D method development, or multi-analyte environmental monitoring without hardware duplication.

Key Features

• Modular three-channel architecture supporting up to four interchangeable measurement modules (S400 pH/mV, S500 pH/Ion, S700 Conductivity, S600/S900 DO) for concurrent parameter acquisition
• uPlace™ motorized electrode positioning system enabling precise vertical alignment and reproducible immersion depth—critical for GLP-compliant electrode calibration and sample measurement
• One-click method execution and automated sample series management, reducing operator-dependent variability and enhancing inter-day repeatability
• Intelligent Sensor Management (ISM®) technology with digital sensor recognition, automatic calibration history logging, and predictive maintenance alerts based on electrode usage and performance drift
• Four-tier user access control (Administrator, Supervisor, Operator, Guest) with role-based permissions, audit trail activation, and password-protected method editing—fully aligned with ALCOA+ data integrity principles
• Integrated real-time temperature compensation across all modules, with Pt1000 or NTC thermistor compatibility and certified traceability to NIST-traceable reference standards

Sample Compatibility & Compliance

The SevenExcellence accommodates aqueous, non-aqueous, and viscous samples via standardized BNC, DIN, and mini-DIN connectors compatible with METTLER TOLEDO’s full portfolio of InLab® and DL series electrodes—including refillable, gel-filled, and solid-state pH sensors; conductivity cells with cell constants from 0.01 to 10 cm⁻¹; and optical DO probes with integrated pressure and temperature compensation. All measurement data comply with regulatory requirements for analytical instrument qualification (AIQ), including IQ/OQ/PQ documentation support. The system meets ISO 9001, ISO/IEC 17025, USP , , and , and supports full 21 CFR Part 11 compliance when paired with LabX software—including electronic signatures, audit trail review, and secure data archiving with immutable timestamps.

Software & Data Management

LabX™ PC-based software serves as the central data governance layer, enabling method deployment, instrument remote control, automated report generation (PDF, CSV, Excel), and full electronic record retention. LabX enforces data integrity through mandatory electronic signatures for critical actions (e.g., calibration, result approval), time-stamped audit trails with user attribution, and configurable retention policies aligned with FDA and EMA expectations. Raw sensor signals, intermediate calculations (e.g., linearized conductivity, Henry’s law-corrected DO), and metadata (electrode ID, calibration date, ambient pressure) are stored in a relational database with SHA-256 hashing for tamper detection. Integration with LIMS and ERP systems is supported via ODBC and RESTful API protocols.

Applications

• Pharmaceutical QC: pH and conductivity testing of purified water (PW), water for injection (WFI), and buffer solutions per USP and EP 2.2.38
• Food & Beverage: Titration endpoint verification, shelf-life stability monitoring via pH drift, and salt content validation using direct ISE measurement
• Environmental Labs: Multi-parameter profiling of surface water, wastewater effluents, and soil leachates—including DO saturation, salinity correction, and redox potential mapping
• Academic Research: Kinetic studies requiring synchronized pH/conductivity/DO tracking during enzymatic reactions or electrochemical synthesis
• Chemical Manufacturing: Batch release testing of catalyst slurries, acid/base titrants, and electrolyte formulations under GMP conditions

FAQ

Does the SevenExcellence support automatic calibration verification?
Yes—ISM-enabled electrodes store calibration history and performance metrics onboard. The instrument performs automatic calibration verification before each measurement series and flags deviations exceeding user-defined thresholds.
Can third-party electrodes be used with the S400 or S500 modules?
Only METTLER TOLEDO ISM-certified electrodes are fully supported for automated recognition, calibration data transfer, and predictive diagnostics. Non-ISM electrodes operate in manual mode with limited functionality.
Is pressure compensation available for dissolved oxygen measurements?
Both S600 (polarographic) and S900 (optical) DO modules include integrated barometric pressure sensors (500–1100 mbar) and apply real-time compensation per ISO 5814 and ASTM D888.
How is data integrity ensured during power interruption?
All active measurements are buffered in non-volatile memory. Upon recovery, LabX resumes interrupted workflows and logs the event in the audit trail with timestamp and context.
What validation documentation is provided for GxP environments?
METTLER TOLEDO supplies IQ/OQ protocols, risk assessments, and 21 CFR Part 11 implementation guides. Full PQ support is available through certified service partners.
