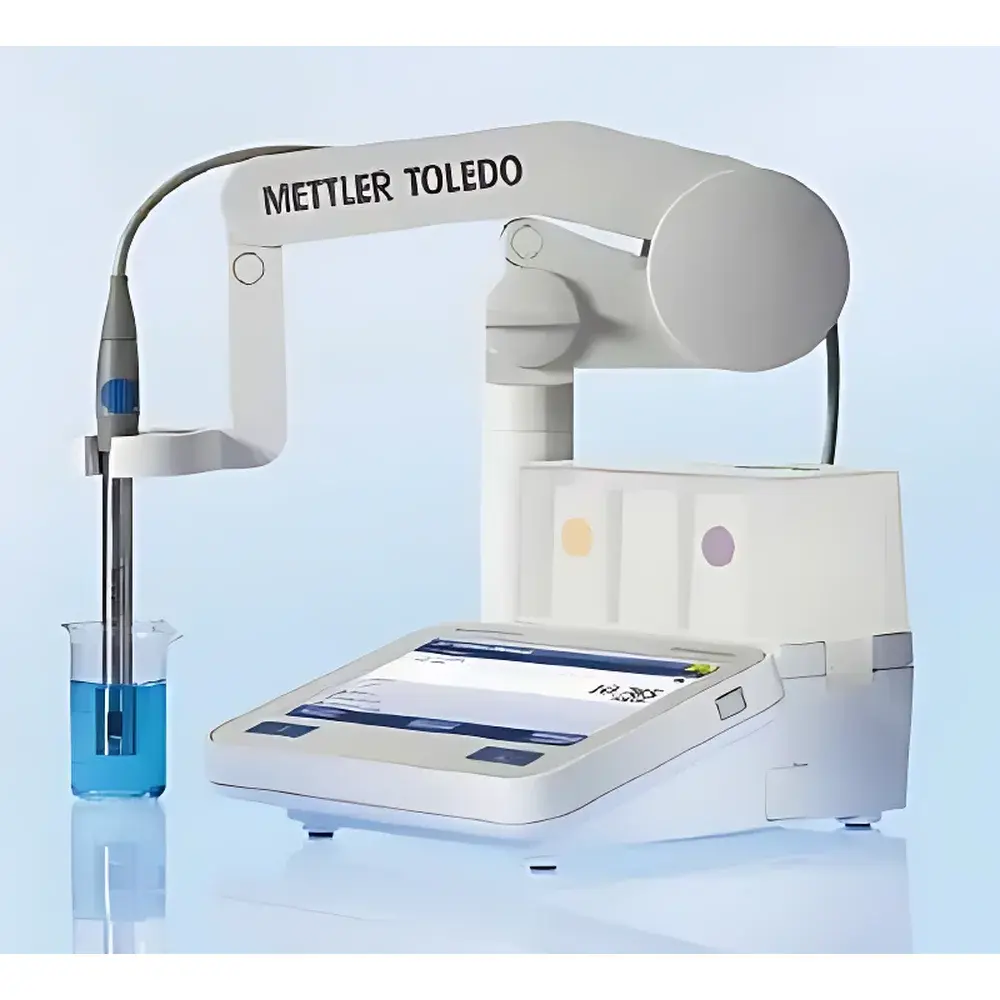

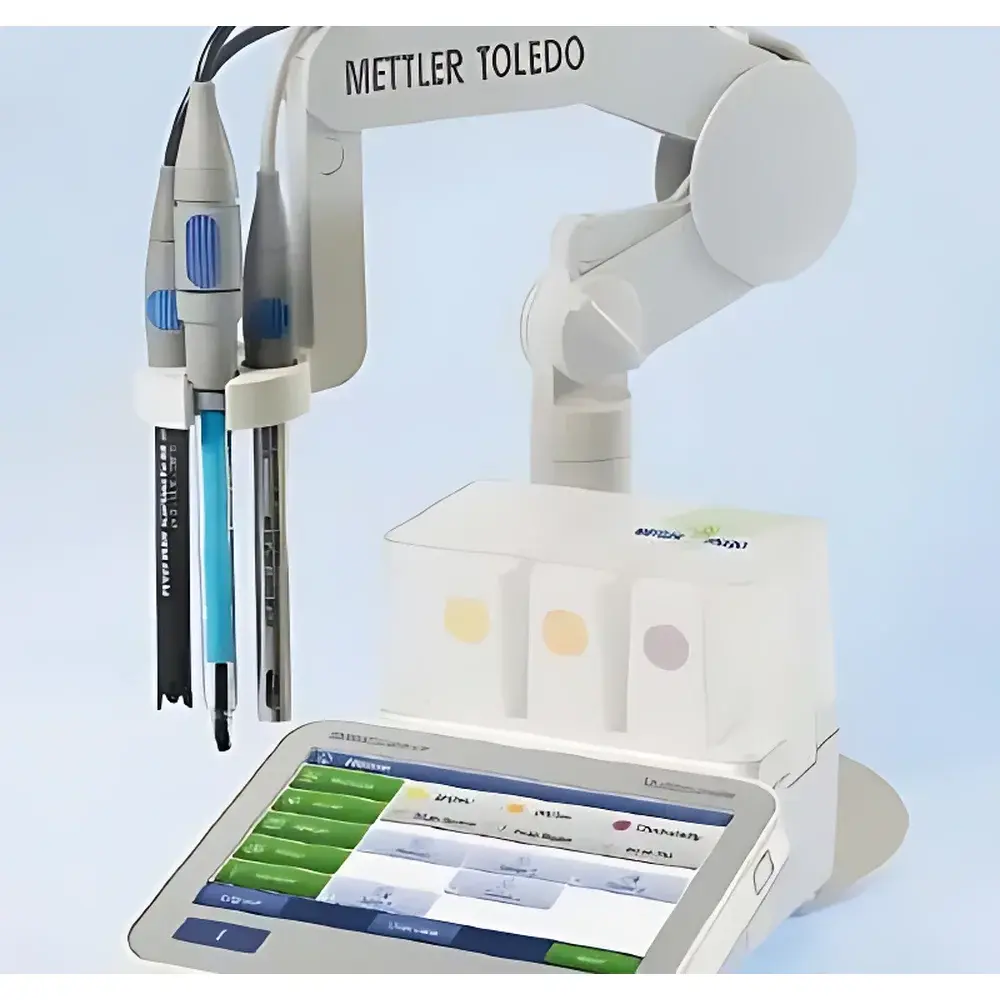

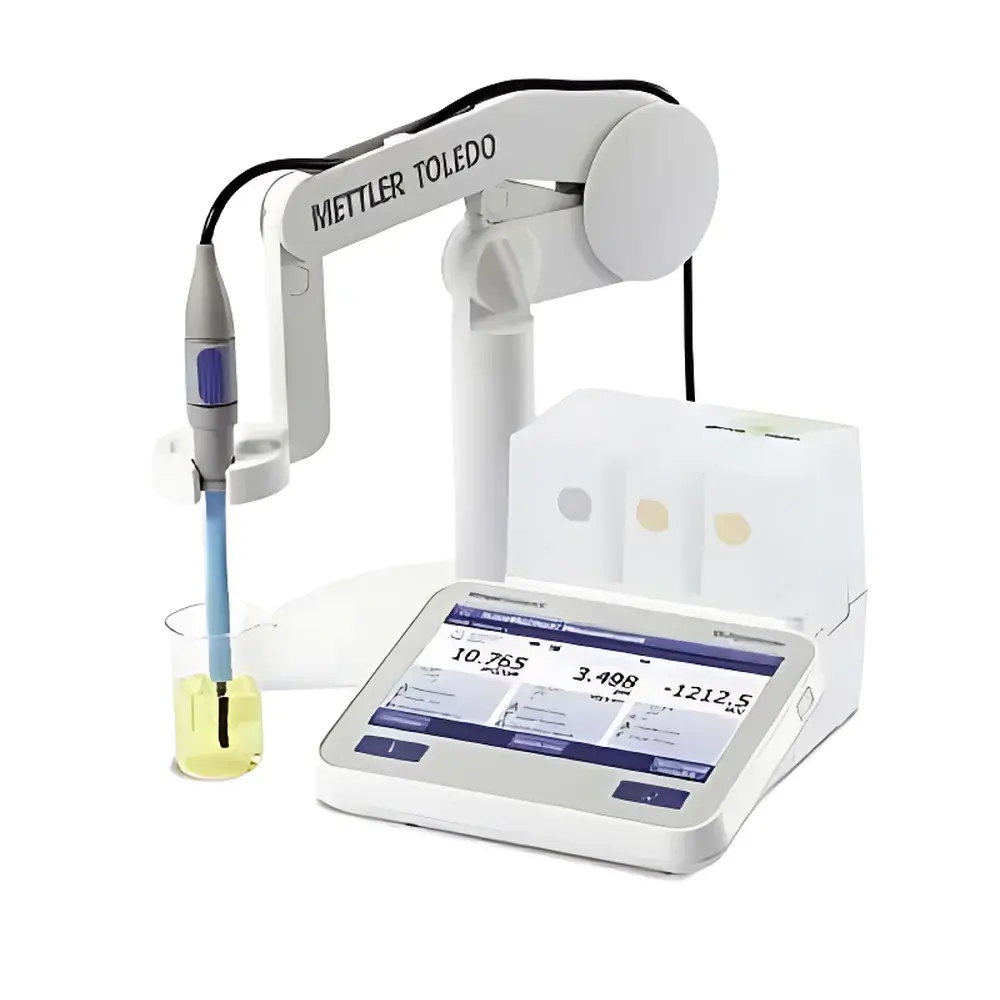

METTLER TOLEDO SevenExcellence S700 Conductivity, pH, and ORP Benchtop Meter
| Brand | METTLER TOLEDO |
|---|---|
| Origin | Switzerland |
| Model Series | S230 / S400 / S500 / S700 |
| Conductivity Range | 0.001 µS/cm to 2000 mS/cm |
| Conductivity Accuracy | ±0.5% of reading |
| Temperature Range | −30.0 to 130.0 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.1 °C |
| Resistivity Range | 0.01 to 100.0 MΩ·cm |
| TDS Range | 0.001 mg/L to 1000 g/L |
| Salinity Range | 0.00 to 80.00 PSU or ppt |
| Display | 7-inch capacitive color touchscreen |
| Connectivity | USB, RS232, Ethernet |
| Compliance | GLP, GMP, FDA 21 CFR Part 11 (with optional software configuration) |
| Calibration Support | Manual and automated (with Rondolino autosampler) |
Overview
The METTLER TOLEDO SevenExcellence S700 is a modular, regulatory-compliant benchtop meter engineered for high-precision electrochemical measurements in quality control, pharmaceutical development, environmental testing, and academic research laboratories. It operates on potentiometric and conductometric principles—measuring hydrogen ion activity (pH), redox potential (ORP), and ionic conductivity across aqueous and non-aqueous media. Its architecture integrates advanced analog signal conditioning, temperature-compensated electrode response modeling, and real-time impedance monitoring via ISM® (Intelligent Sensor Management) technology. Designed to meet the operational rigor of ISO/IEC 17025-accredited labs and cGMP environments, the S700 delivers traceable, auditable measurement workflows without compromising analytical flexibility.
Key Features

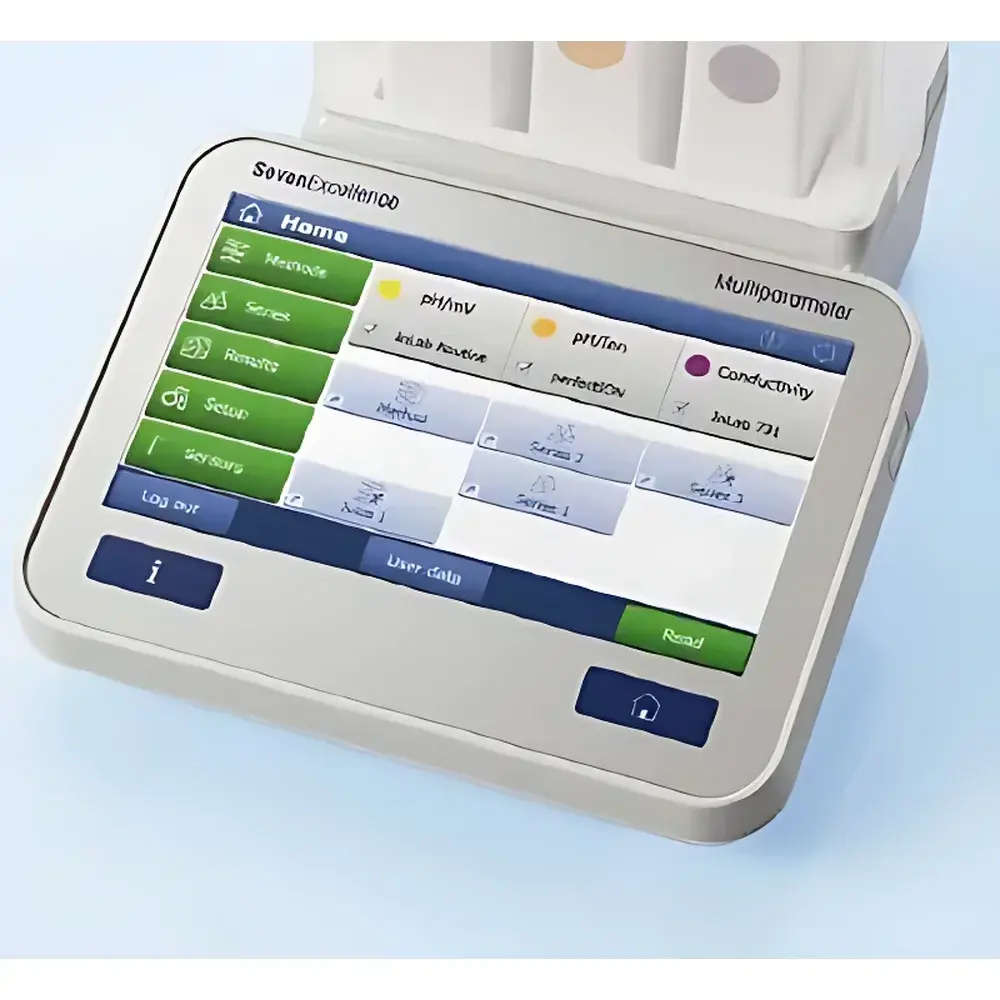

- 7-inch full-color capacitive touchscreen with intuitive, multi-language interface (English, German, French, Spanish, Chinese, Japanese, Korean, Portuguese, Italian, Russian)

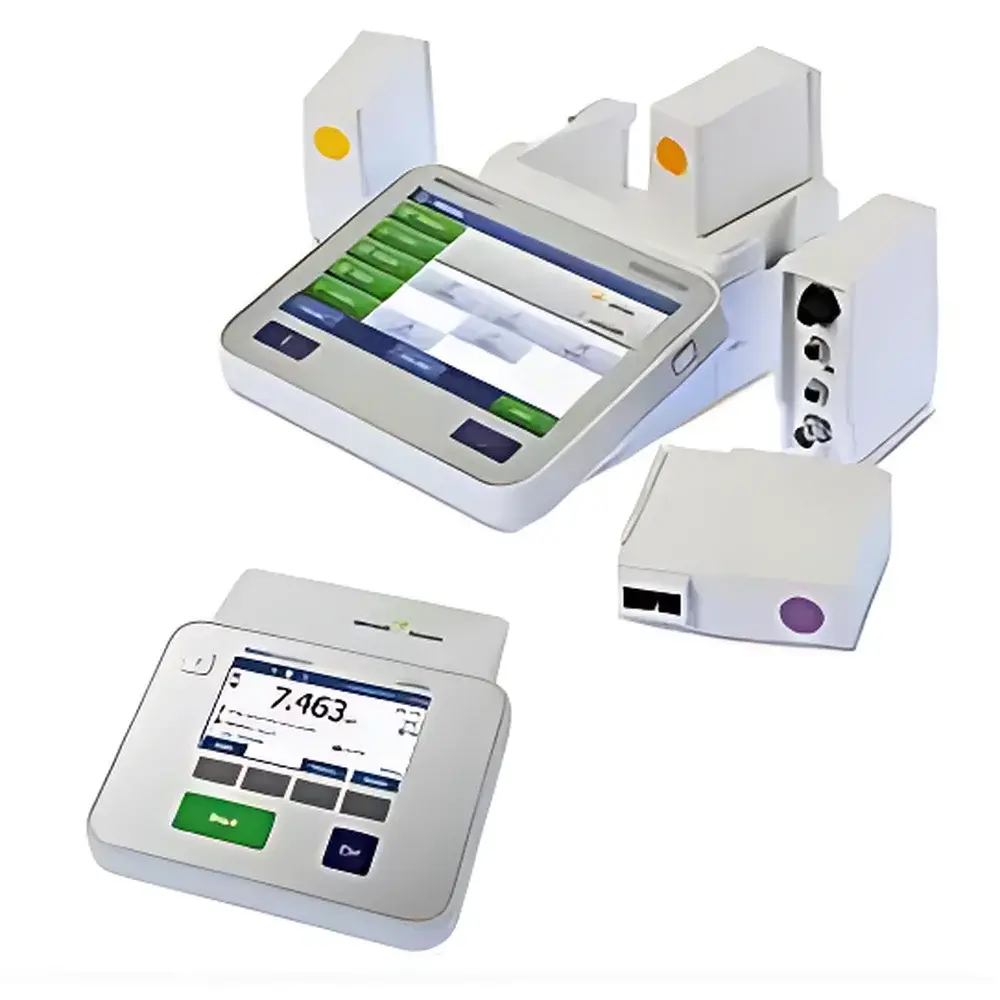

- Modular platform supporting single- or multi-parameter expansion—pH/mV, conductivity, ion concentration, dissolved oxygen, and turbidity via interchangeable modules
- ISM®-enabled electrode recognition, automatic calibration history logging, and predictive maintenance alerts based on sensor diagnostics
- Comprehensive user management with role-based access control (RBAC), electronic signatures, and audit trail generation compliant with FDA 21 CFR Part 11 requirements
- Integrated method editor enabling SOP-driven measurement sequences—including automatic calibration, sample identification, and pass/fail criteria evaluation
- Native connectivity via USB host/device, RS232 serial, and Ethernet—supporting direct integration with LIMS, ELN, and MES systems
- Factory-provided IQ/OQ/PQ documentation packages and GxP-ready validation support services
Sample Compatibility & Compliance
The S700 accommodates standard glass pH electrodes, Pt1000 or NTC temperature probes, and bipoint or four-electrode conductivity cells—including those certified to ASTM D1125, ISO 7888, and USP . It supports measurements in low-conductivity ultrapure water (e.g., pharmaceutical WFI), high-salinity seawater, viscous buffers, and aggressive industrial process streams. All firmware and data handling protocols conform to GLP, GMP, and ISO 9001 requirements. When configured with SevenMulti™ software and validated peripherals, the system satisfies ALCOA+ data integrity principles and enables full traceability from raw signal acquisition to final report export.
Software & Data Management
Data security and workflow continuity are enforced through embedded database encryption, time-stamped audit trails, and configurable retention policies. Measurement records include metadata such as operator ID, electrode serial number, calibration status, ambient conditions, and environmental sensor inputs. Export formats include CSV, PDF, XML, and proprietary .mtd files compatible with METTLER TOLEDO LabX® software for centralized data aggregation, statistical process control (SPC), and trend analysis. Optional electronic signature modules enable 21 CFR Part 11 compliance for regulated submissions.
Applications
- Pharmaceutical QC: pH and conductivity verification of purified water (PW), water for injection (WFI), and buffer solutions per USP and
- Biotechnology: Monitoring fermentation broth pH and conductivity during upstream processing
- Environmental labs: Field-deployable calibration verification and regulatory reporting for wastewater discharge compliance (EPA Method 120.1, ISO 17294)
- Food & beverage: Salt content (TDS/salinity) quantification in sauces, brines, and dairy products
- Academic research: Kinetic studies involving proton transfer or ionic strength-dependent reaction rates
- Chemical manufacturing: In-process control of neutralization reactions and electrolyte concentration stability
FAQ
Does the S700 support automated calibration with robotic samplers?
Yes—the S700 is fully compatible with METTLER TOLEDO’s Rondolino autosampler for unattended multi-point pH and conductivity calibration, including temperature equilibration and rinse cycles.
Can I upgrade an S230 or S400 to S700 functionality?
No—hardware architecture differs across the Seven series. The S700 features a dedicated conductivity module, expanded memory, and enhanced processing capability not retrofittable to earlier models.
Is ISM® functionality available with third-party electrodes?
ISM® requires digital communication via METTLER TOLEDO’s proprietary electrode interface; only ISM-enabled METTLER TOLEDO electrodes provide full diagnostic and calibration history synchronization.
What validation documentation is included out-of-the-box?
Each unit ships with factory-issued IQ/OQ protocols, a certificate of conformance, and electronic copies of test reports aligned with ISO/IEC 17025 and ASTM E2500 standards.
How does the S700 ensure measurement traceability under GLP?
Through mandatory electronic signatures, immutable audit trails, timestamped calibration logs, and configurable data archiving—enabling full reconstruction of any measurement event per OECD GLP Principles Section 5.2.12.
