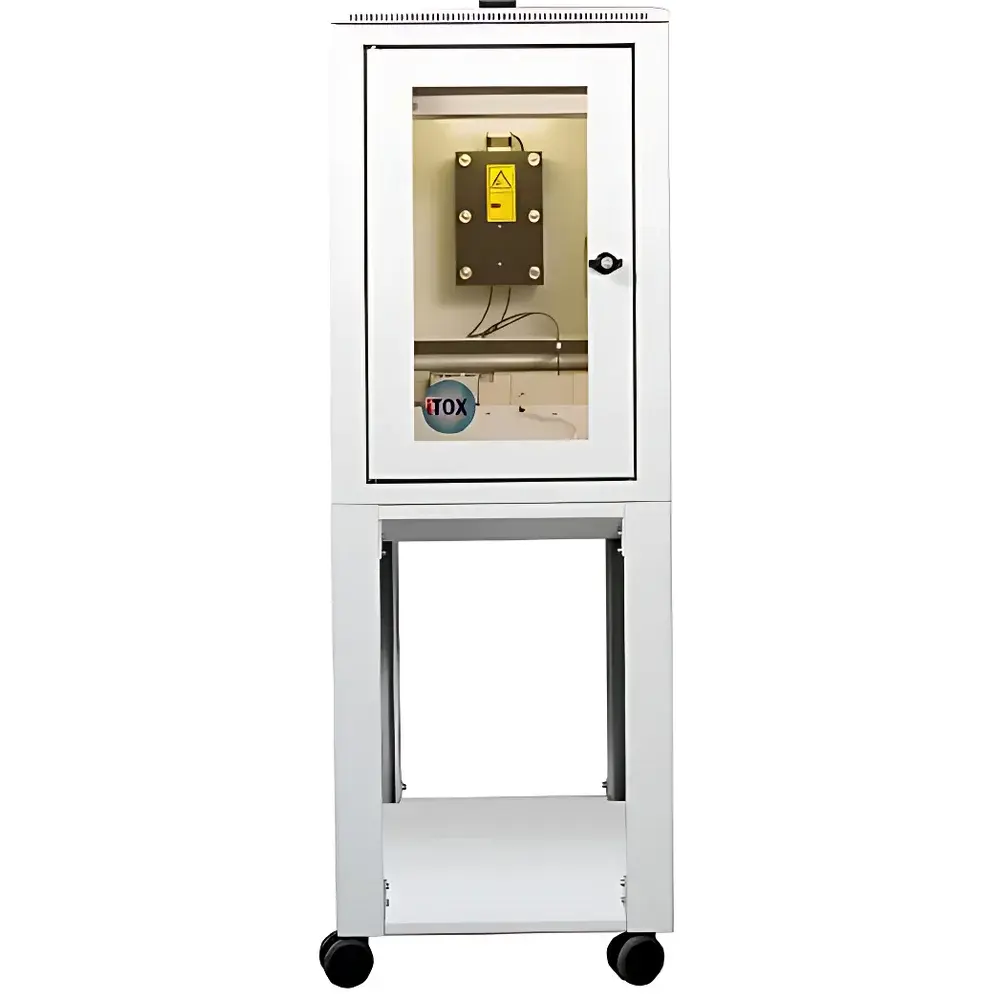

microLAN iTOXcontrol Online Integrated Biotoxicity Analyzer

Overview

The microLAN iTOXcontrol Online Integrated Biotoxicity Analyzer is a fully automated, real-time biological toxicity monitoring system engineered for continuous, unattended assessment of acute aquatic toxicity in drinking water sources, wastewater effluents, and industrial process streams. It employs the standardized bioluminescent bacterium Vibrio fischeri (formerly Photobacterium phosphoreum) as a living biosensor—leveraging the well-established Microtox® principle where inhibition of bacterial light emission correlates quantitatively with toxicant concentration. Unlike endpoint chemical assays, the iTOXcontrol delivers dynamic, physiologically relevant toxicity data reflecting synergistic, antagonistic, or unknown compound interactions—critical for early-warning applications in source water protection and regulatory compliance monitoring.

Key Features

• Fully integrated, temperature-controlled V. fischeri culture module enabling autonomous bacterial maintenance, viability assurance, and daily calibration without manual intervention.
• Compact footprint (50 × 50 × 183 cm D × W × H) suitable for installation in utility rooms, pump stations, or mobile monitoring trailers.
• Real-time dual-channel measurement: simultaneous analysis of sample water and chlorine-free reference water, with optional automatic dechlorination unit (electrochemical or activated carbon-based) to ensure assay integrity.
• Standard analog output (4–20 mA) and TCP/IP Ethernet interface for seamless integration into SCADA, DCS, or centralized environmental data management platforms.
• Expandable architecture supporting optional RS-232, MODBUS RTU over extended COM ports, or 56K USB modem for remote diagnostics and alarm notification via SMS/email.
• IP31-rated instrument cabinet with internal thermal regulation—operational at ambient temperatures from 15–30 °C; extended range (30–40 °C) achievable with external air conditioning.

Sample Compatibility & Compliance

The iTOXcontrol accepts raw or pre-filtered water samples within a temperature range of 15–30 °C. Sample consumption is optimized at ~10 mL/h (4.5 mL per test, two tests per hour), minimizing reagent and consumables use. Reference water demand is ~100 mL/h (chlorine-free, optionally metered via solenoid valve). The system complies with ISO 11348-3 (water quality — determination of the inhibitory effect of water samples on the light emission of Vibrio fischeri) and supports GLP-aligned operation through audit-trail-capable TOXview software. Optional Solid-Phase Extraction (SPE) module enables pre-concentration up to 1,000×—enhancing detection sensitivity for trace-level contaminants such as pesticides, pharmaceuticals, or endocrine disruptors.

Software & Data Management

TOXview software provides full lifecycle data handling: acquisition, normalization, dose-response curve fitting (EC50 calculation), trend visualization, and automated alerting based on user-defined toxicity thresholds (e.g., % inhibition > 20% over baseline). All raw luminescence readings, system diagnostics, calibration logs, and maintenance events are timestamped and stored locally with export capability to CSV, XML, or SQL databases. The software supports 21 CFR Part 11-compliant user access control, electronic signatures, and immutable audit trails—meeting requirements for regulated utilities and contract laboratories subject to EPA, EU Water Framework Directive, or ISO/IEC 17025 assessments.

Applications

• Drinking water intake protection: Early detection of accidental or intentional contamination events (e.g., chemical spills, algal toxin pulses).
• Wastewater treatment plant (WWTP) influent/effluent screening: Monitoring for industrial discharge non-compliance or shock loads.
• Pharmaceutical and chemical manufacturing: Effluent toxicity verification prior to release.
• Integrated early-warning systems: Co-deployment with UV-Vis spectrophotometers (for SAC₂₅₄, NO₃-N), turbidity sensors, TOC analyzers, BOD biosensors, and phytoplankton fluorescence probes to correlate biological response with physicochemical parameters.
• Research and method validation: Benchmarking novel toxicants or evaluating remediation efficacy under dynamic flow conditions.

FAQ

What biological endpoint does the iTOXcontrol measure?
It quantifies acute inhibition of bioluminescence in Vibrio fischeri after 15–30 minute exposure, expressed as percent inhibition relative to a non-toxic reference.
Is calibration required between tests?
No—daily automated calibration is performed using the onboard bacterial culture; manual calibration is only needed during initial commissioning or after major maintenance.
Can the system operate without internet connectivity?
Yes—local data logging and alarm triggering (via relay or 4–20 mA) function independently; network connectivity is required only for remote data upload or software updates.
How is sample representativeness ensured during continuous operation?
The system uses programmable sampling intervals and integrates flow-proportional triggering to align toxicity measurements with hydraulic residence time in critical zones.
Does it meet regulatory reporting requirements for public water systems?
While not a replacement for mandated chemical-specific testing (e.g., EPA Method 524), it fulfills supplementary early-warning obligations under the U.S. Safe Drinking Water Act’s Revised Total Coliform Rule (RTCR) and EU Directive 2020/2184 Annex II, Section 3.3.
