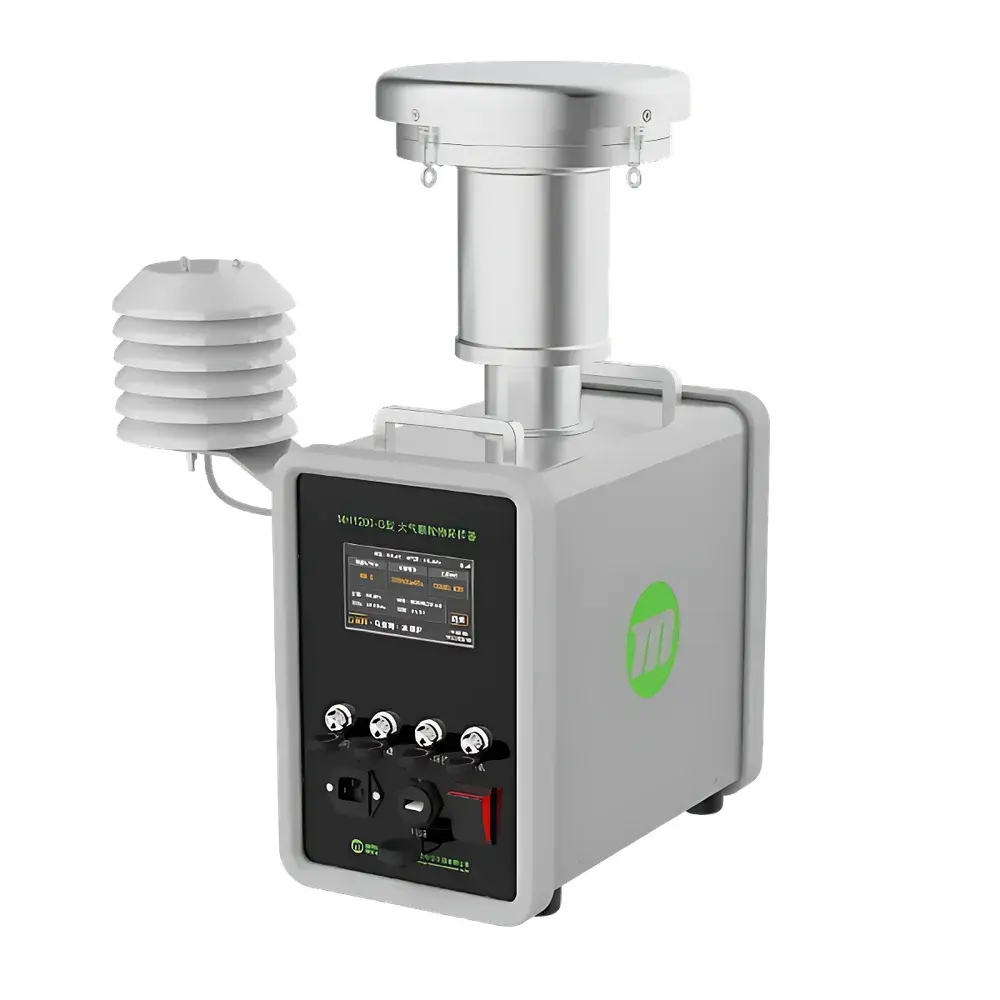

Minhope MH1200-G Environmental Particulate Matter Sampler

Overview

The Minhope MH1200-G Environmental Particulate Matter Sampler is an integrated, field-deployable ambient air sampling system engineered for regulatory-grade collection of multiple airborne analytes in a single platform. It operates on the principle of isokinetic or constant-flow gravimetric sampling—depending on configured inlet and filter holder assemblies—to ensure representative capture of total suspended particulates (TSP), inhalable fraction (PM₁₀), fine particulate matter (PM₂.₅), airborne heavy metals (e.g., Pb, As, Cd), inorganic fluorides, and semi-volatile organic compounds (SVOCs) such as polycyclic aromatic hydrocarbons (PAHs), organochlorine pesticides, and phthalates. Designed to meet the metrological and operational requirements defined in Chinese national standards—including JJG 943–2011 (verification procedures for TSP samplers), HJ 618–2011 (gravimetric determination of PM₁₀/PM₂.₅), HJ 93–2013 (technical specifications for PM₁₀/PM₂.₅ samplers), and HJ 691–2014 (sampling guidance for SVOCs)—the MH1200-G supports compliance-driven monitoring programs across environmental protection agencies, occupational health laboratories, construction site QA/QC teams, and academic research groups conducting atmospheric aerosol characterization.

Key Features

• Multi-analyte sampling capability: Configurable for simultaneous or sequential collection of TSP, PM₁₀, PM₂.₅, metal-laden filters (via quartz or Teflon-membrane substrates), fluoride ion traps (using alkali-impregnated filters), and SVOCs (using polyurethane foam [PUF] + XAD-2 resin cartridges).
• Intelligent flow control architecture: Incorporates a high-stability diaphragm pump paired with a calibrated mass flow sensor and real-time environmental compensation algorithms that adjust volumetric flow rate based on continuously measured ambient temperature and barometric pressure—ensuring adherence to ±2% flow accuracy per HJ 93–2013.
• Flexible operational modes: Supports instant start, programmable timed cycles (up to 99 intervals per day), and volume-triggered termination (e.g., 10 m³, 24 h equivalent at standard conditions), enabling alignment with both short-term exposure assessments and long-term trend studies.
• Robust field-ready design: IP54-rated weather-resistant enclosure with sealed electronics, low acoustic signature (<55 dB(A) at 1 m), and modular mounting options (tripod, rooftop mast, or vehicle-mounted bracketing).
• Embedded metrological logging: Automatically records timestamped values for sampled volume, ambient temperature (±0.5 °C), barometric pressure (±0.1 kPa), and actual flow rate—stored internally with non-volatile memory for post-hoc traceability and audit readiness.

Sample Compatibility & Compliance

The MH1200-G accommodates standardized filter media including 47-mm and 90-mm quartz fiber filters (for gravimetric PM analysis), 47-mm Teflon membranes (for elemental analysis via ICP-MS), and custom-configured multi-stage sorbent trains for SVOCs. All sampling configurations align with internationally recognized method frameworks: EPA TO-13A (for SVOCs), ISO 7708 (particle size-selective inlets), and EN 12341 (PM₁₀/PM₂.₅ reference methods). While certified to JJG and HJ series standards, its hardware architecture and data integrity features—including tamper-evident event logs and parameter lockout during active sampling—support alignment with GLP principles and pre-audit preparation for ISO/IEC 17025-accredited laboratories.

Software & Data Management

The MH1200-G integrates a built-in 256 MB flash memory module supporting up to 30 days of continuous 1-minute interval metadata logging. Data export is performed via USB-C interface in CSV format, compatible with LIMS platforms and statistical analysis tools (e.g., R, Python pandas). Optional PC-based configuration software enables remote firmware updates, calibration certificate import, and batch parameter programming—facilitating fleet-wide consistency across multi-site deployments. Audit trails include operator ID tagging (via optional RFID badge reader integration), calibration history, and deviation alerts for out-of-spec flow excursions—meeting foundational expectations for data integrity under China’s CNAS-CL01:2018 and emerging interpretations of FDA 21 CFR Part 11 for regulated environmental data.

Applications

• Ambient air quality monitoring networks (urban, rural, roadside, background stations)
• Industrial emissions source testing and fence-line monitoring
• Indoor air quality assessment in schools, hospitals, and office buildings
• Occupational exposure evaluation in mining, metallurgy, and construction sectors
• Atmospheric chemistry research: aerosol aging, source apportionment, and deposition flux modeling
• Regulatory compliance verification for municipal environmental bureaus and provincial EPBs

FAQ

Does the MH1200-G support simultaneous PM₂.₅ and SVOC sampling?
Yes—when equipped with a dual-channel inlet manifold and appropriate filter/sorbent staging (e.g., PM₂.₅ cyclone followed by PUF-XAD cartridge), it enables co-located, time-synchronized collection per HJ 691–2014.
Is external power required, or does it operate on battery?
The MH1200-G operates on AC 220 V ±10%, 50 Hz; an optional external 12 V DC lithium battery pack (sold separately) enables up to 8 hours of continuous operation in off-grid settings.
Can calibration certificates be uploaded and stored onboard?
Yes—the device accepts digitally signed calibration reports (PDF) via USB, associating them with serial-numbered sensor modules and retaining version history for audit review.
What filter types are validated for use with this sampler?
Quartz fiber (Pallflex E70-2075), Teflon membrane (Gelman Supor-450), and mixed-cellulose ester (MCE) filters are validated per HJ 618–2011; custom validation protocols for alternative substrates can be executed using the built-in flow stability diagnostic mode.
How is flow accuracy maintained over extended sampling periods?
Through continuous thermal and barometric compensation, combined with periodic zero/span verification prompts triggered every 72 hours of cumulative runtime—ensuring long-term drift remains within ±1.5% of setpoint per HJ 93–2013 Annex C.
