Minhope MS5002 LDAR Integrated Management Platform

Overview

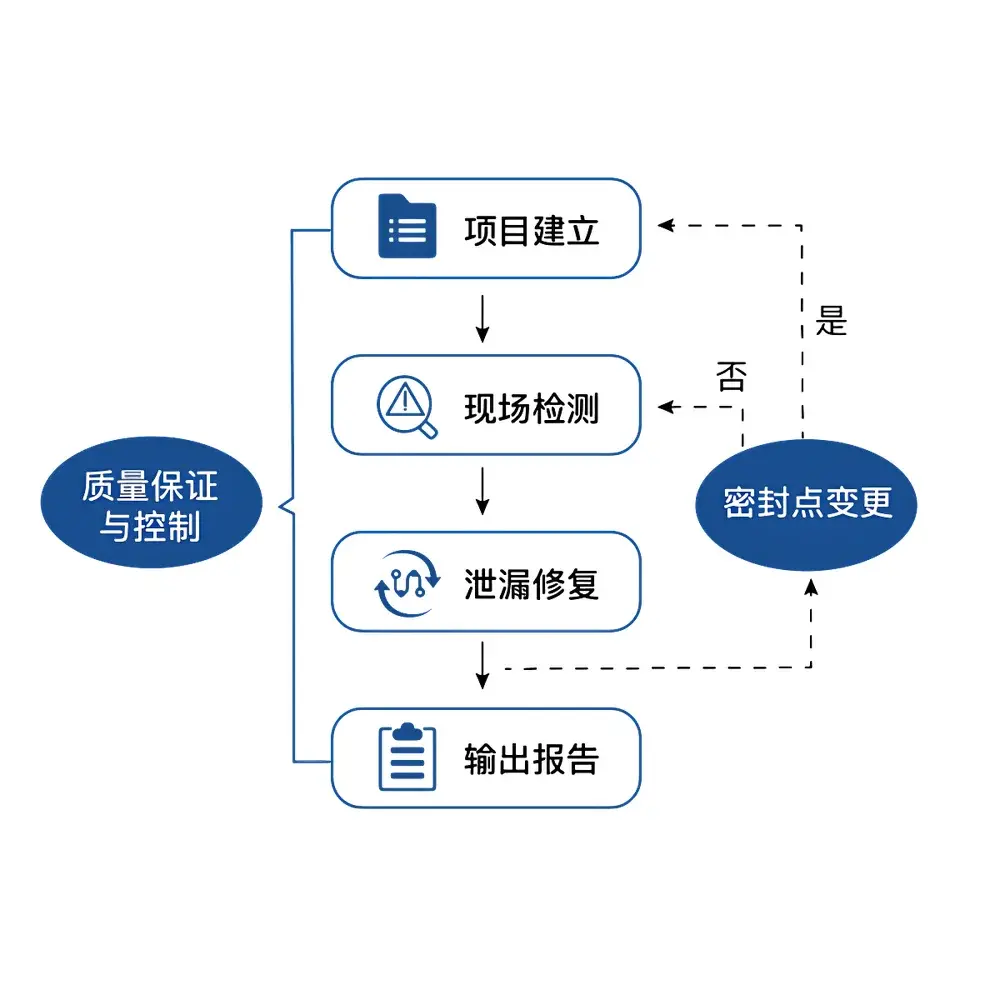

The Minhope MS5002 LDAR Integrated Management Platform is a purpose-built digital workflow system engineered to automate and standardize the full lifecycle of Leak Detection and Repair (LDAR) programs in industrial facilities. Designed in strict alignment with China’s national environmental regulatory framework—including HJ 1230–2021, GB 31570–2015, GB 31571–2015, GB 31572–2015, and GB 20952–2020—the platform implements a deterministic, traceable, and auditable process for managing volatile organic compound (VOC) emissions from equipment and pipeline component seal points. It supports systematic execution of LDAR workflows: project initialization, route planning, field detection data capture (including instrument-read values, photo documentation, and GPS-tagged metadata), repair scheduling and verification, quality assurance/quality control (QA/QC) review, and regulatory report generation. The architecture follows ISO/IEC 27001–aligned information security principles and embeds immutable audit trails to meet GLP and internal compliance audit requirements.

Key Features

• End-to-end LDAR workflow orchestration: From project creation and component inventory import to detection campaign assignment, real-time field data submission, repair tracking, and closure validation—each stage enforces procedural fidelity to HJ 1230–2021 Annexes A–D.
• Intelligent photo-based component registration: Mobile app auto-captures geotagged, time-stamped images; applies OCR-assisted identification where applicable; auto-generates unique, sequential seal-point IDs aligned with facility P&ID numbering conventions—reducing manual entry by >70%.
• Multi-tiered QA/QC module: Configurable review checkpoints including detector calibration verification, detection method validation (e.g., Method 21 vs. optical gas imaging), leak classification logic (based on concentration thresholds and component type), and repair effectiveness retest scheduling.
• Scalable data architecture: Supports concurrent management of >500,000 seal points per facility instance; optimized image compression and CDN-accelerated upload/download; dynamic storage allocation without service interruption.
• Regulatory report engine: Generates export-ready reports in PDF, Excel, and XML formats—including quarterly VOC emission summaries, repair delay analyses, QA/QC summary logs, and submission packages formatted for provincial生态环境 departments.

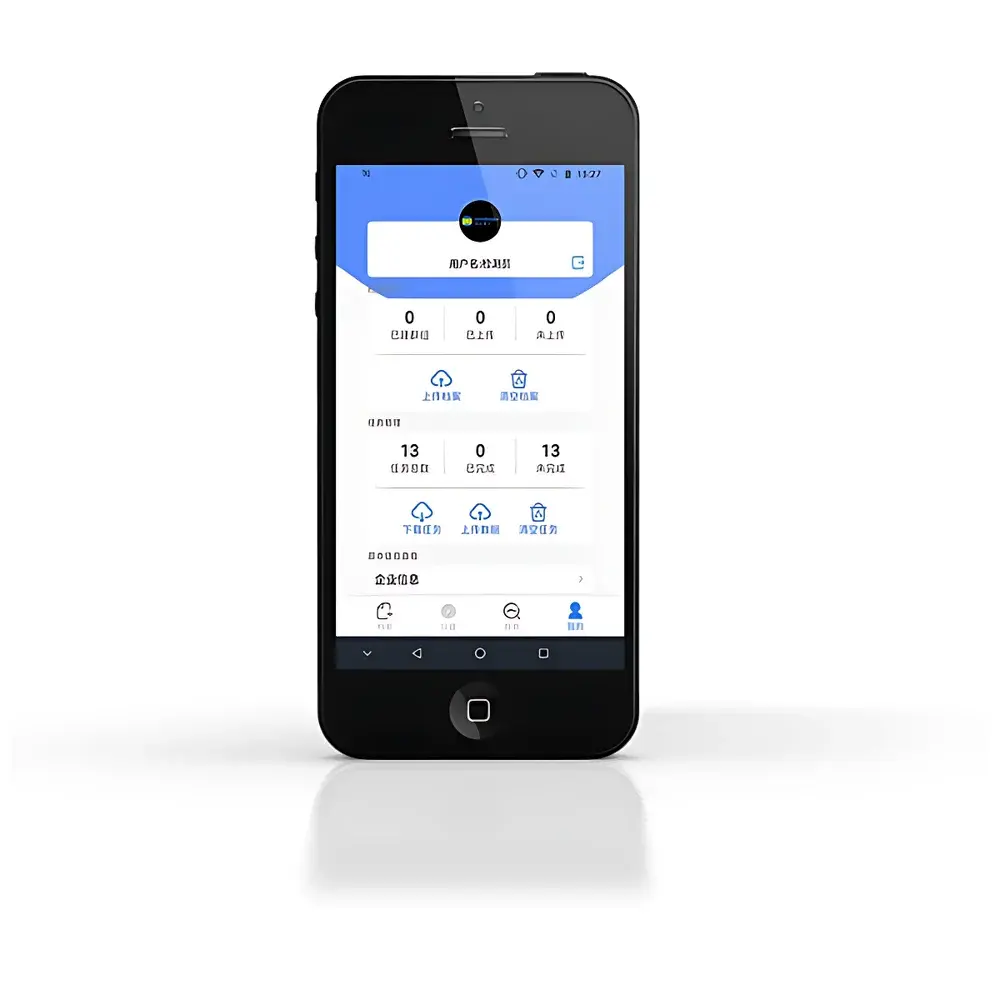

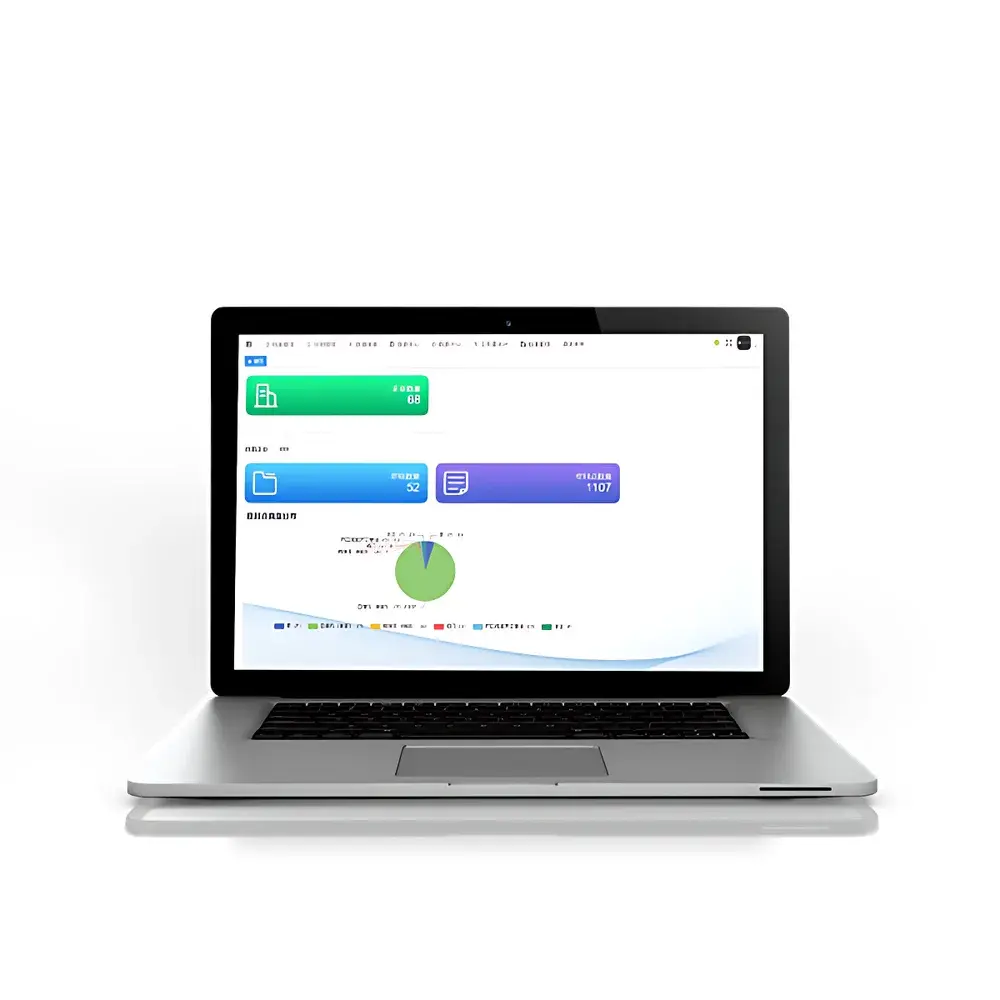

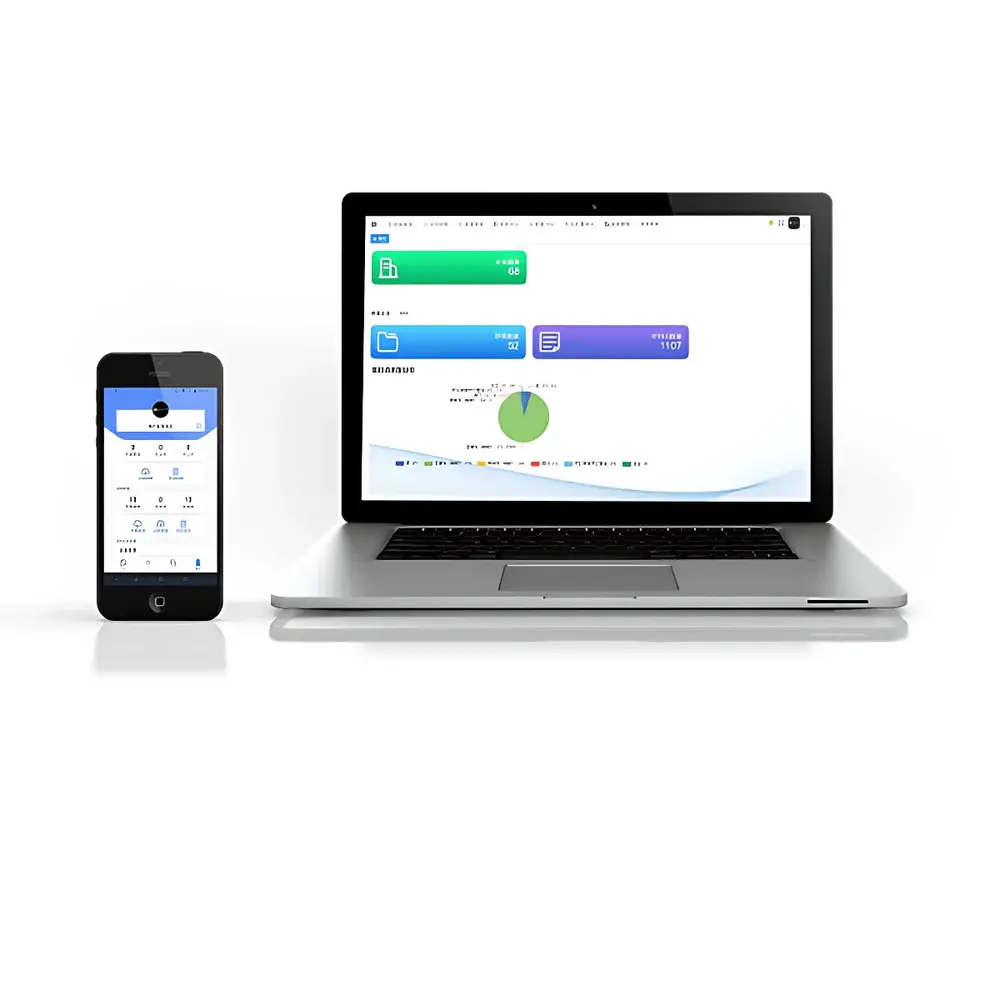

• Cross-platform synchronization: Real-time bidirectional sync between web dashboard and native iOS/Android applications ensures offline-capable field data collection with automatic conflict resolution upon reconnection.

Sample Compatibility & Compliance

The MS5002 platform does not perform physical measurements but serves as the central data governance layer for LDAR instrumentation—including flame ionization detectors (FIDs), photoionization detectors (PIDs), optical gas imaging (OGI) cameras, and portable FTIR analyzers. It accepts structured input from certified devices meeting HJ 1230–2021 Annex B calibration and performance verification criteria. All data handling conforms to China’s Personal Information Protection Law (PIPL) for technician identity data and adheres to GB/T 22239–2019 (Information Security Technology – Basic Requirements for Cybersecurity Level Protection) Level 2 controls. Audit logs retain full provenance for every data record—including user ID, timestamp, device ID, GPS coordinates, and modification history—for minimum 5-year retention as required under environmental enforcement guidelines.

Software & Data Management

Deployed as a secure SaaS solution hosted on ISO 27001-certified infrastructure, the MS5002 platform provides role-based access control (RBAC) with granular permissions for facility managers, LDAR coordinators, field technicians, QA reviewers, and third-party auditors. All data exchanges use TLS 1.3 encryption; at-rest data is encrypted via AES-256. The system maintains full ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data integrity attributes required for regulatory inspections. Optional on-premise deployment is available for air-gapped environments subject to site-specific cybersecurity assessments. Integration APIs support bidirectional synchronization with enterprise CMMS (e.g., IBM Maximo, SAP PM), ERP systems, and environmental monitoring platforms via RESTful webhooks and HL7-compliant message schemas.

Applications

• Petrochemical refineries conducting routine LDAR surveys across distillation units, compressors, pumps, valves, and flanges
• Chemical manufacturing plants managing VOC emissions from reactor vessels, transfer lines, and loading arms
• Pharmaceutical production facilities complying with GMP-aligned environmental controls for solvent-handling areas
• Storage terminal operators maintaining vapor recovery system integrity across tank farms and vapor balancing networks
• Third-party LDAR service providers delivering auditable, standardized deliverables across multi-client portfolios
• Provincial environmental protection bureaus performing centralized oversight of regional LDAR program compliance

FAQ

Does the MS5002 platform support integration with existing FID or OGI instruments?
Yes—it accepts standardized CSV, JSON, and vendor-specific binary exports from major LDAR-compatible instruments (e.g., Thermo Fisher TVA2020, FLIR GFx320, Bacharach Hi-Flow). Custom drivers are available upon request.
Can the system enforce mandatory QA/QC review steps before report finalization?
Yes—workflow rules can be configured to require dual-signoff by QA personnel prior to report export or regulatory submission.
Is historical data migration supported for legacy LDAR programs?
Yes—Minhope provides validated ETL tools and on-site data mapping services to onboard existing Excel, Access, or proprietary database records while preserving audit trail continuity.
How frequently is the platform updated to reflect changes in Chinese LDAR regulations?
Regulatory update cycles are tracked in real time; platform patches incorporating new HJ/GB amendments are released within 30 days of official publication, with change logs published in the customer portal.
What level of technical support is included post-deployment?
All licenses include 24/7 remote support, biannual system health audits, and dedicated LDAR regulatory advisory sessions with Minhope’s in-house environmental compliance engineers.
