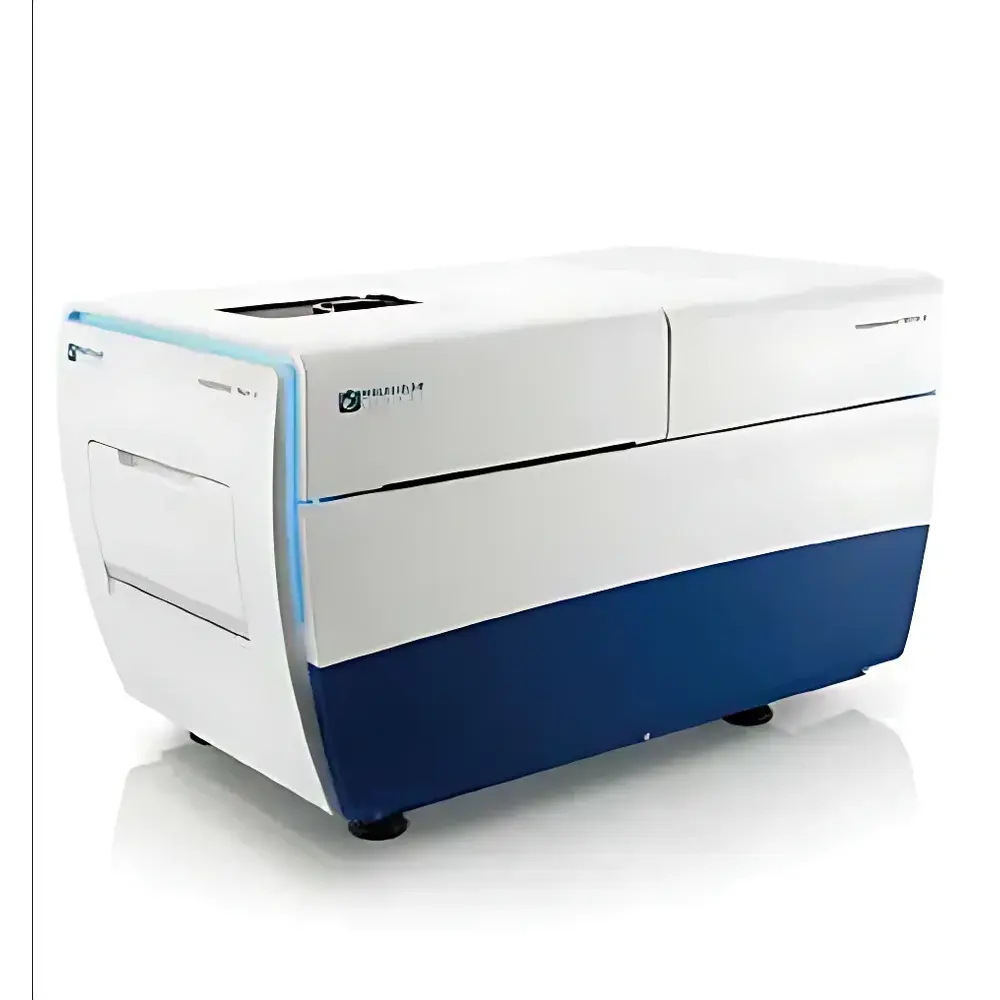

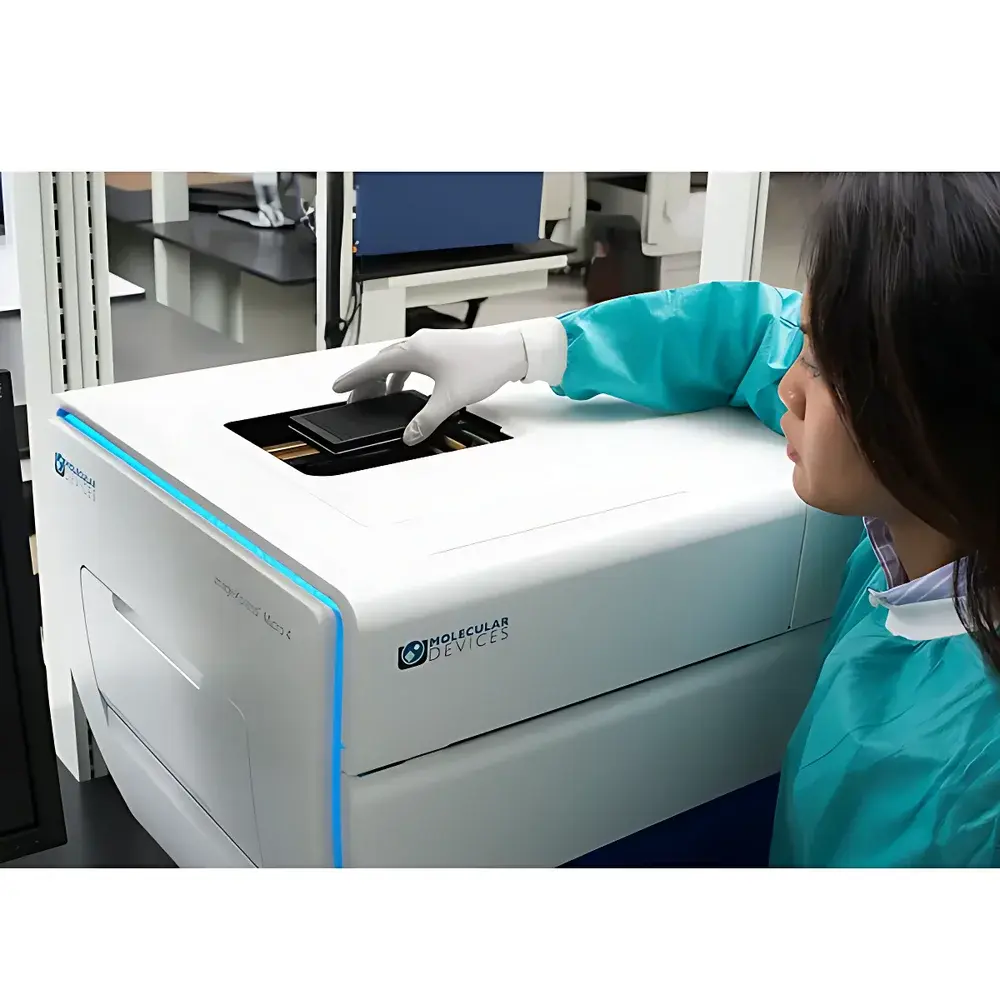

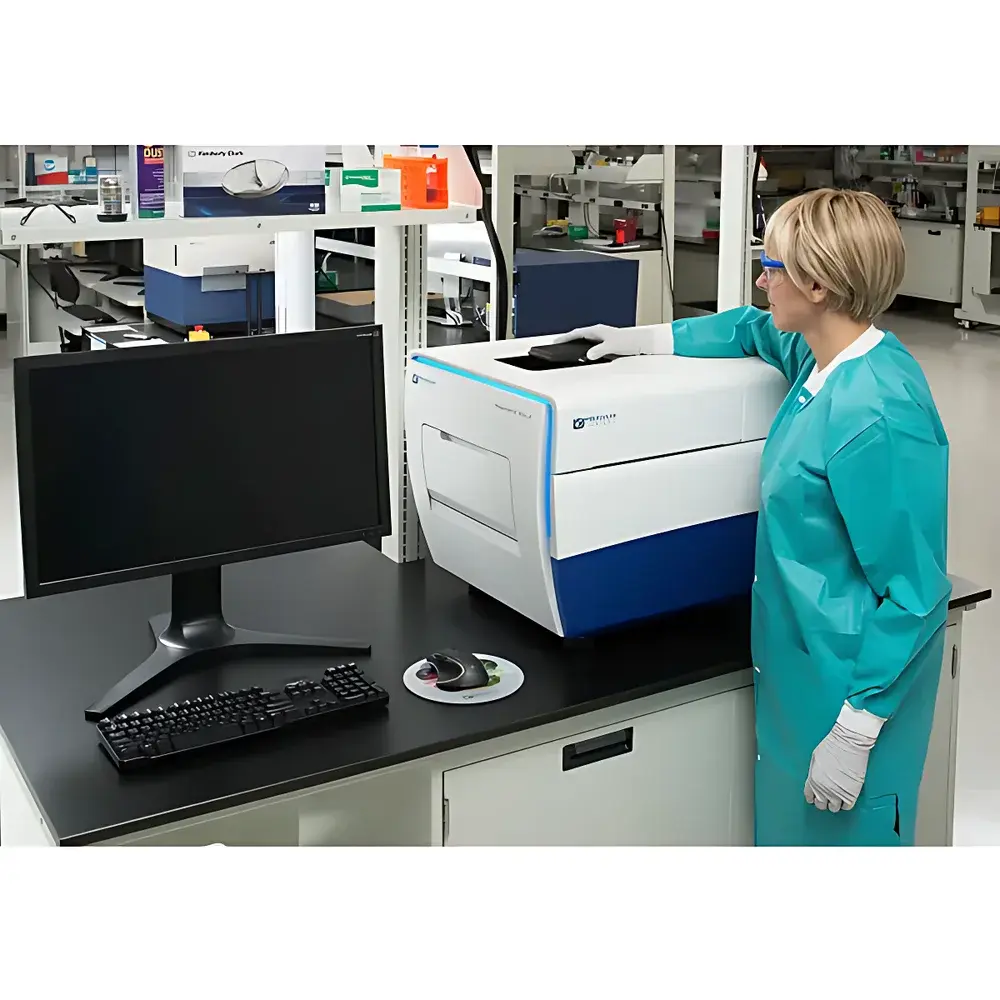

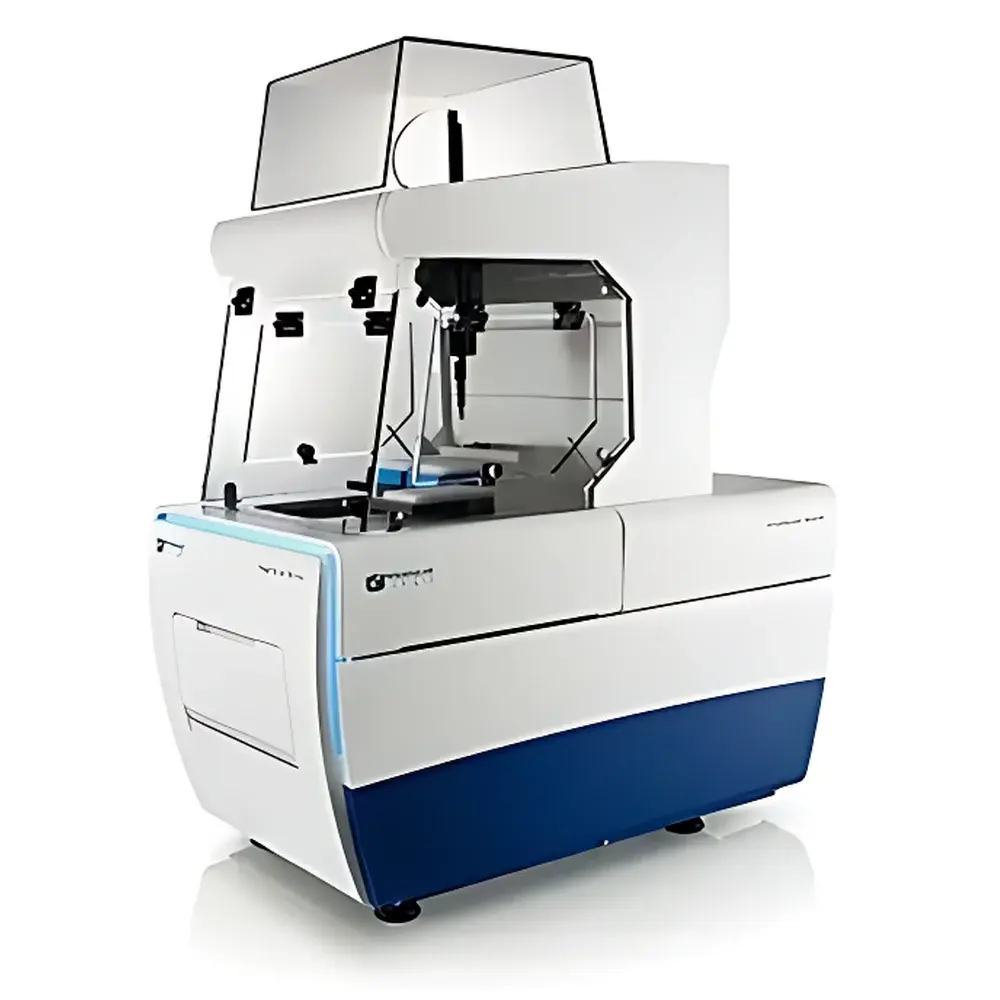

Molecular Devices ImageXpress Micro 4 High-Content Imaging System

Overview

The Molecular Devices ImageXpress Micro 4 High-Content Imaging System is a fourth-generation, modular widefield fluorescence and brightfield imaging platform engineered for quantitative cellular phenotyping in life science research and drug discovery. Built upon a robust optical architecture, it employs high-sensitivity sCMOS detection, precision motorized optics, and dual-focus technology—combining hardware-based laser autofocus with software-driven image-based focus refinement—to ensure consistent, reproducible z-stack acquisition across heterogeneous samples. Its core measurement principle integrates automated multi-wavelength epifluorescence microscopy with advanced computational image analysis, enabling unbiased quantification of subcellular features (e.g., nuclear translocation, organelle morphology, cytoskeletal reorganization) and population-level metrics (e.g., cell count, confluence, mitotic index) from fixed or live-cell assays. Designed for GLP-compliant workflows, the system supports traceable acquisition parameters, audit-ready metadata logging, and seamless integration into regulated environments adhering to FDA 21 CFR Part 11 requirements when paired with validated MetaXpress software configurations.

Key Features

• Modular optical design supporting future field-upgrade to spinning-disk confocal imaging via AgileOptix™ technology—no hardware replacement required
• Motorized high-NA objective turret accommodating dry objectives (up to NA 0.95) and oil-immersion lenses (up to NA 1.4), spanning magnifications from 1× to 100×
• Large-field-of-view imaging: 1.97 mm² at 10× magnification; up to 11 mm² per field at 4×, enabling full-well imaging of 384-well plates without stitching
• Dynamic range exceeding 3 log units (>1000:1), critical for simultaneous detection of low-abundance targets and saturated signal regions within single acquisitions
• Magnetic levitation XY/Z stage with <20 nm minimum step resolution and <100 nm positional repeatability—certified for high-precision multi-site time-lapse and z-series acquisition
• Dual autofocus system: real-time laser-based hardware autofocus synchronized with iterative image-gradient software focusing for optimal z-positioning across variable sample thicknesses
• Integrated environmental control module maintaining temperature stability at 30–40 °C ±0.5 °C, compatible with long-term live-cell kinetics studies over hours to days
• Multi-well crop functionality enabling >210,000 well images per day at 4× magnification—optimized for ultra-high-throughput screening (uHTS) campaigns

Sample Compatibility & Compliance

The ImageXpress Micro 4 accommodates diverse specimen formats without mechanical adaptation: standard microplates (6–1536-well), specialty 3D culture plates (e.g., round-bottom spheroid plates), Transwell® inserts, glass slides, custom tissue microarrays (TMAs), and cell microarrays. Its flexible illumination path supports both fluorescence (via user-replaceable filter cubes) and label-free modalities—including transmitted light brightfield and phase contrast—enabling morphological assessment without exogenous labeling. The system conforms to ISO/IEC 17025 principles for measurement uncertainty management and supports documentation practices aligned with ICH-GCP, USP <1043>, and ASTM E2597-22 standards for digital imaging validation. When deployed with validated MetaXpress software and controlled change management protocols, it meets audit expectations for GxP environments requiring electronic records integrity and operator accountability.

Software & Data Management

MetaXpress High-Content Analysis Software serves as the unified acquisition, processing, and visualization engine. It provides preconfigured, protocol-driven acquisition modules—including Z-stack acquisition with intelligent layer spacing, time-lapse scheduling with drift correction, and multi-channel intensity calibration—ensuring experimental consistency across users and laboratories. Analysis pipelines support machine-learning-assisted segmentation (e.g., Cell Painting feature extraction), multiparametric object classification, and statistical batch normalization. All acquisition metadata—including objective ID, exposure time, gain settings, environmental conditions, and user credentials—is embedded directly into TIFF and OME-TIFF output files. Export options include CSV, HDF5, and standardized JSON-LD schemas compatible with FAIR data principles. Audit trails record every parameter modification, image export, and analysis run—fully compliant with 21 CFR Part 11 when configured with electronic signatures and role-based access controls.

Applications

• Phenotypic screening for oncology, neurodegeneration, and metabolic disease models
• Live-cell kinetic assays: apoptosis progression, calcium flux, mitochondrial membrane potential, and wound-healing dynamics
• 3D spheroid and organoid characterization: viability gradients, proliferation zones, and necrotic core quantification
• Subcellular localization studies: transcription factor nuclear shuttling, receptor internalization, and autophagosome formation
• Developmental biology: zebrafish embryo phenotyping, neural tube patterning, and cardiomyocyte beating analysis
• Quality control of iPSC-derived cell lines: pluripotency marker expression heterogeneity and differentiation efficiency metrics

FAQ

Can the ImageXpress Micro 4 be upgraded to confocal capability after purchase?
Yes—via the AgileOptix™ field-upgrade kit, which replaces the widefield illumination path with a spinning-disk confocal unit while retaining all existing optics, stage, and software licenses.

What plate formats are supported for automated imaging?
All ANSI/SLAS-standard microplates (6-, 24-, 96-, 384-, 1536-well), including U- and V-bottom 3D culture plates, Transwell® inserts, glass slides, and custom-patterned substrates.

Is MetaXpress software included with the system?
Yes—the system ships with a perpetual license for MetaXpress v6.x or later, including acquisition modules, basic analysis tools, and export utilities. Advanced analysis modules (e.g., Target Activation, Neurite Outgrowth, Cell Health) are available as optional add-ons.

How does the system ensure focus stability during long-term live-cell experiments?
Through synchronized operation of the laser autofocus sensor (measuring distance to coverslip surface) and gradient-based image autofocus (refining focus on cellular structures), with continuous recalibration every 30 seconds or per time-point.

Does the system support compliance with regulatory data integrity standards?
Yes—when validated and operated under documented procedures, the combined hardware-software platform supports ALCOA+ principles and satisfies requirements for audit readiness in FDA-regulated preclinical research and CMC development.
