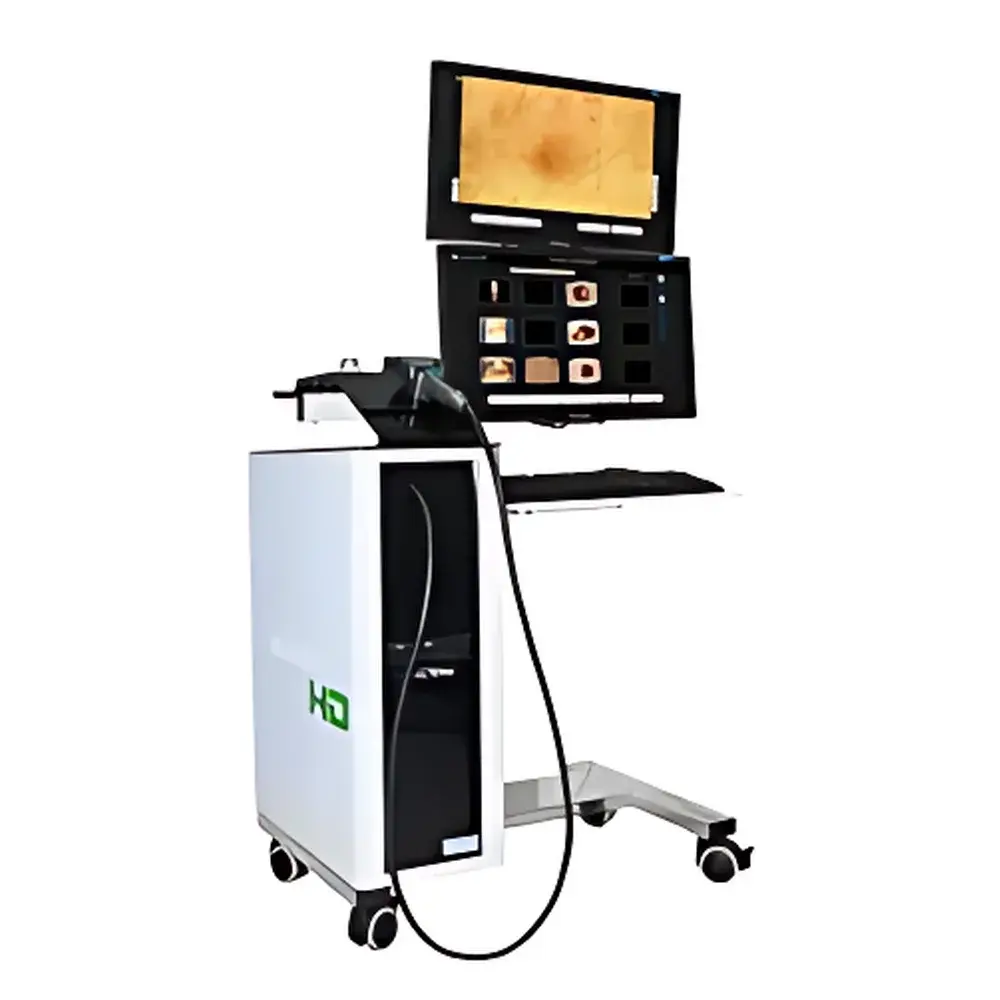

MoleMax HD Trichoscopy & Hair Growth Analysis System
| Brand | CK |
|---|---|
| Origin | Austria |
| Manufacturer Status | Authorized Distributor |
| Origin Category | Imported |
| Model | MoleMax HD |
| Pricing | Upon Request |
Overview
The MoleMax HD Trichoscopy & Hair Growth Analysis System is a high-resolution digital dermoscopic imaging platform engineered for objective, non-invasive assessment of scalp and hair follicle morphology. Designed specifically for trichological diagnostics and clinical research, it operates on the principle of polarized light dermoscopy combined with standardized image acquisition protocols to visualize and quantify structural features of hair shafts, follicular orifices, perifollicular scaling, vellus-to-terminal hair ratios, and epiluminescence patterns. In Trichogram mode—implemented via sequential, time-synchronized imaging before and after gentle hair extraction—the system enables semi-automated classification of anagen (growth phase) and telogen (resting phase) hairs based on morphometric criteria including root sheath integrity, pigment distribution, and bulb shape. This supports evidence-based evaluation of hair cycle dynamics in conditions such as androgenetic alopecia, telogen effluvium, and scarring alopecias.
Key Features
- High-definition 20-megapixel dermoscopic imaging with 20×–70× magnification range and adjustable polarized illumination
- Dedicated Trichogram workflow module supporting standardized hair pull test documentation and longitudinal tracking
- Integrated calibration reference and spatial scale annotation for consistent inter-session comparison
- Ergonomic handheld probe with real-time focus assist and pressure-sensitive contact detection to minimize artifact generation
- Modular software architecture compliant with DICOM-SR (Structured Reporting) for integration into hospital PACS environments
- CE-marked medical device (Class IIa) meeting EN ISO 13485:2016 and IEC 62304:2015 software lifecycle requirements
Sample Compatibility & Compliance
The MoleMax HD is validated for use on human scalp skin across Fitzpatrick phototypes I–VI. It accommodates both dry and lightly hydrated scalp conditions and supports concurrent imaging of adjacent anatomical zones (e.g., vertex, frontal, occipital) under identical lighting and focus parameters. All image metadata—including acquisition timestamp, magnification, illumination intensity, and operator ID—are embedded in EXIF headers and preserved during export. The system complies with EU MDR 2017/745 requirements for clinical performance evaluation and is referenced in peer-reviewed trichology guidelines including the European Dermatology Forum (EDF) Consensus on Trichoscopy Standards (2021). It supports audit-ready documentation aligned with GLP principles for academic and pharmaceutical clinical trials.
Software & Data Management
The proprietary MoleMax Software Suite (v5.3+) provides a secure, role-based interface for image acquisition, annotation, measurement, and comparative analysis. Trichogram mode includes automated hair count segmentation (with manual override), morphological tagging (anagen/telogen/catagen), and statistical summary generation (e.g., telogen ratio %, density per cm², miniaturization index). All sessions are stored in encrypted local databases with optional HIPAA-compliant cloud backup (AWS-hosted, SOC 2 Type II certified). Audit trails record every user action—including image modification, report export, and parameter adjustment—with timestamps and digital signatures. Software validation documentation (IQ/OQ/PQ protocols) and FDA 21 CFR Part 11 compliance packages are available upon request for regulated environments.
Applications
- Clinical monitoring of treatment response in medical therapies (e.g., minoxidil, finasteride, low-level laser therapy)
- Baseline and follow-up assessment in phase II/III dermatological trials evaluating novel anti-androgenic or Wnt-pathway modulators
- Differential diagnosis support between non-scarring and scarring alopecias through follicular dropout mapping and perifollicular erythema quantification
- Academic research on hair cycle synchronization, seasonal variation, and hormonal influence on follicular stem cell activity
- Training tool for dermatology residents and trichologists using annotated case libraries and inter-rater reliability modules
FAQ
Is the MoleMax HD approved for use in FDA-regulated clinical trials?
Yes—while marketed as a CE-certified Class IIa device in Europe, its software architecture, audit trail functionality, and electronic signature support meet FDA 21 CFR Part 11 requirements for electronic records and signatures. Validation documentation is provided for sponsor-initiated submissions.
Can Trichogram mode be used without hair extraction?
No—Trichogram mode requires standardized hair sampling (typically 50–100 hairs from predefined scalp sites) followed by microscopic or digital morphological classification. Non-invasive alternatives (e.g., longitudinal trichoscopy) are supported but fall outside Trichogram protocol definitions.
Does the system integrate with EHR platforms such as Epic or Cerner?
Direct HL7/FHIR integration is available via optional middleware; DICOM-SR export enables native ingestion into most enterprise imaging archives and dermatology-specific EHR modules.
What training and technical support options are offered?
CK provides on-site installation, operator certification workshops, and annual software update subscriptions. Remote diagnostic support is available 24/7 with average response time under two business hours for critical issues.
