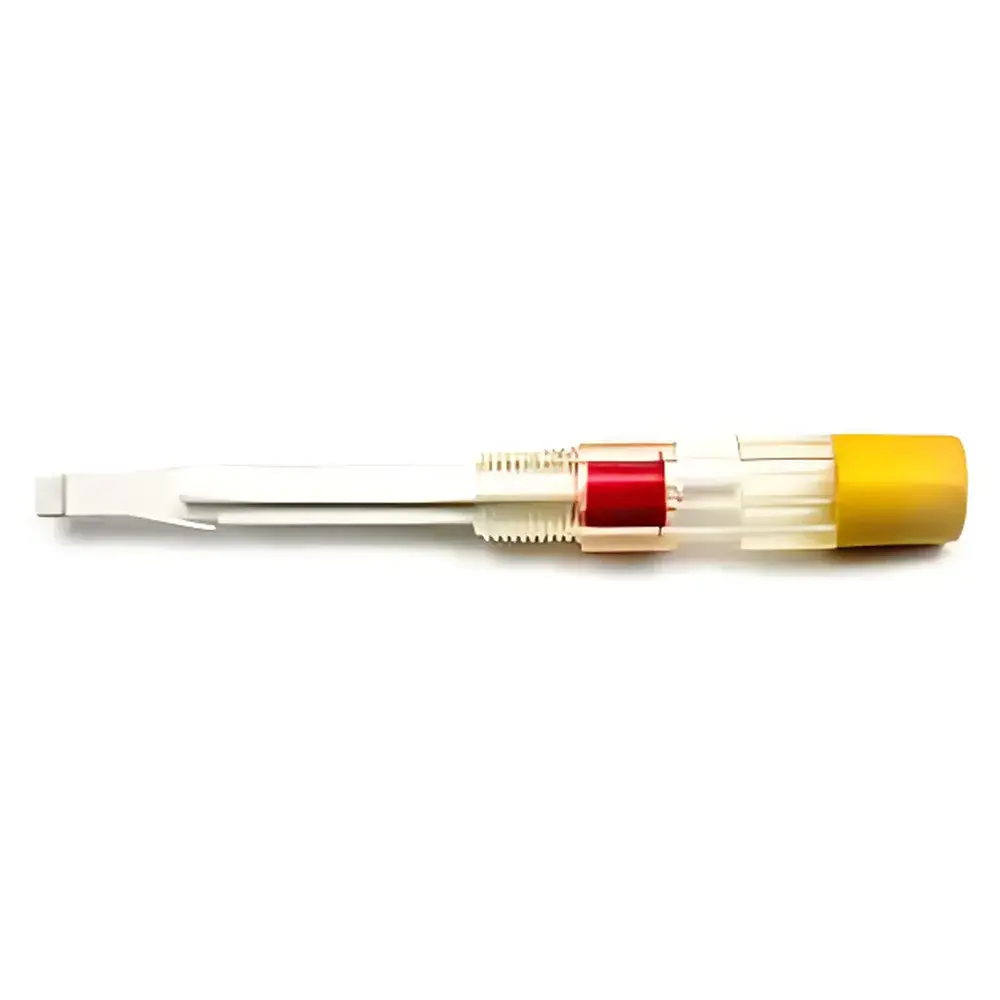

MRG GREASE THIEF® In-Service Grease Sampling Tool

Overview

The MRG GREASE THIEF® is a purpose-engineered, manual grease sampling tool designed to extract representative in-service lubricating grease samples from sealed, pressurized, or otherwise inaccessible bearing housings, gearboxes, electric motor housings, and other rotating equipment. Unlike oil sampling—where valves, ports, or drain plugs facilitate routine access—the physical consistency and confinement of grease have historically impeded systematic condition monitoring. The GREASE THIEF® addresses this gap by enabling controlled, contamination-minimized extraction using a stainless-steel, spring-loaded plunger mechanism that penetrates standard grease fittings (e.g., Zerk fittings) without disassembly or downtime. Its operation relies on mechanical displacement rather than vacuum or suction, ensuring consistent sample mass (typically ~1.0 g per actuation) while preserving native grease structure and particle distribution—critical for subsequent analytical integrity.

Key Features

• Stainless-steel construction with chemical-resistant elastomer seals, rated for continuous exposure to NLGI #00–#3 greases and common industrial hydrocarbon- and synthetic-based thickeners.
• Single-hand, push-actuated sampling mechanism requiring no external power, batteries, or calibration—ideal for field use across wind turbine nacelles, mining conveyors, food-grade processing lines, and offshore platforms.
• Integrated sample retention chamber with tamper-evident cap, compliant with ASTM D7718 requirements for chain-of-custody documentation and sample integrity preservation during transit to the laboratory.
• Modular accessory kit compatibility—including application-specific adapters for wind turbine pitch/yaw bearings, robotic joint actuators, induction motor end bells, and helical/hypoid gearboxes—to ensure geometric fit and pressure sealing across diverse OEM configurations.
• Designed for repeatable 1.0 g ±0.1 g sample mass delivery, supporting quantitative spectroscopic wear metal analysis (ASTM D5185), FTIR oxidation assessment (ASTM E1252), and particle counting per ISO 4406:2017 when coupled with standardized lab protocols.

Sample Compatibility & Compliance

The GREASE THIEF® is validated for use with lithium-, calcium-, aluminum-, polyurea-, and clay-thickened greases across NLGI consistency classes 00 through 3. It maintains functional reliability under ambient temperatures ranging from –20 °C to +80 °C and transient pressures up to 150 psi encountered during dynamic equipment operation. As the only commercially available tool explicitly cited in ASTM D7718 – Standard Practice for Sampling In-Service Lubricating Grease, it meets the method’s requirements for representative sampling, minimal air entrapment, and avoidance of base oil bleed separation during extraction. Its design supports GLP-compliant workflows: each unit carries a unique serialized identifier traceable to manufacturing lot, and its disposable sample chamber eliminates cross-contamination risk between sampling events—essential for auditable predictive maintenance programs aligned with ISO 55001 and ISO 28190 frameworks.

Software & Data Management

While the GREASE THIEF® itself is a hardware-only sampling instrument, it integrates seamlessly into digital lubrication management ecosystems. Sample metadata—including equipment ID, timestamp, location, grease type, and operator signature—is captured via companion mobile applications (iOS/Android) compliant with ISO/IEC 17025 data integrity guidelines. All entries support optional GPS tagging and photo documentation of sampling points. Exported records are structured in CSV or XML format for ingestion into CMMS platforms (e.g., IBM Maximo, SAP PM) or cloud-based oil analysis portals (e.g., Noria LubeTrak, Shell LubeAnalyst). Audit trails include immutable timestamps and user authentication logs, satisfying FDA 21 CFR Part 11 electronic record requirements where applicable in regulated manufacturing environments.

Applications

• Wind energy: Routine sampling of main shaft, gearbox, and blade pitch bearings without tower climb or crane deployment.
• Automated manufacturing: Monitoring grease condition in robotic arm harmonic drives and servo-motor couplings subject to high-cycle, low-speed oscillation.
• Mining & aggregates: Assessing thermal degradation and contamination ingress in crusher journal bearings and conveyor idler clusters operating under dust-laden, high-load conditions.
• Food & beverage: Non-invasive sampling of H1-certified greases in mixers, fillers, and packaging line gearmotors—no product contact or sanitation interruption required.
• Rail transportation: Evaluating grease life extension in traction motor bearings and bogie axle boxes under variable thermal cycling and vibration spectra.

FAQ

Is the GREASE THIEF® compatible with all Zerk-type grease fittings?
Yes—it accepts standard 1/8″–27 NPT and metric M6×1 grease nipples; optional adapter sleeves extend compatibility to recessed, angled, or proprietary OEM fittings.
Does the tool require periodic recalibration or maintenance?
No. It contains no electronic components, sensors, or moving parts beyond the stainless-steel plunger assembly, which requires only occasional wipe-down with lint-free cloth and light mineral oil lubrication per manufacturer instructions.
Can samples extracted with the GREASE THIEF® be used for elemental spectroscopy and FTIR?
Yes—its consistent 1.0 g mass delivery and minimized shear history preserve particle morphology and additive chemistry, enabling reliable quantification per ASTM D5185 (ICP-AES), ASTM D6595 (rotary piston pump spectrometry), and ASTM E1252 (FTIR oxidation index).
How does it compare to syringe-based or drill-out sampling methods?
Unlike syringes—which induce air entrainment and base oil bleed—or destructive drill-out techniques—which compromise housing integrity and introduce metal swarf—the GREASE THIEF® provides non-invasive, repeatable, and analytically valid sampling per ASTM D7718.
