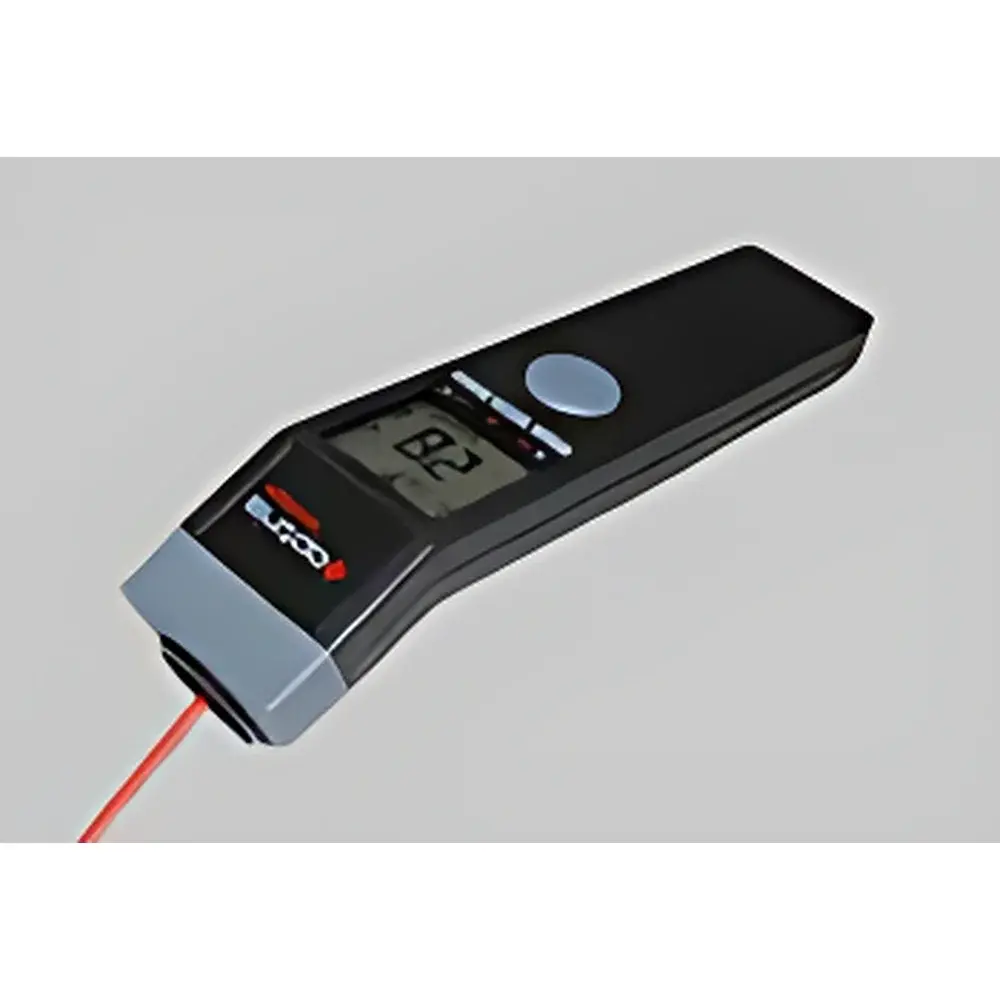

MS+ Portable Infrared Thermometer

Overview

The MS+ Portable Infrared Thermometer is an intrinsically safe, handheld non-contact temperature measurement instrument engineered for precision and reliability in demanding industrial, maintenance, and safety-critical environments. Based on passive infrared radiation detection, the device operates on Planck’s law of blackbody radiation—measuring the spectral radiance emitted by a target surface within the 8–14 µm atmospheric transmission window—and converting it into a calibrated temperature reading. Its fixed optical resolution of 20:1 enables accurate measurement of targets as small as 13 mm in diameter from a distance of 260 mm, minimizing operator exposure during inspections of live electrical components, rotating machinery, or high-temperature process equipment. Designed and assembled to German engineering standards, the MS+ complies with IEC 61508 (Functional Safety) and IEC 60079-0/-11 for use in potentially explosive atmospheres classified under Zone 0/1 (Group II C, T4), making it suitable for petrochemical refineries, pharmaceutical clean utilities, and offshore platforms where ignition risk must be eliminated.

Key Features

• Intrinsically safe design certified to Ex ia II C T4 per IEC 60079-11, enabling continuous operation in hazardous locations without risk of thermal or electrical ignition.
• Adjustable emissivity (0.100–1.000 in 0.001 increments) supports accurate readings across diverse material surfaces—from oxidized steel (ε ≈ 0.75) to polished aluminum (ε ≈ 0.05) and organic coatings (ε ≈ 0.95).
• Fast 300 ms response time ensures real-time thermal profiling during dynamic processes such as steam trap evaluation, bearing monitoring, or furnace lining inspection.
• Backlit LCD display with max/min hold functionality facilitates data capture in low-light or high-glare conditions while retaining critical thermal extremes for post-inspection analysis.
• High/low temperature alarm thresholds are user-configurable, providing immediate visual and audible alerts when measured values exceed preset operational limits—supporting predictive maintenance workflows aligned with ISO 18436-2 and ISO 13374-1.
• Robust housing rated IP54 (IEC 60529) resists dust ingress and water splashing, ensuring field durability in variable environmental conditions.

Sample Compatibility & Compliance

The MS+ is compatible with all non-transmissive, opaque solid and liquid surfaces whose emissivity falls within the instrument’s adjustable range. It is not intended for measuring transparent media (e.g., glass, thin plastic films) or highly reflective bare metals without surface treatment. The device meets essential requirements of the EU Measuring Instruments Directive (MID 2014/32/EU) for non-automatic weighing instruments and conforms to EN 50281-1 for electrical apparatus used in combustible dust environments. Its calibration traceability follows DIN EN ISO/IEC 17025 through accredited third-party laboratories, with optional NIST-traceable certificate available upon request. Documentation supports GLP-compliant audit trails and aligns with FDA 21 CFR Part 11 requirements for electronic records when paired with validated reporting software.

Software & Data Management

While the MS+ operates as a standalone field instrument, its analog output (optional 4–20 mA or 0–10 V variants) enables integration into SCADA or DCS systems for continuous temperature trend logging. For portable data collection, users may pair the device with compliant Bluetooth-enabled mobile applications (via optional IR-to-Bluetooth adapter) to export timestamped measurements—including max/min values, emissivity setting, and ambient temperature—to CSV or PDF reports. All stored data retains full metadata for QA/QC traceability, supporting internal quality system audits per ISO 9001:2015 clause 7.1.5.1 and ASTM E1965-22 (Standard Guide for Infrared Thermography).

Applications

• Electrical infrastructure: Thermal scanning of switchgear, busbars, cable terminations, and transformer windings to detect loose connections or load imbalances.
• Mechanical maintenance: Monitoring bearing temperatures on motors, pumps, and compressors to identify early-stage lubrication failure or misalignment.
• Process validation: Verifying sterilization cycle surface temperatures in autoclaves and dry-heat ovens per ISO 17665 and USP <1211>.
• HVAC commissioning: Assessing duct surface temperatures, coil performance, and insulation integrity in cleanroom and GMP manufacturing suites.
• Hazardous area verification: Routine thermographic surveys in Zone 0 gas detection zones (e.g., LNG terminals, solvent storage tanks) without requiring hot work permits.

FAQ

What does Ex ia II C T4 certification mean for field use?
It certifies that the MS+ is intrinsically safe—its electrical energy is limited below the minimum ignition energy required for hydrogen-group gases (IIC) at ambient temperatures up to 135 °C (T4), permitting uninterrupted operation in Zone 0 explosive atmospheres.
Can the MS+ measure through glass or plastic covers?
No. Standard infrared thermometers cannot accurately measure temperature through most transparent materials due to spectral absorption and reflection; direct line-of-sight to the target surface is required.
How often should the MS+ be recalibrated?
Annual recalibration is recommended under normal use conditions; more frequent verification (e.g., before critical measurements) using a traceable blackbody source is advised per ISO/IEC 17025 Clause 6.6.
Is the 9 V battery replaceable in hazardous areas?
Yes—the battery compartment is designed for hot-swappable replacement in Zone 1 environments without de-energizing the unit, provided the cover is fully secured prior to re-entry into the hazardous zone.
Does the MS+ support data logging without external hardware?
No. The base model lacks internal memory; data logging requires either analog signal integration or an external Bluetooth adapter and companion application.
