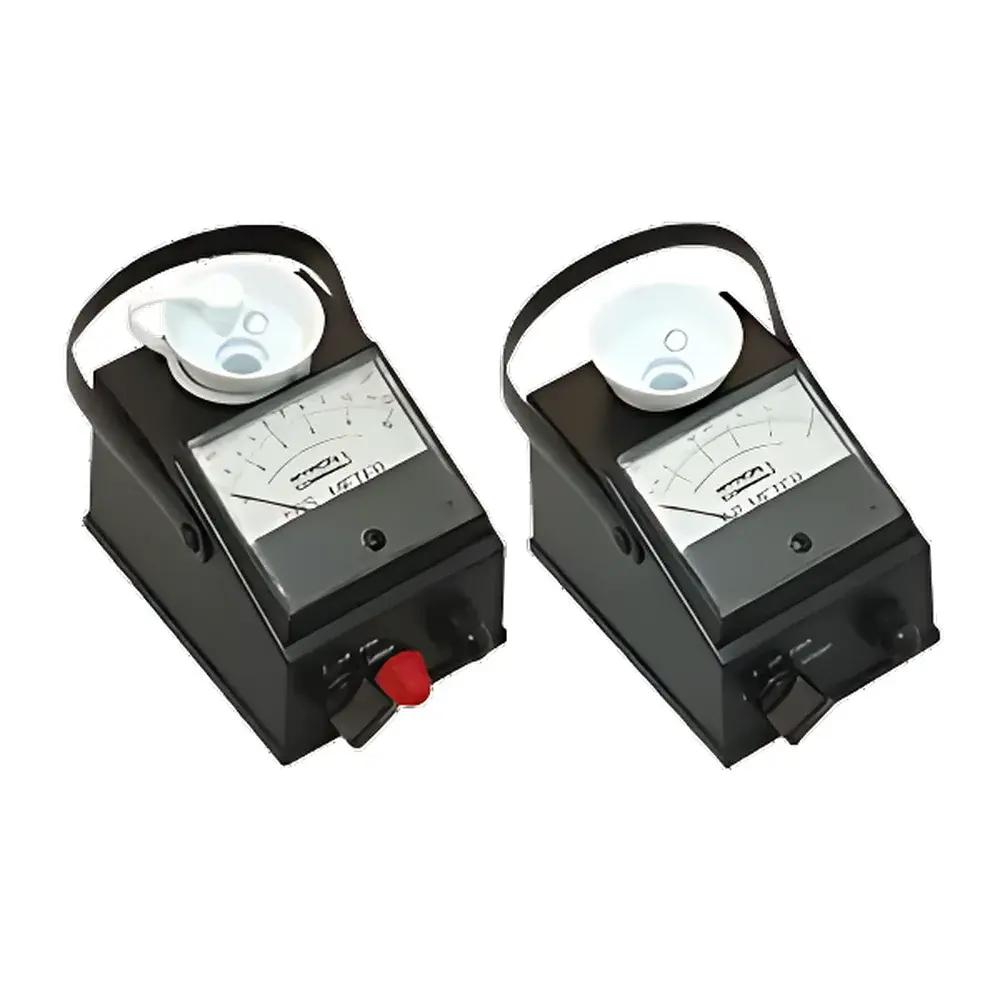

MYRONL 532T1 Portable TDS and Conductivity Meter with pH Capability

Overview

The MYRONL 532T1 is a handheld, analog-dial electrochemical instrument engineered for rapid, field-deployable assessment of total dissolved solids (TDS), electrical conductivity (EC), and pH in aqueous solutions. It operates on the principle of two-electrode conductometric measurement, where solution conductivity is converted to TDS concentration using a fixed NaCl-equivalent factor (typically 0.5–0.7, factory-calibrated). The analog needle display provides immediate visual feedback without reliance on digital processing or software interfaces—making it ideal for environments where battery life, mechanical robustness, and operational simplicity are critical. Unlike microprocessor-based meters, the 532T1 employs passive circuitry and a high-stability analog movement, minimizing drift and eliminating firmware-related failure modes. Its design targets routine monitoring in water treatment facilities, aquaculture operations, hydroponic systems, HVAC cooling tower management, and educational laboratories where traceable, repeatable spot-checks—not high-resolution trending—are the primary requirement.

Key Features

• Rugged, IP65-rated ABS housing with sealed analog dial faceplate, resistant to dust, splashing water, and mechanical shock
• Maintenance-free graphite conductivity sensor with integrated temperature sensor for automatic compensation across 10–71 °C
• User-replaceable, double-junction gel-filled pH electrode compatible with standard BNC connectors
• Three auto-ranging TDS scales (0–50 ppm, 0–500 ppm, 0–5000 ppm) selected via front-panel rotary switch—no manual scaling or calibration required per range
• Single 9 V alkaline battery powers >2,000 measurements annually under typical usage conditions; low-battery indicator built into dial scale
• No software dependencies, no USB ports, no memory storage—designed for GLP-aligned manual data recording and audit-ready operation

Sample Compatibility & Compliance

The 532T1 is validated for use with low-to-moderate ionic strength aqueous samples including potable water, wastewater effluent, nutrient solutions, boiler feedwater, and process rinse baths. It is not intended for non-aqueous solvents, highly viscous fluids, or suspensions containing particulates >50 µm. While not certified to ISO/IEC 17025, its measurement methodology aligns with ASTM D1125 (Standard Test Methods for Electrical Conductivity and Resistivity of Water) and ISO 7888 (Water quality — Determination of electrical conductivity) for comparative field screening. The instrument supports basic GMP/GLP workflows through traceable manual calibration logs (using certified KCl standards) and operator-annotated measurement records.

Software & Data Management

The MYRONL 532T1 does not incorporate embedded software, firmware, or digital data output. All measurements are recorded manually by the operator from the analog dial. This architecture eliminates requirements for FDA 21 CFR Part 11 compliance, electronic audit trails, or cybersecurity validation—making it suitable for regulated environments where paper-based records are accepted and preferred for simplicity and long-term archival stability. Calibration verification is performed using NIST-traceable KCl reference solutions (e.g., 1413 µS/cm at 25 °C), with documentation maintained per internal QA procedures.

Applications

• Routine verification of reverse osmosis (RO) and deionization (DI) system performance in pharmaceutical water loops
• Field assessment of irrigation water salinity in agricultural extension services
• Quick-check TDS screening prior to HPLC mobile phase preparation in QC labs
• Monitoring of nutrient concentration stability in commercial hydroponics and aquaponics facilities
• Educational demonstrations of ionic concentration principles in undergraduate chemistry and environmental science curricula
• Preventive maintenance checks on evaporative cooler sump water to avoid scaling thresholds

FAQ

Does the 532T1 require regular recalibration?
Calibration is recommended before each daily use or after exposure to extreme temperatures or contamination; only a single-point verification using 1413 µS/cm KCl standard is necessary.
Can the conductivity electrode be cleaned or refurbished?
No—the graphite electrode is sealed and non-serviceable; replacement is not supported. Performance degradation indicates end-of-life and requires unit replacement.
Is pH measurement temperature-compensated?
No—pH temperature compensation is manual via the dial’s pH correction scale; only conductivity/TDS compensation is automatic.
What is the expected service life under normal field use?
With proper storage and avoidance of prolonged immersion, mechanical lifespan exceeds 5 years; battery life remains stable for ≥3 years with intermittent use.
Does MYRONL provide NIST-traceable calibration certificates?
Certificates are available upon request for purchased KCl standards—but the instrument itself is not supplied with factory calibration documentation.
