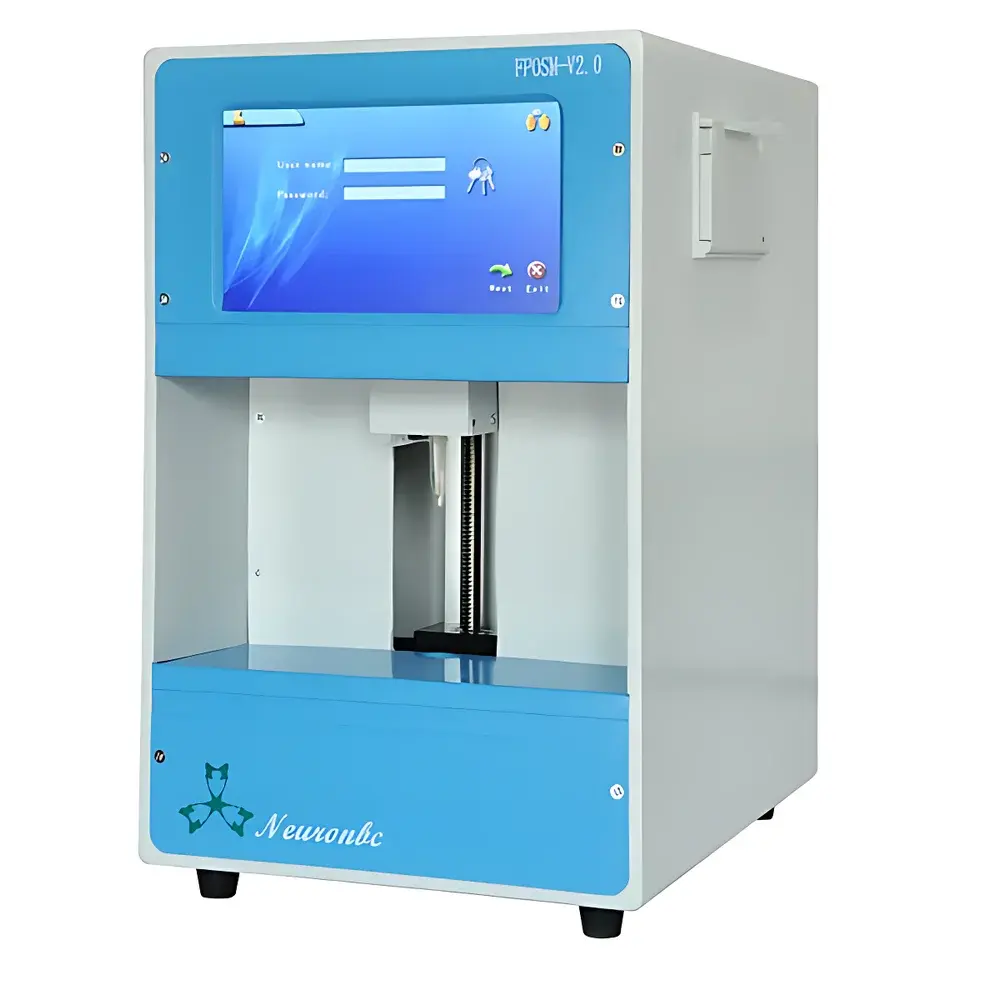

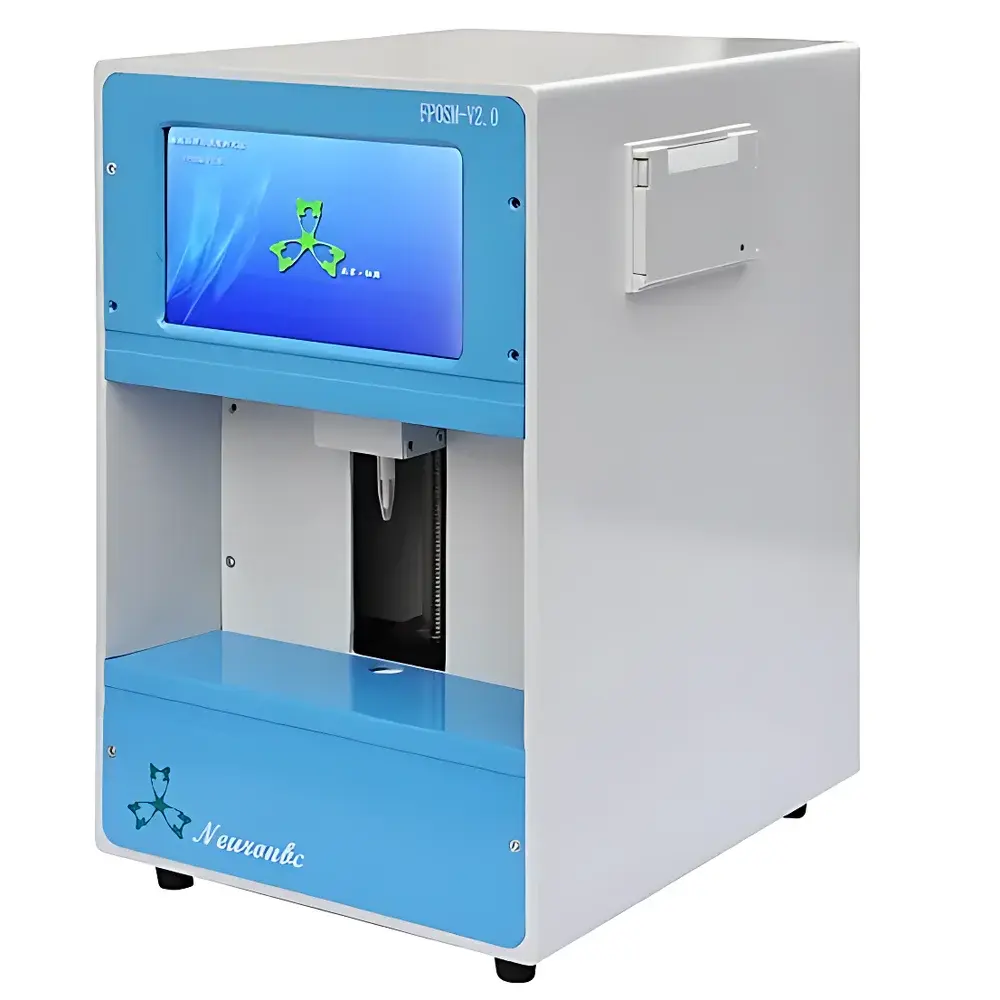

NeuronBC FPOSM-V2.0 Ice-Point Osmometer
| Brand | NeuronBC |
|---|---|
| Origin | Beijing, China |
| Model | FPOSM-V2.0 |
| Measurement Range | 0–2000 mOsmol/kg |
| Sample Volume | 100 µL |
| Test Time | ≤3 min |
| Pre-cooling Time | ≤3 min |
| Accuracy | ≤1% |
| Repeatability | ≤1% |
| Linearity | ≤1% |
| Operating Temperature | 0–30 °C (recommended 15–25 °C) |
| Relative Humidity | ≤60% |
| Power Supply | 220 V, 50 Hz, 150 VA |
| Dimensions | 225 × 275 × 345 mm |
| Weight | 15 kg |
Overview
The NeuronBC FPOSM-V2.0 Ice-Point Osmometer is a precision analytical instrument engineered for the quantitative determination of osmolality in aqueous solutions based on the colligative property of freezing point depression. Rooted in Raoult’s law, the instrument measures the precise temperature at which a sample transitions from liquid to solid phase—its freezing point—and calculates osmolar concentration (in mOsmol/kg H2O) via the linear relationship between depression magnitude and solute molality. This thermodynamic principle ensures traceable, first-principles-based quantification without reliance on calibration curves alone. Designed specifically for pharmaceutical quality control laboratories, biologics development, clinical research, and regulatory-compliant manufacturing environments, the FPOSM-V2.0 delivers metrologically sound results aligned with pharmacopoeial requirements—including the Chinese Pharmacopoeia (ChP), United States Pharmacopeia (USP ), and European Pharmacopoeia (Ph. Eur. 2.2.35).
Key Features
- High-sensitivity platinum resistance thermometer (Pt1000) with sub-millikelvin resolution for accurate, stable freezing point detection.
- Dual-stage thermoelectric cooling system enabling rapid pre-cooling (<3 min) and consistent thermal control—eliminating dependence on cryogenic fluids or compressor-based refrigerants.
- Motorized linear actuation system for temperature probe positioning, integrated with touchscreen-driven workflow automation.
- 7-inch capacitive color touchscreen with intuitive Chinese/English bilingual interface, supporting multi-level user authentication and electronic signature capability compliant with FDA 21 CFR Part 11 Annex 11 expectations.
- Onboard data storage retaining ≥3 years of audit-ready test records with timestamp, operator ID, sample ID, raw thermogram, and final osmolality result—fully searchable by date, batch, or operator.
- 31-point programmable linear calibration protocol, allowing verification across the full 0–2000 mOsmol/kg range with documented traceability to NIST-traceable reference standards.
- Zero-liquid-coolant architecture: no silicone oil or glycol circulation required—reducing maintenance intervals, contamination risk, and long-term operational cost.
Sample Compatibility & Compliance
The FPOSM-V2.0 accepts aqueous samples including parenteral drug formulations (e.g., IV infusions, monoclonal antibody buffers, vaccine diluents), biological fluids (serum, urine, CSF), cell culture media, and excipient solutions. Its 100 µL minimum sample volume supports high-throughput screening and precious-sample analysis. The instrument complies with ISO 17025:2017 general requirements for competence of testing and calibration laboratories. All firmware logic, data handling, and audit trail generation conform to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Built-in ChP database includes >300 registered injectables—enabling rapid method selection, preset parameter loading, and automatic pass/fail evaluation against monograph limits.
Software & Data Management
Firmware v2.0 provides embedded GLP/GMP-aligned software with role-based access control (RBAC), configurable user permissions (administrator, analyst, reviewer), and immutable electronic signatures. Each measurement generates a digitally signed PDF report containing metadata (instrument ID, firmware version, calibration status), raw thermographic curve, freezing point inflection point detection algorithm output, and final osmolality value with uncertainty estimation. Export options include CSV, PDF, and XML formats compatible with LIMS integration. Data integrity safeguards include write-once storage, automatic backup to internal SSD, and tamper-evident audit logs recording all configuration changes, calibration events, and user logins.
Applications
- Final product release testing of sterile injectables per USP and ChP General Chapter 0632.
- Formulation development and stability studies of biologics, where osmolality directly correlates with protein aggregation propensity and patient tolerability.
- In-process monitoring during ultrafiltration/diafiltration steps in downstream bioprocessing.
- Quality assurance of ophthalmic solutions, where deviations beyond 250–350 mOsmol/kg may induce ocular irritation.
- Research-grade osmotic stress modeling in cell culture optimization and cryopreservation protocol design.
FAQ
Does the FPOSM-V2.0 support 21 CFR Part 11 compliance for electronic records and signatures?
Yes—full implementation includes user authentication, audit trail with time-stamped event logging, electronic signatures with reason-for-action capture, and data immutability controls.
What reference standards are recommended for calibration?
NIST-traceable sodium chloride solutions (e.g., 0, 100, 300, 800, 2000 mOsmol/kg) or commercially available osmometer calibration kits certified to ISO Guide 34.
Can the instrument be integrated into a laboratory information management system (LIMS)?
Yes—via standard RS-232 or optional Ethernet interface with configurable ASCII or HL7-compliant output protocols.
Is validation documentation provided?
IQ/OQ protocols and factory-verified performance qualification (PQ) reports are included; site-specific PQ support is available upon request.
What maintenance is required beyond routine cleaning?
No consumable coolants or mechanical compressors—only periodic verification of temperature probe accuracy and cleaning of sample chamber with deionized water.
