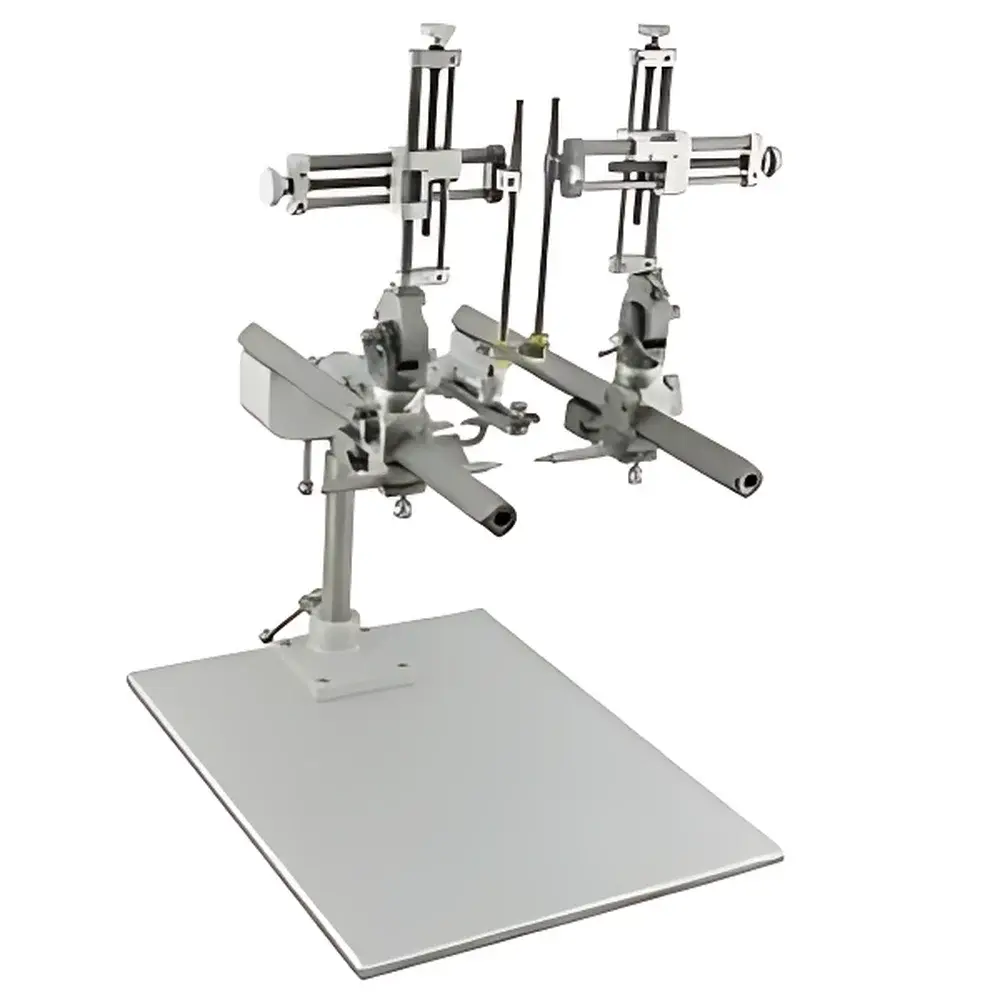

NeuroStar Large-Animal Stereotaxic Instrument

Overview

The NeuroStar Large-Animal Stereotaxic Instrument is an engineered platform for high-precision intracranial targeting in neuroscientific research involving large experimental subjects. Built upon the foundational principles of stereotaxic coordinate geometry—defined by bregma-lambda reference points and standardized brain atlases—the instrument enables reproducible, three-dimensional localization of deep brain structures under surgical or electrophysiological conditions. Unlike small-animal–optimized systems, this platform integrates structural rigidity, extended travel range, and modular adaptability to meet the biomechanical and anatomical demands of canine, porcine, non-human primate, and rodent models within a single framework. Its dual parallel rail architecture ensures mechanical stability during simultaneous multi-electrode insertion, viral vector delivery, or chronic cannula implantation procedures—critical for longitudinal studies requiring consistent spatial registration across sessions.

Key Features

• Dual parallel rail system with 200 mm total linear travel (±100 mm from center), calibrated to 0.1 mm resolution via precision-machined vernier scales on all axes (anterior–posterior, dorsal–ventral, medial–lateral)
• 360° continuous rotation capability of the main track assembly, enabling oblique-angle approaches without repositioning the subject or compromising stereotaxic alignment
• Modular adapter interface compatible with species-specific head holders for dogs, pigs, macaques, rats, and mice—each designed to accommodate physiological variations in skull morphology and weight distribution (up to 35 kg)
• Integrated sliding groove mechanism in the adapter base allows dynamic adjustment of cranial fixation tension and pitch angle, minimizing tissue deformation during prolonged procedures
• Support for up to six independently mounted manipulators per session—enabling concurrent bilateral or multi-target interventions (e.g., paired optrode + microdialysis probe + recording electrode)
• Standard 2D manipulator compatibility: 180° vertical tilt range and full 360° azimuthal rotation, facilitating angled trajectories aligned with sulcal anatomy or fiber tract orientation
• Field-upgradable digital readout (DRO) kit available—retrofitting existing analog scales with optical encoders and USB-connected display modules compliant with ISO/IEC 17025 traceable calibration protocols

Sample Compatibility & Compliance

The NeuroStar LA-Stereo supports validated use across IACUC- and AAALAC-accredited vivariums. Animal adapters conform to ASTM F2100-22 guidelines for surgical restraint device ergonomics and load-bearing integrity. All metal components are constructed from 316L stainless steel (EN 10088-1), passivated per ASTM A967, ensuring resistance to repeated sterilization cycles (autoclave, hydrogen peroxide plasma). The system accommodates standard NHP stereotaxic atlases (e.g., Paxinos & Huang for Macaca) and veterinary neuroanatomical references (e.g., Schmued & Kyner for canine brain mapping). No proprietary consumables are required; compatibility extends to third-party electrodes, cannulae, and microinjection syringes meeting ISO 8536-4 specifications.

Software & Data Management

While hardware-based positioning remains fully manual, the optional DRO upgrade provides timestamped coordinate logging via USB to Windows-based acquisition software (compatible with MATLAB, Python-PySerial, and LabVIEW 2022+). Logged data includes X/Y/Z coordinates, angular orientation, and operator ID—supporting audit trails required under GLP-compliant study designs (OECD Series 150, FDA 21 CFR Part 58). Export formats include CSV and HDF5, enabling integration with electronic lab notebooks (ELN) such as LabArchives or Benchling. Calibration certificates for DRO modules are issued with NIST-traceable uncertainty budgets (< ±2 µm at 95% confidence).

Applications

• Chronic electrophysiological recording in awake, behaving non-human primates during cognitive task paradigms
• Multi-site intracerebral microinfusion of AAV vectors or antisense oligonucleotides in porcine models of neurodegeneration
• Stereotactic radiofrequency ablation or laser interstitial thermal therapy (LITT) planning validation in canine epilepsy models
• Bilateral hippocampal or thalamic electrode array implantation for closed-loop neuromodulation studies
• Validation of MRI-guided targeting accuracy by correlating histologically verified lesion coordinates with preoperative stereotaxic planning
• Training platform for veterinary neurosurgery residency programs emphasizing anatomical landmark identification and trajectory optimization

FAQ

Is the NeuroStar LA-Stereo compatible with MRI-compatible accessories?
Yes—non-ferromagnetic titanium adapters and ceramic-coated manipulator components are available as optional configurations for intra-MRI suite use.

Can coordinates be transferred directly from digital brain atlases?
Coordinate import is supported via CSV mapping files aligned to Paxinos, Schmued, or custom atlas templates; no proprietary file format lock-in.

What maintenance is required for long-term vernier scale accuracy?
Annual recalibration using certified gauge blocks (ISO 3650) is recommended; wear-resistant scale surfaces eliminate routine lubrication needs.

Does the system support real-time coordinate feedback during surgery?
The DRO upgrade provides live positional readouts with 10 Hz update rate and configurable audible tone alerts at user-defined thresholds.

Are installation and operator training services included?
On-site commissioning and IACUC-aligned SOP development support are offered as billable professional services—not included in base pricing.
