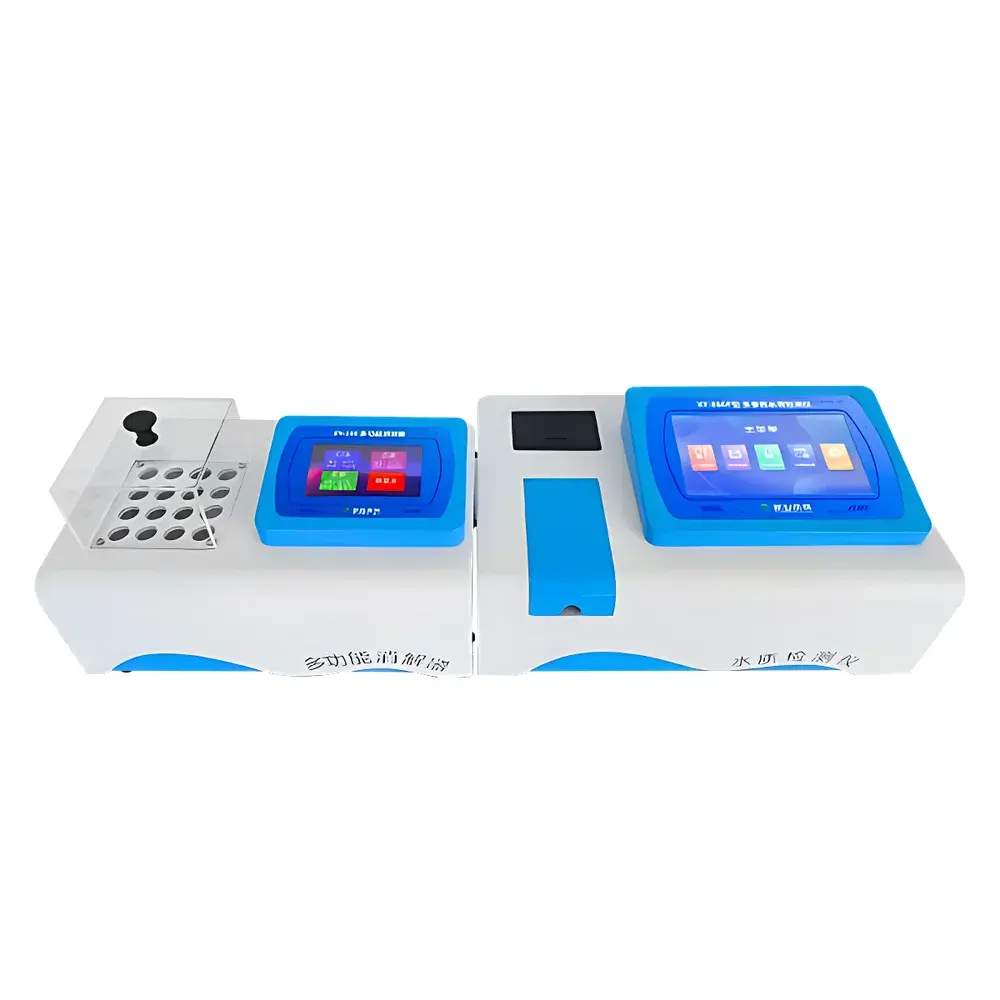

New Environmental Protection Industry in Qingdao XY-600H Portable Volatile Phenol Analyzer

Overview

The New Environmental Protection Industry in Qingdao XY-600H Portable Volatile Phenol Analyzer is a field-deployable, laboratory-grade photometric instrument engineered for rapid, on-site quantification of volatile phenols in aqueous matrices. It implements the standardized 4-aminoantipyrine (4-AAP) colorimetric method per HJ 503–2009 — the official Chinese Environmental Protection Standard for determination of volatile phenols in water — and is fully compatible with GB/T 5750.5–2023 (Standard Methods for Examination of Drinking Water: Organic Compounds). The system operates on the principle of spectrophotometric absorbance measurement at a precisely selected wavelength (typically 510 nm), where phenolic compounds react with 4-AAP under oxidative conditions to form a stable pink-red quinoneimine dye. Optical detection utilizes a solid-state cold light source and high-stability optical path design, ensuring minimal thermal drift and long-term signal fidelity. Its integrated digestion–colorimetric tube architecture eliminates manual transfer steps, reducing contamination risk and operator variability. Designed for compliance-driven environments, the XY-600H supports traceable analysis workflows required by municipal water utilities, environmental monitoring stations, industrial effluent laboratories, and third-party testing facilities.

Key Features

• Automated wavelength selection and real-time auto-calibration ensure consistent spectral alignment across repeated measurements and multi-parameter operation.
• 360° rotating cuvette detection system performs multiple absorbance readings per sample, enhancing statistical robustness and reducing measurement uncertainty.
• 7-inch HD capacitive touchscreen with guided workflow interface enables intuitive operation without specialized training; icon-driven navigation minimizes input errors.
• Dual power capability: Operates on DC 12 V/2 A (e.g., portable power station or vehicle battery) for field use, and accepts universal AC input (100–240 V, 50–60 Hz) for lab bench deployment.
• Integrated thermal printer provides immediate hard-copy documentation of results, including date/time stamp, sample ID, calibration status, and operator ID — supporting GLP-compliant recordkeeping.
• Onboard data management stores up to 100,000 test records and 120 calibration curves (including user-generated curves), with timestamped audit trails for each modification.
• Optical stability ≤±0.001 A/20 min meets ISO 7027-1:2016 performance thresholds for turbidity-related photometric instruments, validating baseline reliability under ambient temperature fluctuations.

Sample Compatibility & Compliance

The XY-600H is validated for use with surface water, groundwater, wastewater, industrial effluents, and drinking water sources. Sample pretreatment follows HJ 503–2009 protocols: steam distillation to isolate volatile phenols prior to colorimetric reaction. The analyzer accommodates standard 16 mm round-bottom digestion–colorimetric tubes (compatible with optional 16-position intelligent digester, model not included). All reagents are supplied as pre-formulated liquid solutions (>95% ready-to-use), minimizing handling errors and improving reproducibility. The instrument’s measurement accuracy (≤±5% error) and repeatability (≤±3%) satisfy QA/QC requirements outlined in CNAS-CL01:2018 (equivalent to ISO/IEC 17025) for accredited environmental testing laboratories. It supports documentation traceability aligned with GLP principles and facilitates data export for integration into LIMS environments.

Software & Data Management

Firmware includes embedded data management tools compliant with basic electronic record integrity standards. Each measurement event logs sample ID, operator code, calibration curve used, raw absorbance/transmittance values, calculated concentration, and environmental conditions (temperature/humidity if externally sensed). USB 2.0 interface enables direct transfer of CSV-formatted datasets to Windows-based PCs; no proprietary software installation is required. Internal memory retains full audit history—including curve edits, firmware updates, and calibration events—with immutable timestamps. While the device does not implement FDA 21 CFR Part 11 electronic signature controls, its structured logging architecture supports manual verification and paper-based audit trail supplementation in regulated settings.

Applications

• Routine monitoring of phenol levels in municipal wastewater treatment plant influent and effluent streams.
• Field screening of river and reservoir water near petrochemical, pharmaceutical, or resin manufacturing facilities.
• Compliance verification for discharge permits under China’s “Water Pollution Prevention and Control Action Plan” (Ten Measures on Water).
• Educational use in university environmental science labs for method validation and student training in spectrophotometric analysis.
• Emergency response deployment during chemical spill incidents involving phenol or substituted phenols (e.g., cresols, xylenols) where rapid semi-quantitative assessment is critical.

FAQ

What regulatory standards does the XY-600H comply with?
It is designed and verified against HJ 503–2009 and GB/T 5750.5–2023 for volatile phenol determination.
Can the instrument measure parameters other than volatile phenol?
Yes — it supports over 50 water quality parameters including COD, ammonia nitrogen, total phosphorus, total nitrogen, turbidity, and suspended solids, using parameter-specific pre-programmed curves.
Is method validation documentation available?
Factory-provided validation reports include linearity (R² ≥ 0.999 over 0–12 mg/L), LOD/LOQ verification, spike recovery tests (85–115%), and inter-laboratory comparison summaries.
How is optical calibration maintained over time?
The system performs automatic wavelength calibration before each test cycle using an internal reference filter; no external standards or manual intervention are required.
Does the device support network connectivity or remote data upload?
No — data exchange is limited to USB mass storage mode; Ethernet, Wi-Fi, or cloud synchronization are not implemented.
