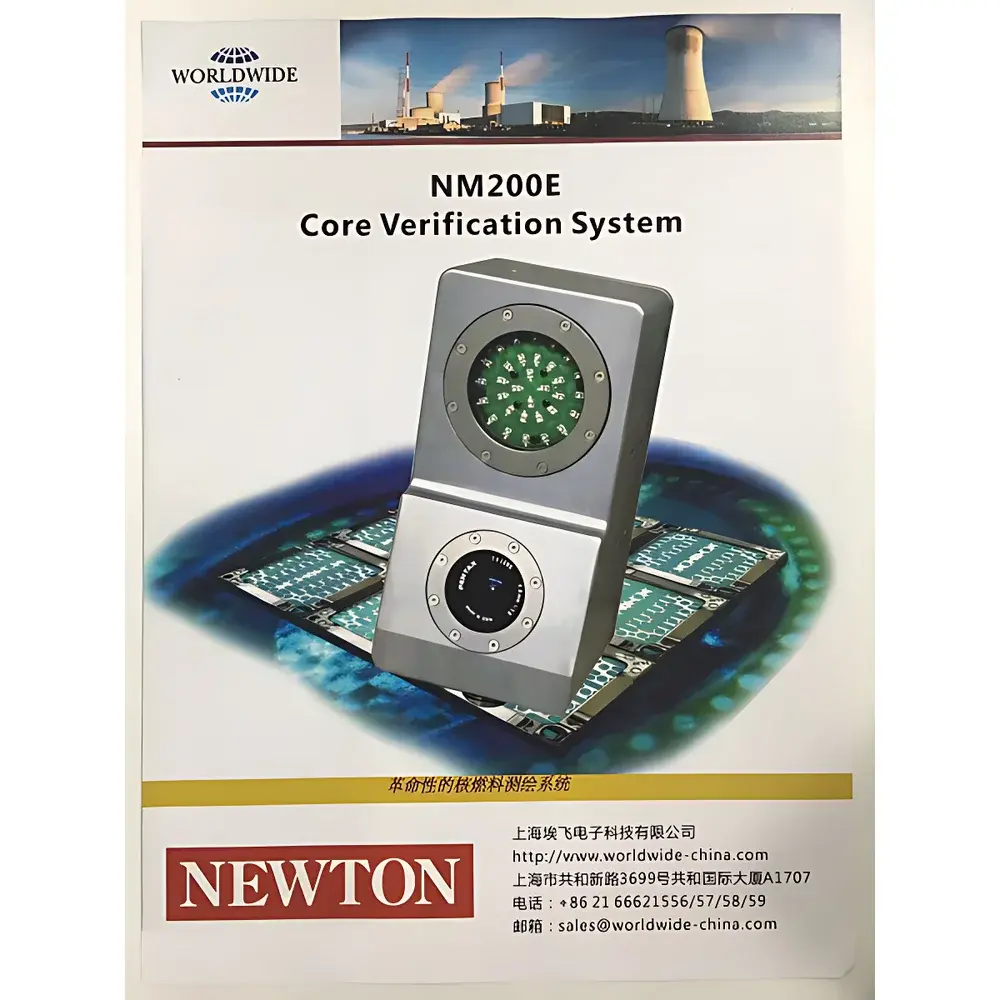

Newton NM200E Nuclear Reactor Core Mapping System
| Brand | Newton |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | NM200E |
| Pricing | Available Upon Request |
Overview
The Newton NM200E Nuclear Reactor Core Mapping System is a purpose-built, radiation-hardened underwater 3D laser scanning platform engineered for high-fidelity geometric characterization of nuclear reactor cores during refueling outages and in-service inspections. Operating on the principle of time-of-flight (ToF) and phase-shift laser triangulation, the NM200E delivers sub-10 µm point-cloud resolution under pressurized water reactor (PWR) and boiling water reactor (BWR) spent fuel pool conditions. Unlike conventional eddy current or ultrasonic inspection tools—whose axial resolution is typically limited to ≥0.1 mm—the NM200E achieves a certified spatial accuracy of ±0.01 mm (10 µm) at standoff distances up to 1.2 m in turbid aqueous environments. This enables deterministic quantification of fuel assembly bow, grid plate deformation, control rod drive mechanism (CRDM) nozzle alignment, and spacer grid integrity without physical contact or radiographic exposure.
Key Features
- Radiation-tolerant optomechanical architecture rated for cumulative doses exceeding 10 kGy (Si) with active thermal stabilization to maintain laser diode wavelength stability in 30–55 °C pool water
- Integrated inertial measurement unit (IMU) and optical encoder feedback for real-time pose correction during robotic articulation, eliminating drift-induced mapping artifacts
- Modular sensor payload interface supporting simultaneous co-registration of laser scan data with high-frequency ultrasonic thickness gauging (5–15 MHz) and pancake-type eddy current array probes
- Submersible manipulator arm with 6 degrees of freedom (DOF), IP68-rated hydraulic actuators, and fail-safe torque-limiting joints compliant with ASME B&PV Code Section III, Division 1
- Onboard edge processing unit running deterministic Linux RT kernel, enabling real-time point-cloud decimation, noise filtering (statistical outlier removal + bilateral smoothing), and geo-referenced stitching
Sample Compatibility & Compliance
The NM200E is validated for deployment across standard Westinghouse 17×17, Framatome AFA 3G, and GE14/15 fuel assemblies, including MOX and accident-tolerant fuel (ATF) configurations. All wetted components meet ASTM B117 salt-spray resistance requirements and are constructed from UNS N06625 (Inconel 625) and radiation-resistant fused silica optics. The system conforms to IEC 61508 SIL-2 for safety-related functions and supports full traceability per 10 CFR 50 Appendix B and ISO 19443 for nuclear quality assurance. Data acquisition workflows satisfy FDA 21 CFR Part 11 electronic record/electronic signature requirements when paired with Newton’s validated CoreMap™ software suite.
Software & Data Management
CoreMap™ v4.2 serves as the certified analysis and reporting engine for the NM200E, featuring ASTM E2919-compliant deviation analysis against CAD reference models, automated s-hole (spider hole) location detection with ±0.05 mm positional repeatability, and ASME Y14.5 GD&T overlay visualization. Raw scan data is stored in vendor-neutral HDF5 format with embedded metadata (timestamp, dose accumulation, water temperature, pressure). Audit trails include user login events, parameter change logs, and cryptographic hash verification of all processed datasets. Export modules support AP1000 and EPR design basis documentation templates, including EPRI TR-102345 structural integrity assessment reports.
Applications
- Full-core geometric baseline establishment prior to first fuel cycle (pre-operational survey)
- Post-irradiation dimensional change monitoring of fuel assemblies, guide tubes, and lower core plates
- Verification of CRDM nozzle verticality and concentricity following seismic qualification testing
- Reverse engineering of degraded or undocumented legacy components for digital twin reconstruction
- Supporting NRC License Amendment Requests (LARs) requiring quantitative evidence of core geometry stability under extended burnup conditions
FAQ
Is the NM200E compatible with existing fuel handling cranes and spent fuel pool infrastructure?
Yes—the system integrates via standardized ANSI/ANS-51.1 mounting interfaces and operates within crane load capacity limits (≤1,200 kg total deployed mass).
Does the system require offline calibration between scans?
No—autonomous in-situ calibration using submerged ceramic reference spheres (certified traceable to NIST SRM 2191) is performed before each mapping sequence.
Can CoreMap™ generate reports acceptable for regulatory submittal to the U.S. NRC or IAEA?
Yes—all report templates are pre-validated against NUREG-1801 Rev. 2 and IAEA Safety Standards Series No. SSG-30 requirements for digital inspection records.
What is the typical turnaround time from data acquisition to final signed report?
For a full PWR core (157 assemblies), raw-to-report workflow averages 8.5 hours using dual-Xeon E5-2699 v4 nodes with GPU-accelerated mesh generation.
How is radiation damage to optical components mitigated over long-term deployment?
All lenses employ cerium-doped fused silica substrates; laser diodes feature radiation-hardened epitaxial layers and redundant thermal derating protocols per MIL-STD-883H Method 1019.
