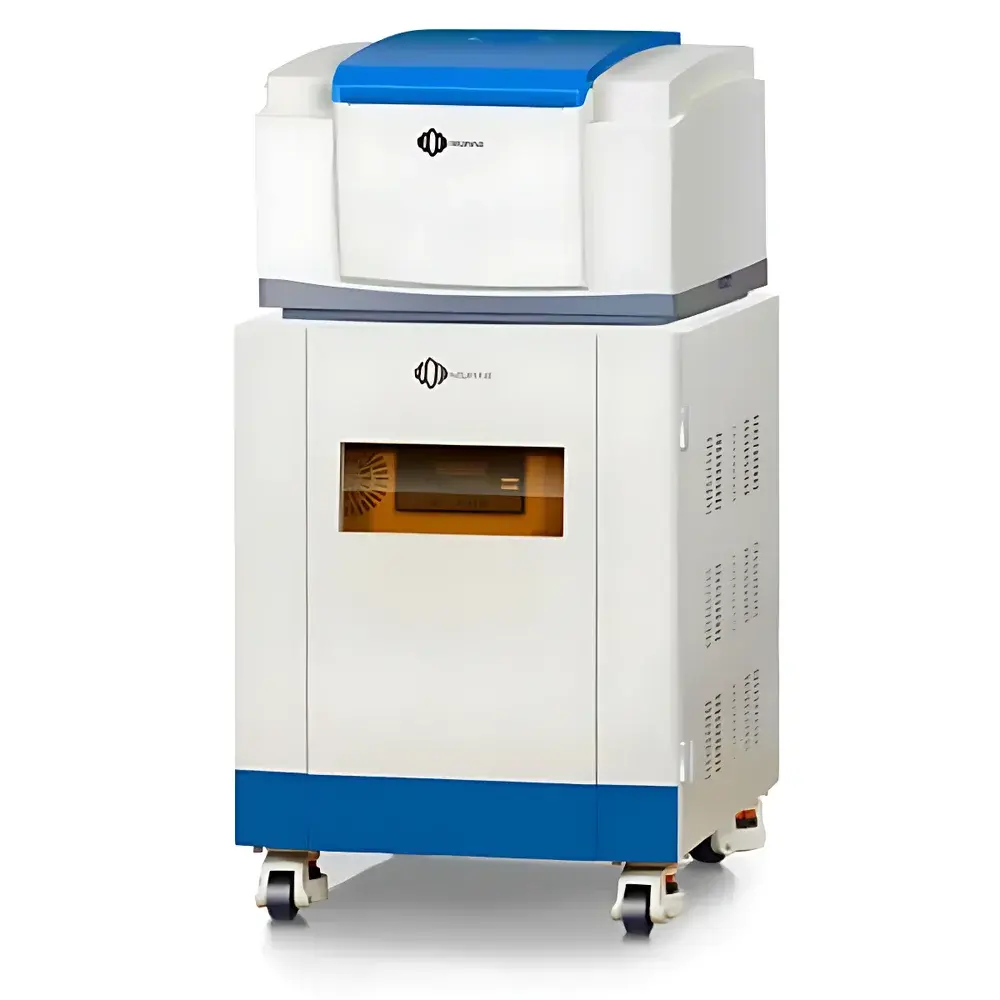

NIUMAG PQ001 Powder Wettability Analyzer

Overview

The NIUMAG PQ001 Powder Wettability Analyzer is a dedicated benchtop instrument engineered for quantitative assessment of solid–liquid interfacial interactions in particulate systems. It operates on the principle of dynamic suspension rheology combined with real-time dielectric spectroscopy and controlled solvent displacement, enabling non-invasive, label-free evaluation of wettability through time-resolved changes in suspension conductivity, viscosity, and dielectric loss tangent. Unlike contact-angle-based methods limited to flat substrates, the PQ001 measures bulk particle–medium affinity under representative processing conditions—particularly critical for wet-milled slurries, high-solids dispersions, and functionalized nanomaterials where surface chemistry governs colloidal stability and formulation performance. Its design targets R&D laboratories and QC departments requiring reproducible, operator-independent metrics for powder surface energetics across diverse liquid media.

Key Features

• Integrated dual-mode measurement: Simultaneous monitoring of electrical conductivity and low-frequency dielectric response (10 Hz–1 MHz) during programmed solvent titration or immersion protocols
• Modular sample chamber with temperature-controlled jacket (±0.1 °C) and inert-gas purge capability for oxygen/moisture-sensitive systems
• Automated dispersion protocol with programmable shear history (0–500 rpm impeller speed) to standardize initial particle deagglomeration
• Calibration traceable to NIST-traceable reference powders (SiO₂, Al₂O₃, TiO₂) and certified solvents (n-hexane, PDMS, ethanol, IPA)
• Rugged aluminum alloy chassis with ESD-safe enclosure and CE/IEC 61010-1 compliance for laboratory safety

Sample Compatibility & Compliance

The PQ001 accommodates dry powders (0.1–100 µm median size), pre-dispersed slurries (1–60 vol% solids), and functionalized nanoparticles—including metal oxides (ZnO, CeO₂), carbon allotropes (CNTs, graphene oxide), pharmaceutical actives (APIs), and CMP abrasives. Sample volume range: 2–20 mL suspension; minimum mass: 10 mg. The system complies with ISO 13320:2020 (particle size analysis by laser diffraction), ASTM D7824-19 (wettability of carbon blacks), and supports GLP/GMP documentation workflows via audit-trail-enabled software. All data files include embedded metadata per FDA 21 CFR Part 11 requirements (user ID, timestamp, instrument serial, calibration status).

Software & Data Management

NIUMAG WettaSoft v3.2 provides intuitive workflow-driven operation: “Wettability Profiling”, “Solvent Affinity Ranking”, and “Surface Modification Efficacy” modules. Raw signals are processed using proprietary algorithms that extract the Wetting Half-Time (t₁/₂), Maximum Conductivity Slope (dσ/dt)ₘₐₓ, and Dielectric Hysteresis Index (DHI)—quantitative indices correlating directly with surface energy heterogeneity and coating uniformity. Export formats include CSV, HDF5, and PDF reports with embedded spectral overlays and statistical summaries (n ≥ 3 replicates). Data integrity is ensured via encrypted local storage, role-based user permissions, and optional network backup to NAS or LIMS integration via RESTful API.

Applications

• Ceramics: Optimization of aqueous/non-aqueous slip casting formulations; quantification of dispersant efficacy in alumina/zirconia suspensions
• Nanotechnology: Mapping ligand desorption kinetics from silica nanoparticles upon solvent switching; detecting monolayer coverage defects in silane-grafted ZnO
• Electronics: Stability assessment of Cu/CeO₂ CMP slurries under pH and ionic strength gradients; ranking surfactant performance in Ag nanoparticle inks
• Inkjet & Coatings: Correlating pigment wettability (carbon black, phthalocyanine blue) with jetting reliability and film uniformity
• Energy Materials: Evaluating binder–carbon black interfacial adhesion in Li-ion cathode slurries; screening electrolyte-wetting kinetics on Si anode powders
• Pharmaceuticals: Discriminating polymorph-specific moisture uptake rates in crystalline APIs; validating surface silanization of lactose carriers for DPI formulations

FAQ

What physical parameters does the PQ001 directly measure?
It records real-time electrical conductivity (S/m), complex permittivity (ε′, ε″), and torque-derived apparent viscosity during controlled immersion or titration—no optical or mechanical contact with particles is required.
Can the PQ001 distinguish between chemisorption and physisorption of surfactants?
Yes—via comparative kinetic modeling of t₁/₂ shifts across solvent families (e.g., aliphatic vs. aromatic hydrocarbons) and Arrhenius analysis of temperature-dependent wettability profiles.
Is method validation support available for regulatory submissions?
NIUMAG provides IQ/OQ documentation templates, system suitability test protocols, and raw-data archiving guidance aligned with ICH Q5C and USP <1059> for excipient characterization.
How does the PQ001 handle highly viscous or thixotropic slurries?
The instrument employs a dual-sensor approach: low-shear conductivity probes avoid flow disruption, while intermittent impeller pulsing (5 s ON / 30 s OFF) enables structural recovery assessment without altering baseline dispersion state.
Does it require reference standards for every new material class?
No—calibration uses universal solvent references; material-specific interpretation relies on relative ranking against internal control batches, minimizing consumable dependency.
